7" Lumenier 1000cd/m² Panel FPV Monitor W/ 5.8GHz 39CH Diversity Rx, Battery, DVR
Original price was: $279.99.$98.99Current price is: $98.99.
- Nature-friendly materials, for a better planet.
- SSL encryption, absolutely safe shopping
- Expertly Sourced, Quality Guaranteed
- Shop with Peace of Mind

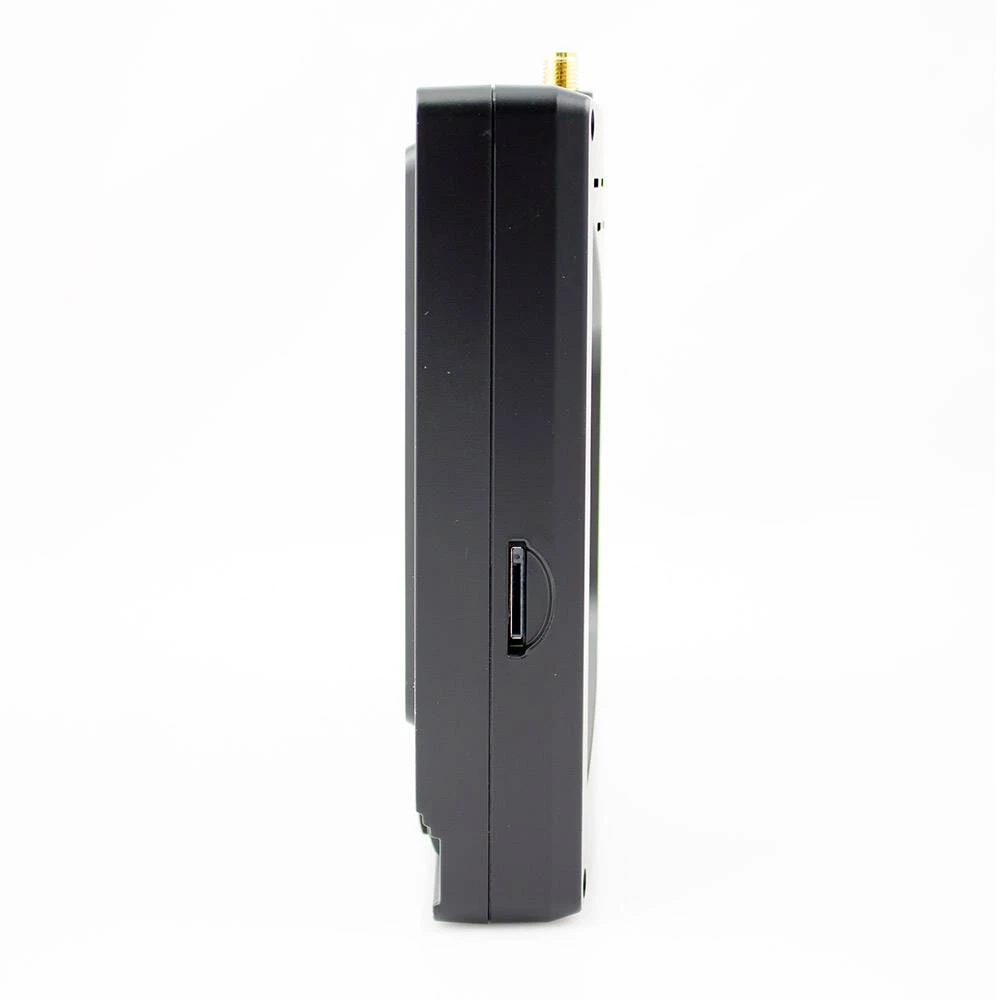

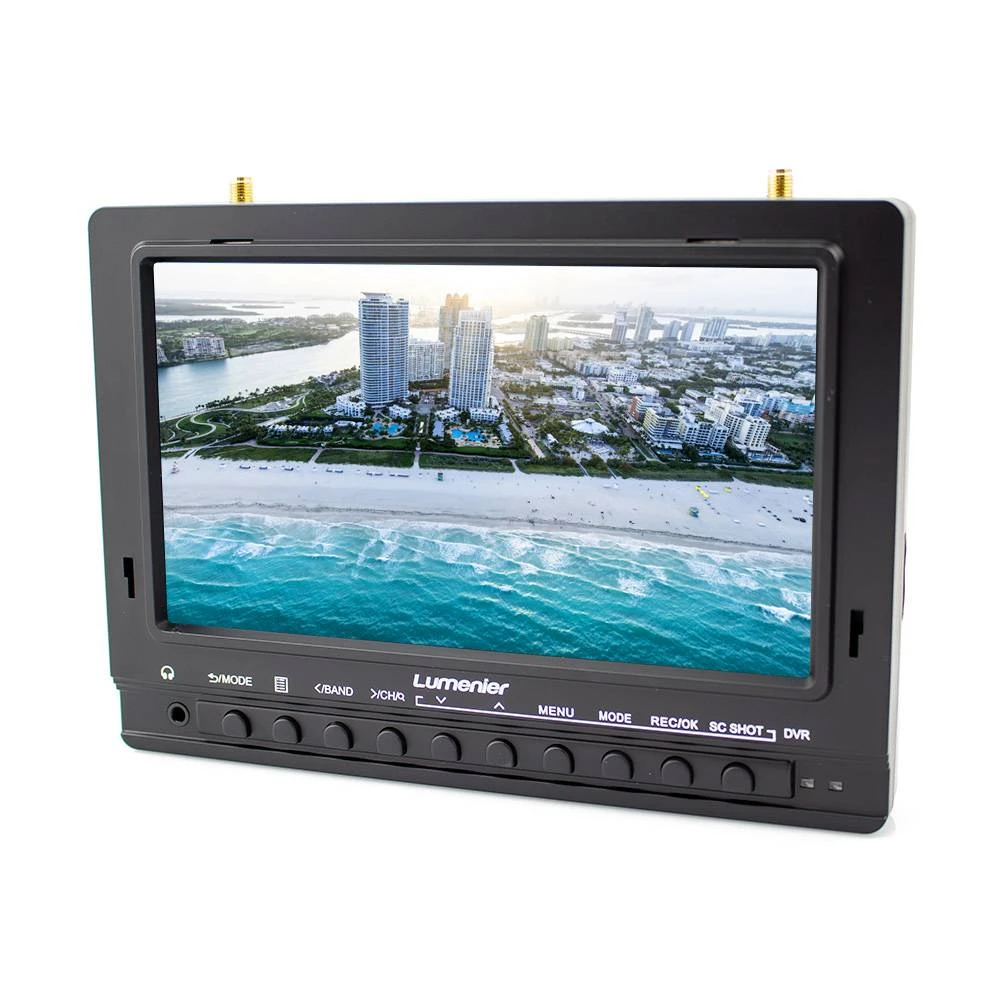

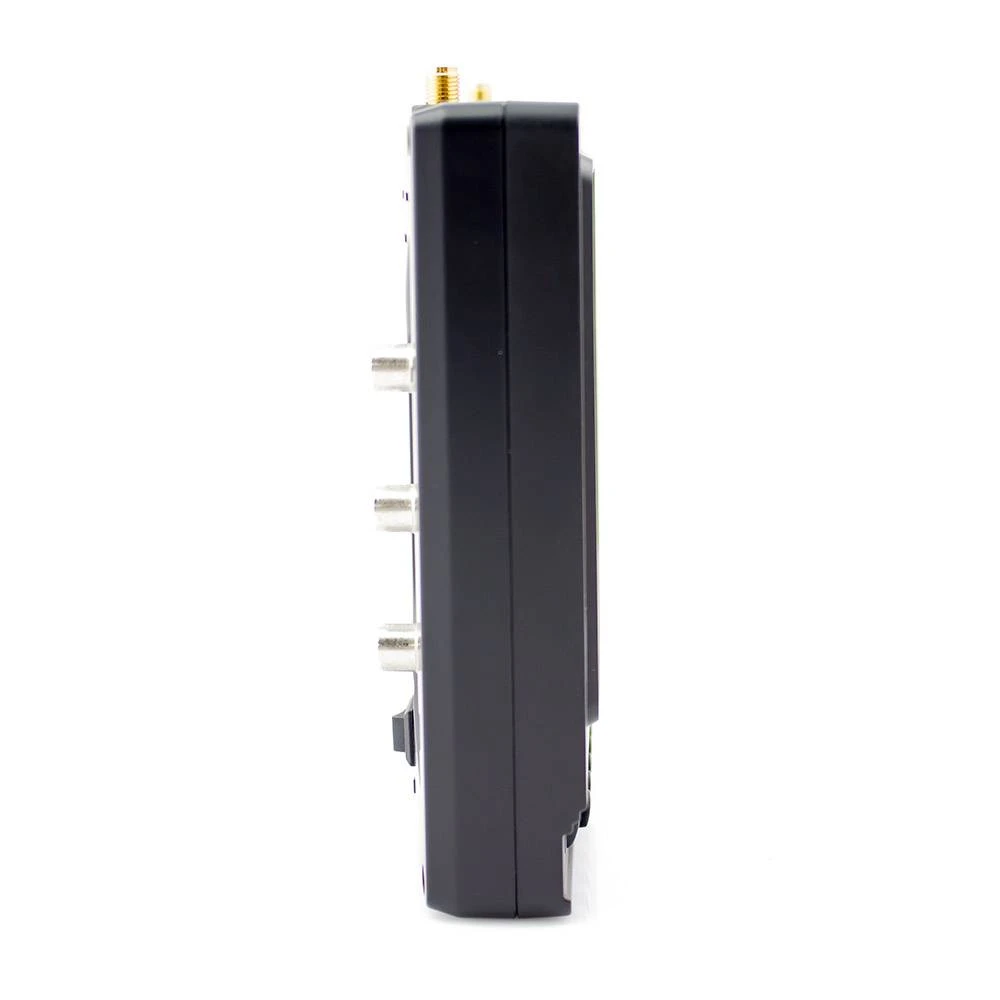

This 7″ FPV monitor is a medium sized 7″ screen with a super bright LCD and 5.8GHz 39CH diversity receiver, built in rechargeable battery. Excellent choice for your primary FPV monitor, or as a secondary backup screen for your friends to watch. The 1000cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV ground station compact and easy to use. This monitor will not go to a blue or black screen when video signal is lost, instead it will go to static. This monitor also comes equipped with raceband frequencies listed in the image below.
Specifications
- Image: High Brightness 7″ TFT LCD
- Dual 39 channel 5.8GHz diversity receiver (SMA)
- Access the Auto RF Search feature by holding the “CH” button for 2 seconds
- Resolution: 800×480
- Built in rechargable battery (2200mAh 2s 7.4v LiPo)
- Horizontal frequency range: 30-60KHz
- Field frequency range: 60-75Hz
- Display Ratio: 16:9
- Brightness: 1000cd/m²
- Backlight: LED
- Viewing Angle: 70°/70°(L/R) 50°/70°U/D
- Contrast Ratio: 500:1
- Response time: 10ms
- Input Voltage: DC 9-19V (2s-4s compatible)
- Speaker built in, 1W
- Power Consumption: ≦13W
- Input Singal: RCA video and audio, HDMI, RF
- HDMI Mode 480i /480p /576i /576p,720p /1080i /1080p (50/60Hz)
- NTSC/PAL Manually Selectable in Menu
- Size: 188mm x 134mm x 33mm
- Weight: 540g with battery
- Mounting: Standard 1/4″-20 tripod
Includes
- 7″ Slim LCD Monitor with 5.8GHz 39CH diversity receiver.
- Built in rechargable battery (2200mAh 2s 7.4v LiPo)

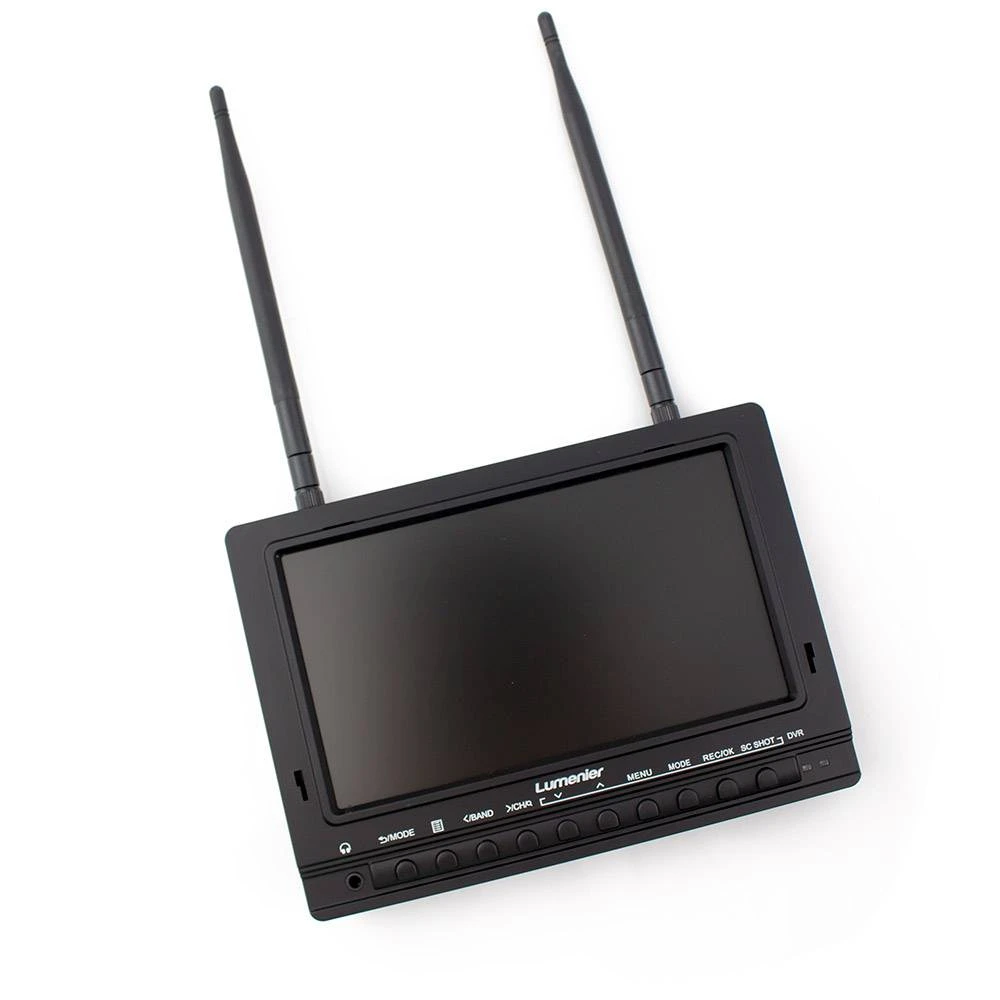

- 2x 5.8GHz antennas (2 whip)

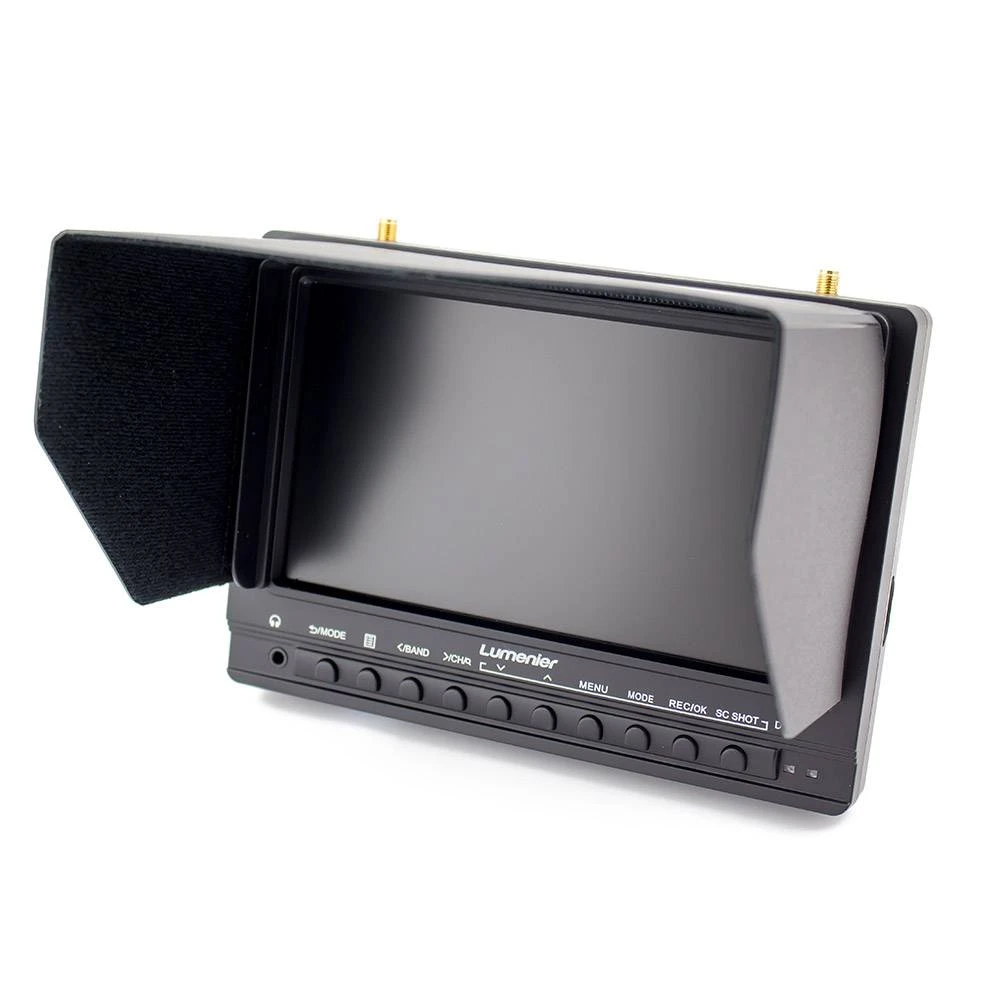

- Removable plastic pop-up Sun Shield
- AC/DC wall charger
- Manual

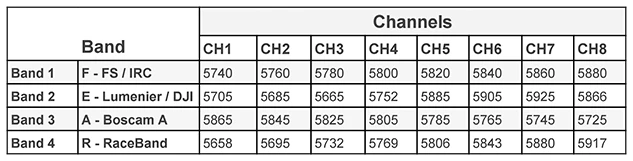

Band |
Frequancy (MHz) |
|||||||
| Ch1 | Ch2 | Ch3 | Ch4 | Ch5 | Ch6 | Ch7 | Ch8 | |
| IRC / Fat Shark | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| IRC RaceBand | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| SKU | 3065 |
|---|---|
| UPC (GTIN) | 652118489651 |
| Manufacturer | Lumenier |
| Item Returns | This item can be returned |
