7" Lumenier LCD FPV Monitor With 5.8GHz 32CH Diversity Rx, DVR, Battery

This FPV monitor is a medium sized 7″ screen with a super bright LCD and 5.8GHz 32CH diversity receiver, DVR and built in rechargeable battery. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 500cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The built in DVR makes it easy to record your flights with a touch of a button, and the integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. Easily watch back your recorded DVR footage straight from the monitor.

This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don’t want your screen to go blank when the video signal is weak.

Note: Both the monitor and the DVR menu have separate PAL/NTSC settings. Be sure to set both of these to the same (either PAL or NTSC) to match. This can be set via the monitor menu and the DVR menu settings.

Specifications

• Image: 7″ TFT LCD

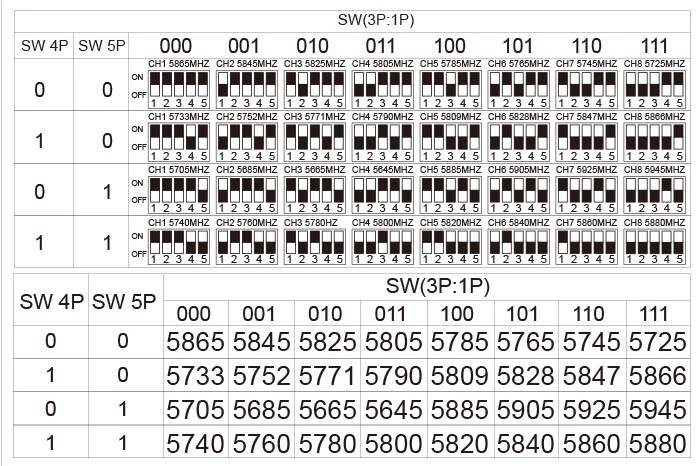

• Dual 32 channel 5.8GHz diversity receiver (SMA)

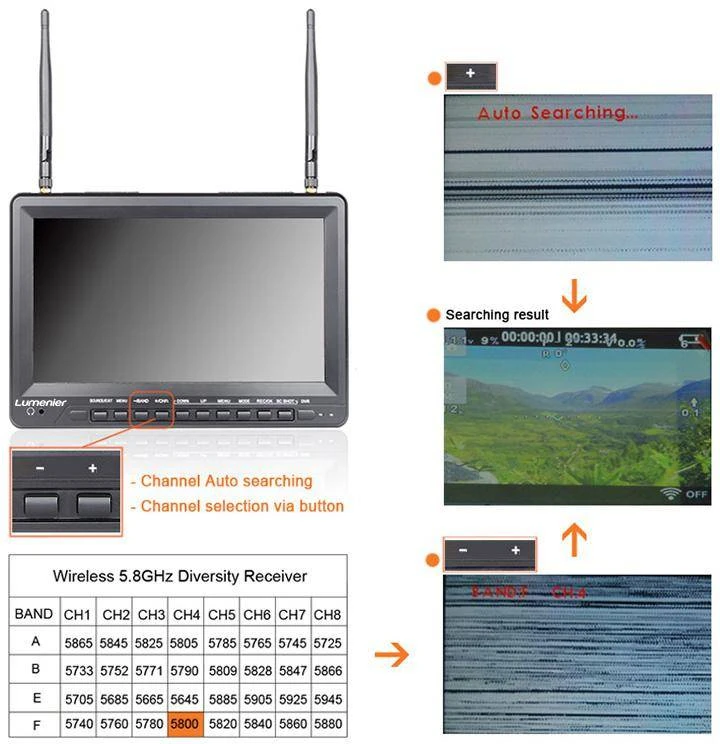

• Access the Auto RF Search feature by holding the “+” button for 2 seconds
• Resolution: 1024×600
• Built in DVR
• Built in rechargable battery (2200mAh 2s 7.4v LiPo)
• Horizontal frequency range: 30-60KHz
• Field frequency range: 60-75Hz
• Display Ratio: 16:9
• Brightness: up to 500cd/m²
• Viewing Angle: 75°/75°(L/R) 70°/75°U/D
• Contrast Ratio: 700:1
• Response time: 10ms
• Input Voltage: DC 8-18V (2s-4s compatible)
• Speaker built in, 1W
• Power Consumption: ≦9W
• Input Singal:  RCA video and audio, HDMI
• NTSC/PAL Manually Selectable in Menu
• Size: 188 x 134W x 29.2H mm
• Weight: 500g with battery
• Mounting: Standard 1/4-20 tripod and VESA mounts

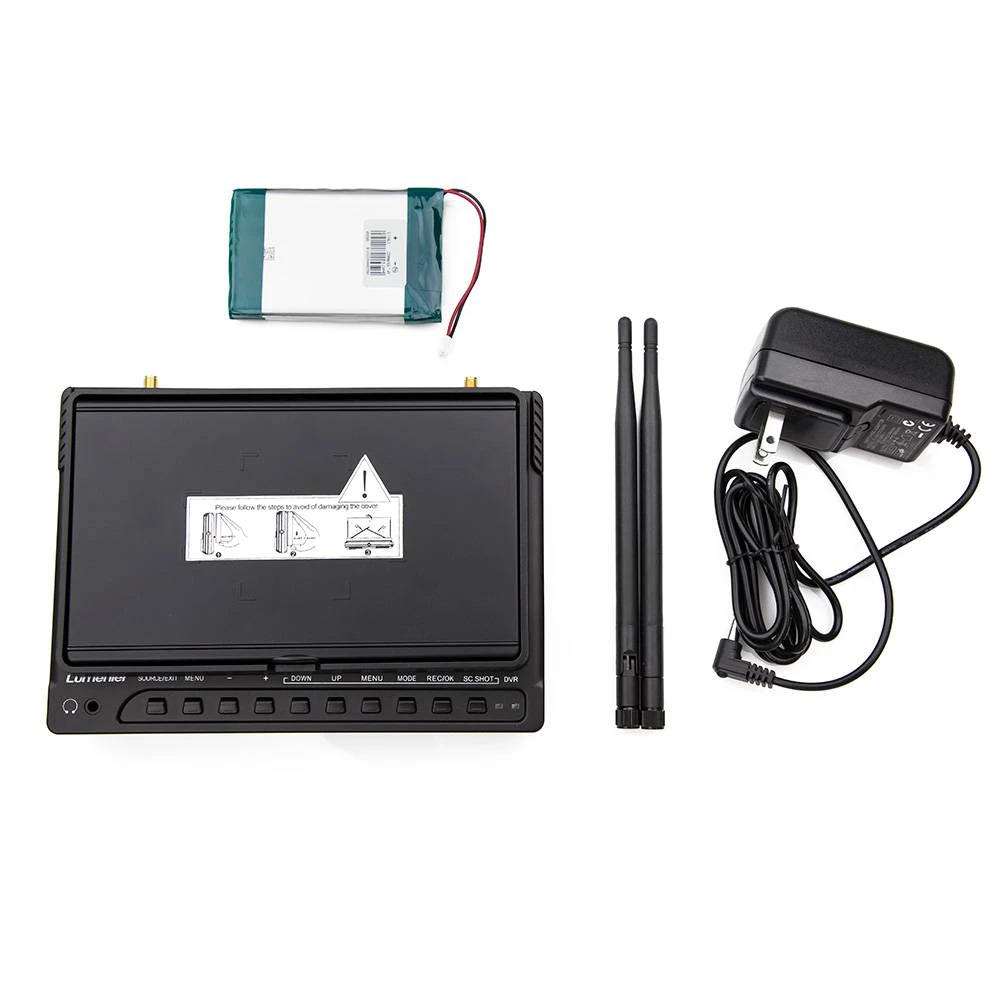

Includes

• 7″ LCD Monitor with 5.8GHz 32CH diversity receiver.
• Built in DVR
• Built in rechargable battery (2200mAh 2s 7.4v LiPo)
• 2x 5.8GHz antennas

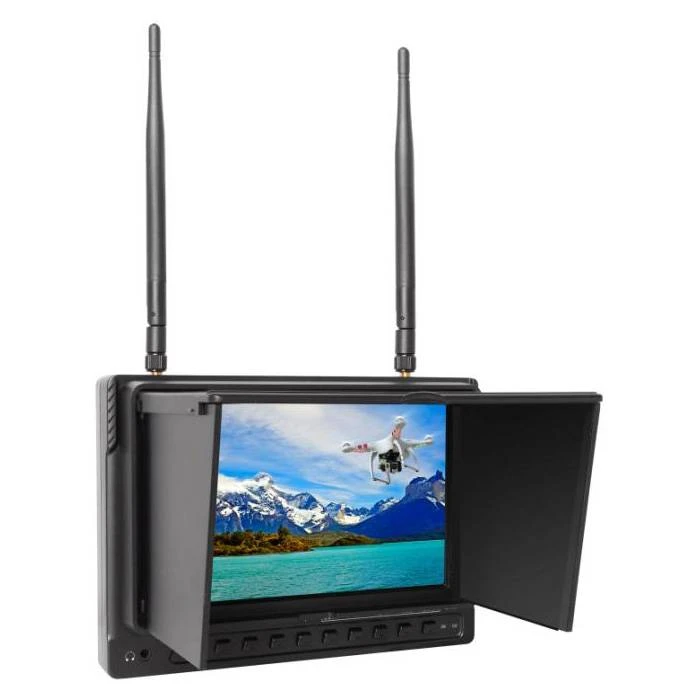

• Removable plastic pop-up Sun Shield
• AC/DC wall charger
• Manual
