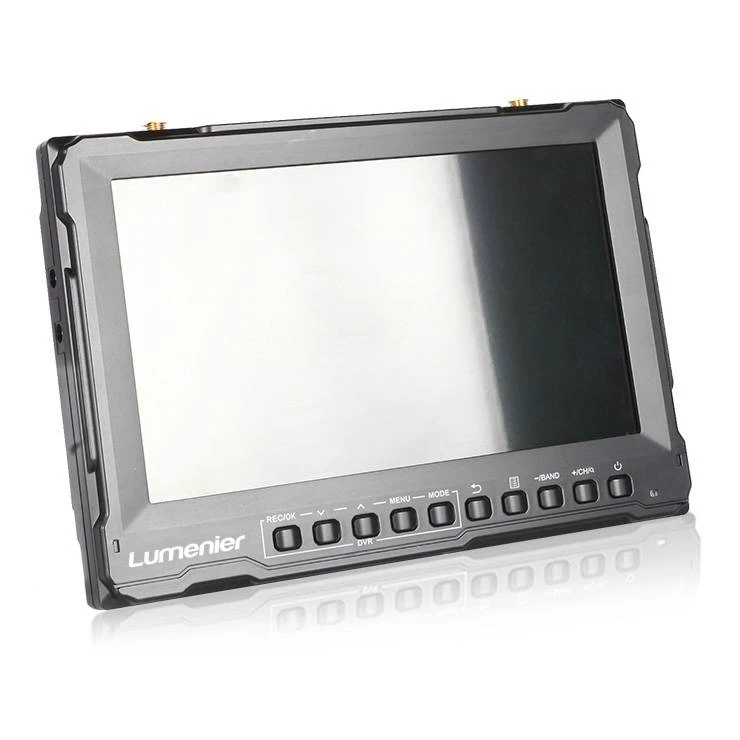

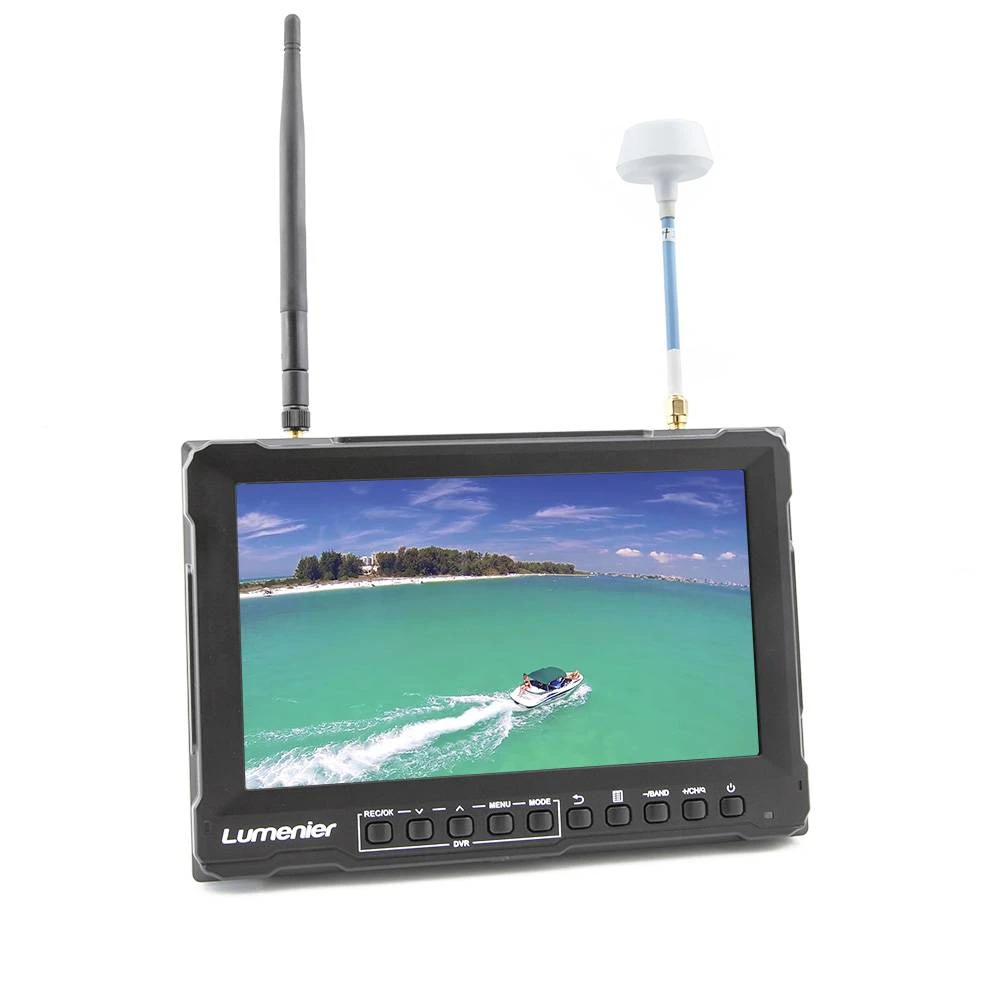

8" Lumenier Slim FPV Monitor W/ 5.8GHz 32CH Diversity Rx, DVR & HDMI
Original price was: $279.99.$97.99Current price is: $97.99.
- Nature-friendly materials, for a better planet.
- SSL encryption, absolutely safe shopping
- Expertly Sourced, Quality Guaranteed
- Shop with Peace of Mind

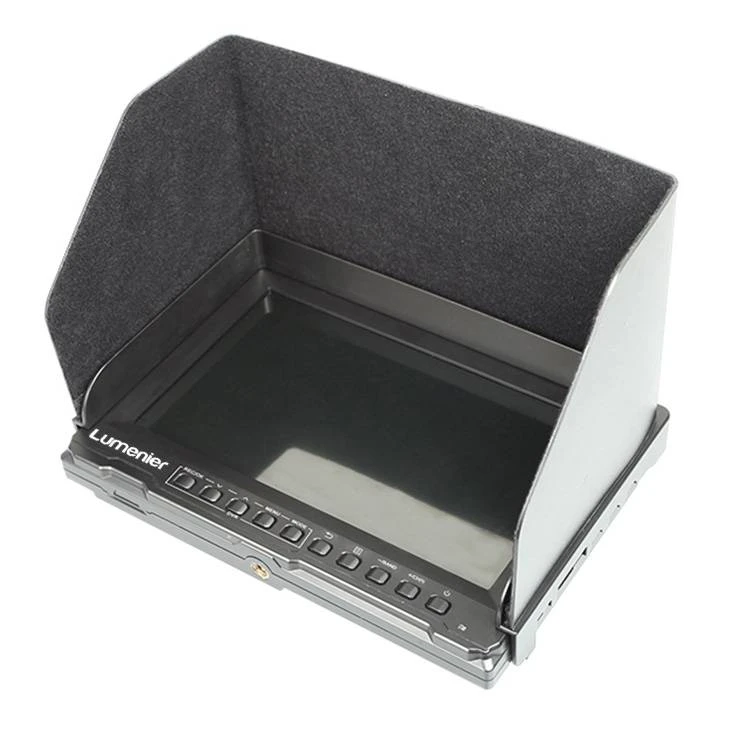

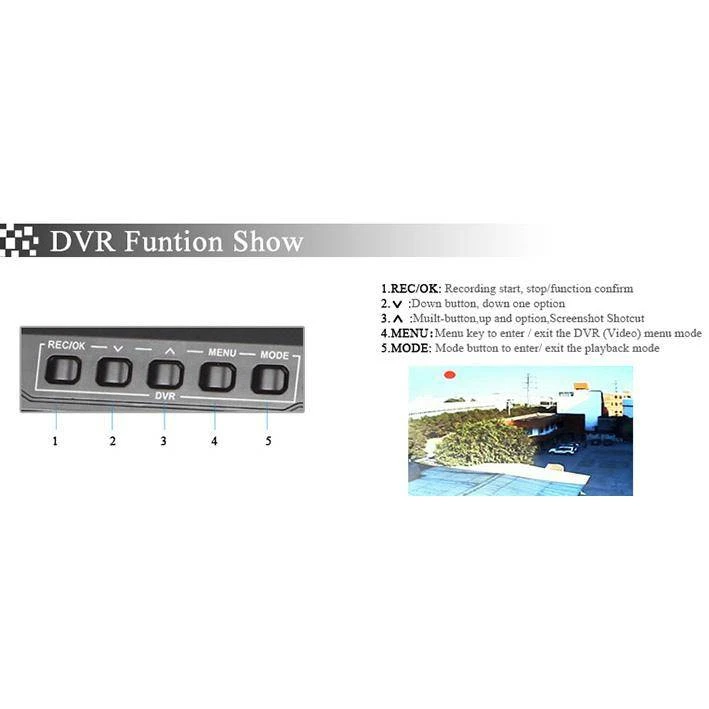

This FPV monitor has a medium sized 8″ slim and super bright LCD screen with a 5.8GHz 32CH diversity receiver and a built-in DVR. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 450cd/m² LED backlit screen is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. Record footage directly on the unit with the built in DVR via a micro SD card. (sold separately)
This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don’t want your screen to go blank.
Specifications
| Lumenier 8″ Slim with DVR | Specification | |||||||
| LCD | Description | 8″ HD FPV Monitor with 32CH wireless 5.8GHZ AV receiver | ||||||
| Resolution | 800X480 pixels (max to1920×1440) | |||||||
| Dot pitch | 0.0736(W) X 0.2070(H) mm | |||||||
| Aspect ratio | 16:9 | |||||||
| Brightness | 450cd/m² | |||||||
| Contrast | 500:1 | |||||||
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | |||||||
| Backlight | LED | |||||||
| Support Formats | HDMI Support Mode | 480i /480p /576i /576p | ||||||
| 720p /1080i /1080p (50/60Hz) | ||||||||
| Support video format | PAL-4.43/NTSC-3.58 | |||||||

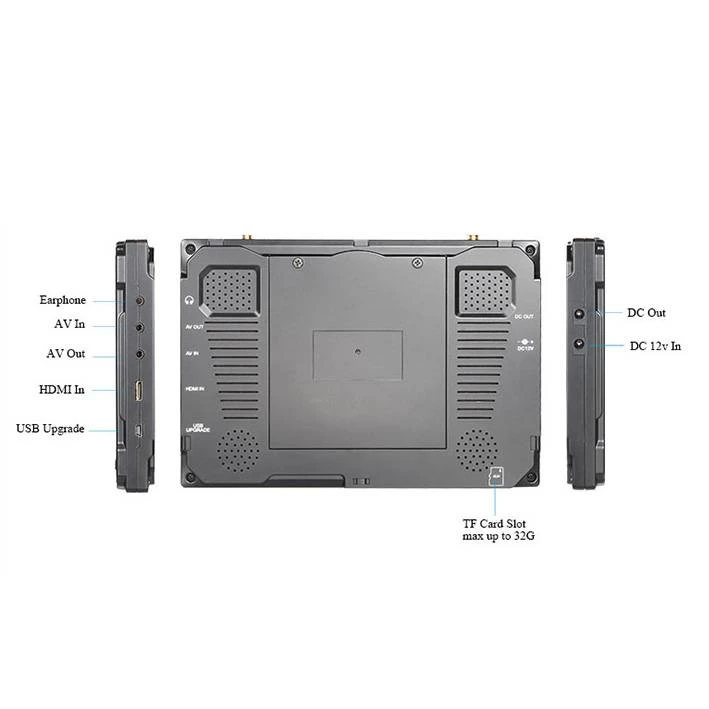

| Input | Mini HDMI | 1 | ||||||
| AV | 1 | |||||||
| RF | 1 | |||||||
| Output | AV | 1 | ||||||
| Audio | Speaker | 1 | ||||||
| Ear Phone Slot | 1 | |||||||
| Power | ||||||||
| Power Consumption | ≤13W | |||||||
| Input Voltage | 9-18V | |||||||
| Environment | Working Temperature | -20℃～50℃ | ||||||
| Storage Temperature | -30℃～65℃ | |||||||
| Install Way | “1/4”-20 Thread mounting socket | |||||||
| Dimension | Unit Size | 212L × 144W × 22H(mm) | ||||||
| Unit Weight | 542g/626g(with battery) | |||||||
| Wireless Built-in Receiver 32 Standard Channels | ||||||||
| BAND | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Includes
- 8″ LCD Monitor with 5.8GHz 32CH diversity receiver and DVR
- 2x 5.8GHz antennas (1 Circular Polarized)

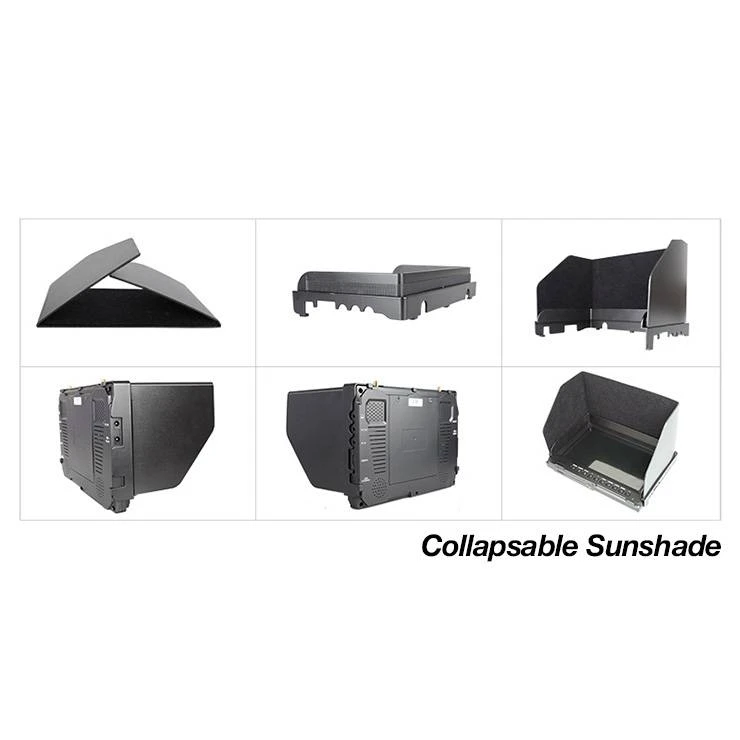

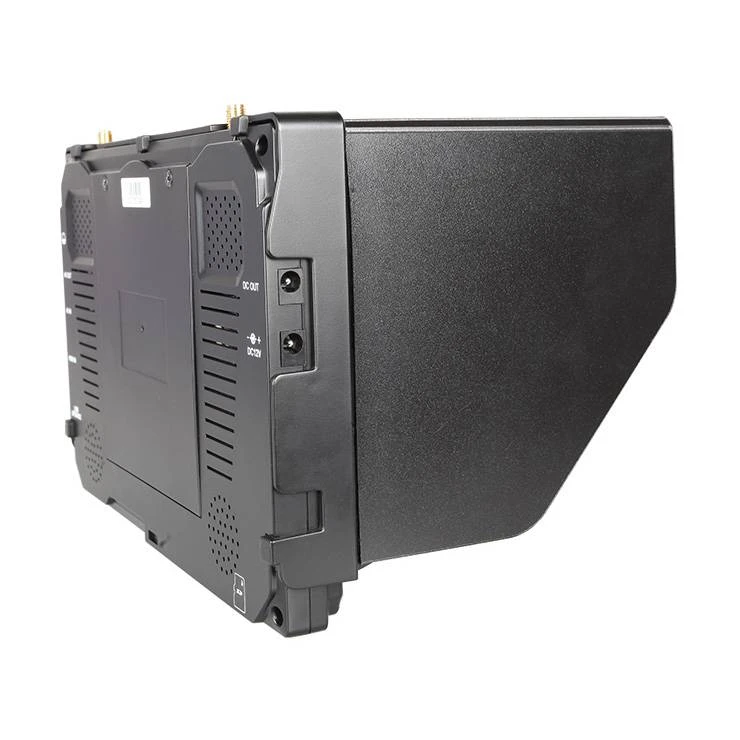

- Sun Shield
- AC battery charger
- HDMI Mini to Standard converter
- A/V Breakout Cable RCA video and audio
- Manual
| SKU | 2707 |
|---|---|
| UPC (GTIN) | 652118489644 |
| Manufacturer | Lumenier |
| Item Returns | This item can be returned |
