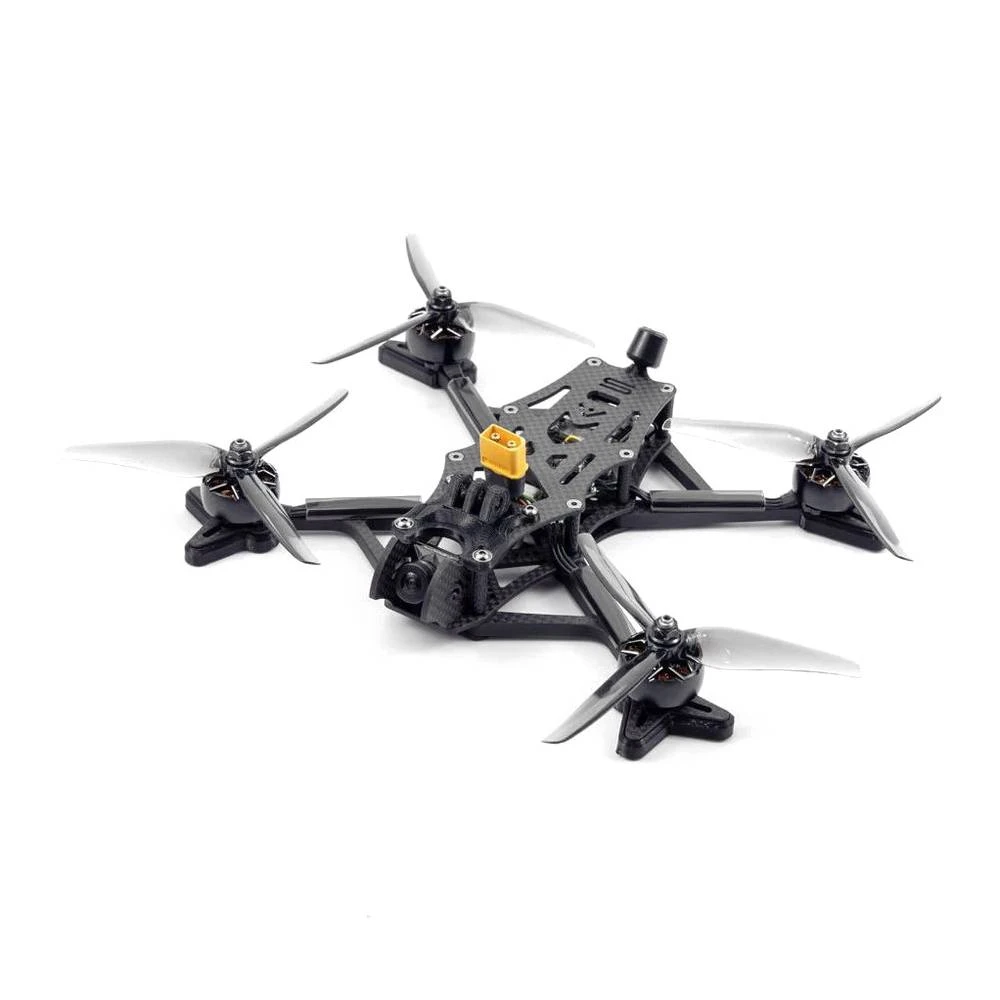

AOS 5 V2 5" HD FPV BNF Drone W/ Caddx Nebula Pro – 6S

The AOS 5 V2 is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 5 V2 allows you to run less filtering, with less associated delay, and increase your PID gains far higher than any other frame in its weight class. Get ready for the most responsive 5″ quad you have ever flown!

FROM THE PILOT

“When I set out to create a bind and fly version of the AOS 5 V2 I had the vision to combine the latest and greatest technology into the ultimate FPV freestyle machine. This is the result.”

– Chris Rosser, AOS RC

Note: (Insert any product options here in black text with options in bold.)

Example: “Choose from two KV’s: 1800KV (4S) or 2500KV (6S).”

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: The BEST OF EVERYTHING in a 5″ Bind and Fly?!?! The AOS 5 V2 BNF.

• Topology-optimized truss design arms
• Caddx Vista Nebula Pro System
• 2.5mm Top and Bottom Plates
• Optimized Camera Protection
• 32×32 GoPro Mounting
• 220mm wheelbase
• Built by iFlight
• 5″ BNF Drone
• Low Vibration
• 6mm Arms

THE FRAME

The AOS 5 V2 has been designed to deliver the ultimate freestyle flight experience. The unique arm geometry has been refined through topology optimization to deliver maximum strength and stiffness for minimum weight. The same technology is used to optimize aircraft, satellites, and race cars.

THE MOTORS

Exhilarating speed, silky smooth flight after flight. iFlight’s XING2 2207 motors provide power and durability with a 7075 Aluminium unibell design, 5mm titanium shaft, Japanese NSK bearings, N52H center slotted arc magnets, and an integrated o-ring for bearing protection.

THE ELECTRONICS

Blazing fast with less filter delay for a more locked-in flight feel. The F7 flight controller takes maximum advantage of the vibration performance of the frame with a custom filter tune to reduce latency and improve prop wash handling. With OSR4 mode enabled in BF4.3, the BMI270 gyro delivers latency and noise performance that matches or exceeds that of the MPU6000. A BLHeli32 ESC smoothly delivers power to the motors and the massive 55A rating ensures the motors will have all the power they could ever need.

• Receiver: Choose PNP, ELRS 915MHz, ELRS 2.4GHz, or TBS Crossfire
• Stack Compatibility: Up to three 30.5, 25.5, or 20 mm stacks
• VTX/Camera System: Caddx Vista Nebula Pro
• Prop Size: Designed for up to 5.1-inch props
• Weight: ​Approx 115g with all hardware
• GoPro Mounting Holes: 32x32mm
• FC: iFlight BLITZ Mini F7 V1.1
• Motors: iFlight’s XING2 2207
• Propellers: iFlight Nazgul F5
• ESC: iFlight BLITZ Mini E55
• Plate Thickness: 2.5mm
• Arm Thickness: 6mm
• Wheelbase: 220mm
• Connector: XT60

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won’t need to set up another receiver. If you don’t have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

• Lumenier N2O Feather-Lite 1300mAh 6S 150c LiPo Battery (XT-60) – 3 Pack Bundle
• Lumenier N2O Feather-Lite 1550mAh 6S 150c LiPo Battery (XT-60) – 3 Pack Bundle

•   (Insert links such as manuals, firmware, etc)

• 1x AOS 5 V2 5″ HD FPV BNF Drone w/ Caddx Nebula Pro – 6S
• 1x Albatross LHCP 5.8GHz SMA FPV Antenna 75mm
• 1x iFlight Lipo Strap 20*250mm (Black)
• 1x iFlight Lipo Strap 15*250mm (Black)
• 2x Nazgul F5 Propeller (Set of 4) – Gray
