AOS RC O3 Freestyle FPV Frame Kit

The AOS 03 Frame Kit has been designed to deliver the ultimate freestyle flight experience. The unique arm geometry has been refined through topology optimization to deliver maximum strength and stiffness for minimum weight. The same technology is used to optimize aircraft, satellites, and race cars. The new arm geometry provides even more stiffness in key directions as well as improved durability in a front impact. The 3-screw motor mounting reduces weight and removes the motor hole that can be a stress riser for compressive failure. This version has been specially designed to house the DJI O3 Air Unit.

FROM THE PILOT

“When I set out to create a bind and fly version of the AOS 5 V2 I had the vision to combine the latest and greatest technology into the ultimate FPV freestyle machine. This is the result.”

– Chris Rosser, AOS RC

Choose a Size:

• 3.5″
• 5″
• 5.5″
• 7″

Note: This is the frame kit only. Electronics are not included.

VIDEO: New AOS frames for DJI O3

• Designed for the DJI O3 Air Unit, Caddx Vista, or HDZero Freestyle VTX
• Choose from 3.5″, 5″, 5.5″, and 7″ Arm Size
• Topology-optimized truss design arms
• Longer body than the V2 version
• 2.5mm Top and Bottom Plates
• Optimized Camera Protection
• Designed for Low Vibration
• 32×32 GoPro Mounting
• Durable Carbon Fiber
• Built by iFlight

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

AOS O3 3.5″ FRAME KIT

• One 25.5×25.5 or 20×20 mm stack in the front and one 25.5×25.5 or 20×20 mm stack in the rear OR
• Fits the  DJI O3 Air Unit, Caddx Vista, or HDZero 1W Freestyle VTX perfectly
• Fits both 20mm (DJI camera) and 19mm (Micro-sized) cameras
• Motor mounting 9×9 up to 12×12 (1404, 1505 recommended)
• One 30.5×30.5, 25.5×25.5, or 20×20 mm stack in the center
• Standoffs, frame, and motor screws included
• Designed for up to 3.5-inch props
• Approx. 50g with all hardware
• 160mm Wheelbase
• 4 mm Arms

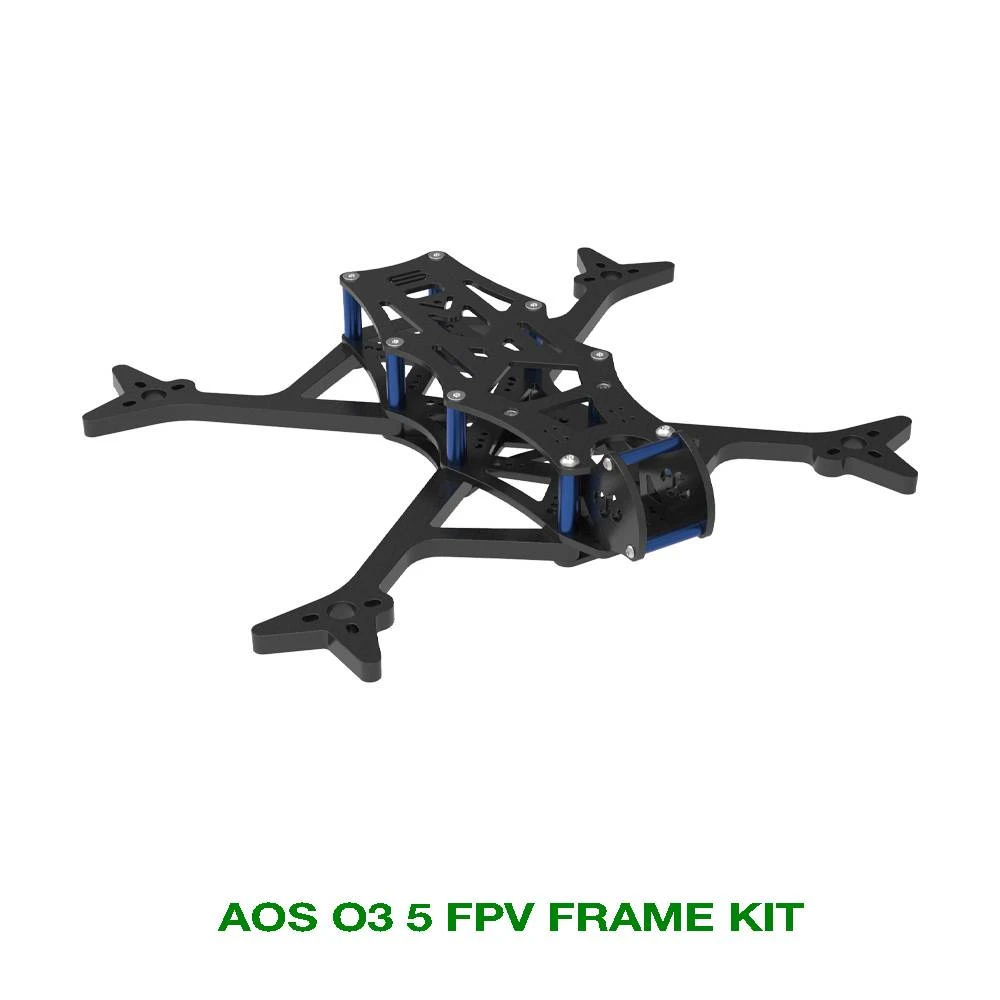

AOS O3 5″ FRAME KIT

• 32x32mm GoPro mounting holes in THE top plate with installed press nuts
• Fits the DJI O3 Air Unit (use front stack mounting) and HDZero 1W VTX
• Up to three 30.5×30.5 mm 25.5×25.5 mm or 20×20 mm stacks
• Designed for up to 5.1-inch props (no props in view)
• Fits the DJI O3 FPV camera or 19×19 mm camera
• 16×16 mm up to 19×19 mm motor mounting
• Recommended motor size:  2306, 2207
• 2mm Top Plate and Sandwich Plates
• XT60 pass through in top plate
• Two captive battery strap slots
• Approx 120g with hardware
• 2.5mm Bottom Plate
• 220mm Wheelbase
• 6 mm Arms

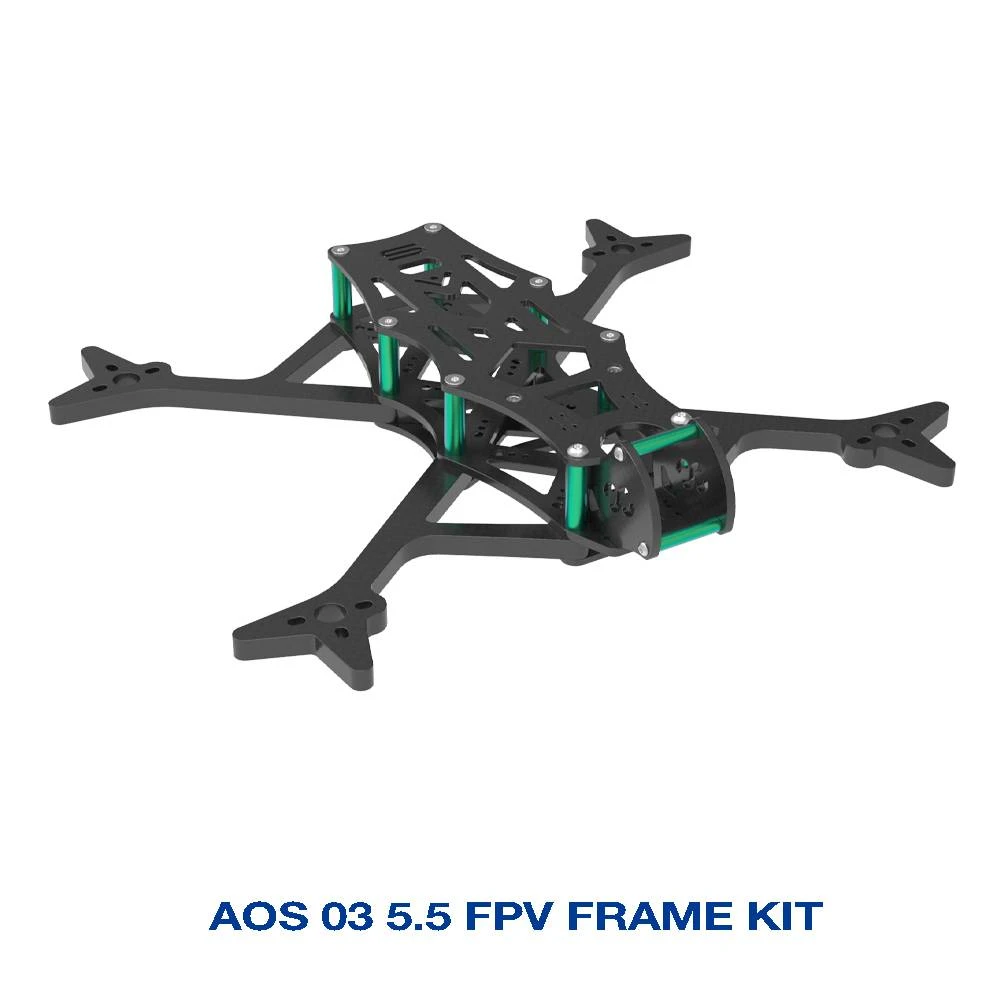

AOS O3 5.5″ FRAME KIT

• 32x32mm GoPro mounting holes in the top plate with installed press nuts
• Fits the DJI 03 Air Unit (use front stack mounting) and HDZero 1W VTX
• Up to three 30.5×30.5 mm 25.5×25.5 mm or 20×20 mm stacks
• Designed for up to 5.5-inch props (no props in view)
• Recommended motor size 2207, 2208, 25mm
• Fits the DJI FPV camera or 19×19 mm camera
• 16×16 mm up to 19×19 mm motor mounting
• 2mm Top Plate and Sandwich Plates
• XT60 pass through in top plate
• Two captive battery strap slots
• Approx 123g with hardware
• 2.5mm Bottom Plate
• 235mm Wheelbase
• 6 mm Arms

AOS O3 7″ FRAME KIT

• 32x32mm GoPro mounting holes in the top plate with installed press nuts
• Fits the DJI 03 Air Unit (use front stack mounting) and HDZero 1W VTX
• Up to three 30.5×30.5 mm or 20×20 mm stacks
• Designed for up to 7-inch props (no props in view)
• Recommended motor size 2806.5
• 16×16 mm up to 19×19 mm motor mounting
• Approx 230g with hardware
• 8 mm Arms

IMPORTANT NOTES

• Insert important warnings or notes here. Example: “Do not overheat.” or “Always use the included charger for best performance.”

• Propellers: iFlight Nazgul F5 5×3.5×3 3-Blade 5.1″ Propeller (Set of 4) (for AOS 5)
• VTX/Camera: DJI O3 Air Unit

•   (Insert links such as manuals, firmware, etc)

• 4x AOS O3 Arm (Choose Size)
• 2x AOS O3 Camera Plate
• 1x AOS O3 Bottom Plate
• 1x AOS O3 X Plate Kit
• 1x AOS O3 Top plate
• 2x iFlight LiPo Strap
• 1x Hardware Kit
• 2x Battery Pad
