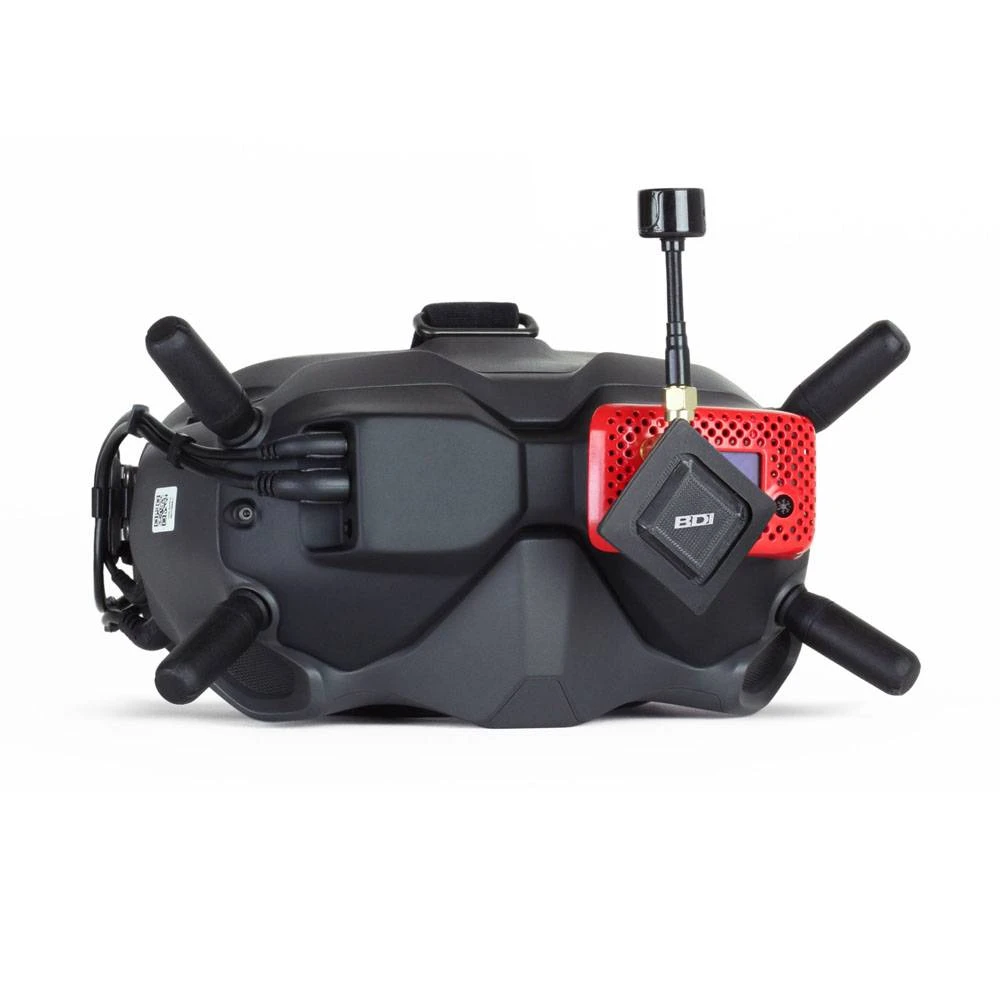

BDI Digital Adapter V2 – Analog Adapter For DJI HD FPV Goggles

Now V2 with on/off button, 6S support, and better cable management!

British Drone Industries (BDI) has designed an analog adapter for the DJI Digital HD FPV Goggles. This analog adapter is the best way to help you receive signals from your analog quadcopters. This super lightweight analog adapter fits most existing modules and takes less than a minute to mount into your goggles. The best part is this analog adapter is plug-and-play, meaning – No soldering is needed!

Compatible with existing modules

The Digidapter is compatible with existing analog modules. Featuring a standard 9 pin header for use with the TBS Fusion, Foxeer Wildfire, Rapid Fire, True D-X, Eachine Pro58, and more.

Plug & Play No Solder Solution

Installation takes less than a minute and mounts quickly and easily to the front of your DJI Digital FPV Goggles. Including Optional solder points for a cable-free solution

Video

Specification

Dimensions
158 x 74 x 40 mm (6.25 x 3 x 1.6 inches)

Weight
34g

Packaged Weight
110g

Ports

• 5.5mm x 2.1mm DC In 7.4v-26v (2s-6s)
• 4 pole 3.5mm video/audio out
• 9 pin RF module receiver header

Button
Short delay tactile power button for analog module

Cables

• 5.5mm x 2.1mm male to dual 5.5mm x 2.1mm female DC jack splitter
• 4 pole gold plated 3.5mm male to 3.5mm male video cable
• Dual 4 Pole 3.5mm male to 3 Pole 3.5mm female splitter video/audio cable

Accessories
Screwless strain relief clip and cable management clips

Maximum Input Voltage
28 Volts DC

Minimum Input Voltage
7.4 Volts DC

Nominal Output Voltage
5 Volts DC

Maximum Module Supply Current
1.0 Amp

Rated Continuous Power
5 Watts

Material/Colour
Matte black, Injection-molded, Acrylonitrile butadiene styrene (ABS)

Includes

• 1 x Digidapter V2 Faceplate
• 1 x Analog video cable
• 1 x Analog video/audio splitter for audio out
• 1 x Dual DC/DC male to single DC female split cable
• 1 x Allen key
• 2 x 12mm cap head bolts
• 1 x Cable strain relief clip
• 2 x Cable clips
