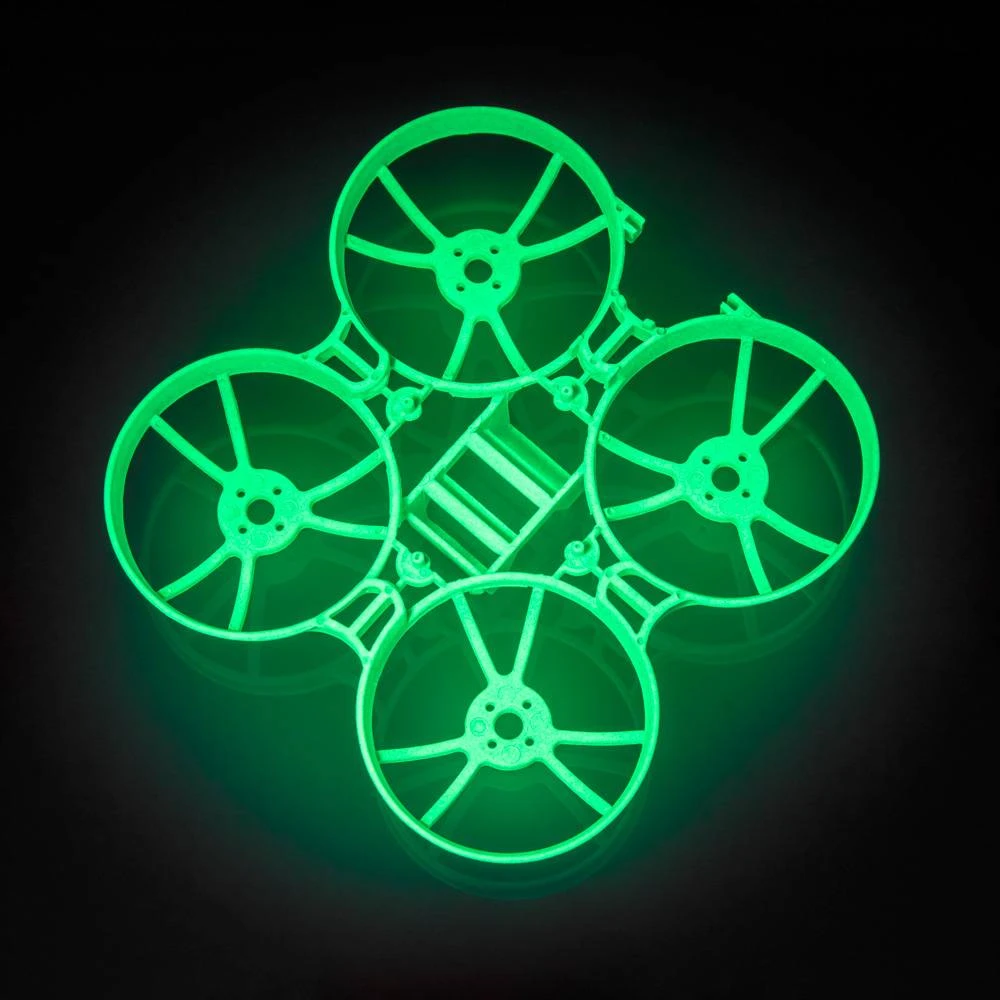

Beta75X Lumenier Edition Glow In The Dark Whoop Frame

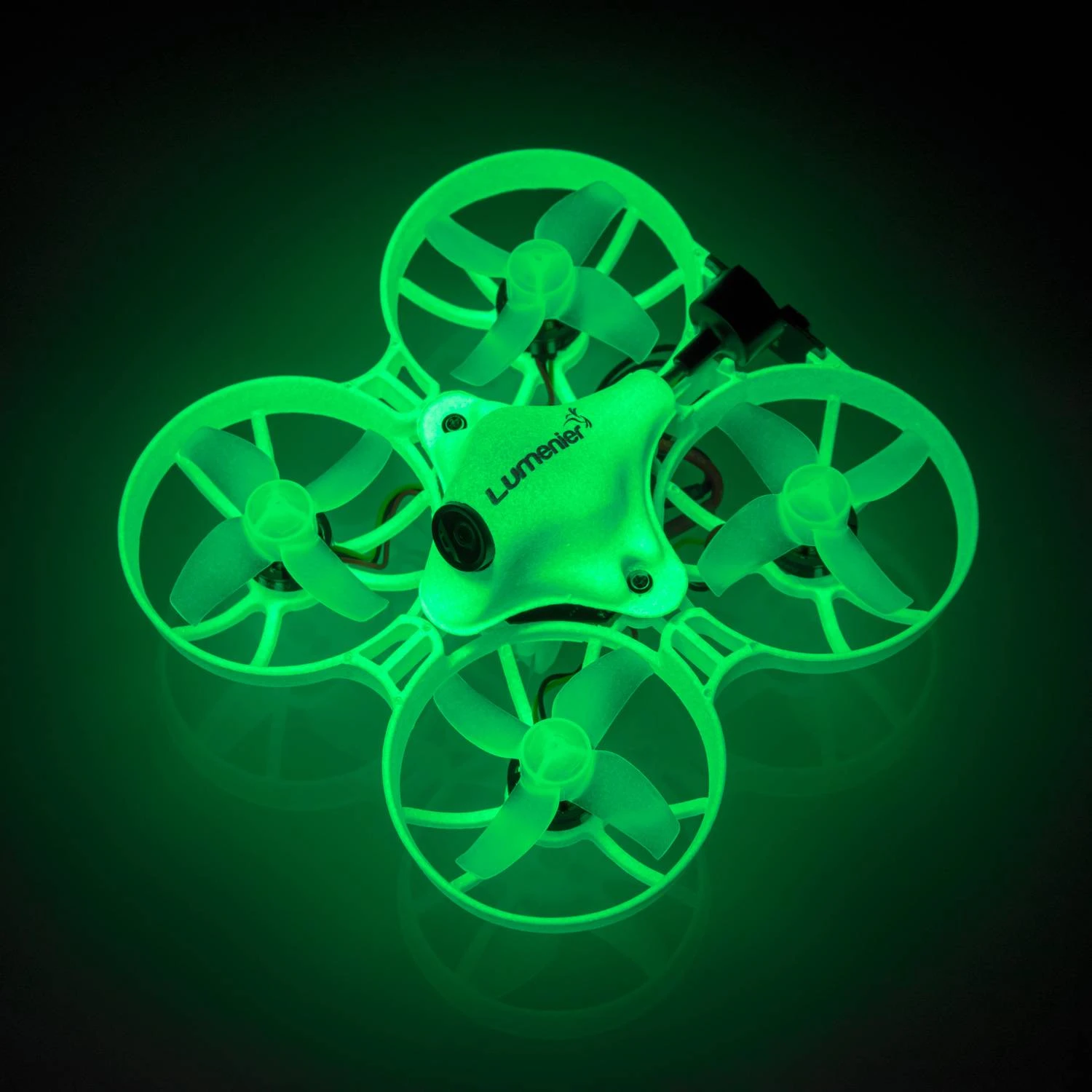

This Beta75X Lumenier Edition frame is a custom 75mm 2S whoop drone, now glow in the dark! Pair with glow in the dark propellers and canopy, to make a completely glow in the dark drone!

This frame natively supports 110x motors. Also, it has a customized battery slot to support a 2S battery. The FC mounting columns still match the whoop style FC boards. It is durable, yet at the same time, light enough for a to let those 2S batteries shine and makes this whoop a beast!

In default, the battery slot is designed for 2S 350mAh battery. If already have many 1S whoop style batteries and want to use them on this frame, what shall we do? As shown below, with the help of form adapter, 2pcs 300mAh Lipo HV 1S whoop style batteries are inserted in the slot suitably.

Don’t forget to get a double PH-JST 2.0 connector power cable here if you will be pairing your 1S batteries.

Want more punch in your Beta? Increase power with Lumenier 2S 300mAh 75C batteries!

Recommended Parts

• Propellers: 40mm 4-blade props (1.5mm shaft hole)
• Motors: 110x brushless motors, like 1103 11000KV motors
• Batteries: 350mAh 2S Lipo HV batteries
• FC & ESC: BETAFPV 2S Whoop FC Stack

Specifications

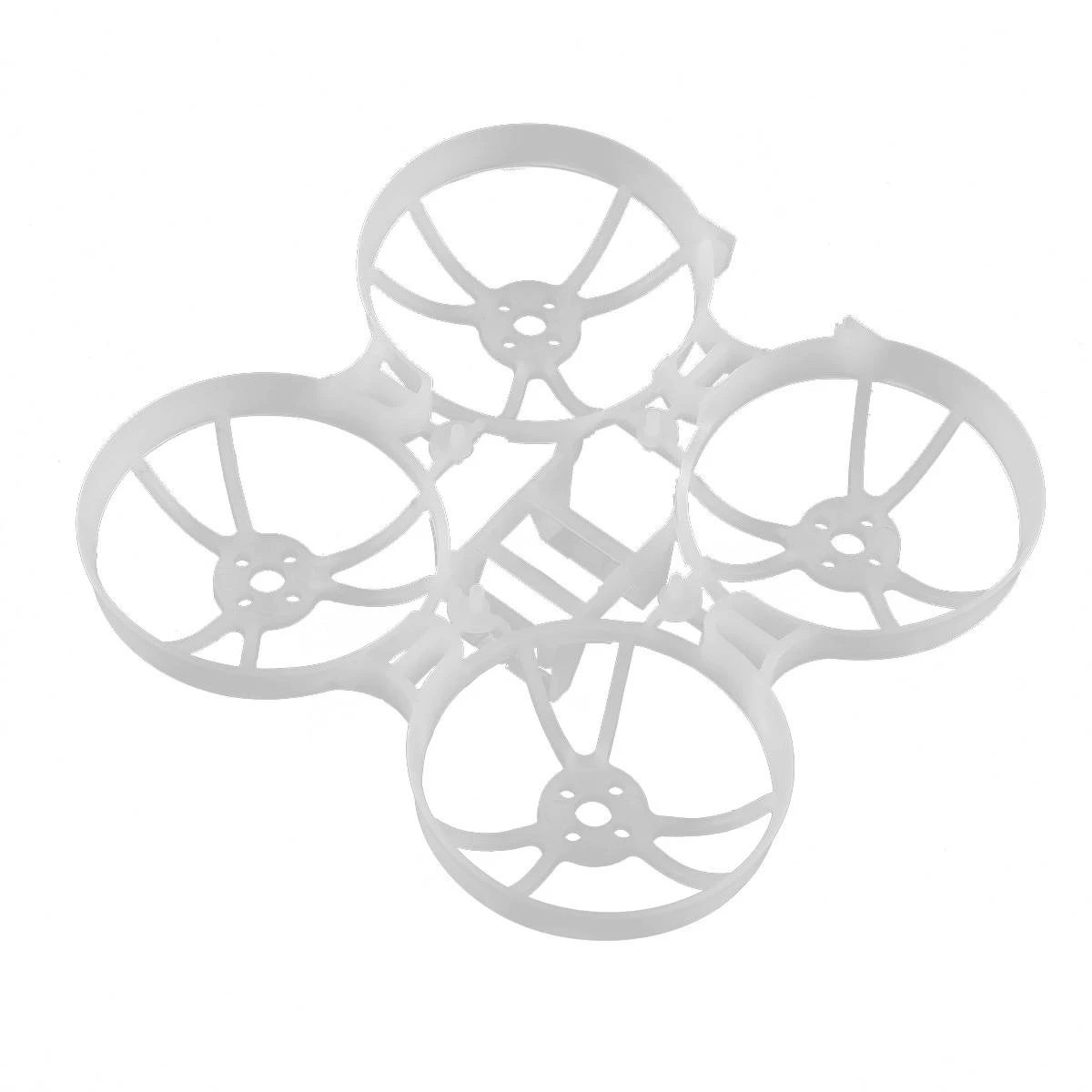

• Material: White glow in the dark plastic
• Diagonal motor to motor distance: 75mm
• Motor mounting hole: for 110x series motors
• FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
• Battery slot size: 11.5x16mm, for BETAFPV 300/350mAh battery
• Weight: 8.5g

Includes

• 1x Beta75X Glow in the Dark 2s Whoop Frame
