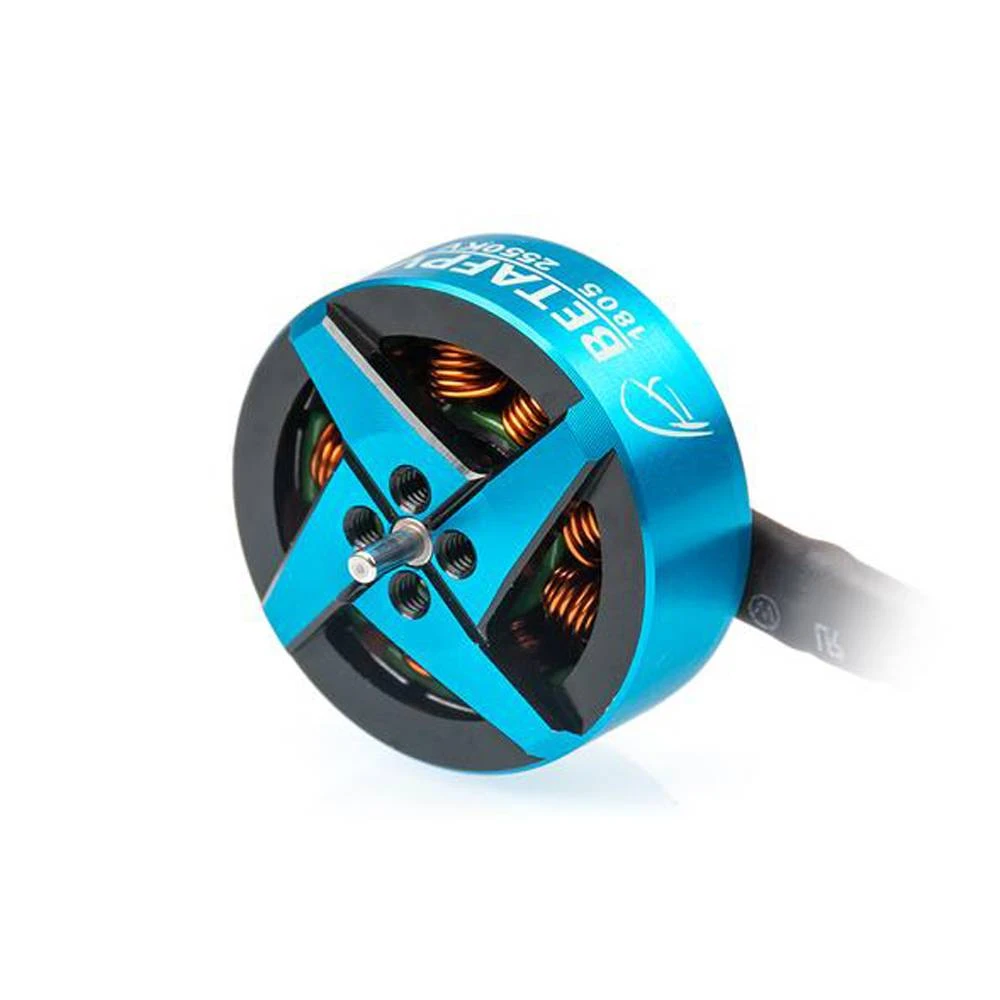

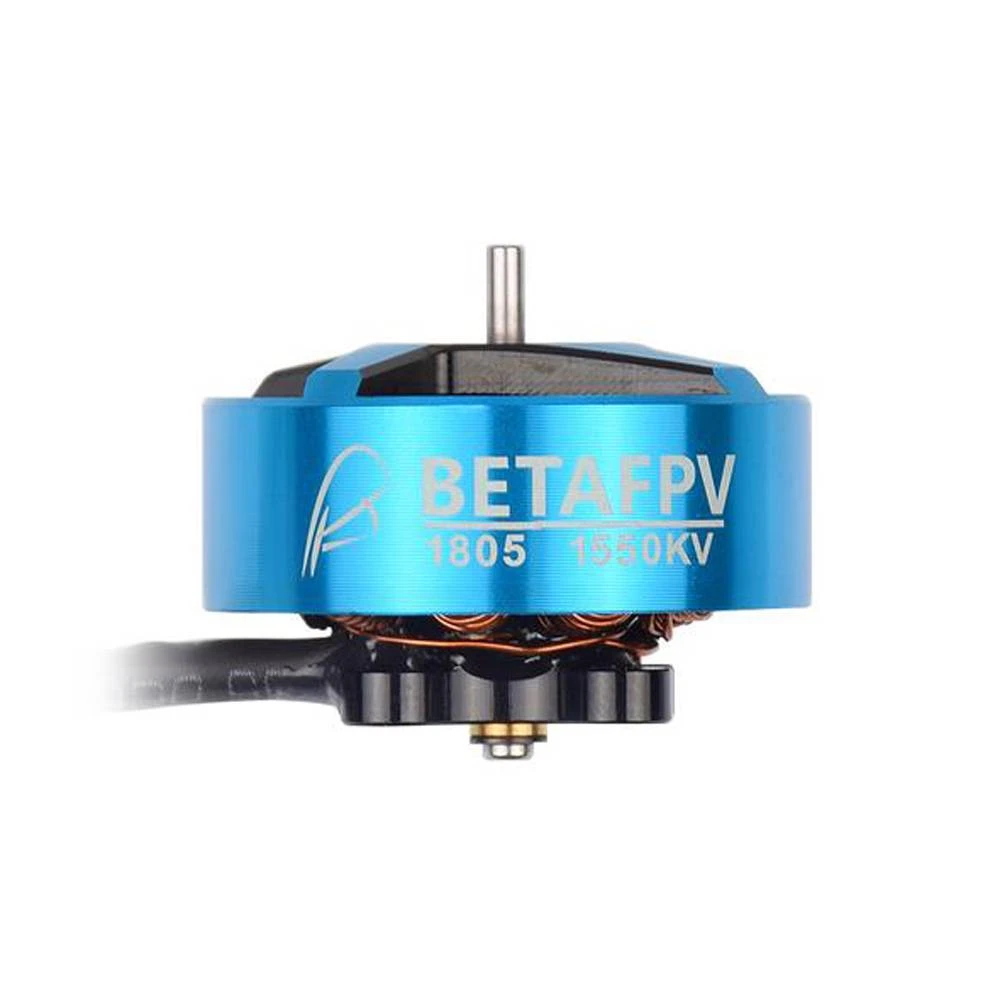

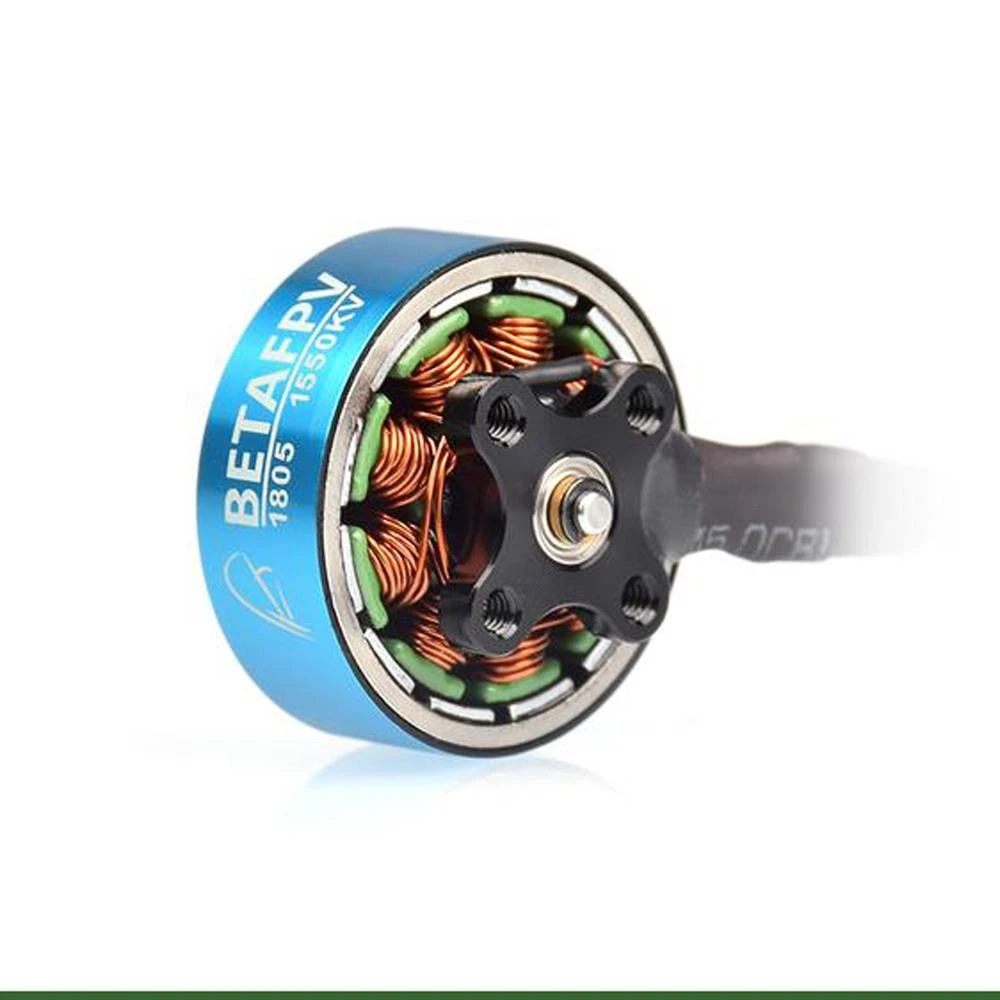

BETAFPV 1805 1550KV/2550KV Brushless Motor (1pc)

BETAFPV 1805 series brushless motors come with 2 different KV value. The 1805 2550KV motor is great for 4S power and the 1805 1550KV motor is the best for 6S power. Combined with 35A AIO Brushless FC, it will provide you huge output power to build incredible racing drones. 1805 series motors are suitable for 4-5 inch quadcopter, we recommend using 5125/5020 propellers with the motors to get the excellent power effect during your FPV racing.

Two KV’s to choose from 1550KV, 2550KV

Features

• 1805 2550KV brushless motor is a lightweight motor that is greatly suitable for the 4S power system. 1805 1550KV brushless motor is a lightweight motor that is best for 6S power. Both of them only weight 16.1g for 1pc.
• 1805 Motors retains φ1.5mm shaft design instead of thread shaft for saving weight, which means it needs M2 screws to lock props, while most of 4” props are locked with nuts in the market.
• Best paired with the Gemfan 5125 3-Blade props, with minimal noise and power loss, the motor is very efficient in use and has an excellent racing flight experience.
• 1805 motor is perfectly suitable for the 4-5 inch drone, we highly recommend it for TWIG ET5 and X-Knight 4” FPV.

Specifications

• Item: 1805 brushless motor
• Motor KV (rpm/V): 2550KV, 1550KV

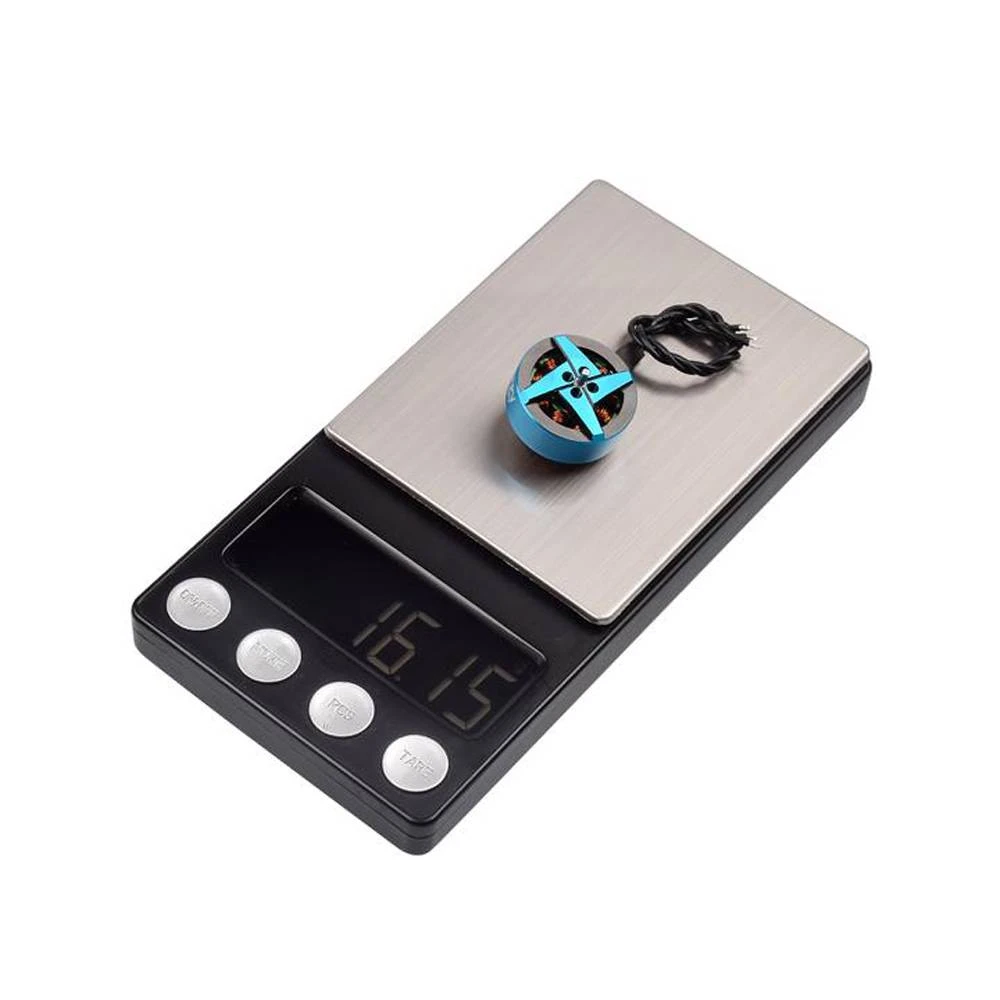

• Weight: 16.1g for 1pc
• Color: blue-black
• Shaft: φ1.5mm
• Shaft length: 3.8mm
• Shaft diameter: 1.5mm
• Hole distance: 12mm
• Motor Mount Holes: M2
• Input Voltage: 2550KV for 4S LIPO, 1550KV for 6S LIPO
• Cables: 100mm long, 24AWG cables
• Dimensions: 23.2 * 23.2 * 19.7mm

Recommended Parts (Not Included)

• Flight Controller: F405 Flight Controller & 35A BLHeli_32ESC and 35A AIO Brushless FC.
• Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
• Battery: 550mAh 6S 75C battery
• Frame: 4-5 inch Frame, highly recommend for TWIG ET5 5” Toothpick Frame

Includes

• 1 x BETAFPV 1805 1550KV/2550KV Brushless Motor
