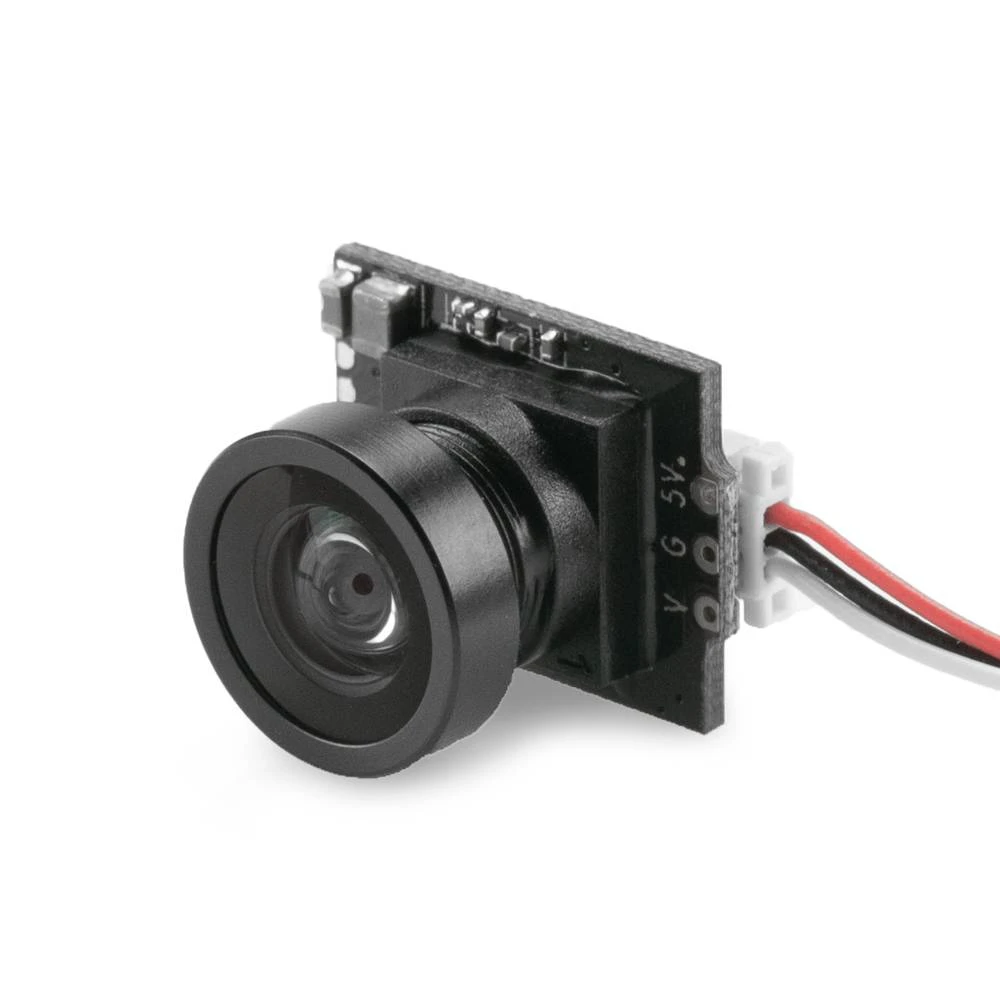

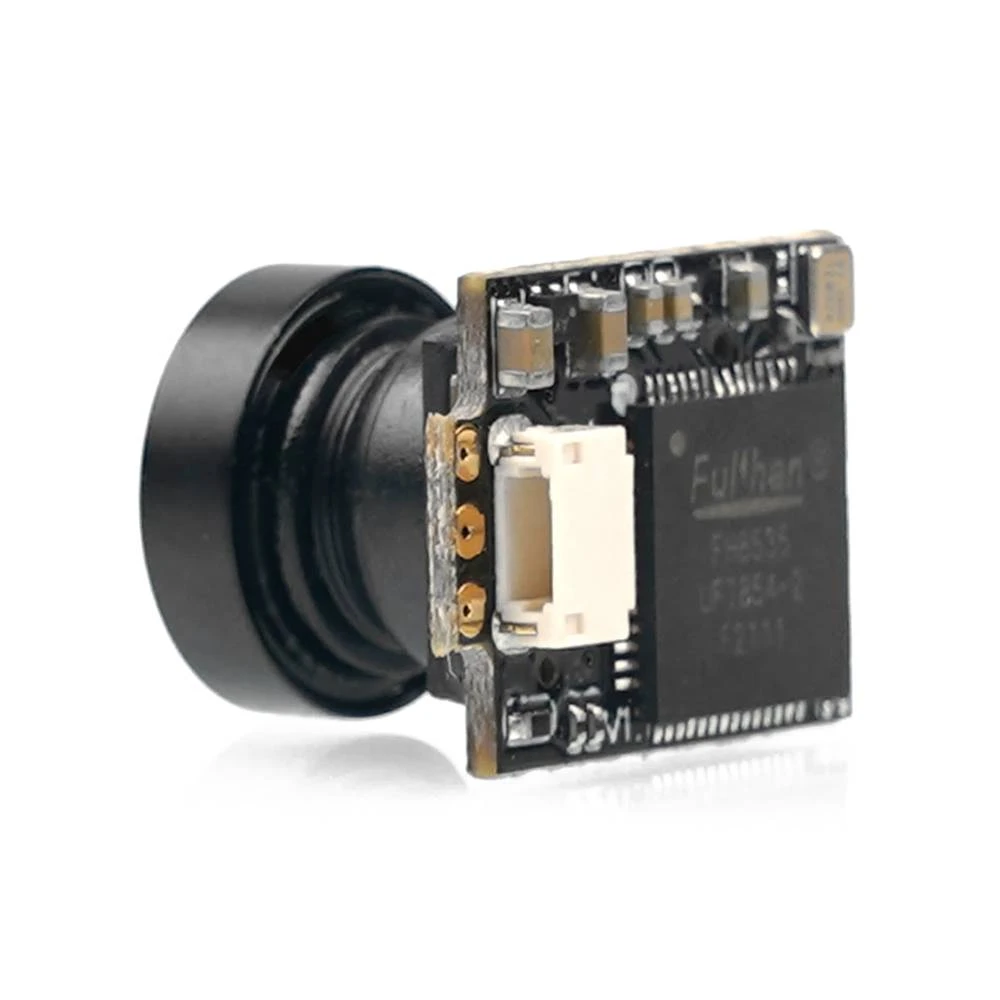

BetaFPV C02 2.1mm 1200TVL FPV Micro Camera

The BETAFPV C02 Micro Camera is a lightweight camera that is made to fit weight-sensitive micro whoop drones, like the Meteor65, Beta65S, Beta85 Pro 2,  and the HX100SE Toothpick Quadcopter! The C02 Micro Camera features an adapted 1/4” CMOS sensor, a 2.1mm lens with 1200TVL resolution, and excellent latency while minimizing the weight to 1.4g.

This micro camera comes with a micro canopy to protect your camera from a harsh crash!

Features

• Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.
• The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera
• Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
• 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes
• 1200TVL resolution and 1/4″ CMOS sensor ensure a high-quality and clear image
• Plug-and-Play Design

Plug-N-Play

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for BeeBrain flight controllers.

Specifications

• Horizontal: 1200TVL with Global WDR
• Current: 110mA@5V / [email protected]
• Image Sensor: 1/4″ CMOS Sensor
• Min. Illumination: [email protected]
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Lens : 2.1mm(M8) FOV 160°
• Housing Material: ABS
• Signal System: NTSC
• Dimension: 13*11mm
• Item: C02 Camera
• Power: DC 3-5.5V
• S/N Ratio: >50db
• Day/Night: Color
• Net weight: 1.4g
• D-WDR: Auto

Includes

• 1x BetaFPV C02 FPV Micro Camera
• 1x 1/4” Camera Mounting hardware
• 1x Injection Molded Canopy
