BETAFPV F405 12A V3 BLHeli_S 2-4S AIO Whoop Flight Controller

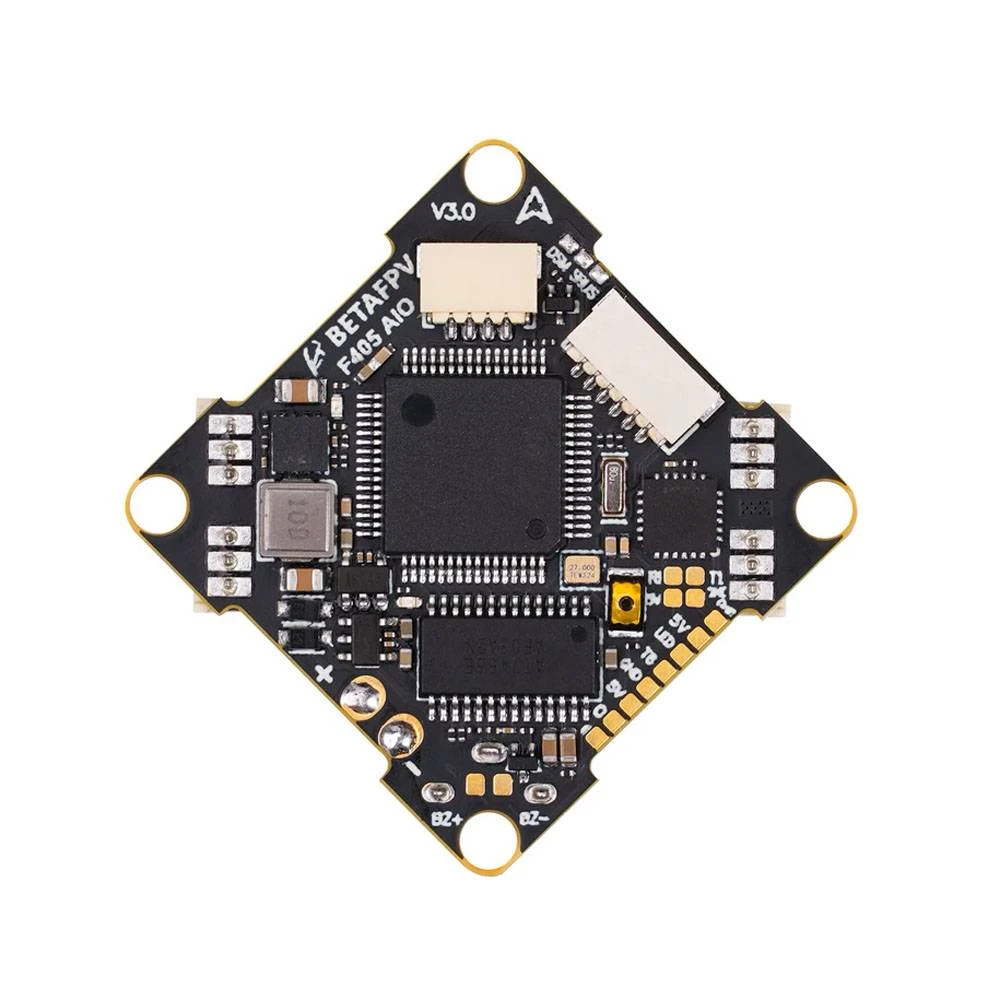

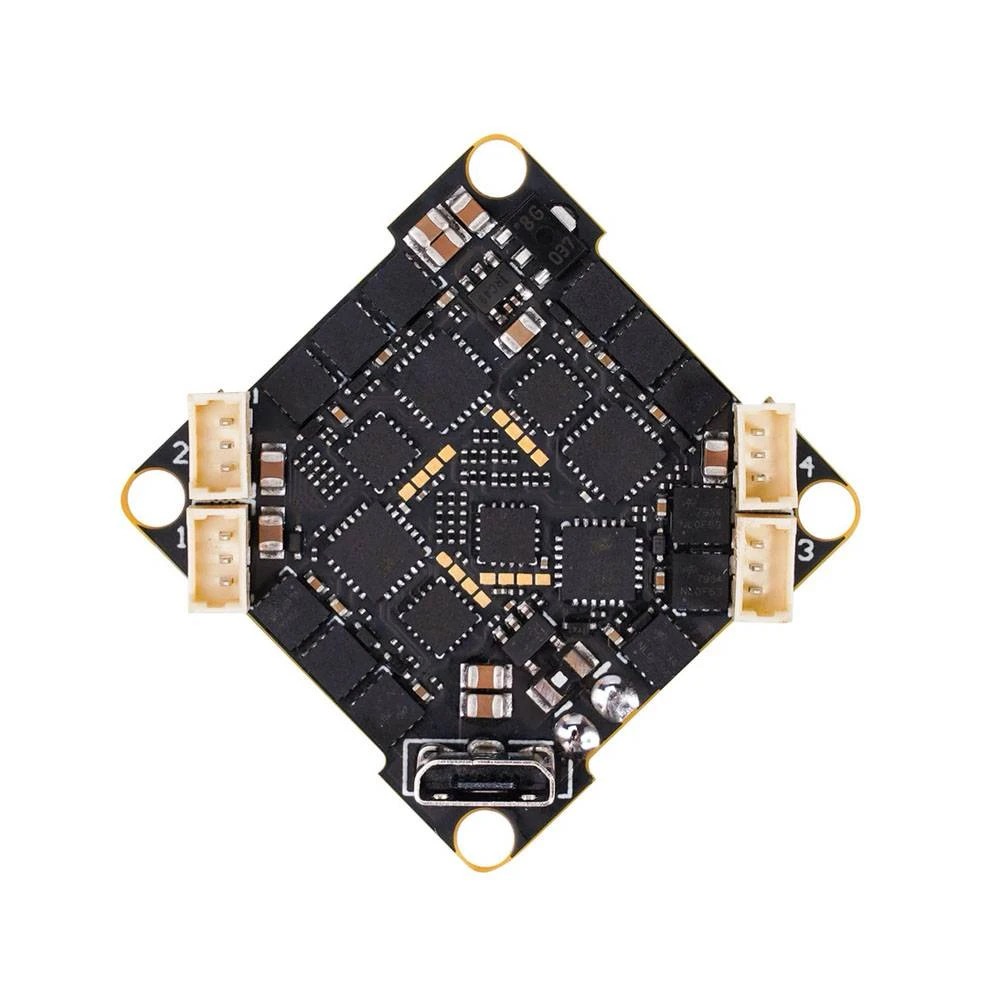

The BETAFPV F405 2-4S AIO 12A Brushless Flight Controller (BLHeli_S) V3 is a powerful FC that has been updated from an F411 chip to an F405 and can handle 12A continuous current (13A burst). This FC can be used on the Beta75X series drone, Beta85X series drone, and HX100 series drones such as Beta85X V2 and Beta85X HD Digital VTX or similar.

Features

• Updated the F411 chip to F405, this new 12A/20A board can handle 12A/20A continuous current(13A/22A burst), gives the pilots a powerful flight.
• Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
• Completed the traditional mounting hole, more like the Toothpick type, perfectly prevent the damping pad from falling off, which is the super-easy installation in most whoop frame.
• BETAFPV 20A/12A AIO flight controller will unify the UART, which is convenient for pilots to solder.
• Compatible with 110X, 120X, 140X motors, pilots can use the 20A(12A) AIO FC to build a bigger quad with this powerful FC to save weight and size.

Specifications

F450

• CPU: STM32F405RGT6
• Six-Axis: MPU6000
• Size: 26mm x 26mm
• Firmware version: Batefight-BETAFPV405-4.2.X
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• Receiver: Support Frsky XM/XM+FCC Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver

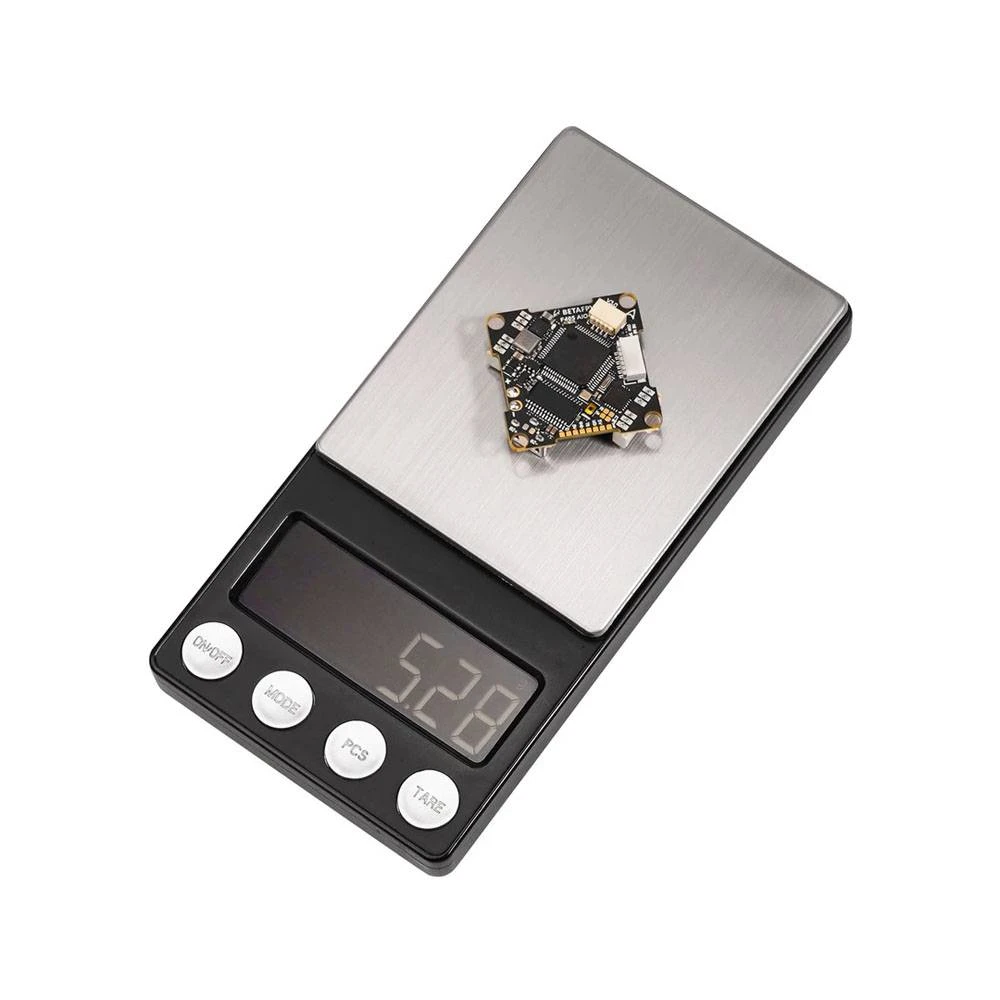

• Weight: 5.3g
• Connecter: XT30

ESC

• Support PWM，Oneshot125，Oneshot42， Multishot，Dshot150，Dshot300，Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 12A
• Peak current: 13A
• Firmware: BLHELI-S G-H-25

Diagram

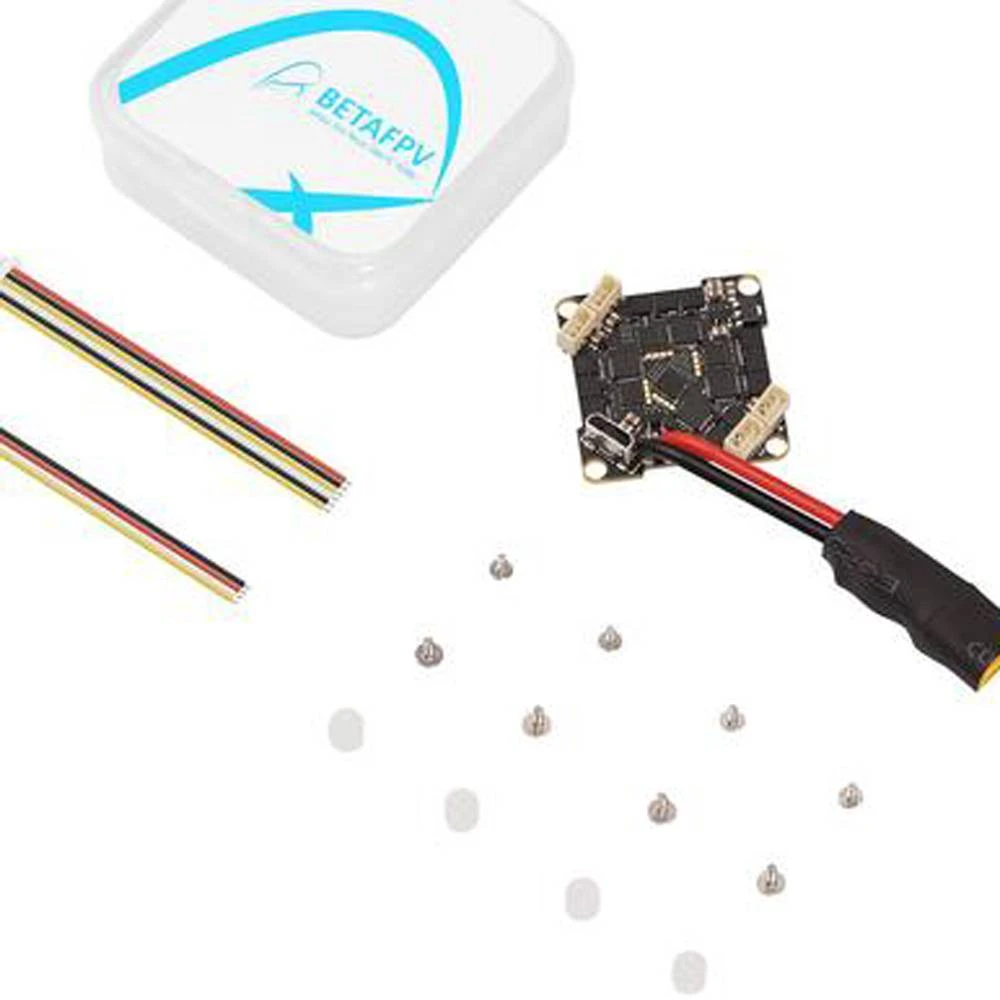

Includes

• 1 x F405 12A AIO FC V3
• 4 x M1.2x4mm screws
• 4 x M1.4x5mm screws
• 4 x Anti-vibration rubber dampers
• 1 x 6-Pin Connector for Digital VTX
• 1 x 4-Pin Connector for Rx
