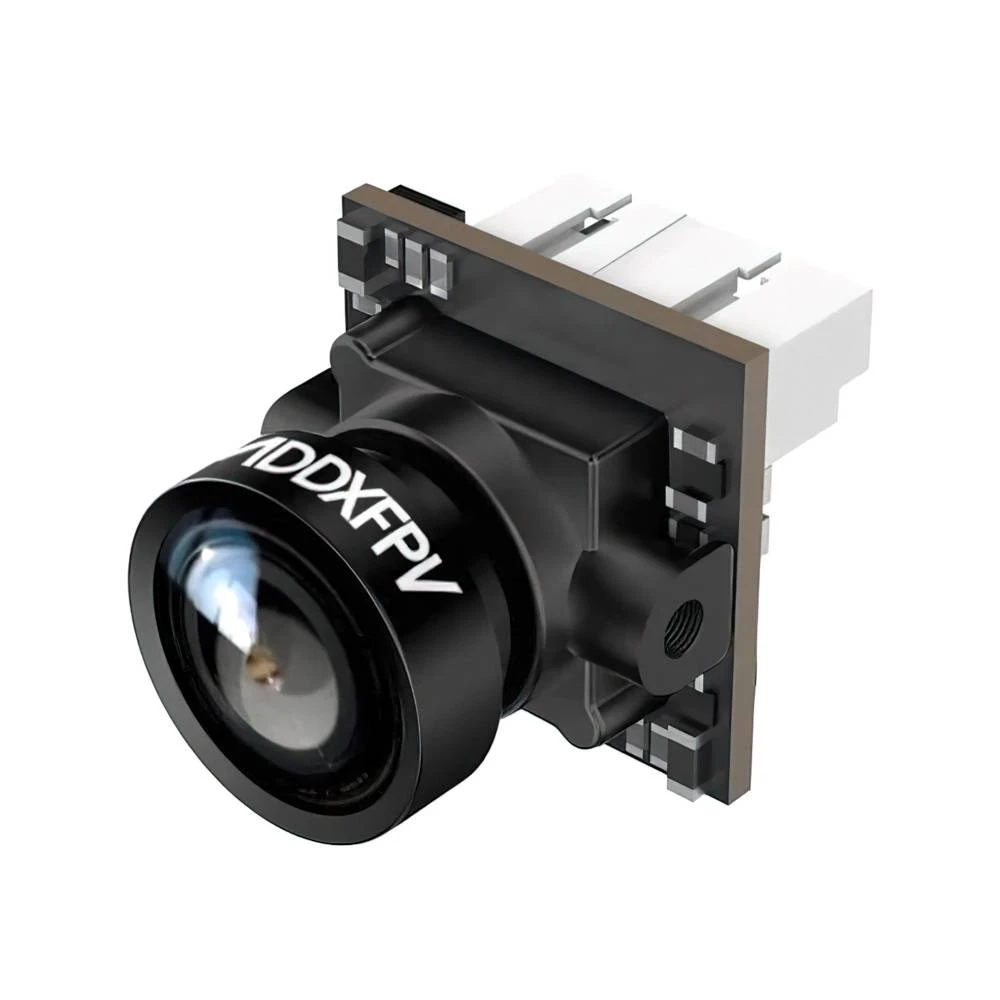

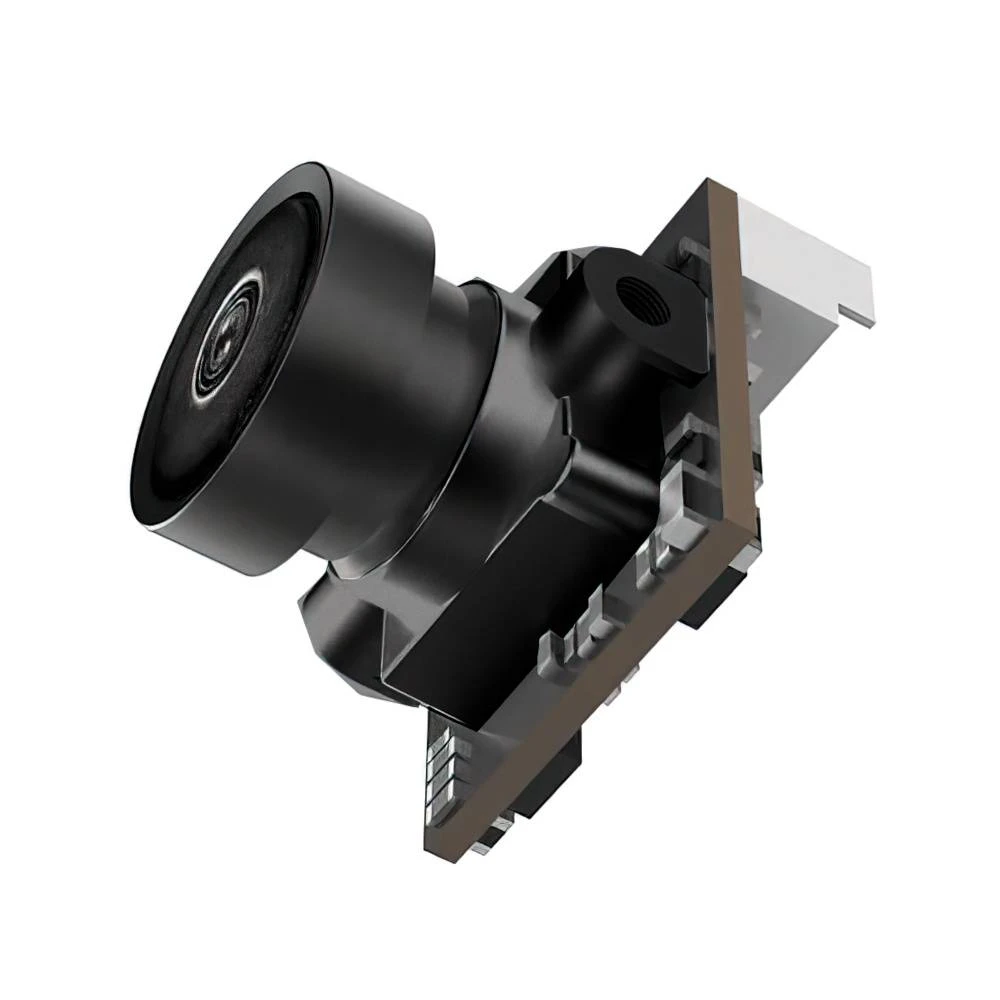

Caddx Ant – 1200TVL 1.8mm FPV Nano Camera – 14×14 – Black

The Caddx Ant – 1200TVL 1.8mm FPV Nano Camera (14×14) is a new generation of nano cameras. This 14x14mm ultralight budget-friendly camera only weighs 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL, CVBS video output, and many other cool features! A unique feature about this camera is that it includes 3D DNR, which gives you a full clarity image, so there is no need to worry about your image looking grainy or noisy when flying. To fit bigger builds, you can mount the Nano into a 19mm bracket (included)!

Features

• Available in 4:3 or 16:9 camera ratio.
• 14×14 Mounting Pattern
• 3D DNR

Specifications

• Model: Caddx Ant – 1200TVL 1.8mm FPV Nano Camera (14×14)
• Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000
• Dimensions: 14*14mm (with a bracket to 19*19mm)
• TV System: NTSC & PAL (Changeable)
• Image Sensor: 1/3″ CMOS Sensor
• Min. Illumination: [email protected]
• Horizontal Resolution: 1200TVL
• Work Temperature: -20C~+60C
• Wide Power Input: DC 3.7-18V
• S/N Radio: >52dB (AGC OFF)
• Work Humidity: 20%~80%
• Synchronization: Internal
• Auto Gain Comtrol: Yes
• Video Output: CVBS
• WDR: Global WDR
• Image: 16:9 or 4:3
• Weight: 2g (N.W.)
• Menu: Support
• DNR: 3D DNR
• Lens: 1.8mm
• Color: Black
• BLC: Yes

Links

• Getting the Right FPV Drone Camera Settings.
• All About Multirotor Drone FPV Cameras
• Focusing your FPV Camera.

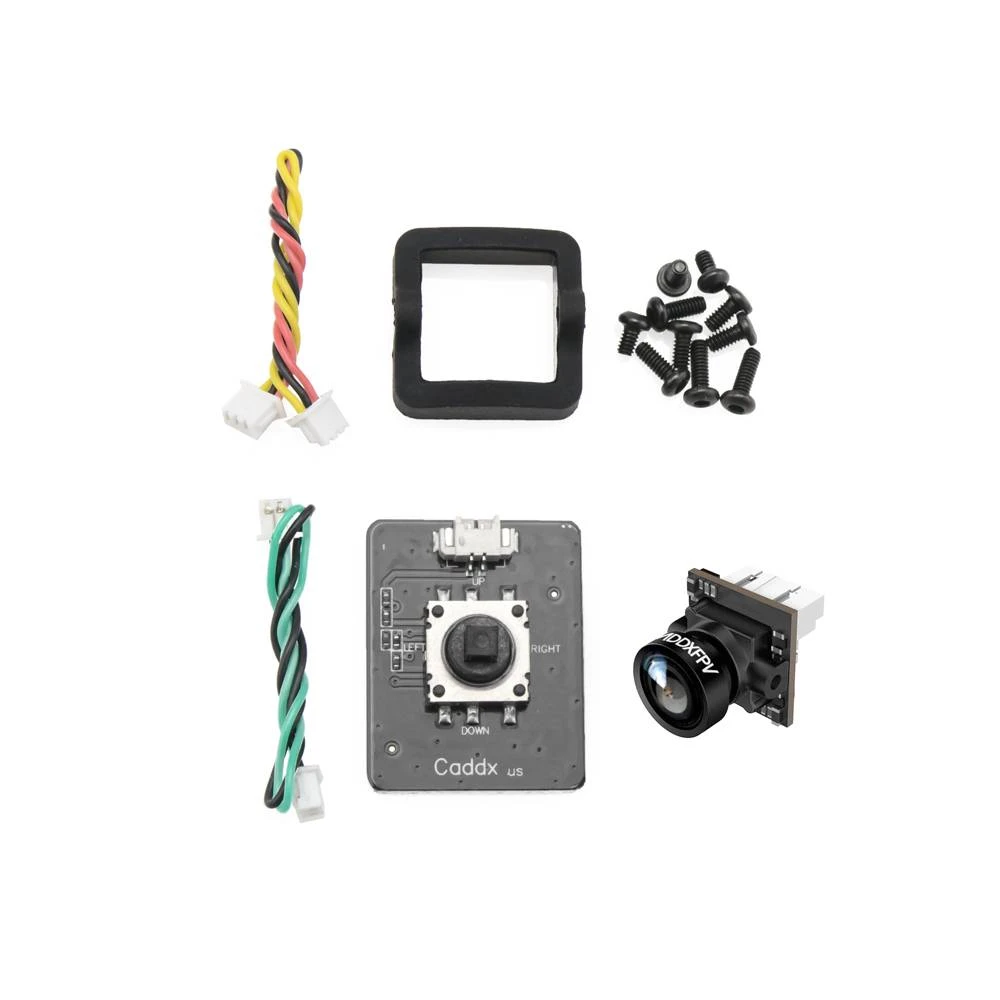

Includes

• 1x Caddx Ant – 1200TVL 1.8mm FPV Nano Camera – 14×14 (Choose Ratio)
• 1x 3pin FPV silicone cable
• 1x 5D-OSD Menu Board
• 1x FPV Silicone Cable
• 1x Warranty card
• 1x 19mm bracket
• 4x Screws
