This Caddx Nebula Pro Vista Kit features an upgraded Vista version of the Lumenier AXII 2 U.FL 5.8GHz LHCP Antenna with extended wire!
The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles V2, which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.
User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles V2 without having to purchase additional receivers, as well as mount on racing drones!

Features
- Lumenier AXII 2 U.FL 5.8GHz LHCP Antenna with Extended Wire – Upgraded Vista Edition
- Lightweight Digital Image Transmission Combination
- Embedded Remote Controller Receiver
- Caddx Nebula Pro Vista Kit
- Stable and Clear HD video
- 720p 120fps, 32ms/4km
- 8 channels, 8 drones

Specifications

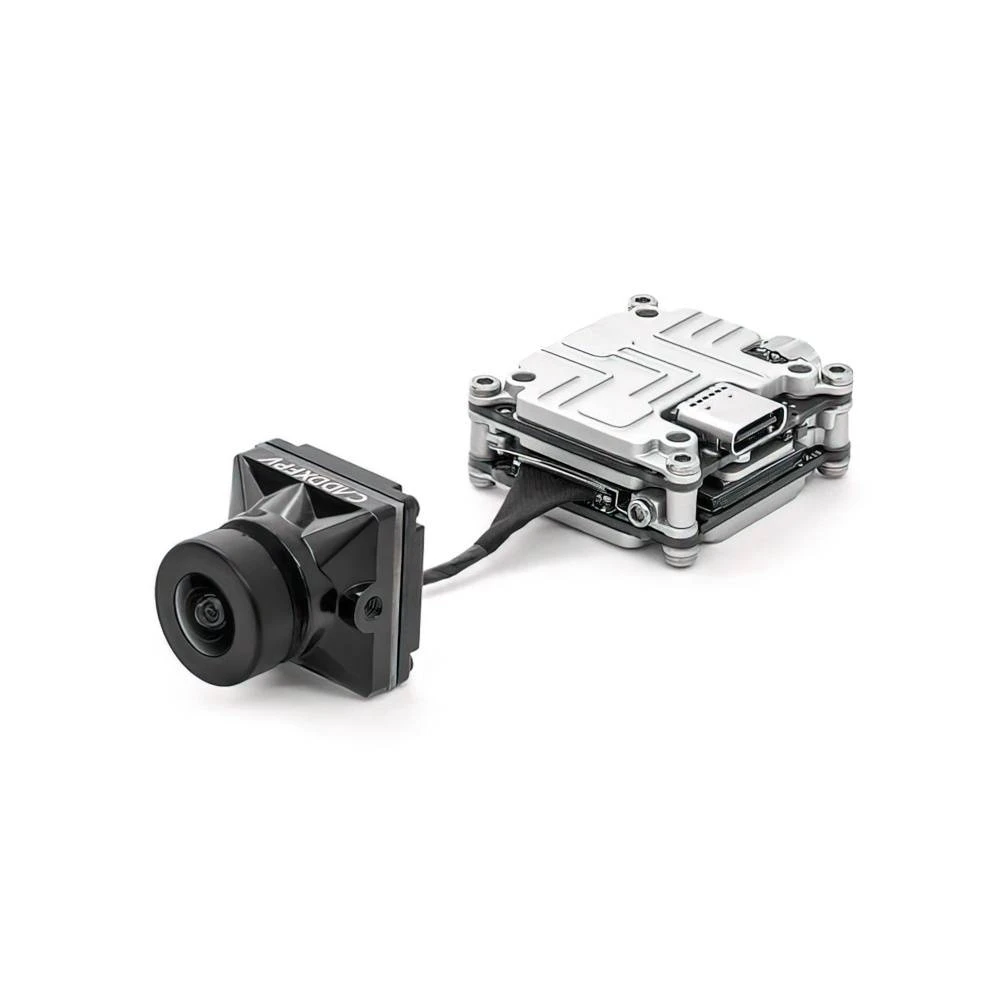

CADDX NEBULA PRO VISTA KIT
- Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
- Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
- Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
- Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
- Min. Latency (end-to-end):
- Low Latency 720p 120fps: 12-28ms
- High Quality Mode: 720p 60fps: 30-40ms
- Power output: 25mW/200mW/500mW/700mW
- Weight: Camera included: 27g/Antenna:2.5g
- Supported Flight Control System: F3,F4,F7
- Operating Frequency: 5.725-5.850GHz
- I/O Interface: USB-C,IPEX,3-in-1 Port
- Goggles: work with DJI goggles
- Dimensions:
- Vista Kit: 30x29x13mm
- Camera: 19x19x20mm
- Model: Vista Kit (Nebula Pro)
- FOV: 150°[D],122°[H],93°[V]
- Coaxial Cable Length: 12cm
- Camera:Sensor: 1/3”CMOS
- Input Power: 7.4-26.4V
- Shutter: Rolling shutter
- Camera Color: Black
- Lens: 2.1mm,f/2.1

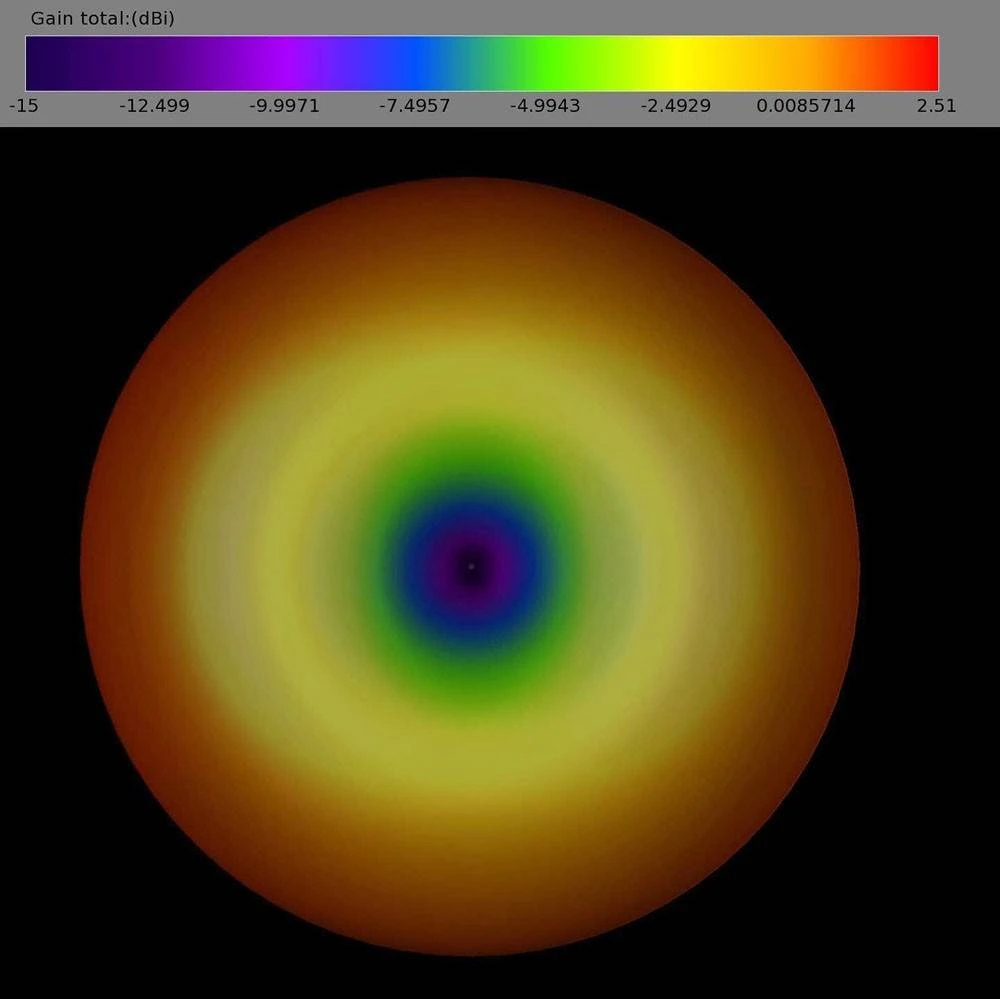

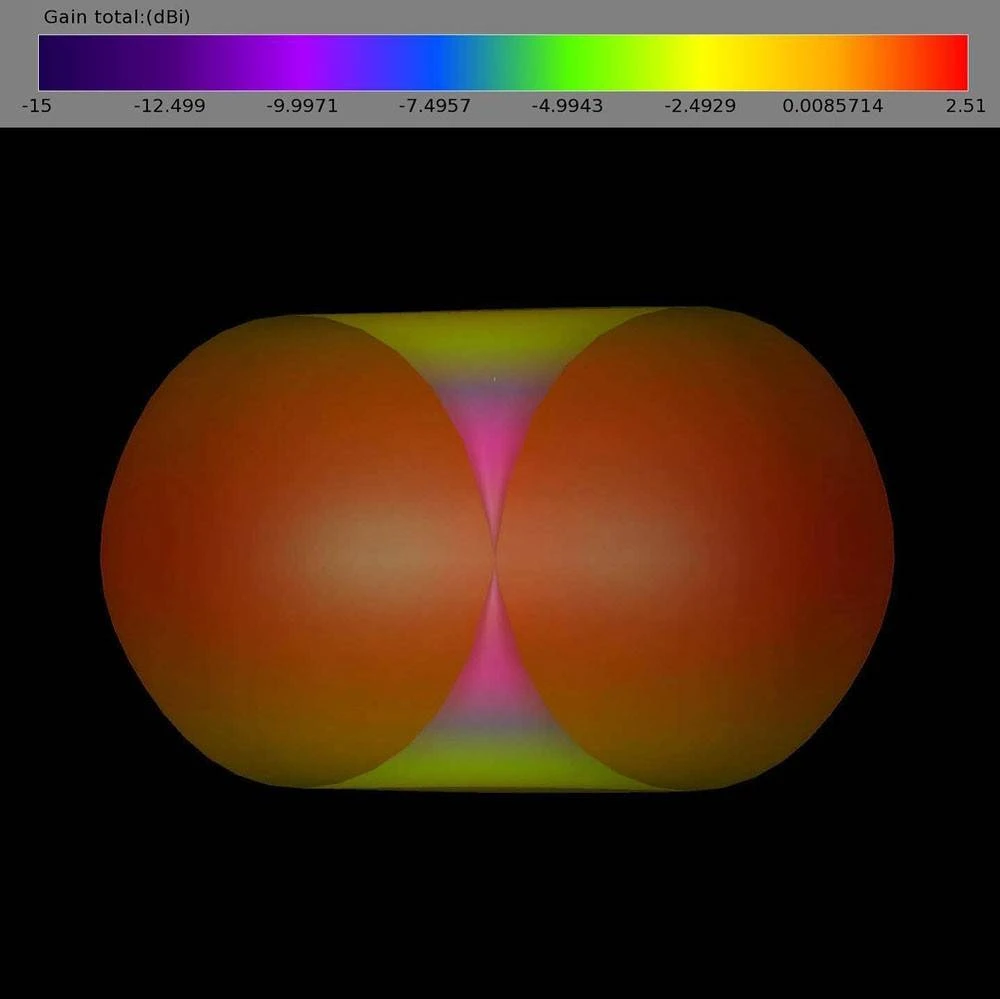

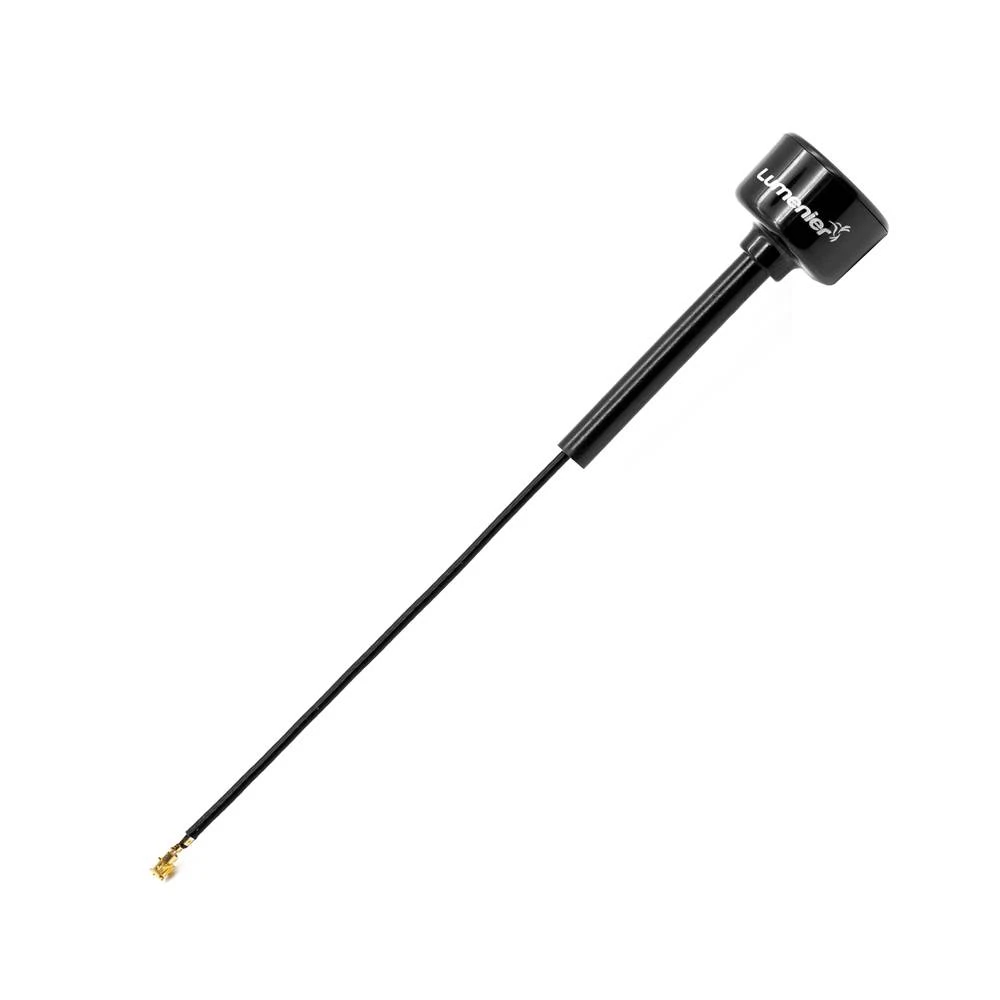

LUMENIER AXII 2 5.8GHz VISTA ANTENNA
- Axial ratio: 1.0 (near perfect)
- Bandwidth: 5.3GHz-6.2GHz
- Radiation Efficiency: 98%
- Cable: Flexible RG178
- Cable Length: 100mm
- Size: 96mm x 17mm
- Polarization: LHCP
- Connector: U.FL
- SWR: <=1.5:1
- Gain: 2.2dbic
- Weight: 3.5g
Includes
- 1x Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System
- 1x Lumenier AXII 2 U.FL 5.8GHz LHCP Antenna w/ Caddx Vista Upgrade
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a “HAM” amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
