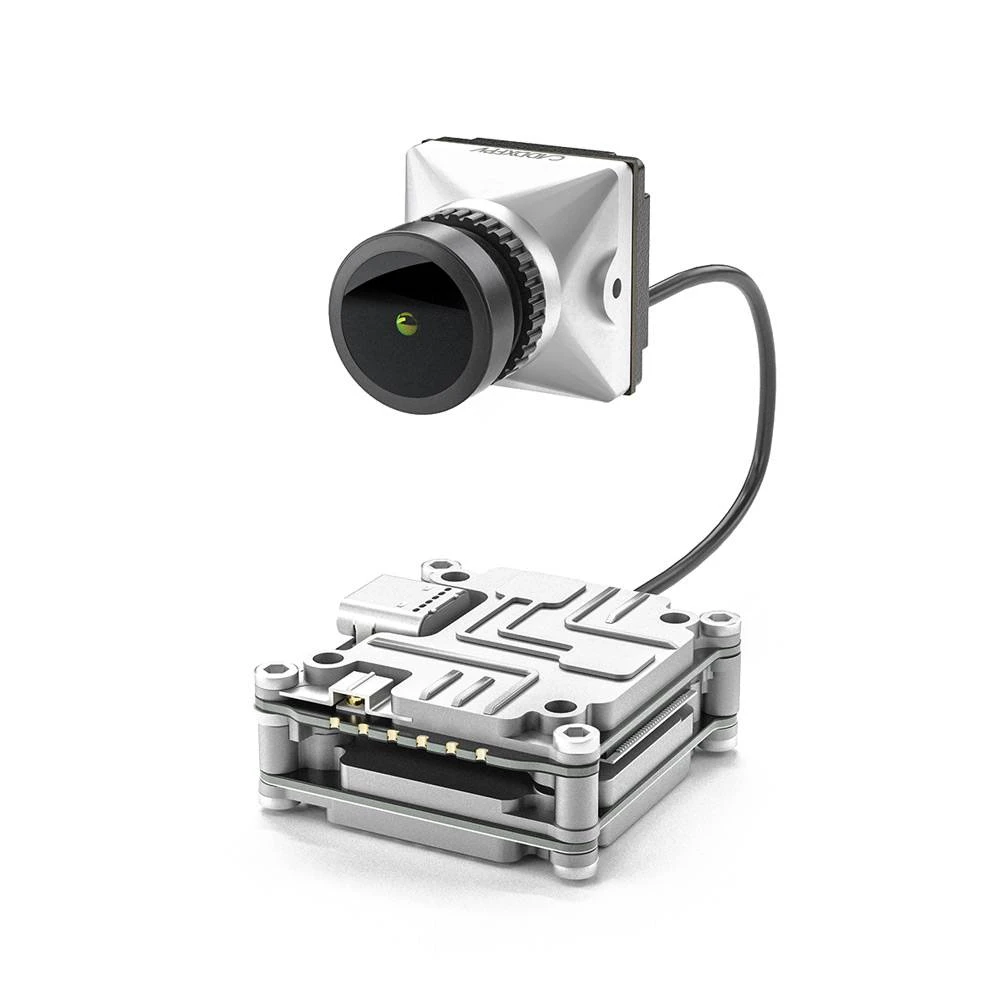

Caddx Polar Micro Digital FPV Vista Camera Kit

SKU: Z2V0Z 16749 Categories: Flight Cameras, FPV Cameras and Accessories, FPV Equipment

Nature-friendly materials, for a better planet.
SSL encryption, absolutely safe shopping
Expertly Sourced, Quality Guaranteed
Shop with Peace of Mind

6The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!

VIDEO: Caddx Polar Starlight Camera Review

Features

Lightweight digital image transmission combination
Stable and clear HD video
720p 60fps, 32ms/4km
8 channels, 8 drones

Caddx Polar Micro Digital FPV Vista Camera Kit -DJI Shop Caddx Polar Micro Digital FPV Vista Camera Kit Infographic

Specifications

Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
Operating Temperature Range: 0°to 40°C（32°to 104°F）
Image Sensor: 1/1.8″ Inch 2.3Mega starlight sensor
Supported Flight Control System: BetaFlight
Min.Latency(end-to-end): 720p 60fps<32ms
Polar vista kit Weight (Include camera): 28g
Operating Frequency: 5.725-5.850GHz
I/O Interface: USB-C,IPEX,3-in-1 port
FOV: 162°(D); 138°(H); 75°(V)
Min. Illumination: 0.00003Lux
Antenna Weight: 1.5g(IPEX)
Polar cam: 24×19×19mm
Input Power: 7.4-26.4V
Coaxial Cable: 120mm
LENS: F/1.6 & 8Mega
Vista: 30×29×13.5mm
Aspect Ratio: 16:9
Antenna: 105mm

Includes

1x Caddx Polar Micro Digital FPV Vista Camera Kit (Silver or Coffee options)
6x M2 Screws (3/4/5mm)
4x Gasket Ring
1x 3-in-1 Cable

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a “HAM” amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
