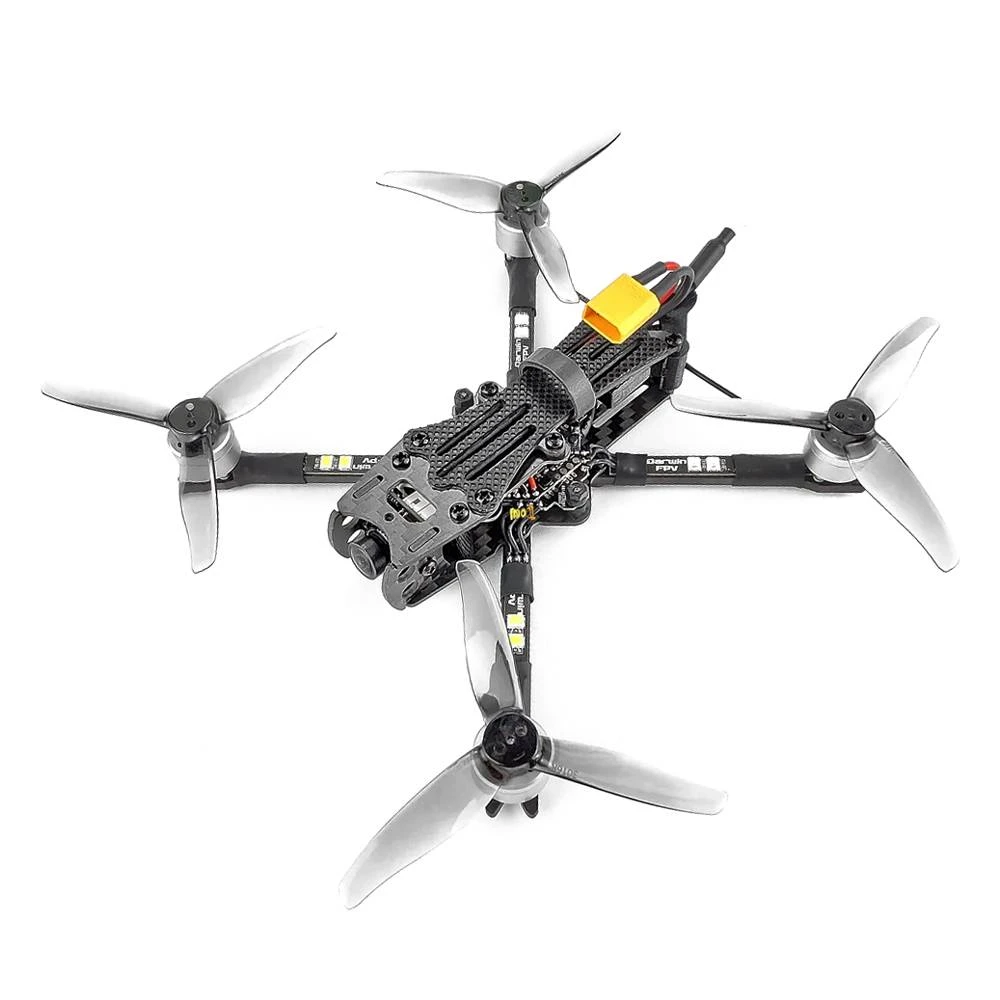

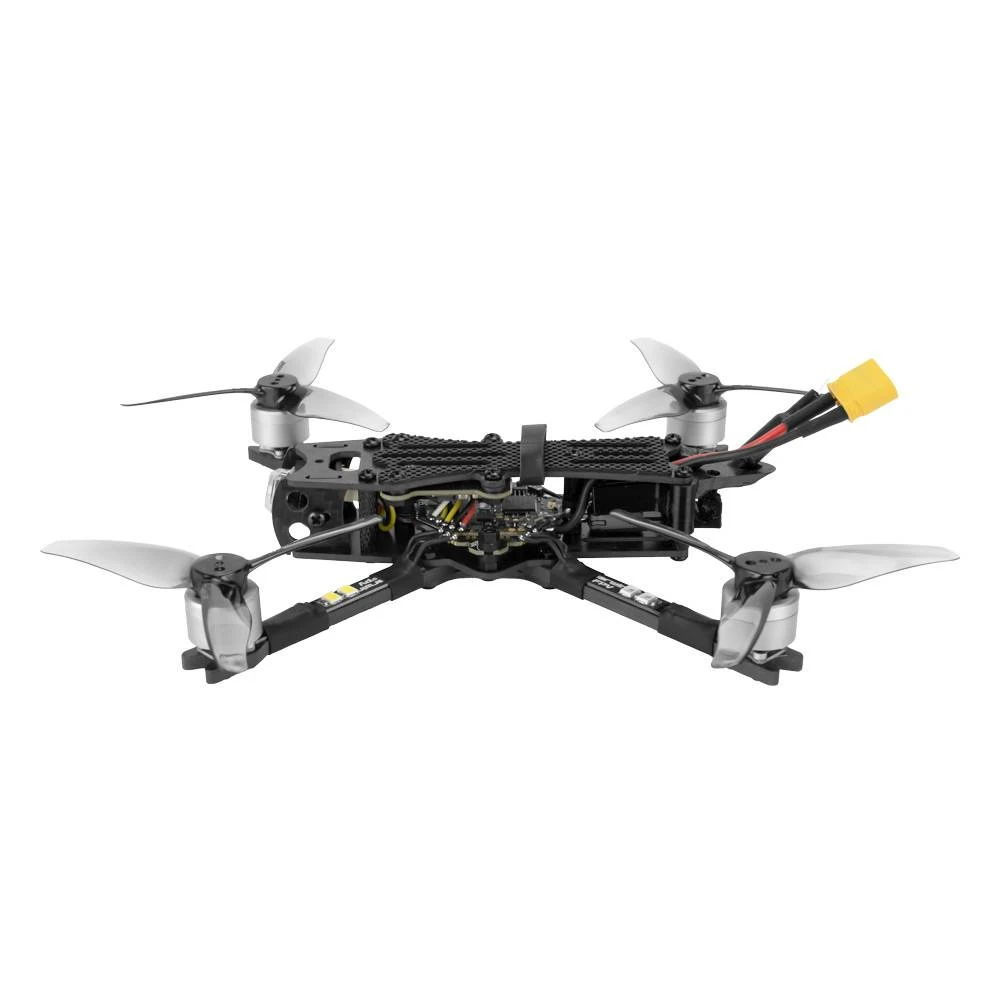

DarwinFPV Baby Ape Pro V2 3" Quadcopter W/ Caddx Ant

The Darwin FPV Babe Ape Pro V2 features a 4-in-1 AIO 15A ESC, F411 flight controller, and 5.8GHz Switchable VTX. The Baby Ape Pro V2 is also equipped with 1104 4300KV brushless motors. All you need to do is bind-and-fly!

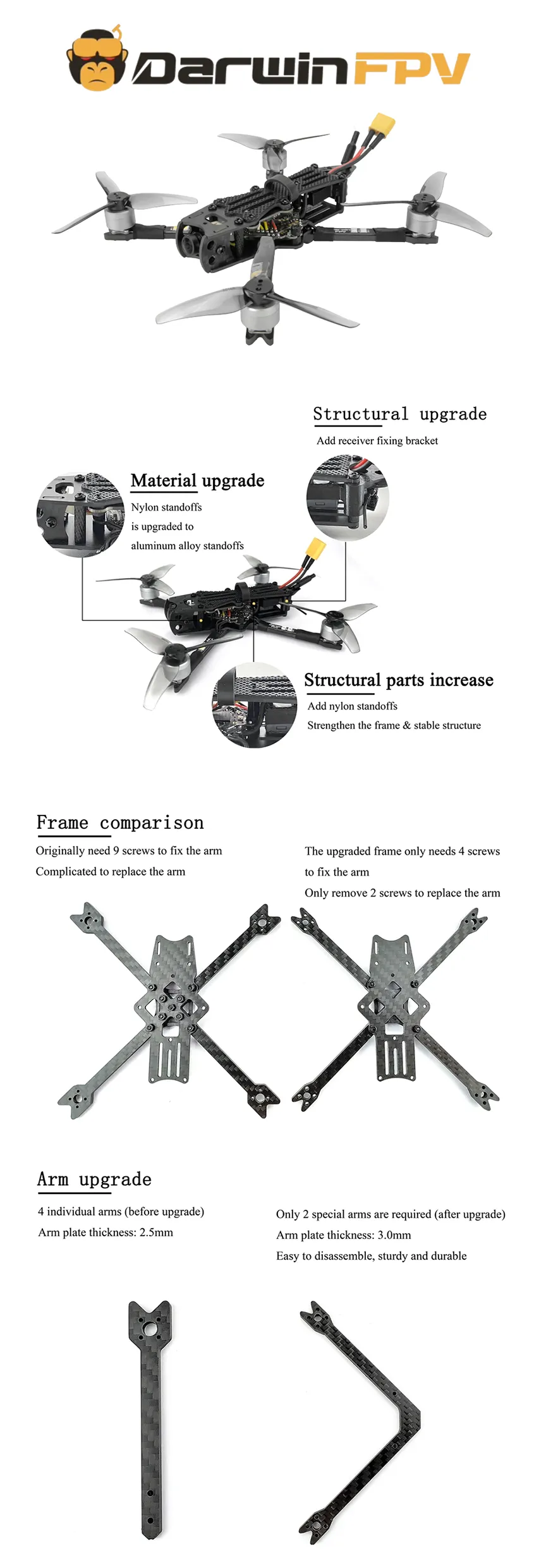

V2 UPDATES

• Arms can be replaced by removing 2 screws instead of disassembling entire frame.
• Four 2.5mm Arms are now two 3mm Arms
• 9 Screws reduced to 4 Screws
• Auminum Alloy Standoffs
• Receiver Fixing Bracket

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: (Insert Video Title here in bold.)

• 3016 3-Blade Propellers
• Caddx Ant Camera
• F411 Processor
• Switchable VTX
• 15A ESC
• 3″ Arms

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

PRE-TUNED AND PRE-SETUP

This RTF is fully built and test-flown by build technicians at our Florida facility.

• Receiver Options: PNP, ELRS 2.4GHz, or R81
• Motors: 1104 4300KV 2-3S Brushless Motor

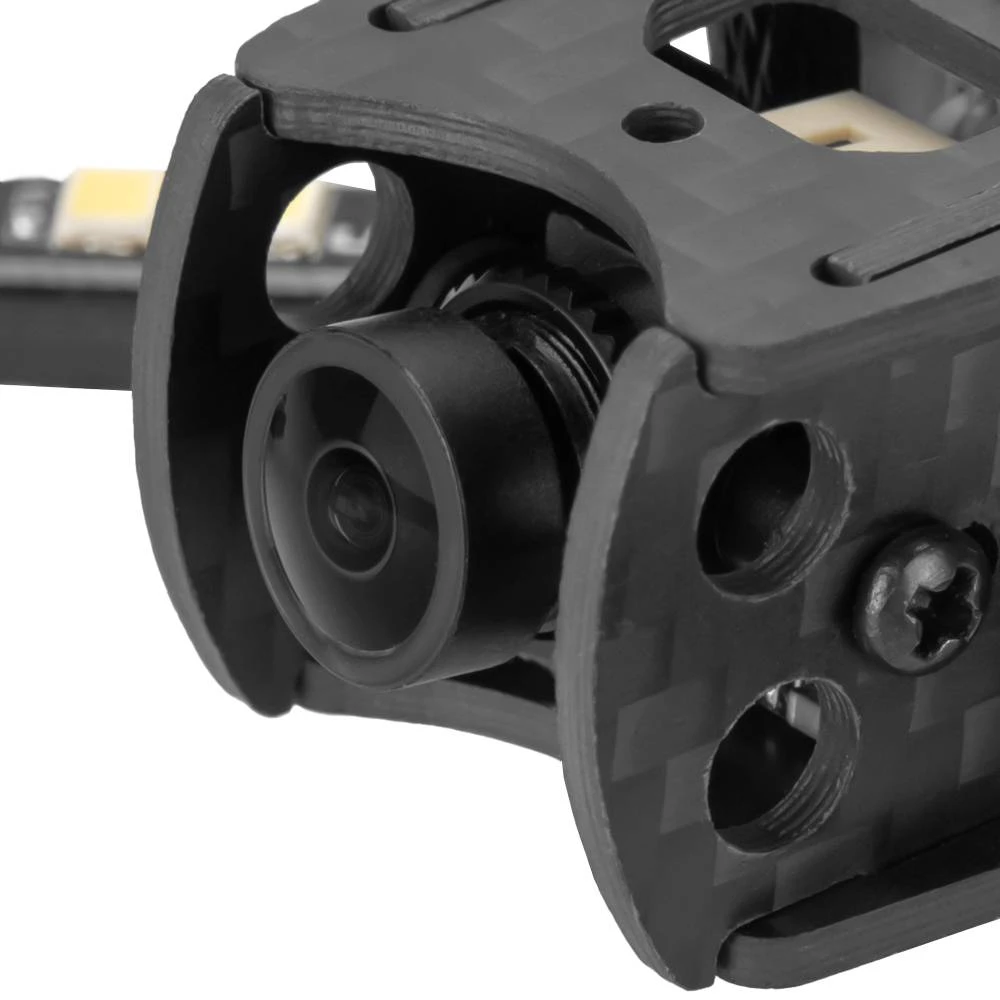

• Camera: CADDX ANT Camera
• Propellers: 3016 3-Blade

FLIGHT CONTROLLER

• Mounting holes distance: 25.5X25.5mm
• PPM/DSM/IBUS/UAR share: UART1-RX
• Main control chip: STM32F411
• Supports Betaflight firmware
• IMU: MPU6500 (SPI)
• Integrated OSD

ESC

• Firmware upgrade: Supports Dshot600/Oneshot125
• Main control chip:EFM8BB21
• Continuous current: 15A
• Pe ak current:17A (10S)
• Input voltage: 1-3SLiPo
• BEC output: no
• MOS: 3*3

VTX

• Transmitting power: 0mW/25mW/100mW/200mW switchable
• Weight: ≤3.2g (except antenna)
• Power dissipation: +12V/600MW
• Full video format: NTSC/PAL
• Supports TBS SmartAudio
• Input voltage: 7V~24V
• Size: 25×20×6mm
• Channel: 40CH



IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won’t need to set up another receiver. If you don’t have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

•  (Insert recommended products here. Example: “Battery: Lumenier 10000mAh 6s 25c Lipo Battery”)

•   (Insert links such as manuals, firmware, etc)

• 1x DarwinFPV Baby Ape Pro V2 3″ Quadcopter w/ Caddx Ant (Choose Receiver)
• 1x 3016 3-Blade Propellers (Set of 4)
• 1x Hardware Kit
