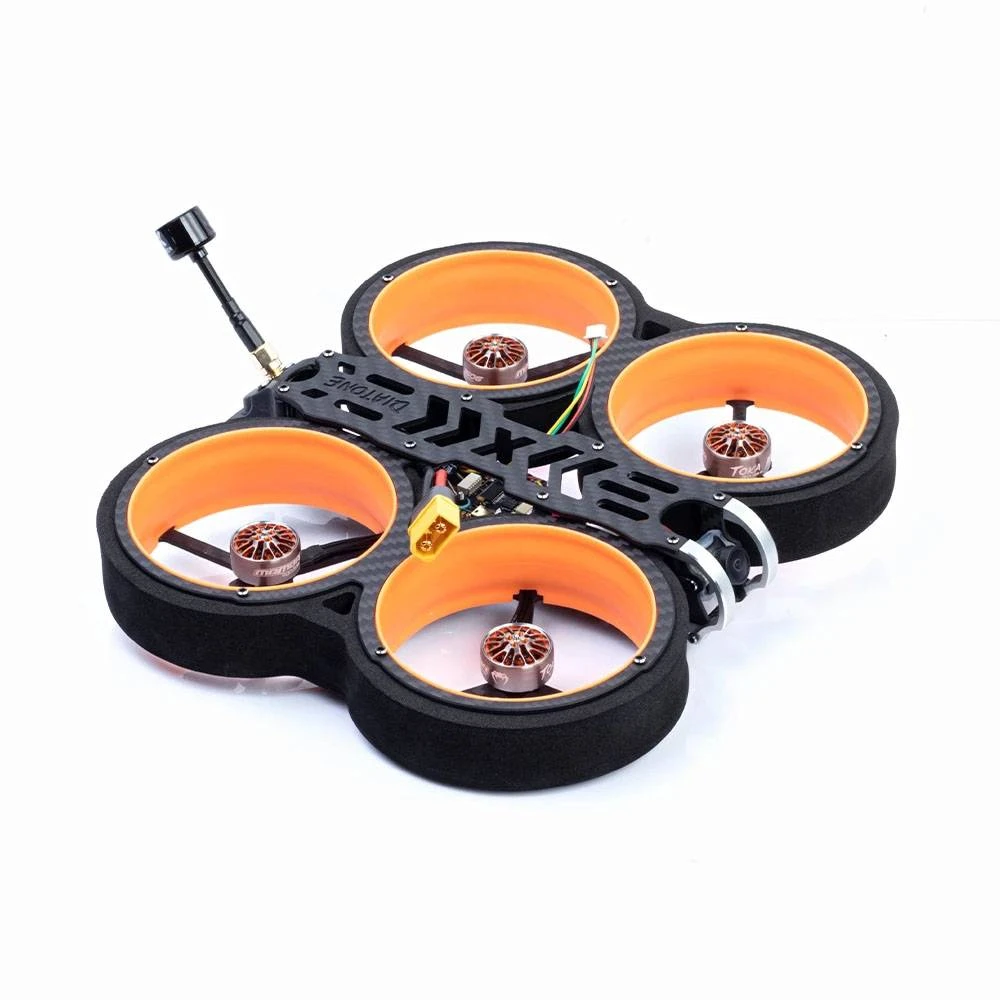

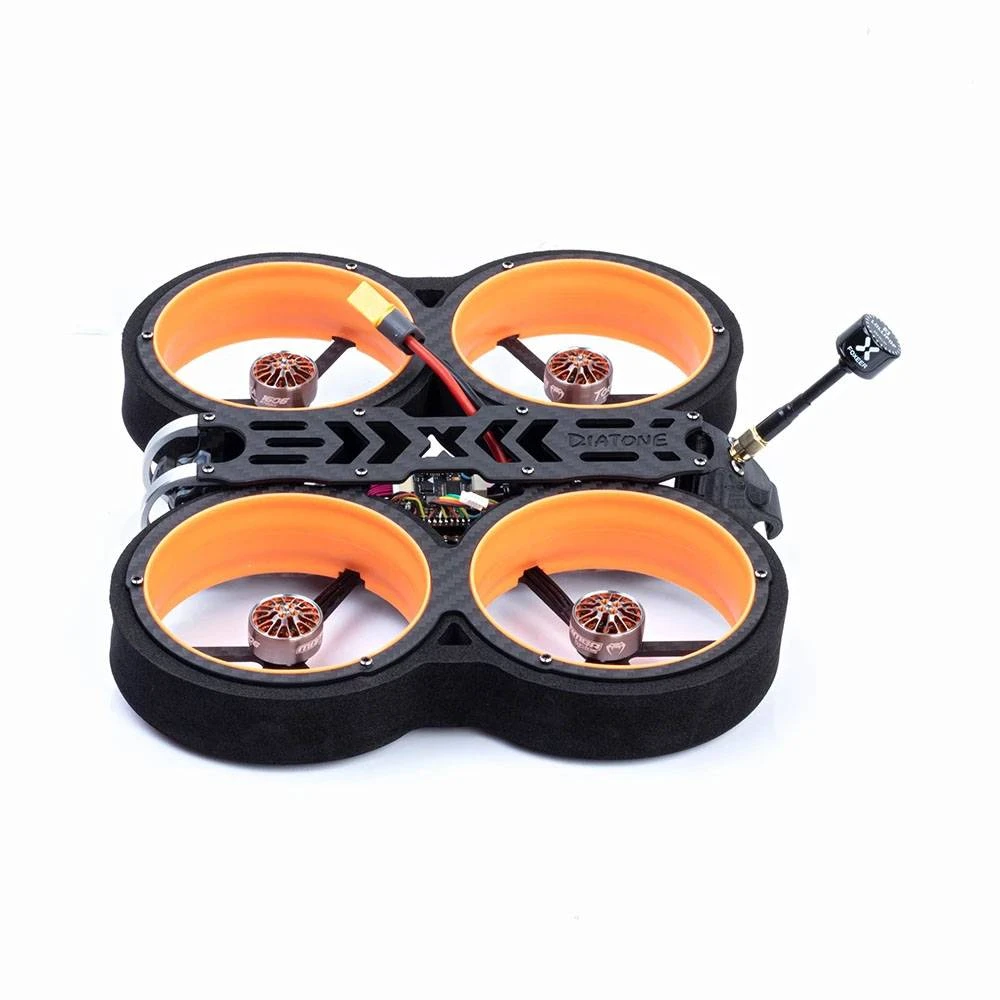

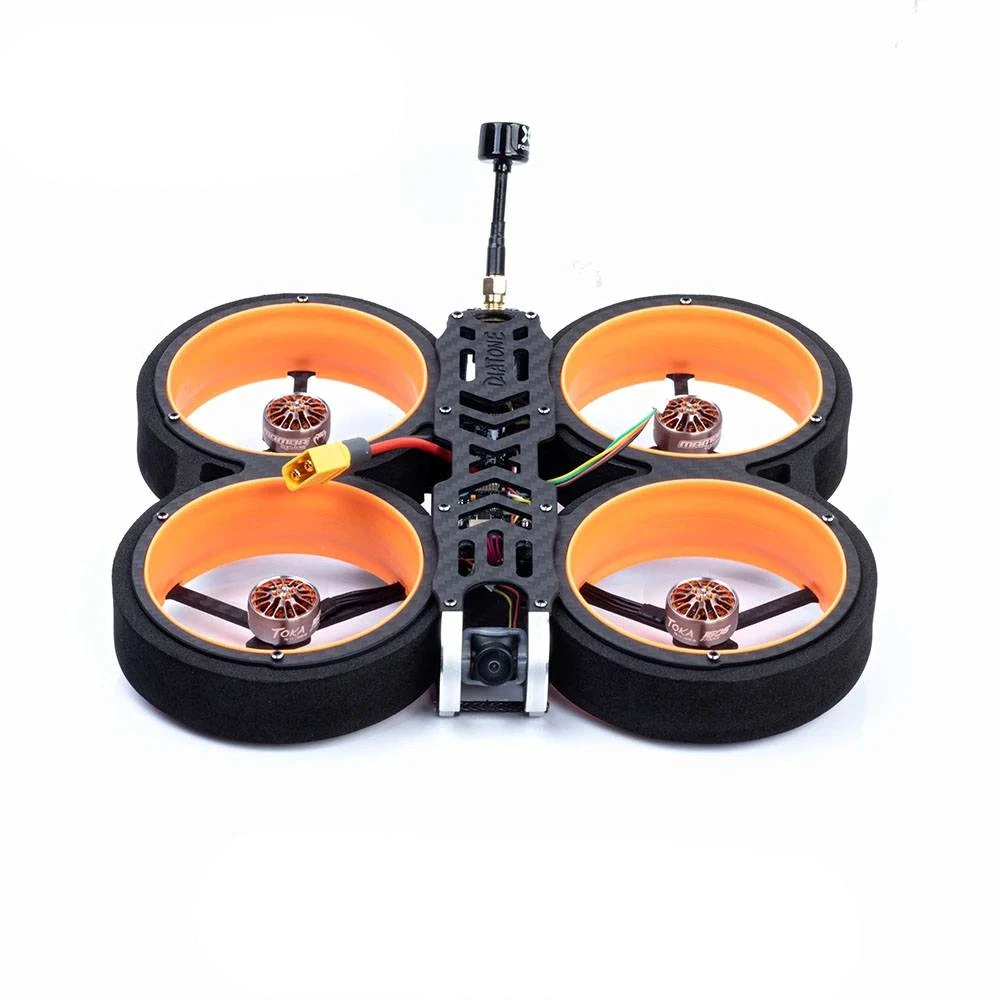

Diatone MXC Taycan 3" Duct Cinewhoop BNF – 4S/6S – Frsky R-XSR – V1.1

The Diatone MXC Taycan 3″ Ducted Cinewhoop BNF makes flying FPV a thrill while the foam bumpers give confidence flying in tight areas!

The Taycan comes with the Runcam Nano 2, one of the smallest and best WDR FPV cameras out right now. It also features the MAMBA TX400 VTX, Foxeer Lollipop Antenna, updated MAMBA Toka 1606 motors, MAMBA F405MINI MK3 FC, and other high-performance equipment.

V1.1 update includes more powerful and efficient 1606 motors that allow it to carry a GoPro with ease.

Features

• Camera: RunCam Nano 2
• Antenna: Foxeer Lollipop
• VTX: Mamba TX400
• FC: MAMBA F405MINI MK3
• ESC
• 6S Version – MAMBA F35 /35A ESC Dshot 600
• 4S Version – MAMBA F25MK2 /25A ESC Dshot 600
• Motor: MAMBA Toka MB1606
• 6S – 2700KV
• 4S – 3750KV
• Receiver: Optional (PNP, Frsky R-XSR)

Specification

• Wheelbase: 158mm
• Weight: 175g
• Paddle size: 3 inch
• Top plate: 2mm
• Base plate: 2.5mm
• Voltage (Recommendation): 4S
• Flight control mounting hole : 20mm (M2) /30.5mm (M3)
• Motor mounting hole position: 12mm
• Camera pitch: 19mm, DJI sky end (20mm), compatible with 4K dual camera

Recommended Parts (Not Included)

• 4S 1300mah (Flight time：5-7min)

• 6S 1050mah (Flight time：6-9min)

Note: Does not include transmitter, goggles, batteries, or charger

Includes

• 1 x Diatone MXC Taycan 3″ Duct Cinewhoop – BNF
• 1x USB Cable
