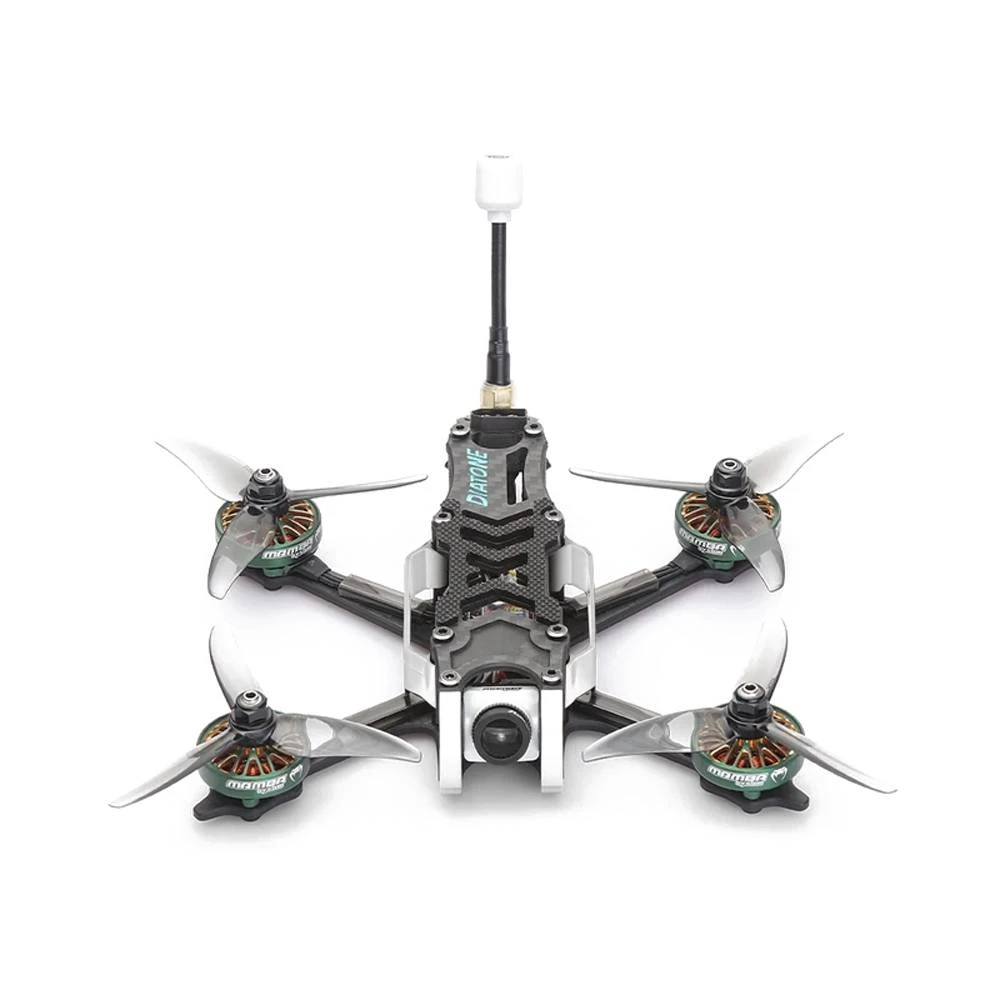

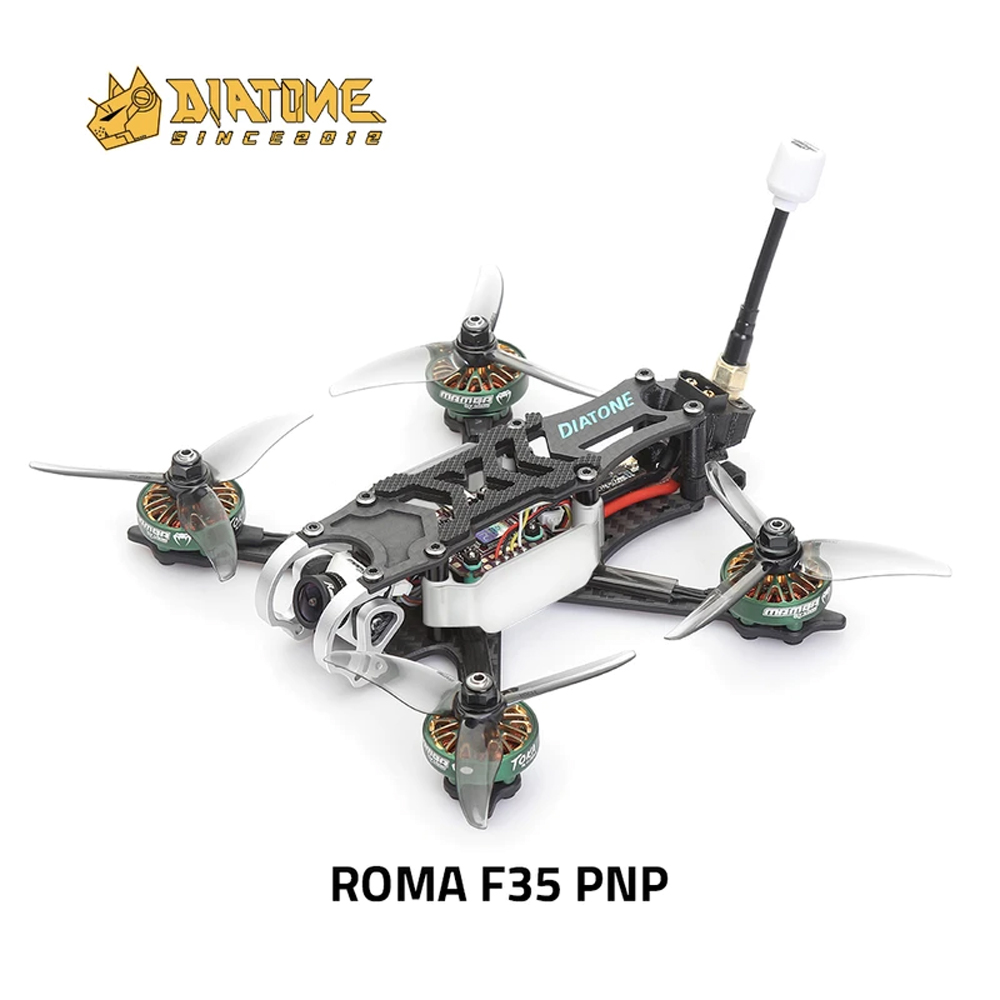

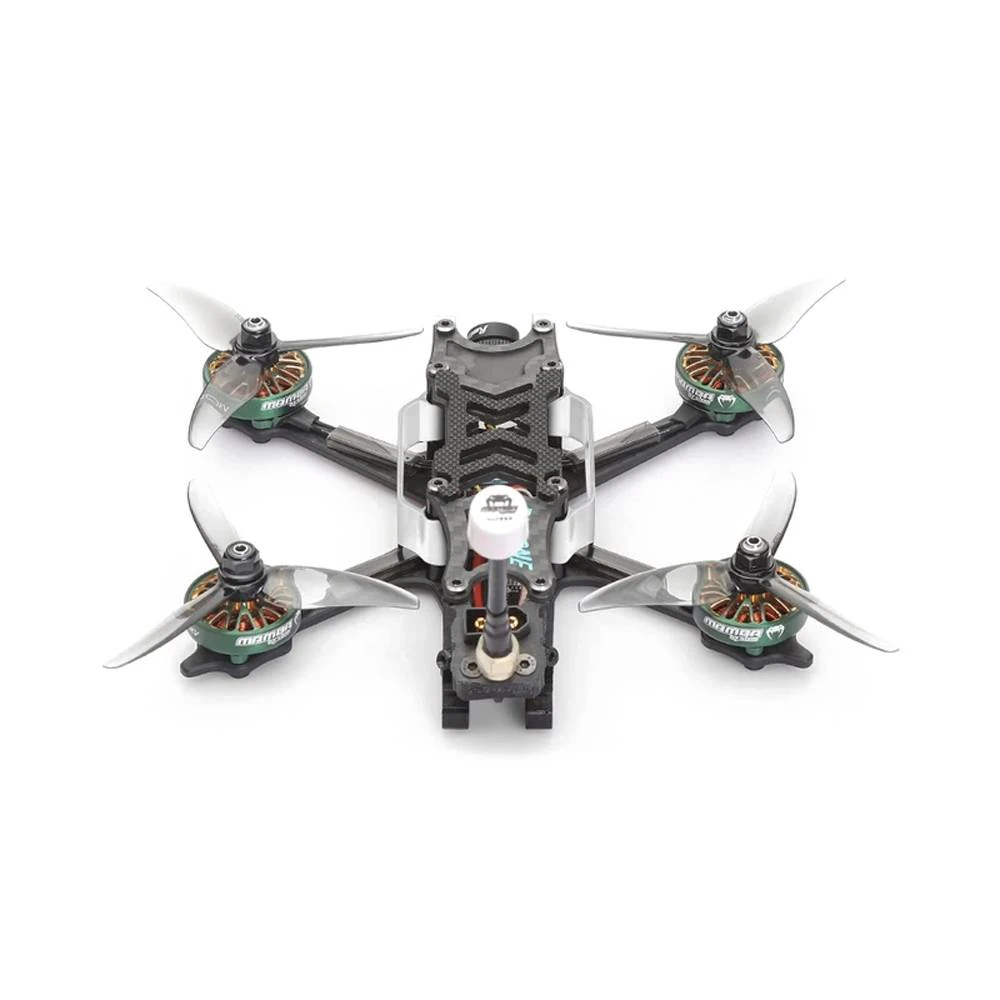

Diatone Roma F35 Analog 3.5" Freestyle Quadcopter W/ RunCam Phoenix 2 Camera – PNP

The Diatone Roma F35 Analog 3.5″ Freestyle Quadcopter comes with the RunCam Phoenix 2 Camera. and has two KV options of 4200KV (4S) or 2650KV (6S) to best fit your FPV needs.

Equipped with quality MAMBA electronics and Analog video through the RunCam Phoenix 2 Camera system, this quad is great for freestyle ripping!

Note: Injection Molded Protective Casing Color May Vary.

VIDEO: Diatone Roma F35 – Betaflight Setup & Review

Features

• Diatone Mamba F722 Mini DJI MK2 FC
• Injection-molded protection parts
• RunCam Phoenix 2 Camera
• Mamba F40_BLS Mini ESC
• 3.5″ Quad with 5″ Power!

Specifications

Diatone Roma F35 3.5″ Frame

• FC Mounting:20×20 (M2/M3)/30.5×30.5mm (M3）
• Rated Voltage (Recommendation): 4S~6S
• Motor Mounting:12mm (M2) /16mm(M3)
• Camera Spacing:19/20mm
• Max Stack Height: 25mm
• Bai Aluminum alloy: 7075
• Carbon fiber: T300 3K
• Wheelbase: 158mm
• Bottom Plate: 3mm
• Prop Siza: 3.5inch
• Top Plate: 2mm
• Weight: 70g
• Arm: 3mm

Roma F35 Analog 4S Version (4200KV)

• Motor: MAMBA TOKA 2203.5 4200 KV
• Camera: RunCam Phoenix 2 Camera
• FC: MAMBA DJI F722 MINI MK2
• Antenna: MAMBA Ultra RHCP
• ESC: MAMBA F40BLS_MINI
• VTX: MAMBA TX500
• Receiver: PNP

Roma F35 Analog 6S Version (2650KV)

• Motor: MAMBA TOKA 2203.5 2650 KV
• Camera: RunCam Phoenix 2 Camera
• FC: MAMBA DJI F722 MINI MK2
• Antenna: MAMBA Ultra RHCP
• ESC: MAMBA F40BLS_MINI
• VTX: MAMBA TX500
• Receiver: PNP

Recommended (Not Included)

• 6S Battery: Lumenier N2O 850mAh 6s 120c Lipo Battery (XT-60)
• 4S Battery: XILO 850mAh 4S 100c Basher LiPo Battery XT60

Includes

• 1x Diatone Roma F35 Analog 3.5″ Freestyle Quadcopter w/ RunCam Phoenix 2 Camera – PNP (4S or 6S options)
• 1x Gemfan 3520 3-Blade Propellers w/ Adapters (Set of 4)
• 1x USB-C Charging Cable
• 2x Receiver Connector
• 1x 20mm PC Spacer
• 1x Accessories Pack
• 1x Hardware Set
• 2x Battery Pad
• 2x Lipo Strap
• 1x Buzzer
