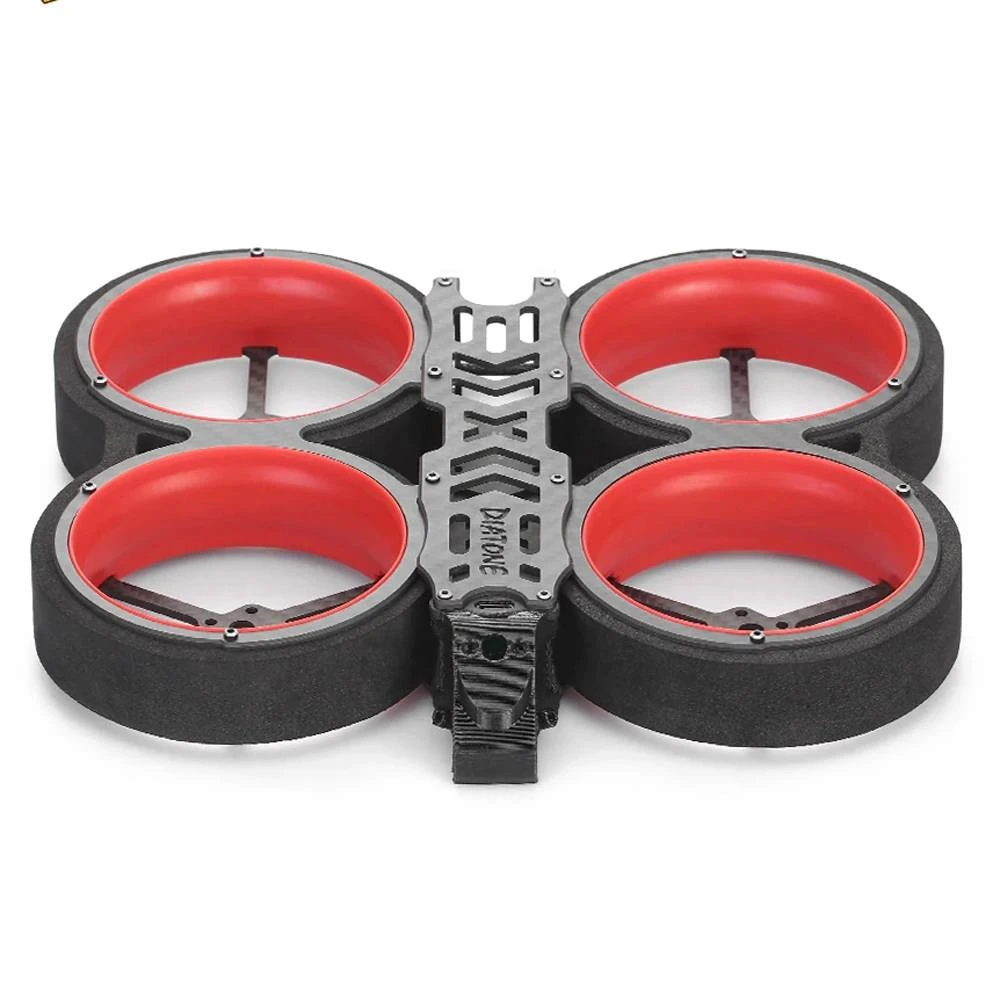

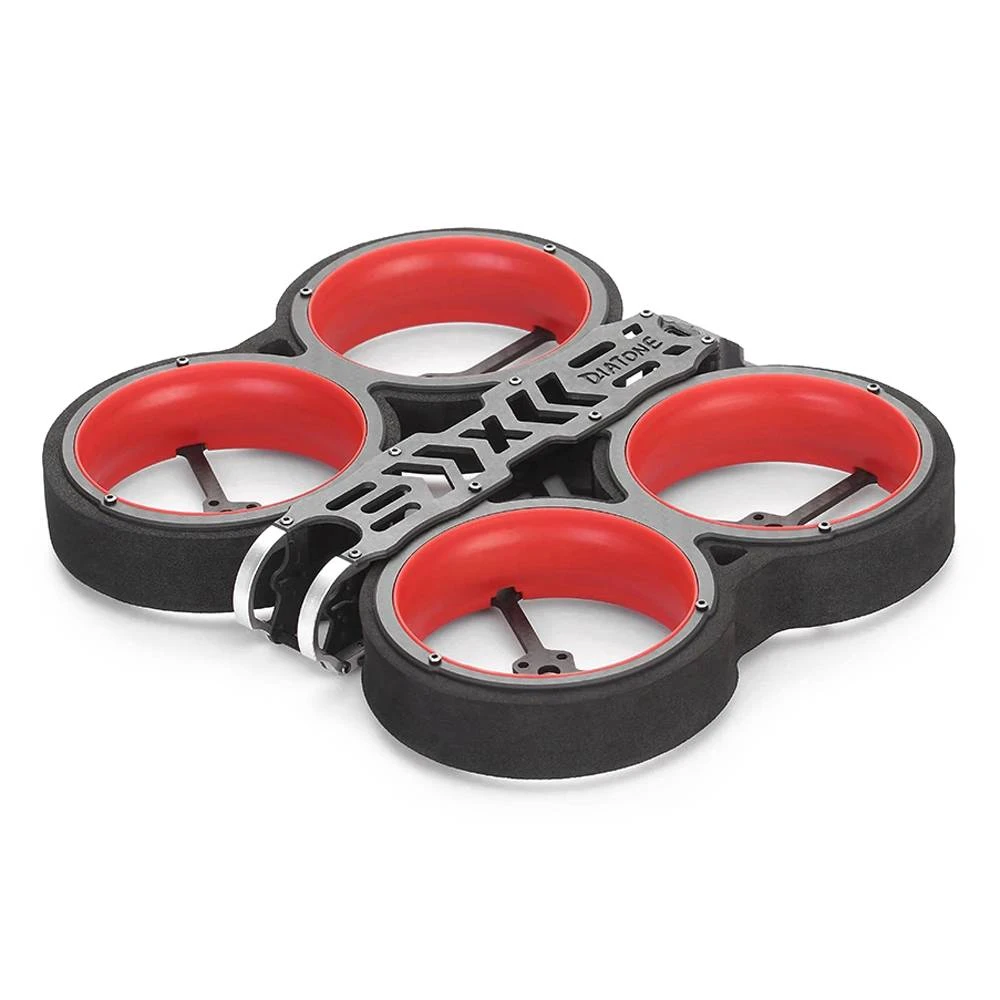

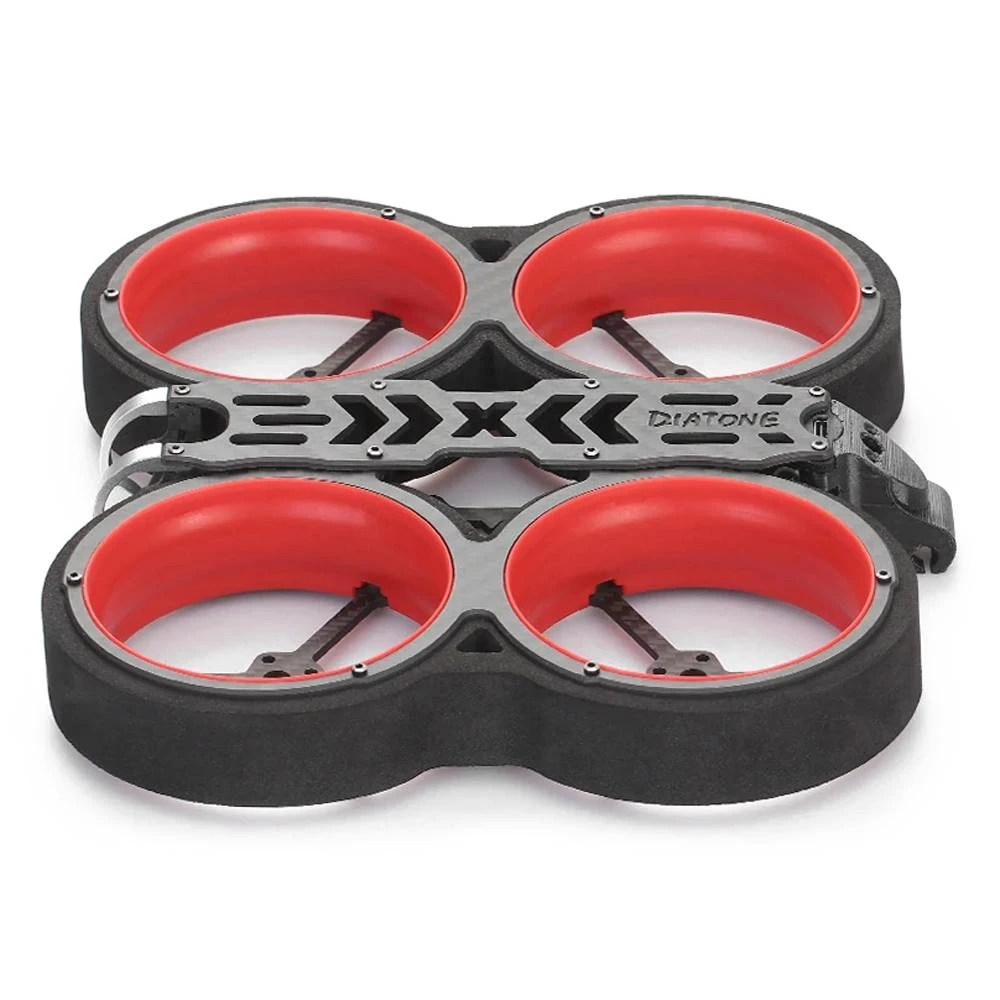

Diatone Taycan MXC3.1 3" Cinewhoop Frame Kit W/ Red Ducts

The Diatone MXC3.1 Frame Kit is a high-performance 3″ frame with red ducts!

Experience amazing footage with this powerful and agile 3″ Cinewhoop! Diatone’s latest creation features a custom frame designed just for the DJI Digital HD FPV System.

VIDEO: How to Build a Cinewhoop Drone to take Cinematic FPV Shots

Features

• Designed to house the DJI Digital HD FPV System
• Red Ducts

Specifications

• FC Mounting Patterns: 20×20mm (M2) / 25.5×25.5mm (M2) / 30.5×30.5mm (M3）
• Rated Voltage (Recommendation): 4S~6S
• Model: MXC3.1 (Taycan C3 V1.1)
• Motor Mounting:16mm (M3)
• Bai Aluminum alloy：7075
• Carbon Fiber: T300 3K
• Camera Spacing:19mm
• Wheelbase: 157.5mm
• Bottom Plate:2.5mm
• Duct Color: Red
• Top Plate:2mm
• Weight: 158g
• Prop Size: 3″
• Arm: 2.5mm

Recommended (Not Included)

• Camera:/ VTX: Caddx DJI Digital HD FPV Air Unit Kit
• Motor: MAMBA TOKA 2203.5 2650 KV
• FC: MAMBA AIO F411 35A / 20MM
• Antenna: MAMBA ULTRA LHCP
• 6S Battery: 850-1050 mAh

Includes

• 1x Mamba Micro USB/ Micro USB V2 Adapter
• 1x SMA Antenna Fixing Screw Set
• 4x Red Ducts with Foam Bumpers
• 1x 20 to 25.5 Aluminum Adapter
• 1x Micro USB Extender
• 1x USB-C Extender
• 2x Camera Plates
• 1x TPU Parts Set
• 1x Hardware Set
• 1x Standoffs Set
• 1x Set of Zipties
• 1x Bottom Plate
• 2x Motor Plates
• 1x Battery Pad
• 2x LiPo Strap
• 1x Top Plate
