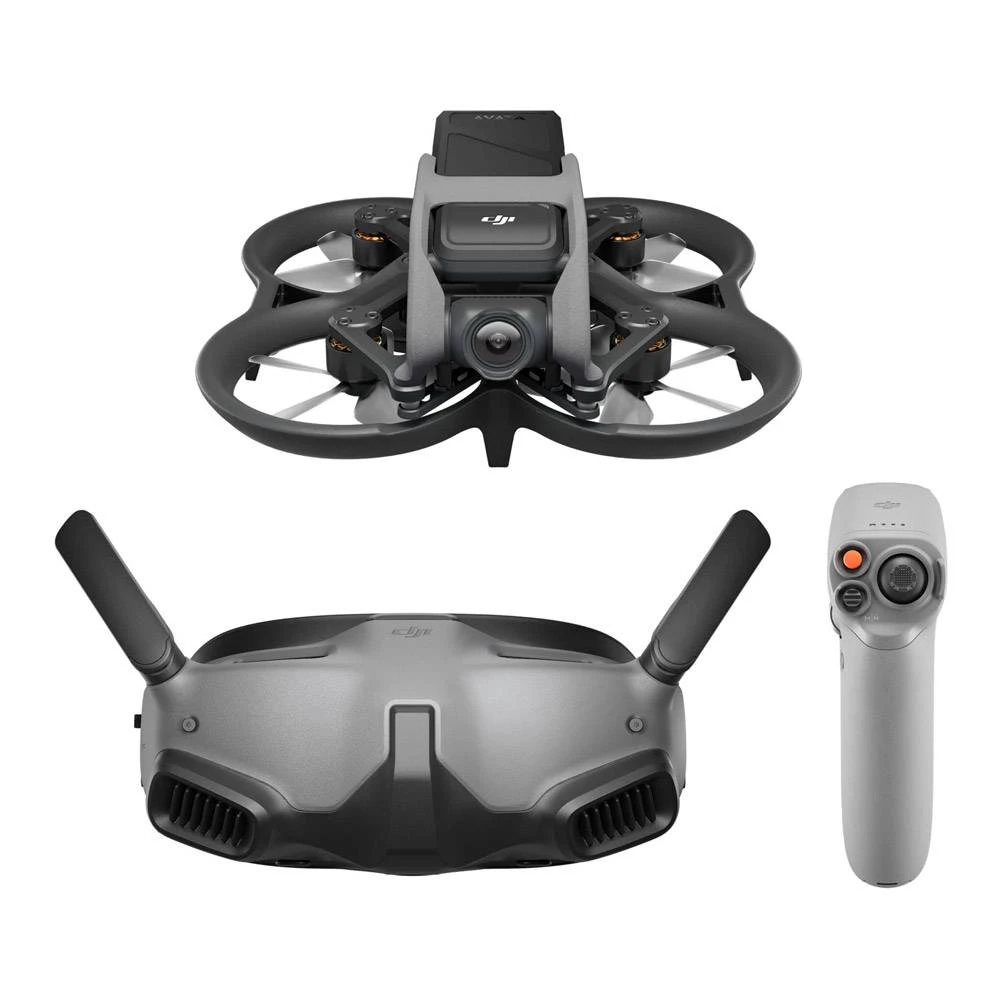

DJI Avata Explorer Combo

The DJI Avata is built tough, so you can be brave and fly far! This DJI Avata Explorer Combo features the DJI Integra Goggles and an updated intuitive Motion Controller. The durable frame reduces the risk of damage, giving you more peace of mind. The new ducted aerodynamic design optimizes power efficiency allowing for an impressive flight time of up to 18 minutes. The Avata is portable and ready for adventure, adopting a new innovative design that is made with convenience in mind. It is more lightweight, compact, and easy to carry. Rediscover your surroundings with complete freedom and find incredible ways to capture video! DJI Avata’s flexibility in various scenarios opens up a world of creative possibilities.

Note: (Insert any product options here in black text with options in bold.)

Example: “Choose from two KV’s: 1800KV (4S) or 2500KV (6S).”

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: DJI – Introducing DJI Avata

• Intuitive DJI RC Motion 2 Controller
• HD Low-Latency Transmission
• Immersive Flight Experience
• Built-in Propeller Guard
• Palm-Sized and Agile
• DJI Integra Goggles
• 4K Stabilized Video
• DJI Avata Drone

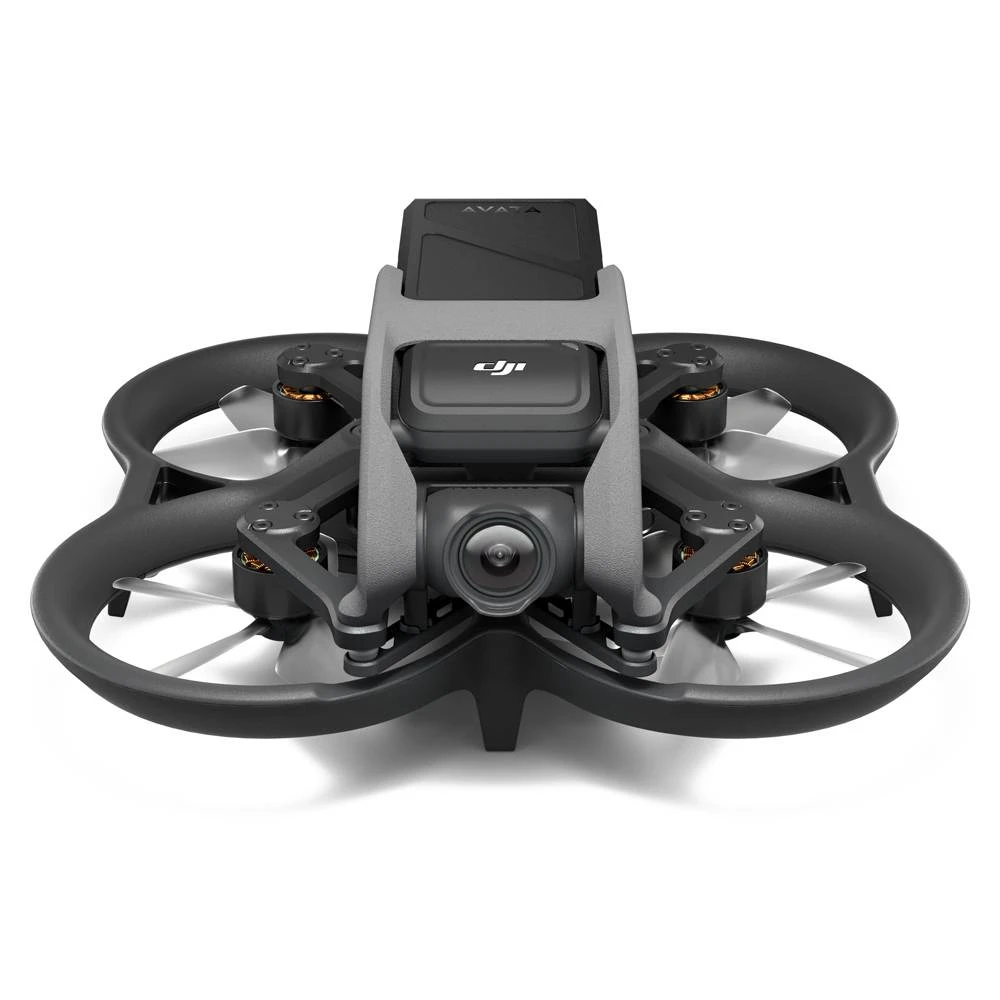

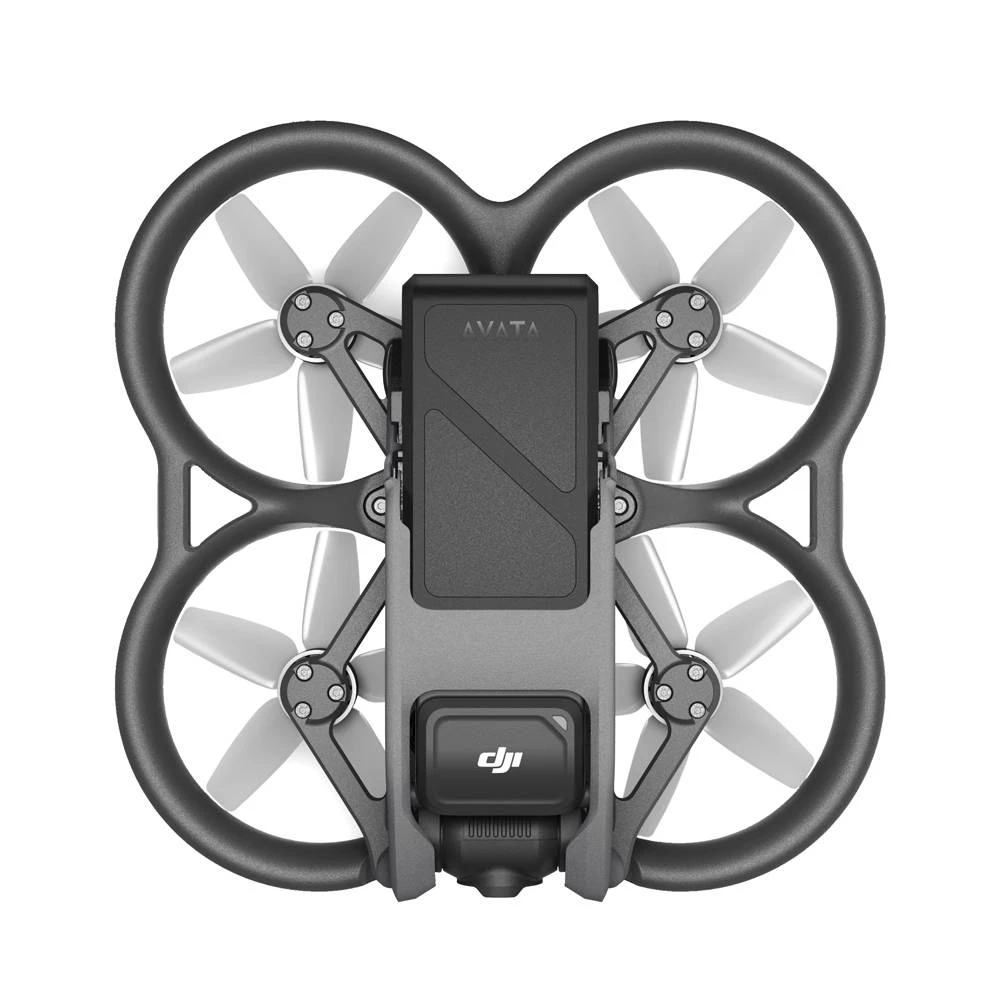

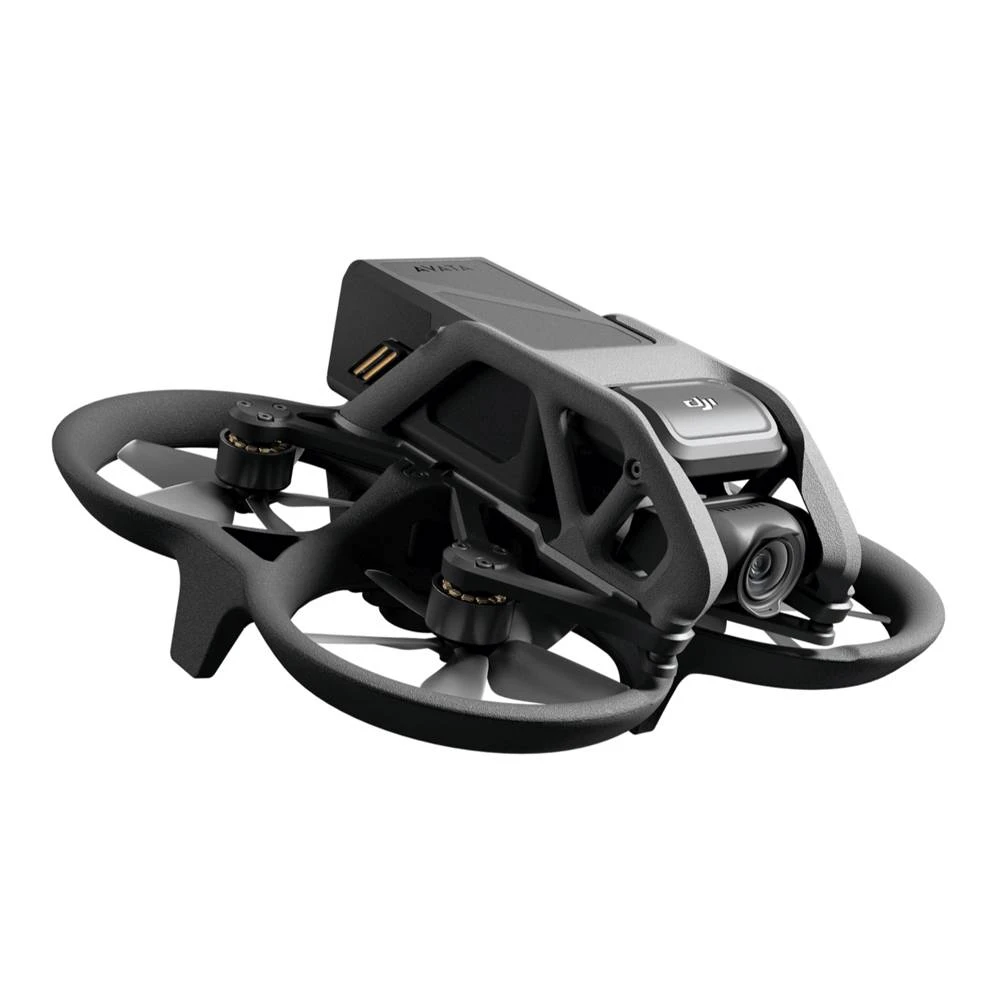

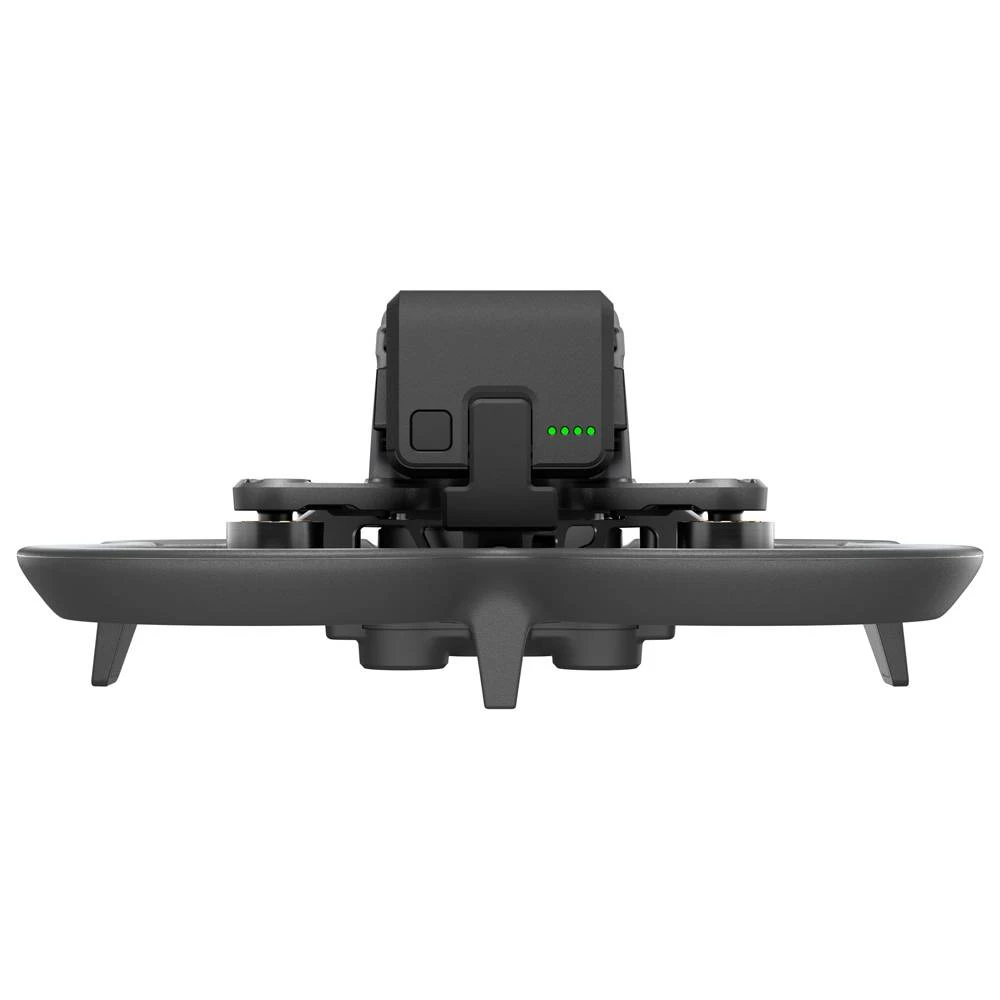

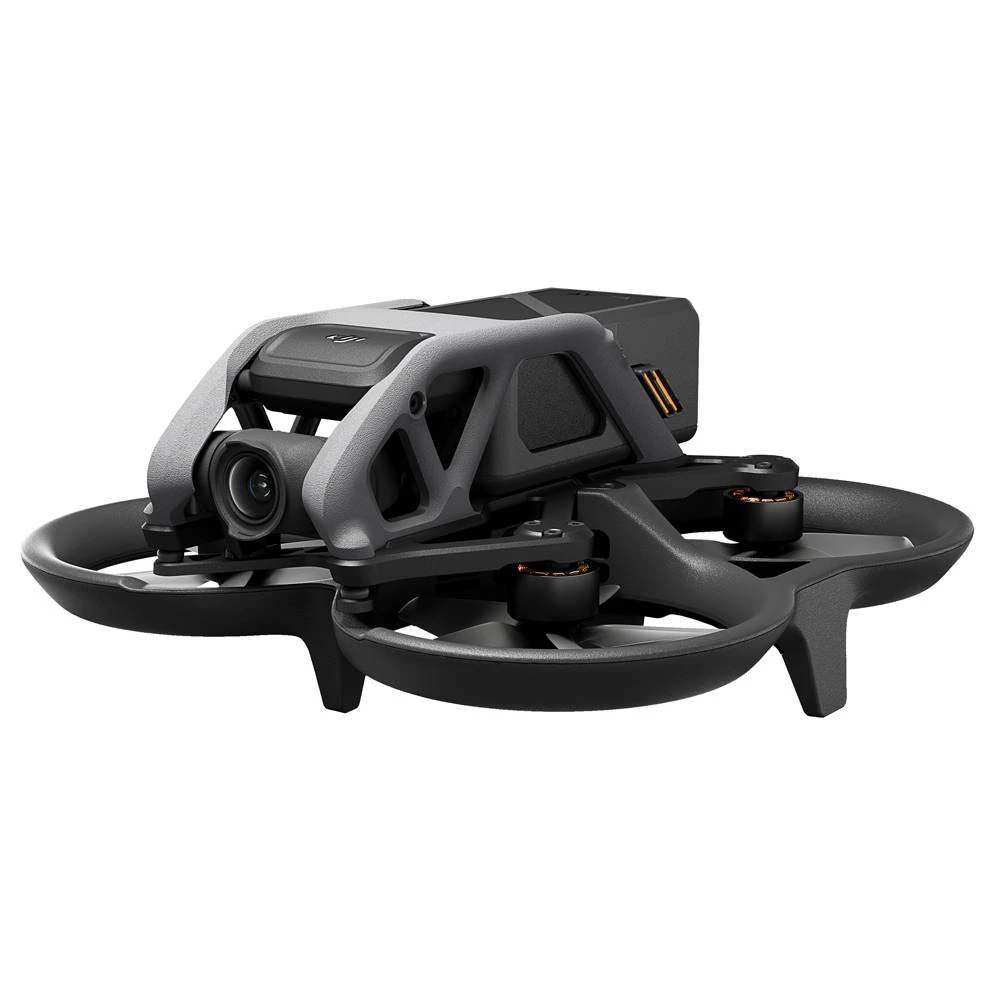

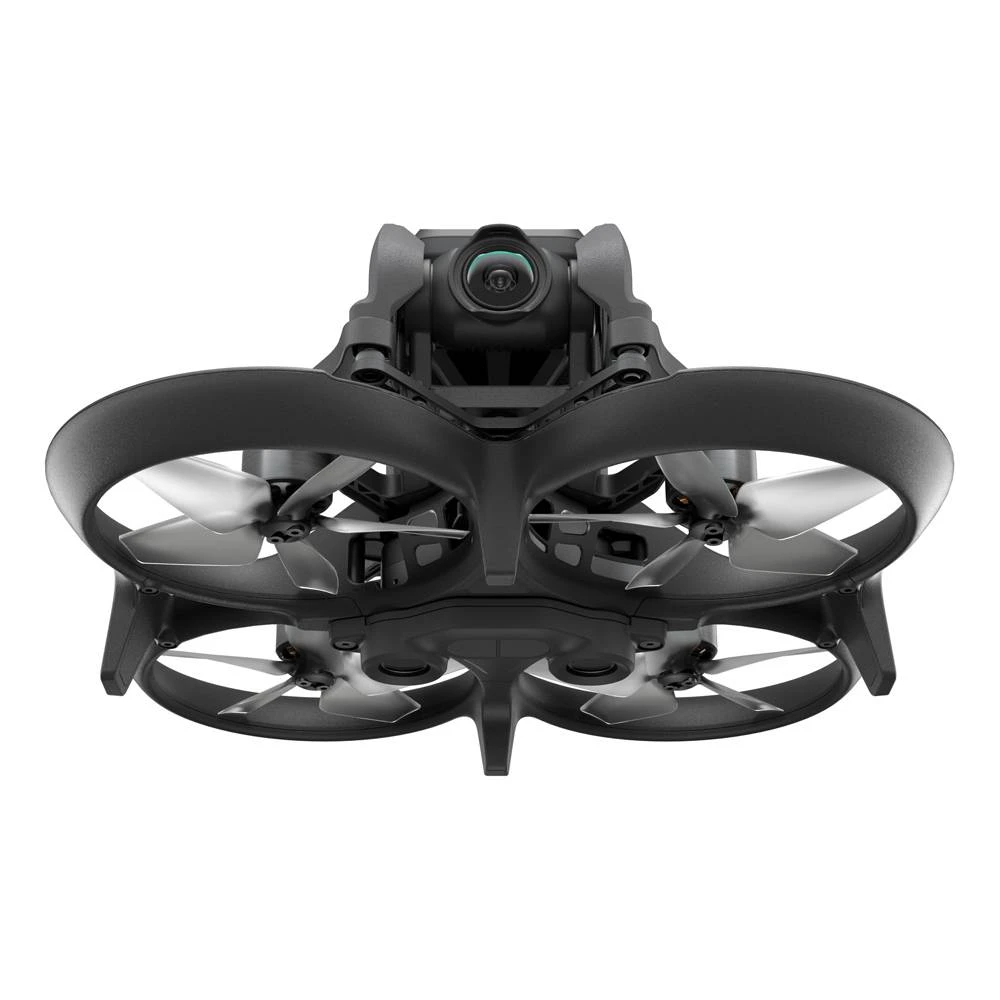

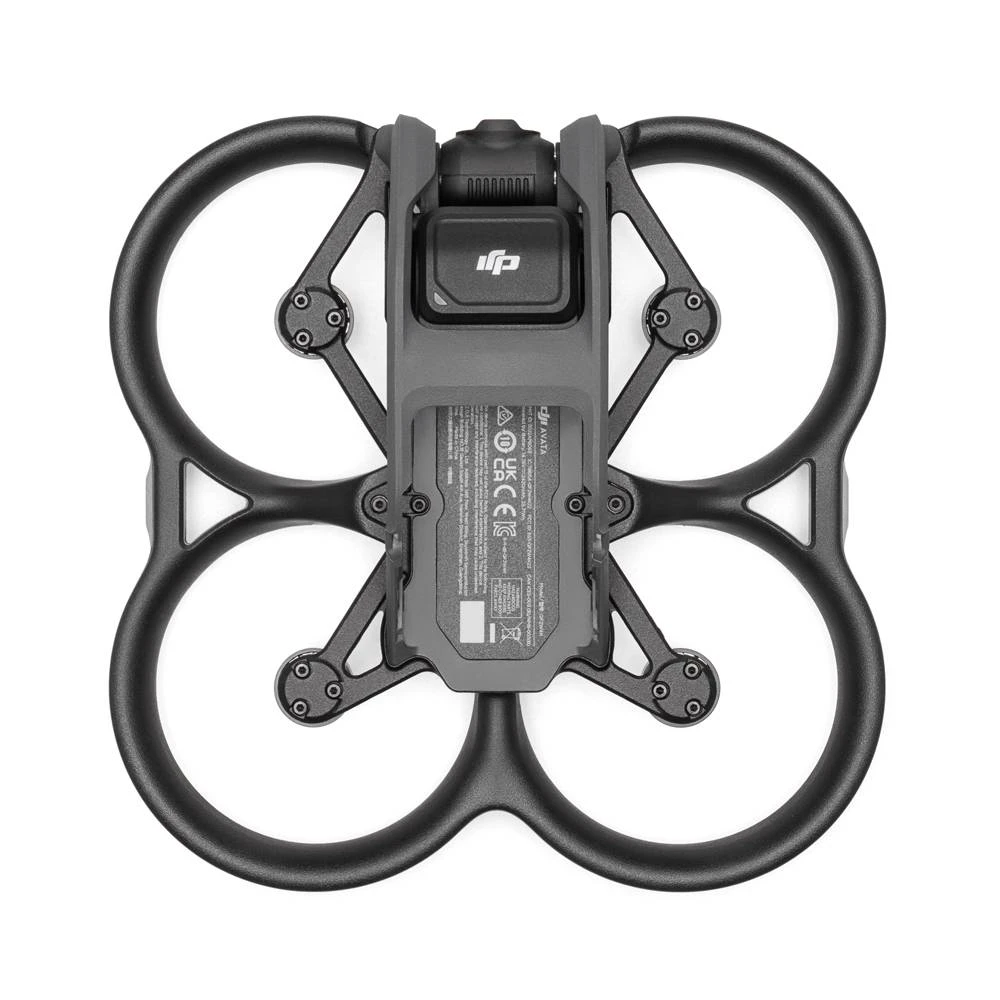

DJI AVATA DRONE – Where Agility Meets Toughness

Compact and lightweight, the DJI Avata is nimble in tight spaces. Every aspect of its design was made for you to be bold. The built-in propeller guard means that if Avata comes in contact with an object, it can bounce back, stay in the air, and can keep on flying. In addition to the built-in propeller guard, Avata features downward binocular vision and ToF infrared sensing for even greater safety. These sensors detect obstacles below and allow Avata to perform low-altitude or indoor flight. Should Avata fall on its back, activate Turtle mode with a few simple taps and watch it spring back into action.

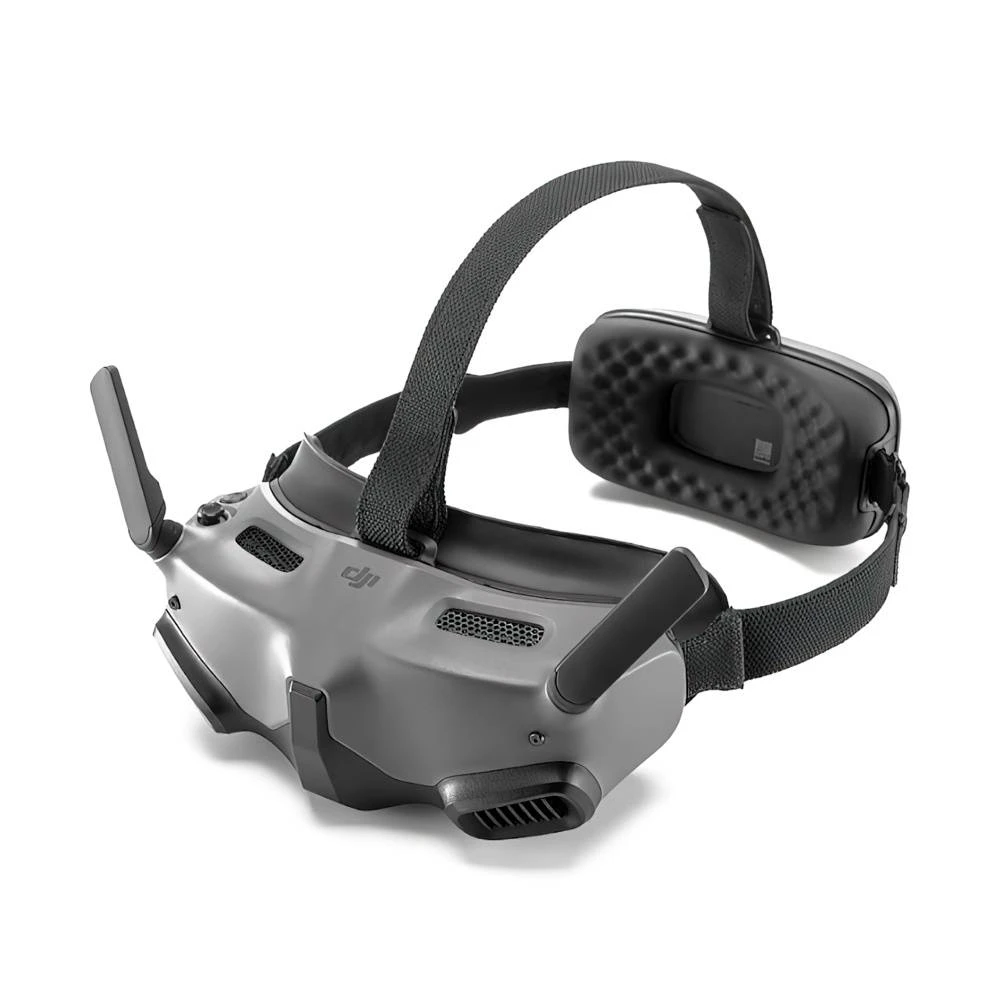

DJI GOGGLES INTEGRA – Get in the Pilot’s Seat

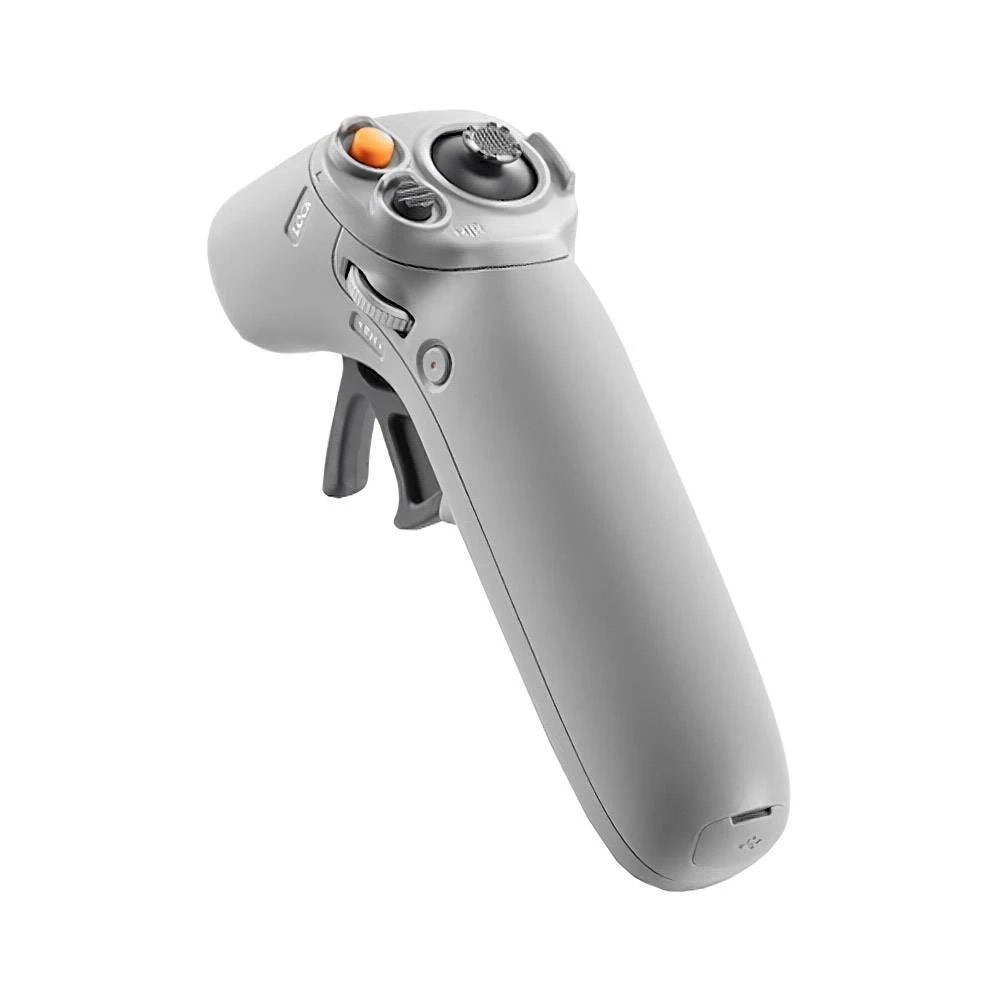

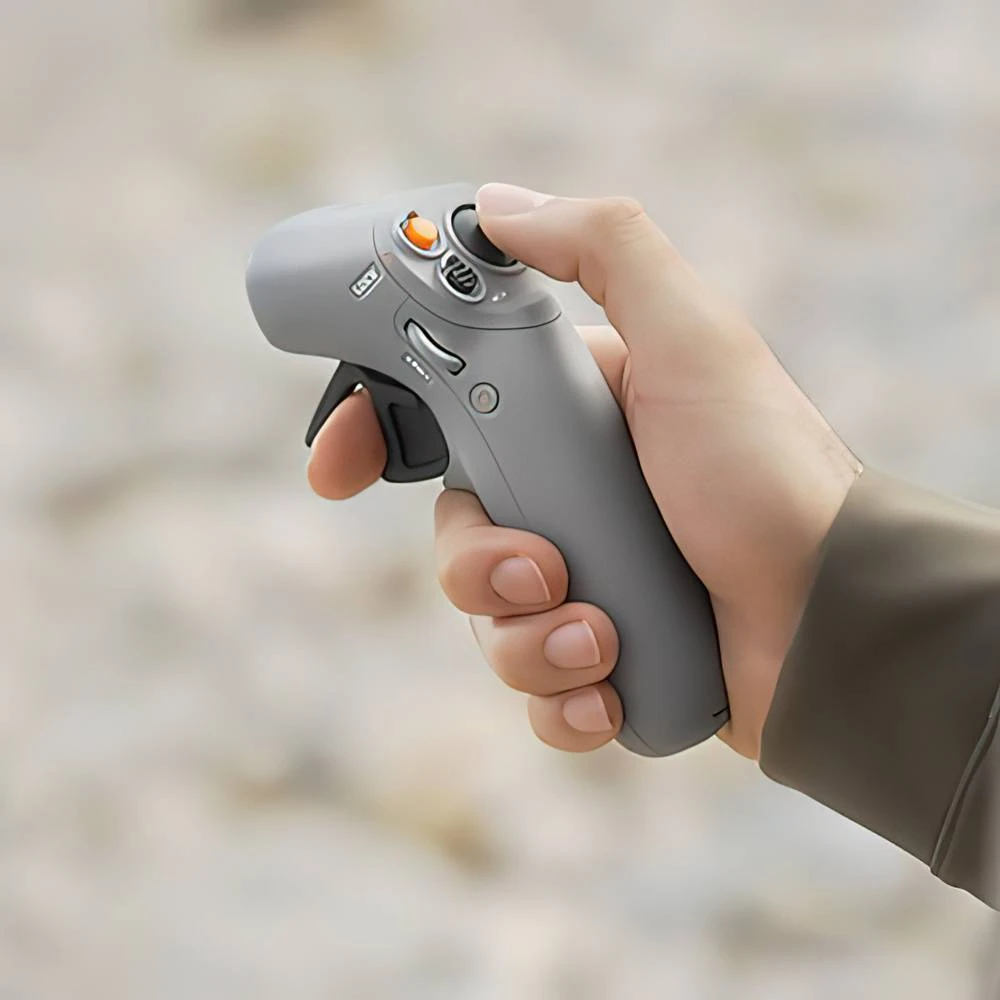

DJI RC MOTION 2 CONTROLLER – Get a Feel for Flying

With motion sensing technology, the RC Motion 2 allows users to control the flight direction with just a slight turn of the wrist. Navigate easily, maneuver, and explore the sky in a completely unique way.

VTX AND CAMERA SYSTEM – Epic Moves Deserve Epic Footage

Equipped with a 1/1.7-inch CMOS sensor, DJI Avata supports 4K ultra-wide-angle recording with an f/2.8 aperture. Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. Most camera drones offer, at best, an 84° FOV. DJI Avata kicks things up a gear with its super-wide 155° FOV. This expanded perspective is closer to what we see with our own eyes, creating impactful, hyper-immersive visuals. Keep your footage stable as you swoop and dive with RockSteady 2.0 and HorizonSteady. These flagship technologies open a world of cinematic possibilities by reducing camera shake and ensuring smooth ultra-HD video. Avata features DJI’s flagship O3+ video transmission and 2T2R omnidirectional antennas for unrivaled stability and responsiveness during flight. Enjoy a crisp and smooth real-time view in your goggles, even in environments with interference.

D-CINELIKE MODE – Agile In The Editing Room

Dive into a world of colors by shooting in D-Cinelike mode. Make your footage pop with advanced color grading in post-editing and turn your creation into a masterpiece.

DJI VIRTUAL FLIGHT APP – Practice Makes Perfect

The DJI Virtual Flight app is applicable to both computers and smartphones and contains a variety of simulated scenarios. [16] You can practice indoors or outdoors, polish your flight skills, and become a master pilot step by step

PRE-TUNED AND PRE-SETUP

This RTF is fully built and test-flown by build technicians at our Florida facility.

DJI AVATA DRONE

• Gimbal:
  • Electronic Roll Axis: Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
  • Controllable Range: Tilt: -80° to +65°
  • Mechanical Range: Tilt: -95° to 75°
  • Angular Vibration Range: ±0.01°
  • Stabilization: Single-Axis (tilt)
  • Max Control Speed: 60°/s
• Camera:
  • Distortion Correction: Supports Normal Mode, Wide Mode, and Ultra Wide Mode
  • EIS: Supports RockSteady and HorizonStead (Can be disabled)
  • Video Resolution:
    • With DJI FPV Goggles V2:
      • 4K@50/60fps
      • 2.7K@50/60/100/120fps
      • 1080p@50/60/100/120fps
    • With DJI Goggles 2:
      • 4K@50/60fps
      • 2.7K@50/60/100fps
      • 1080p@50/60/100fps
  • Still Photography Mode: Single Shot
  • Equivalent Focal Length: 12.6 mm
  • Max Image Size: 4000×3000
  • Max Video Bitrate: 150 Mbps
  • Supported File System:
    • exFAT (recommended)
    • FAT32
  • Shutter Speed:
    • Video: 1/8000-1/50 s
    • Photo: 1/8000-1/50 s
  • ISO Range:
    • 100-25600 (Manual)
    • 100-6400 (Auto)
  • Sensor: 1/1.7-inch CMOS
  • Focus Range: 0.6 m to ∞
  • Focal Length: 2.34 mm
  • Effective Pixels: 48 MP
  • Photo Format: JPEG
  • Video Format: MP4
  • Lens: FOV: 155°
  • Color Mode:
    • Standard
    • D-Cinelike
  • Aperture: f/2.8
  • Focus Mode: FF
• VTX:
  • Live View Quality and Latency:
    • With DJI FPV Goggles V2:
      • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
      • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
    • With DJI Goggles 2:
      • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
      • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
  • Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
  • Communication Frequency: 2.400-2.4835 GHz (RX only)
    • 5.725-5.850 GHz (RX and TX)
  • Max Video Transmission Bitrate: 50 Mbps
  • Communication Bandwidth: Max 40 MHz
  • Audio Transmission: N/A
• Sensing System:
  • Operating Environment:
    • Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
    • Adequate lighting (lux: > 15, normal indoor lighting conditions)
  • Downward (Binocular Vision and ToF): ToF Effective Measurement Height: 10 m
  • Vision Sensor Hovering Range: 0.5-20 m
  • Precise Hovering Range: 0.5-10 m
• Recommended microSD Cards:
  • Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
  • Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
  • Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
  • SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
  • SanDisk Extreme U3 V30 A1 32GB microSDXC
  • Internal Storage: 20 Gb
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Max Wind Speed Resistance: 10.7 m/s (Level 5)
• Supported SD Cards: microSD (up to 256 GB)
• Hovering Accuracy Range
  • Vertical:
    • ±0.1 m (with Vision Positioning)
    • ±0.5 m (with GNSS Positioning)
  • Horizontal:
    • ±0.3 m (with Vision Positioning)
    • ±1.5 m (with GNSS Positioning)
• Antennas: Dual Antennas, 2T2R
• GNSS: GPS + Galileo + BeiDou
• Max Flight Distance: 11.6 km
• Transmission Power (EIRP):
  • FCC: < 33 dBm
  • CE: < 14 dBm
  • SRRC: < 30 dBm

DJI GOGGLES INTEGRA

• Screen: 1080p Micro OLED (2)
• Model: DJI Goggles Integra
• Refresh rate: 100Hz
• Weight: .89lbs

DJI RC MOTION 2 CONTROLLER

• Model: DJI RC Motion 2
• Control: Motion Sensor
• Weight: .36lb

DJI AVATA INTELLIGENT FLIGHT BATTERY

• Charging Temperature Range: 5° to 40° C (41° to 104° F)
• Chemical System: LiNiMnCoO2
• Charging Voltage Limit: 17 V
• Battery Capacity: 2420 mAh
• Discharge Rate: Typical: 7C
• Energy: 35.71 [email protected]
• Weight: Approx. 162 g
• Voltage: 14.76 V
• Type: Li-ion

IMPORTANT NOTES

• HorizonSteady is only available in Normal mode FOV with an aspect ratio of 16:9 and video recording specification of 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps. RockSteady is unavailable when the video recording specification is 2.7K@100/120fps or 1080p@100/120fps.
• The 155° FOV is only available when the aspect ratio is 4:3, and the video recording specification is 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
• DJI Avata is compatible with DJI Goggles Integra, DJI Goggles 2, DJI FPV Remote Controller 2, DJI RC Motion 2 Controller, and DJI FPV Goggles V2.
• DJI Goggles Integra do not support astigmatism correction. If you have specific vision requirements, please consult your doctor before use.
• The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
• The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
• 4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

• Combo Case: GPC Combo Case for DJI Avata + Goggles
• Drone Case: GPC Compact Case for DJI Avata
• Radio Controller: DJI FPV Remote Controller 2

•   (Insert links such as manuals, firmware, etc)

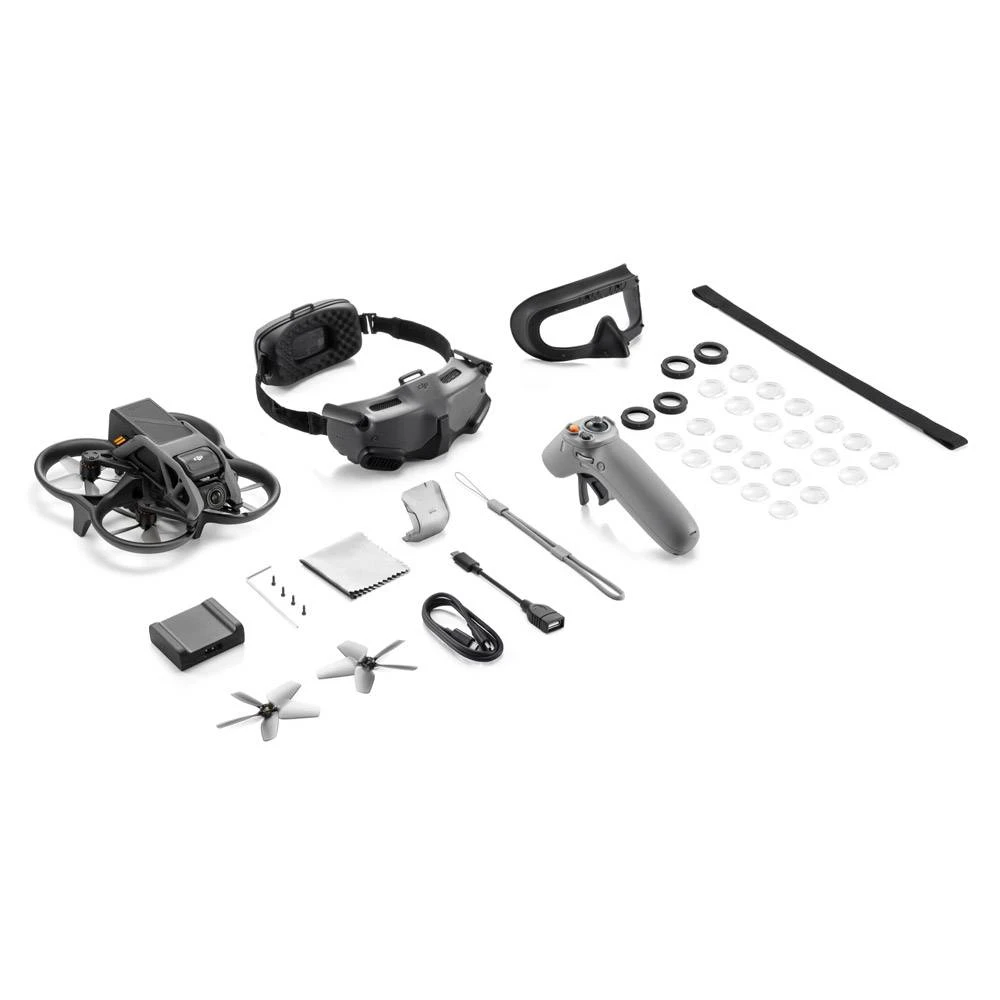

• 1x DJI Goggles Integra Dual-Band Antenna (Set of 2)
• 1x DJI Goggles Integra Eyeglass Frames (Set of 2)
• 1x DJI Goggles Integra Power Cable
• 1x DJI Goggles Integra Headband
• 1x Type-C to Type-C PD Cable
• 1x DJI RC Motion 2 Controller
• 1x DJI Avata Propellers (Pair)
• 1x DJI Avata Power Adapter
• 1x Corrective Lenses (Pair)
• 1x DJI Avata Flight Battery
• 1x DJI Goggles Integra
• 1x Lens Cleaning Cloth
• 1x DJI Avata Drone
• 1x Screwdriver
• 1x OTG Cable
• 1x Lanyard
• 1x Manual
