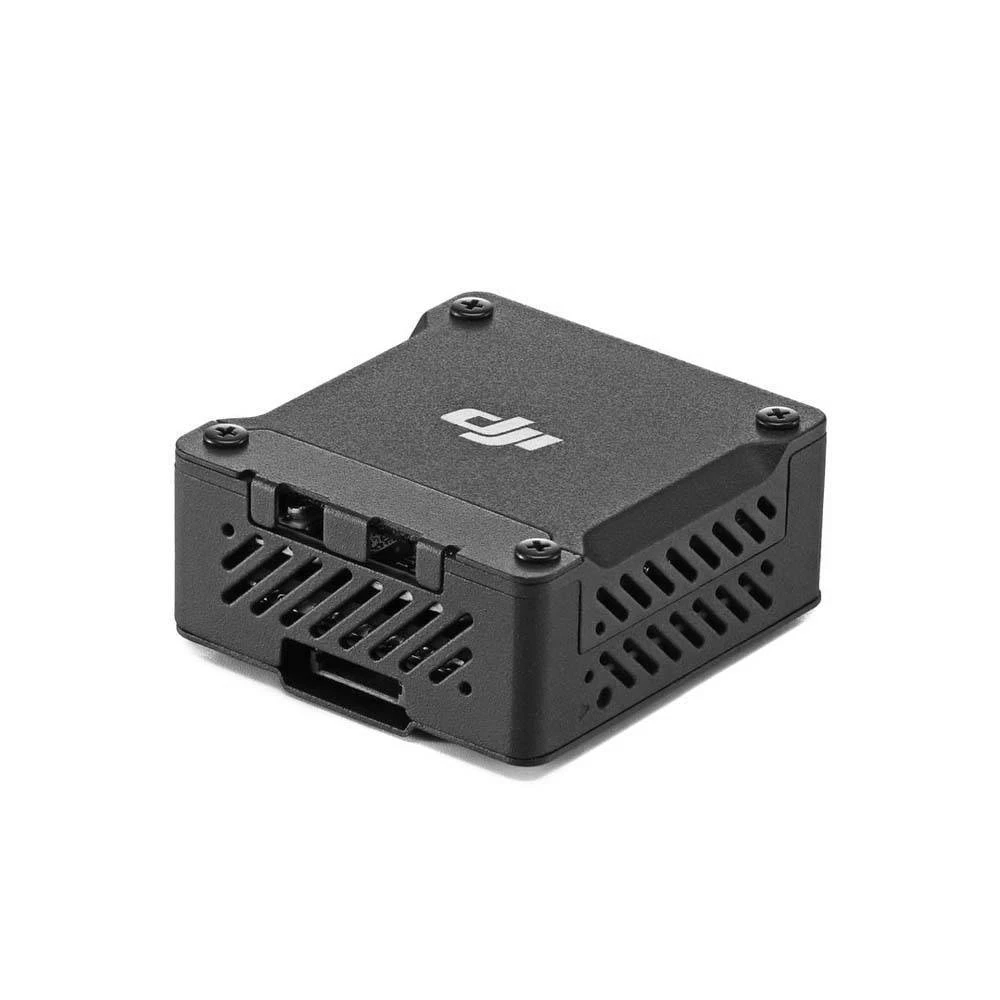

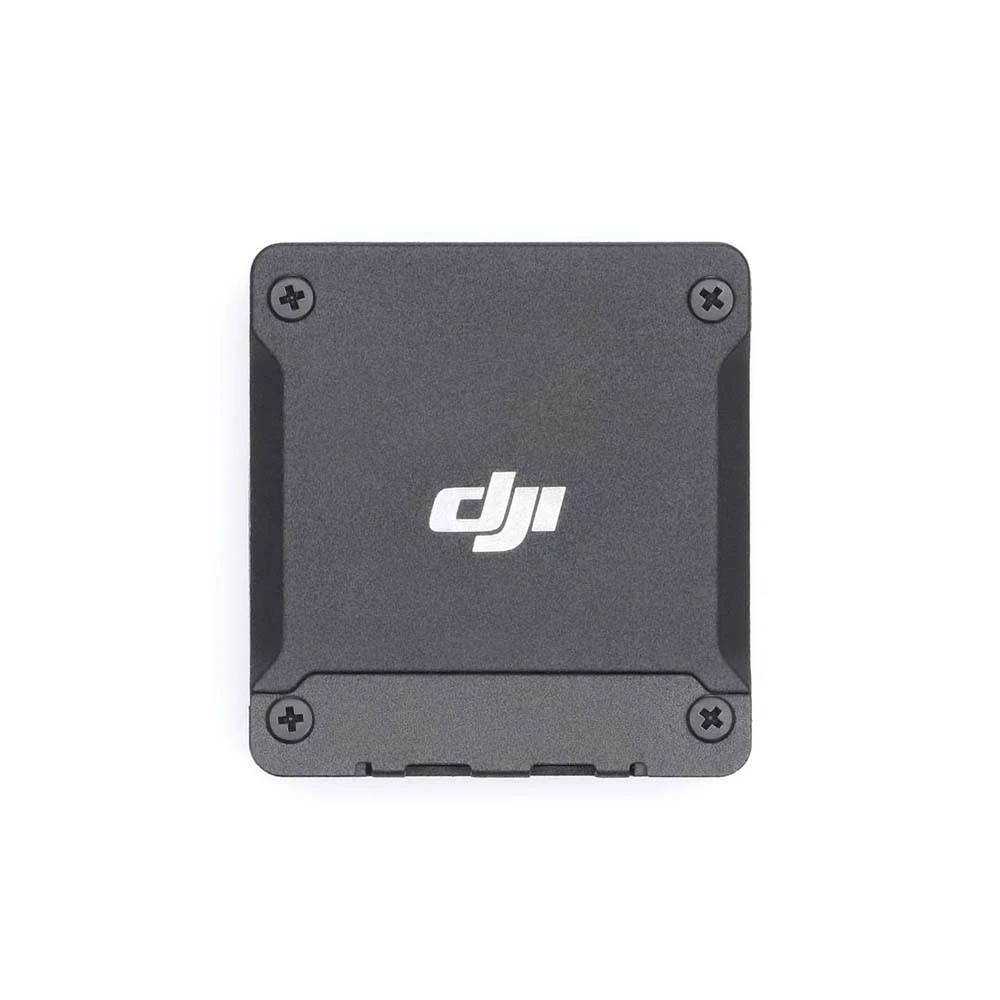

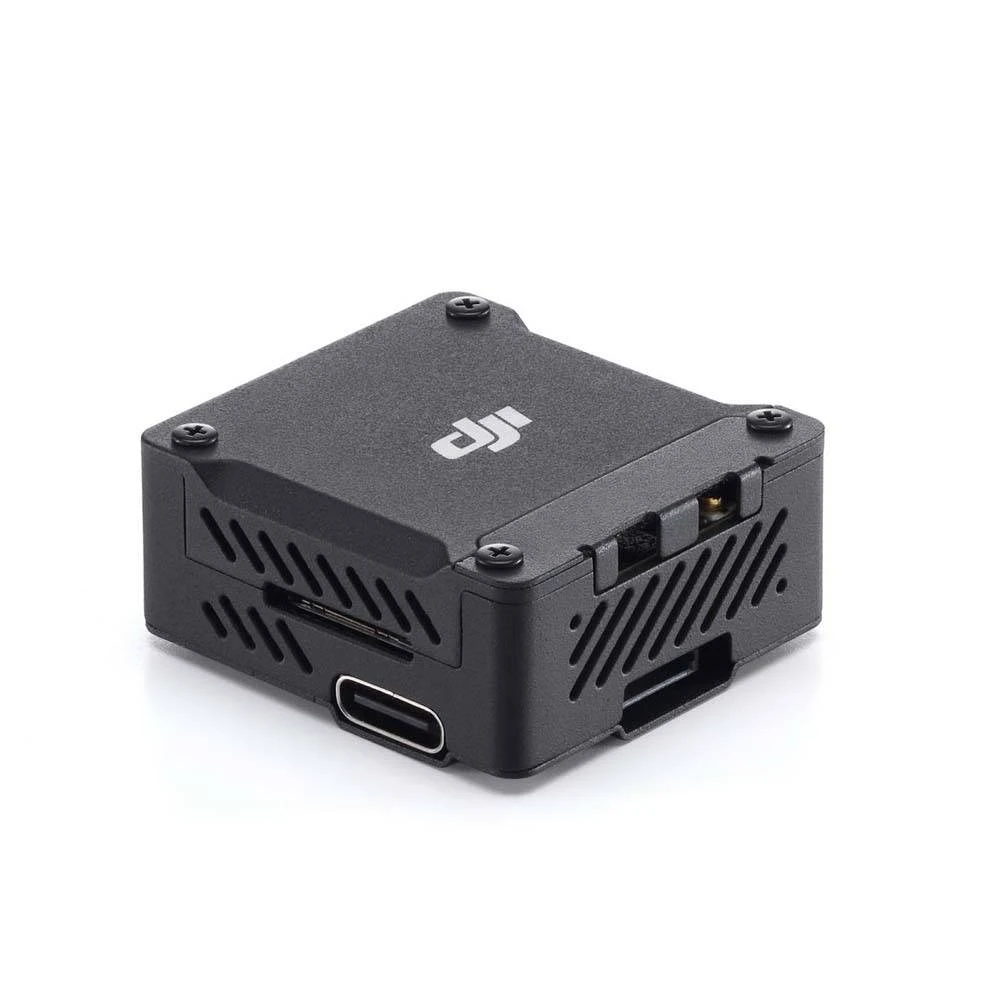

DJI O3 Air Unit Transmission Module

The DJI O3 Air Unit Transmission Module will take your FPV experience to a whole new level all in a lightweight and compact design! Supports Betaflight, auto mode, manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels, microSD, and is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.

Note: The new DJI O3 Air Unit can draw close to 2A under certain settings. Please verify that your flight controller is capable of 9V / 2A. If not, please consider powering the Air Unit directly from battery +/- on the flight controller or by using a standalone voltage regulator that supplies the required 2A.

VIDEO: (Insert Video Title here in Bold)

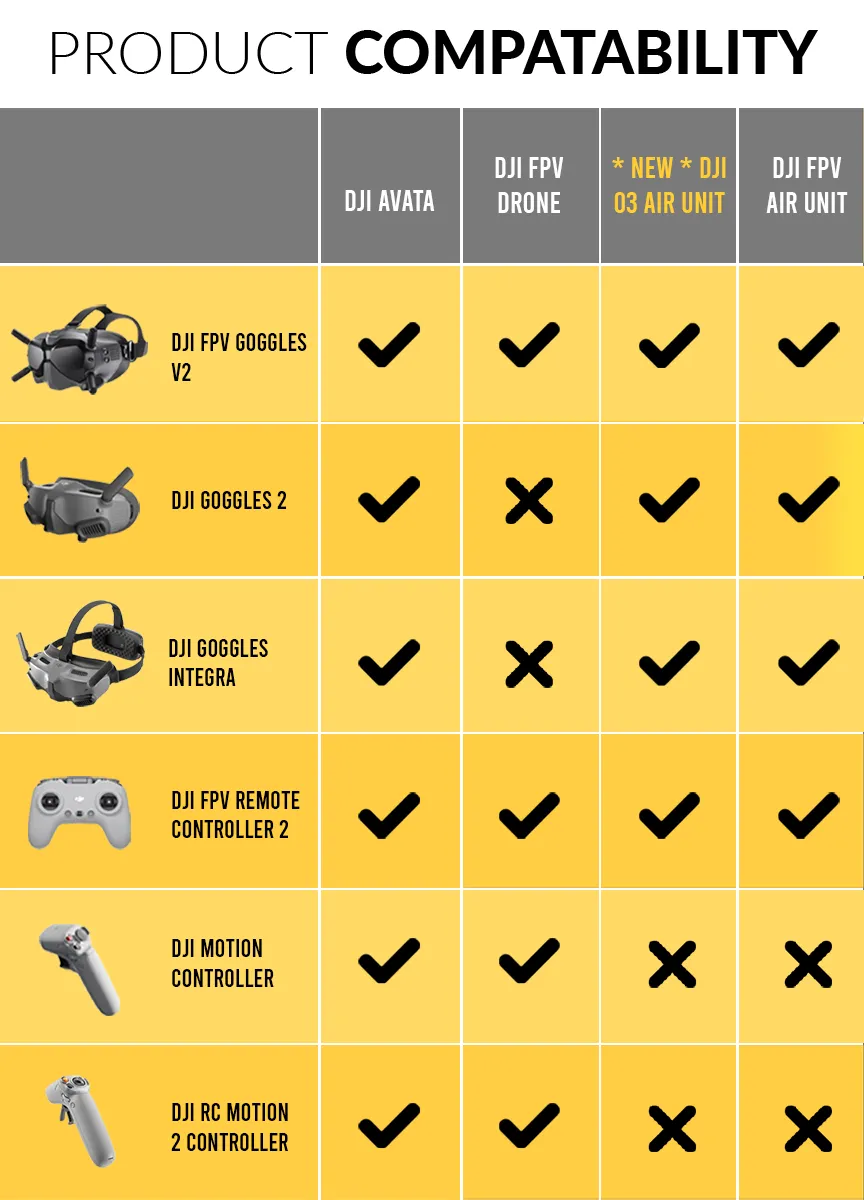

• Compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2
• Compatible with flight controller firmware that supports Betaflight.
• Supports auto mode / Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
• Supported SD Cards: microSD (up to 256 GB)
• Lightweight and compact in size

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

•  Live View Quality and End-to-End Latency:
  • With DJI FPV Goggles V2:
    • 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
    • 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
  • With DJI Goggles 2:
    • 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
    • 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.”
• Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
• Channels:
  • Supports auto mode
  • Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
• Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
• Supported DJI Remote Controller: DJI FPV Remote Controller 2
• Recommended microSD Cards:SanDisk Extreme U3 V30 A1 32GB microSDXC
  • SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
  • Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
  • Samsung PRO Plus U3 V30 A2 256GB microSDXC”
• Weight:
  • Air Unit (camera module excluded): Approx. 28 g
  • Air Unit (camera module included): Approx. 36.4 g
  • Antenna: Approx. 3 g
• Operating Temperature: -10º to 40º C (14° to 104° F)
• Dimensions:
  • Transmission Module: 32.5×30.5×14.5 mm
  • Camera Module: 21.2×20×19.5 mm
  • Coaxial Cable: 115 mm
  • 3-in-1 Cable: 100 mm
  • Antenna: 85 mm
• Supported SD Cards: microSD (up to 256 GB)
• Communication Frequency:
  • 2.400-2.4835 GHz (RX only)
  • 5.725-5.850 GHz (RX and TX)
• Channels Info:
  • FCC/SRRC/CE:
  • 40 MHz:
  • Channel 1: 5794.5 MHz
  • 20 MHz/10 MHz:
  • Channel 1: 5768.5 MHz
  • Channel 2: 5804.5 MHz
  • Channel 3: 5839.5 MHz
• Transmission Power (EIRP):
  • FCC:
  • CE:
  • SRRC:
• Input Voltage: 7.4-26.4 V
• Cable: 3-in-1 100mm

IMPORTANT NOTES

• The 2.4GHz and 5.8GHz frequency bands are supported for receiving, and only the 5.8GHz frequency band is supported for transmitting. Some countries or regions do not support the 5.8 GHz band. Please check local regulations before use and strictly follow them.
• This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.
• Video transmission bitrate may vary depending on the operating environment.

• Diatone Mamba Micro 2A BEC 5V/9V for DJI Digital FPV System
• Skystars 2A Step Down Voltage Regulator (4-36V to 9V)
• Pololu 9V, 2.5A Step-Down Voltage Regulator

•   (Insert links such as manuals, firmware, etc)

• 1x DJI O3 Air Unit Transmission Module
