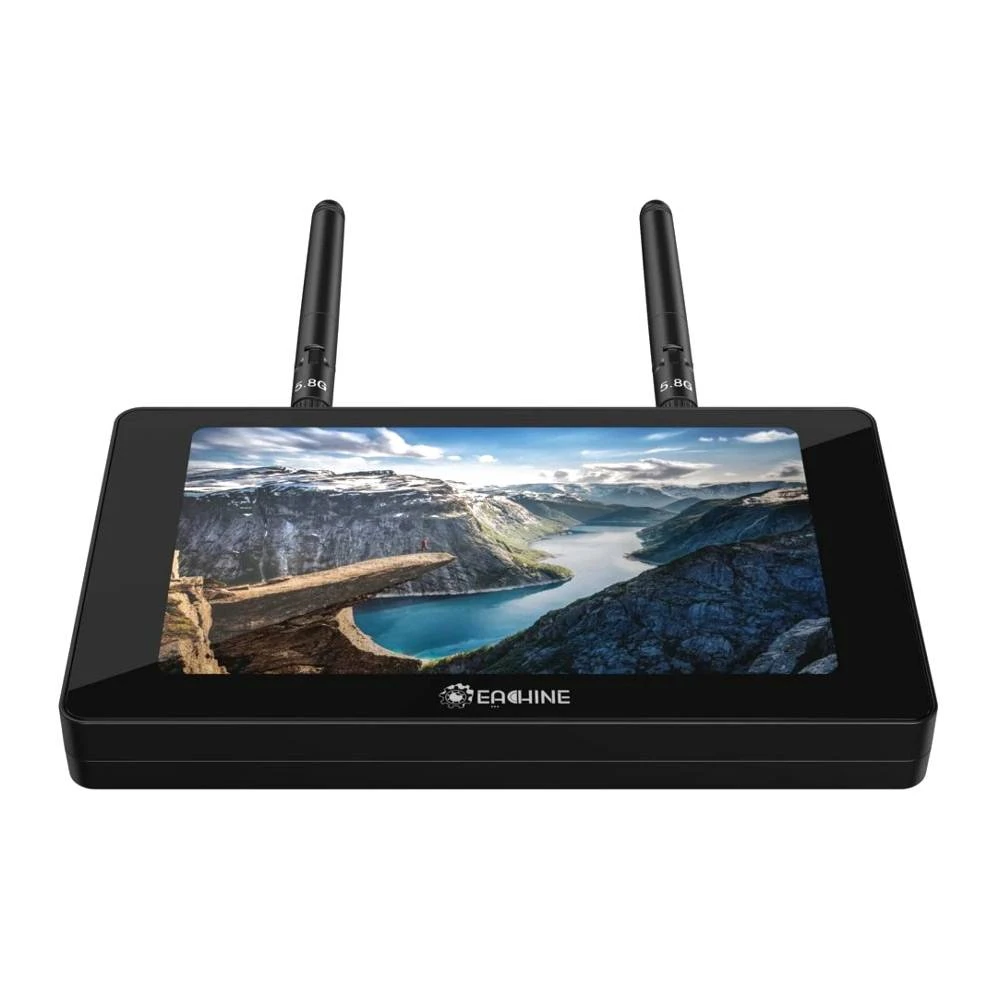

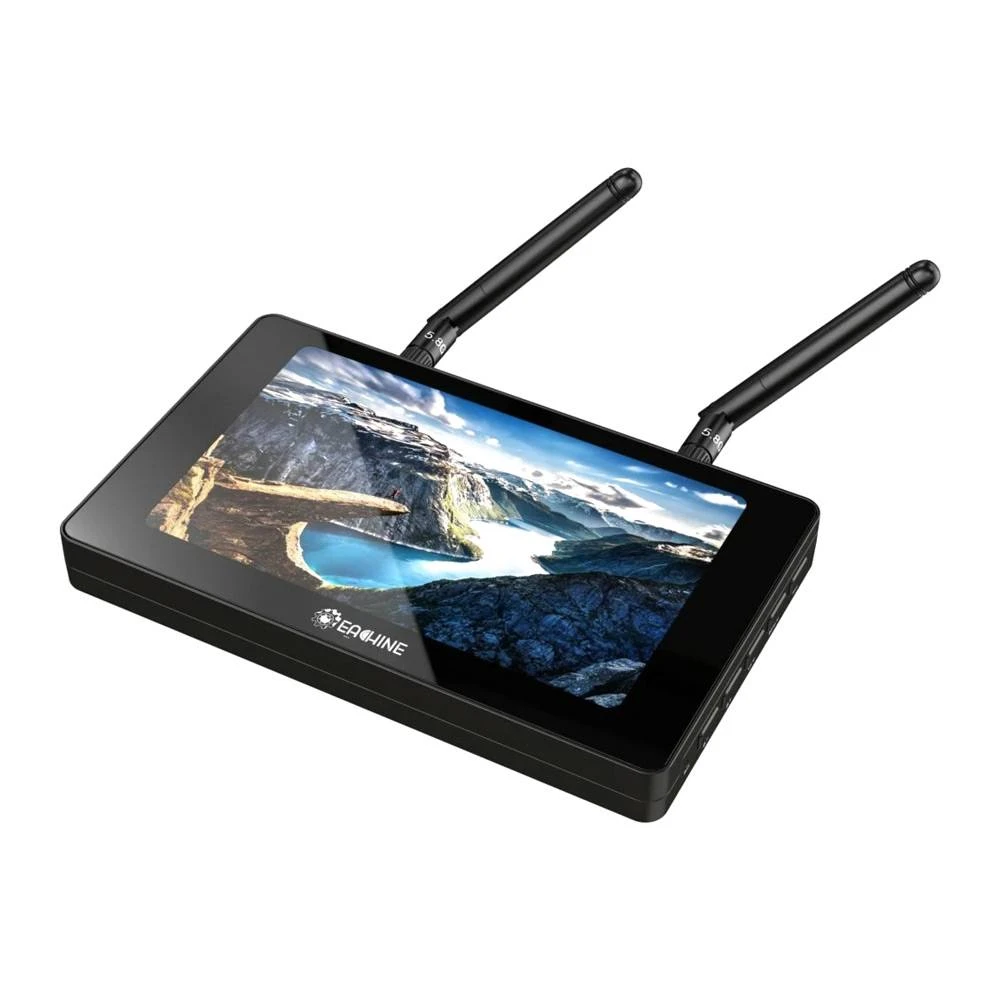

Eachine 5" Moneagle IPS 1000Lux 5.8GHz 40CH Diversity FPV Monitor W/ DVR

The Eachine Moneagle is a 5″ FPV monitor with a high-capacity built-in 4000mAh battery. This monitor is equipped with a 5.8GHz Diversity receiver for excellent reception, as well as a 1000Lux display luminance, DVR function, and 40 Channels!

VIDEO: Eachine Moneagle FPV Monitor Review

Features

• Three video recording modes: DVR(VGA/D1/HD)
• Ultra-high luminance – 800x480px HD screen
• Simple operation – One-Key-Auto search
• Built-in 4000mAh high capacity battery
• 5.8G 40CH true diversity receiver
• Support DC 5-23V wide voltage
• 360-degree all-view HD display
• Suitable for long flight times
• Support up to 64G TF card
• Support 2-6S lipo battery
• Support eight languages
• Support video replay

Specifications

• Input Voltage: DC 5-23V, wide voltage input range, which can be powered by lipo battery 2-6S
• Glass Material: IPS High luminance, all viewing angle
• Storage Standard: C10, Maximum supporting 64G
• Size of Product: 145x86x16mm (without antenna)
• Receiving Frequency Channel Numbers: 40
• Loudspeaker: High fidelity, stereo speakers
• Charging Input Mode: USB Charging Mode
• Material of Battery: 3.8V Polymer battery
• Continuous Working Hours: >3 hours
• Memory Storage: TF Card up to 64g
• DVR System: Autonomous System
• DVR Function: Supporting Replay
• DVR Mode: VGA/D1/HD available
• Luminance of Display: 1000Lux
• Clarity of Display: 800x480px
• Receiver: Diversity Receiver
• Battery Capacity: 4000mAh
• Size of Display: 5 Inches
• Brand Name: Eachine
• Item Name: Moneagle
• Weight: 170g

Manual

• Eachine Moneagle 5″ FPV Monitor

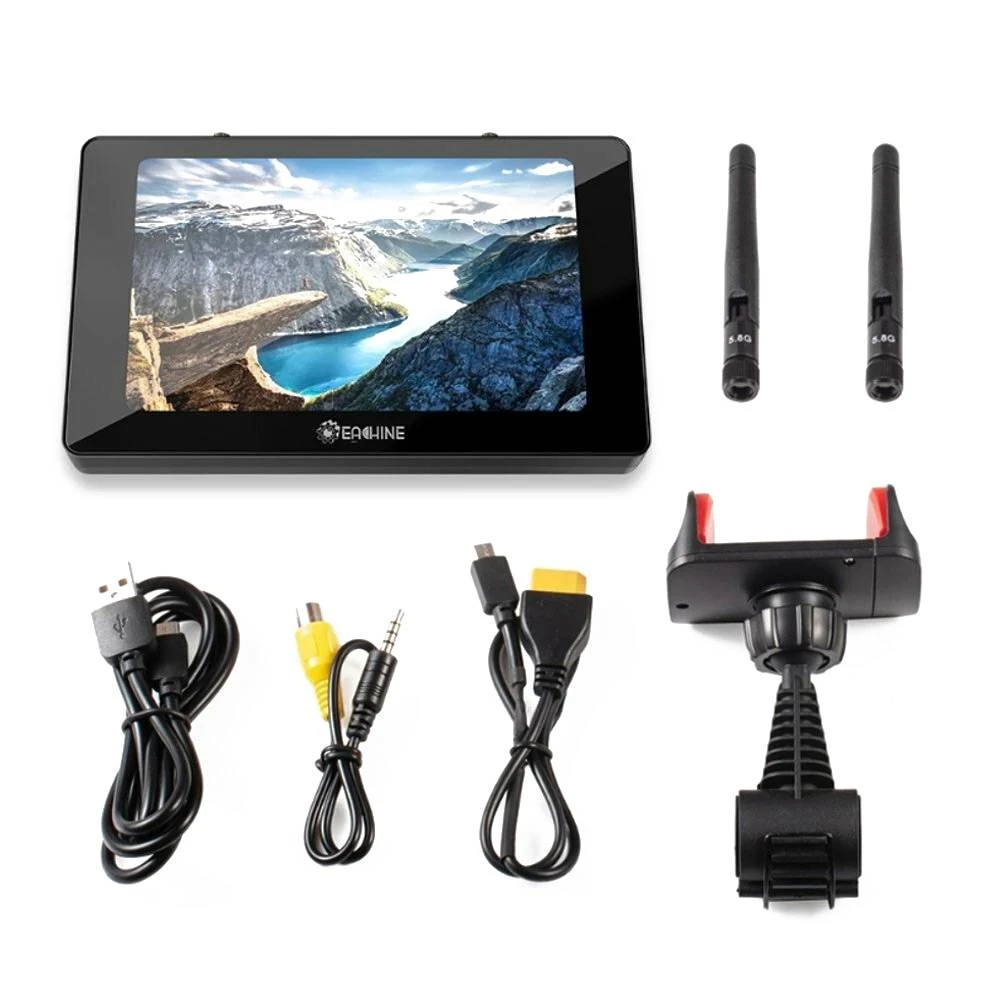

Includes

• 1x Eachine 5″ Moneagle DVR 5.8GHz 40CH Diversity FPV Monitor
• 1x Bracket for Radio Controller
• 1x XT60 Expanded Cable
• 1x Linear Antenna
• 1x USB Cable
• 1x AV Cable
• 1x Manual
