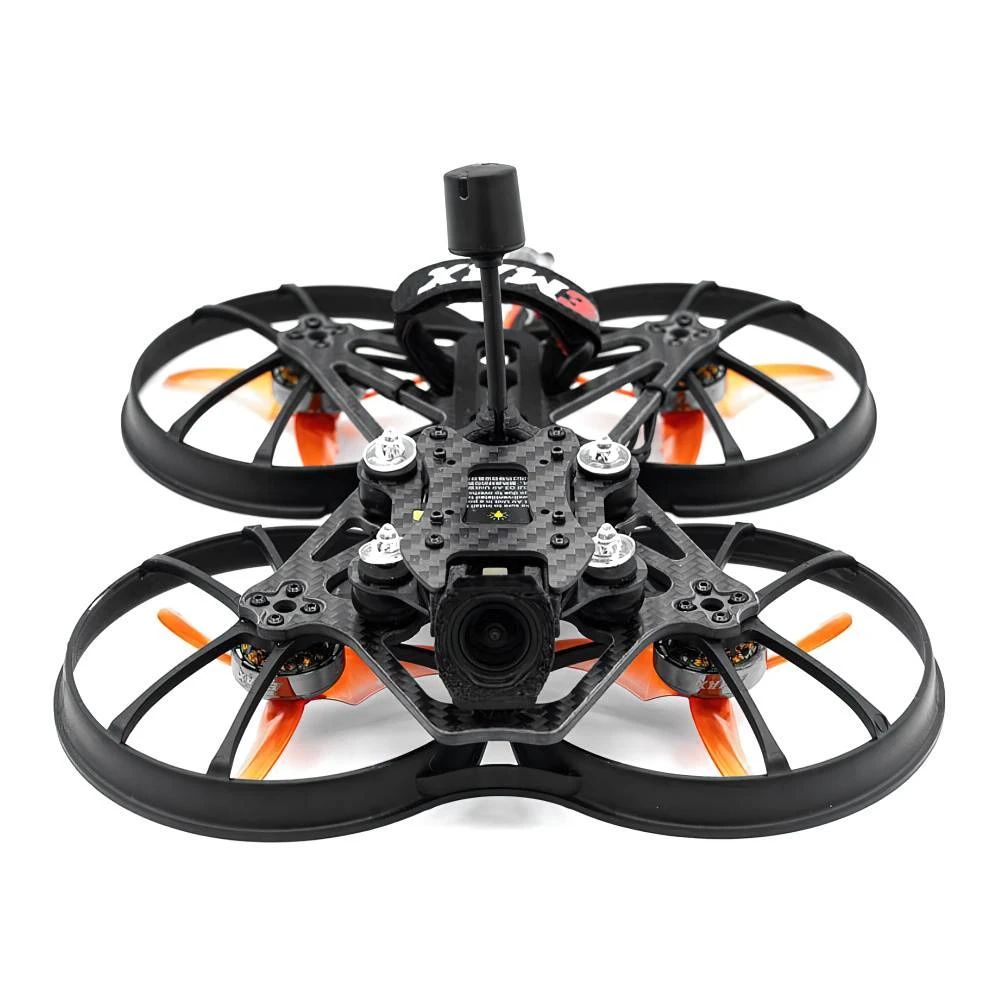

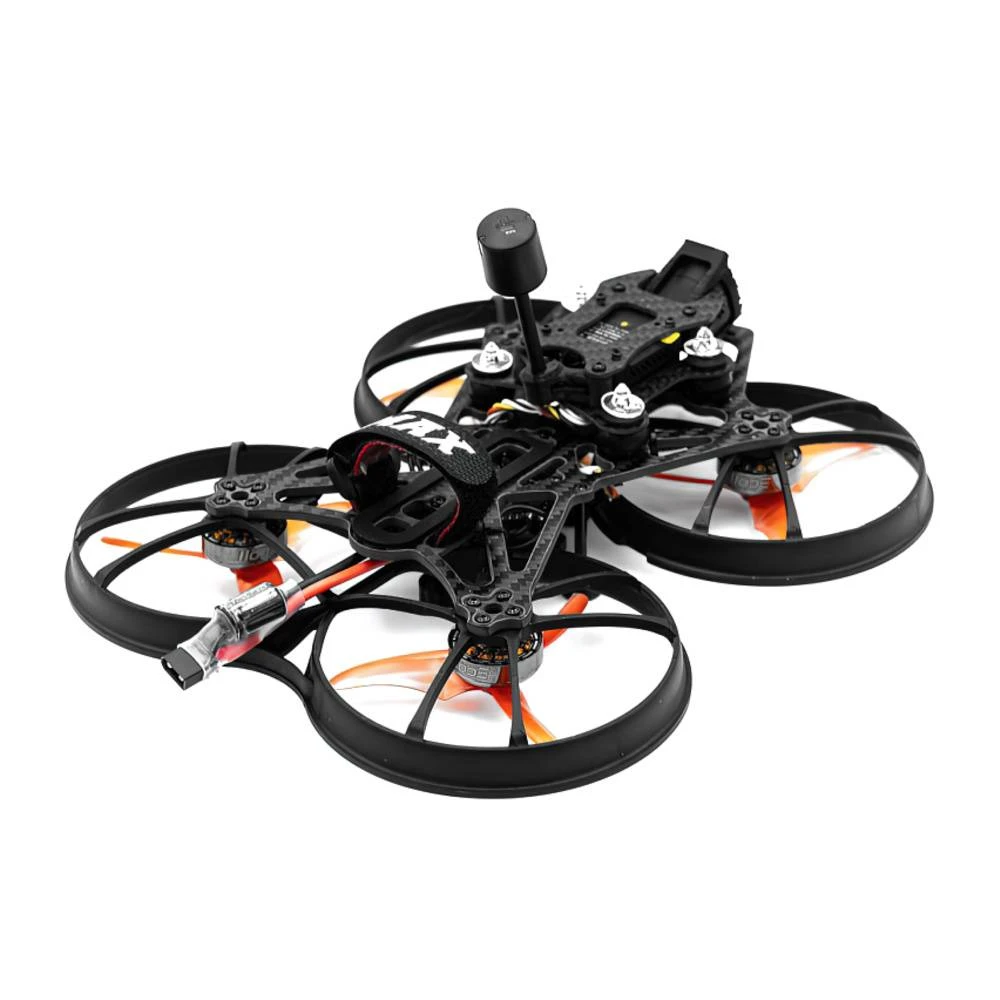

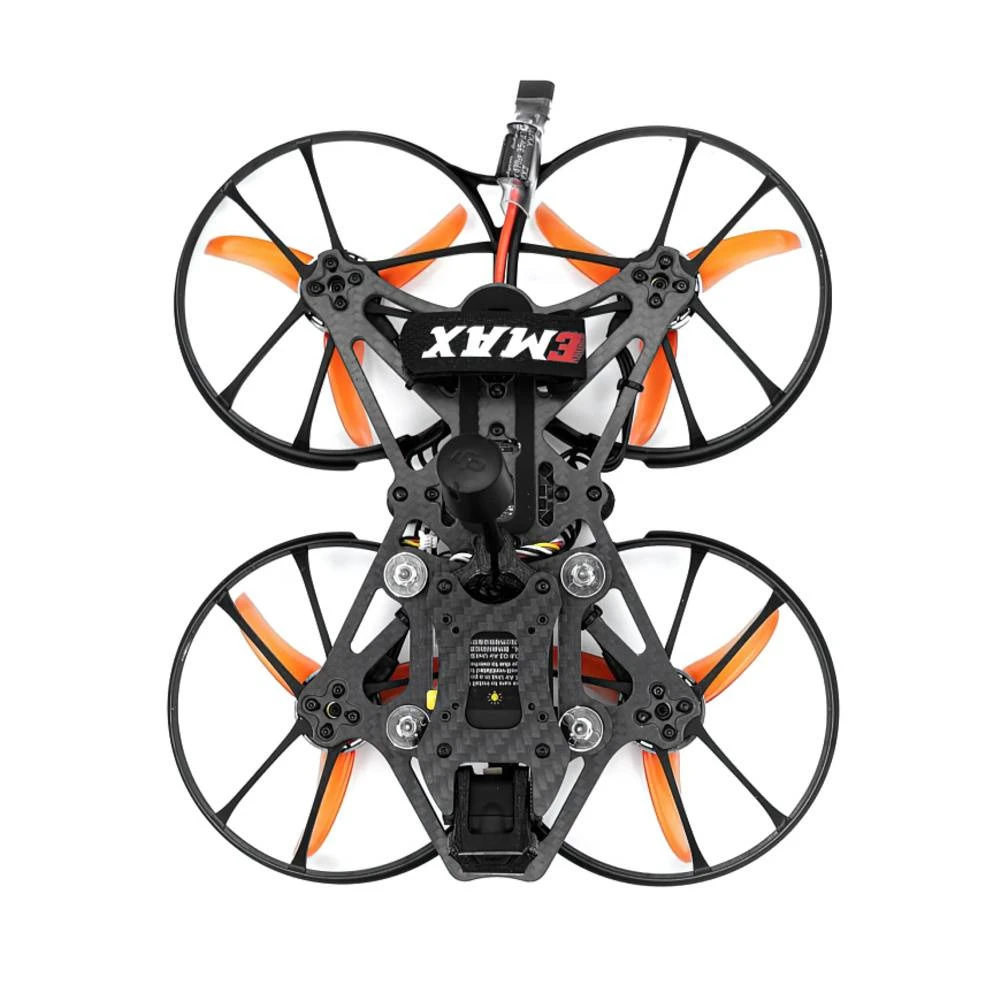

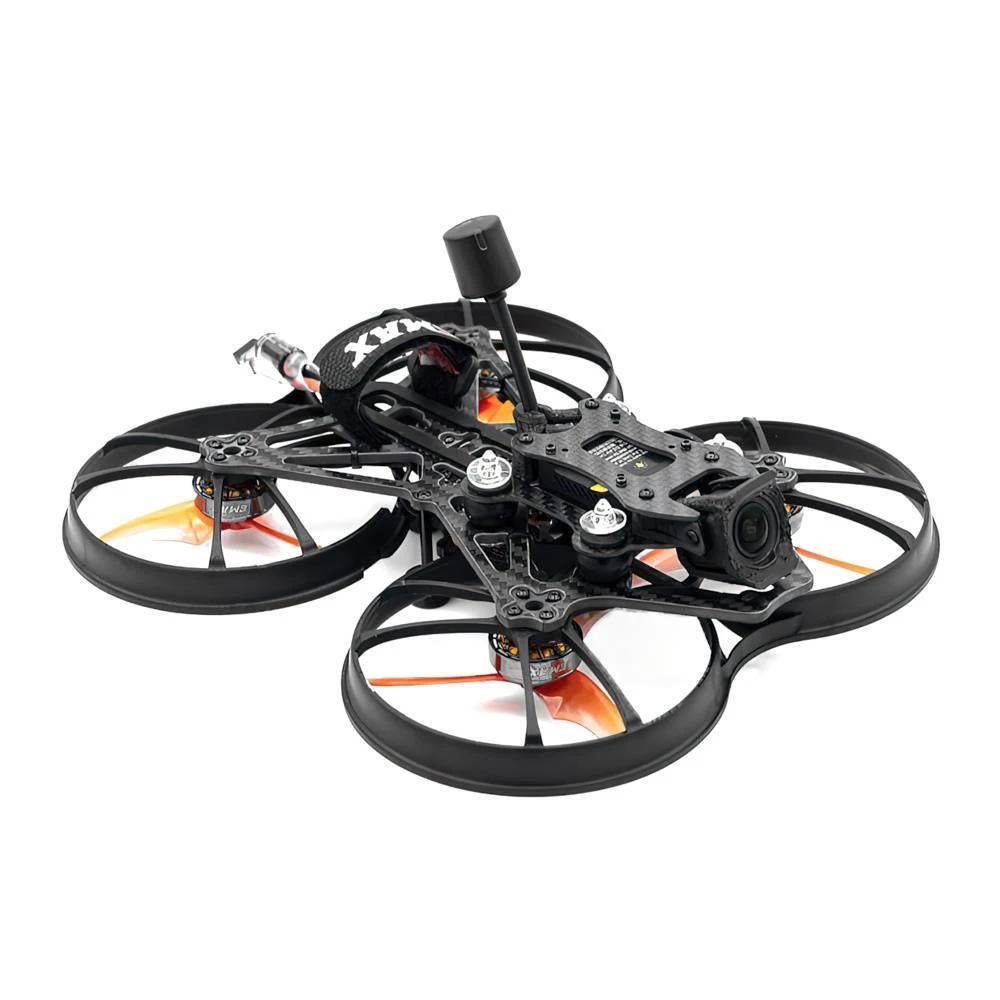

Emax Cinehawk 3.5" Drone W/ DJI O3 Air Unit

The EMAX Cinehawk is a new product in the cinewhoop category that has been a culmination of EMAX’s years of experience with high-quality flight performance and user feedback provided over the development period.  The Cinehawk is the first ever cinewhoop from EMAX. By incorporating the O3 Air Unit, they have found this to be a high-performing video-capturing solution and moved forward with designing a ducted 3.5” cinematic use drone around the platform. The O3 Air Unit needed special design care to get the greatest possible image quality out of the built-in camera while maintaining a stable enough platform to mount an action camera. The Cinehawk is the culmination of serviceability, reliability, and performance, to enable creators the necessary freedom to capture cinematic-level FPV video.

Note: Choose from two receiver options: PNP or ELRS 2.4GHz

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: EMAX Cinehawk

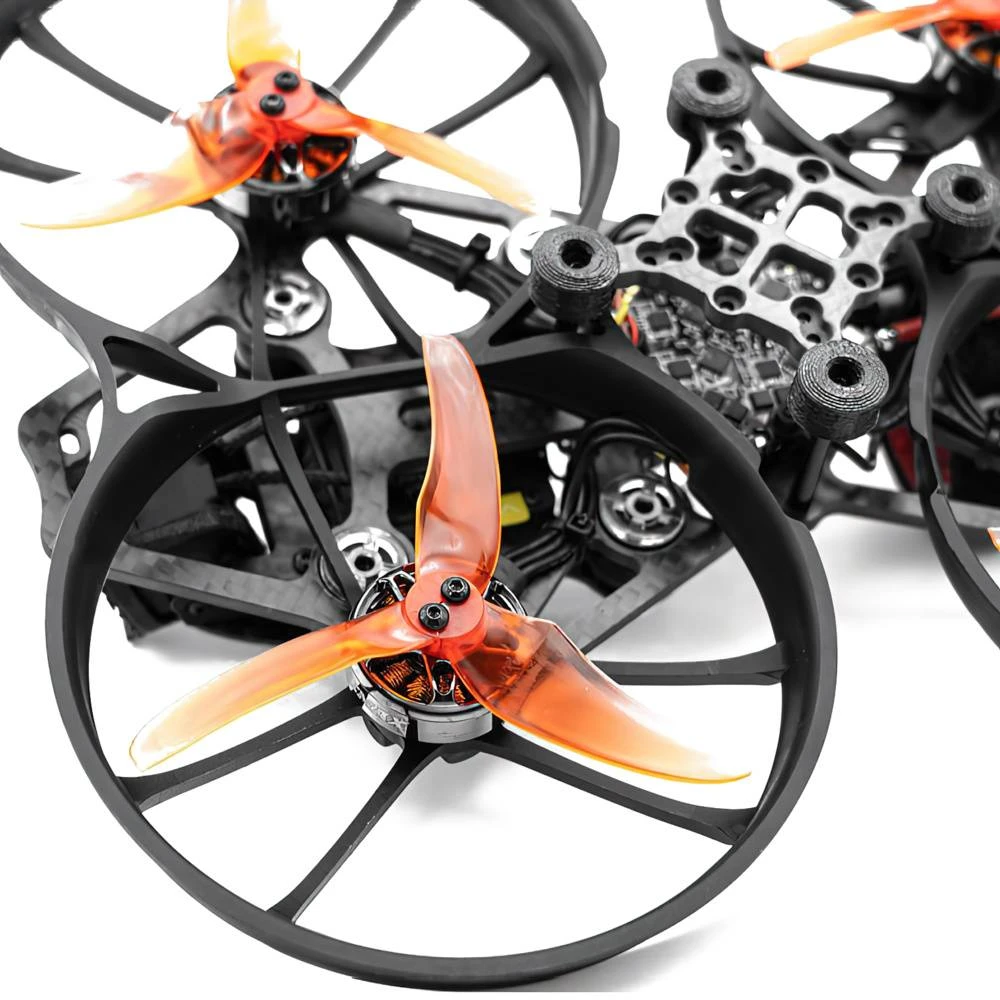

• ECO II 2004 motors on the Avan 3.5” props for maximum low-end torque to carry heavier payloads while maintaining response for close proximity flight.
• Props and motors upside down, making the drone more efficient and quieter, with longer flight time while providing clean ducted air.
• O3 Air Unit and the camera is on a set of dampeners, giving the gyroscope for Rocksteady the cleanest information possible.
• PNP or ExpressLRS options

POWER TO CARRY LARGER PAYLOADS

Powered by high-performance brushless 2004 motors, maximum thrust allows the Cinehawk to carry additional payloads such as Action Cameras, larger power sources, and more, while still retaining capabilities for challenging flight environments. All of this performance is achieved while still remaining under 250 grams.

DJI O3 AIR UNIT

In partnership with DJI, the Cinehawk features a crisp 4K video feed with zero latency, enabling video capture in high-speed scenarios such as action sports, motor sports, and more. Built into the DJI system is Rocksteady Video Stabilization, allowing smooth video recording straight out of the camera.

BETAFLIGHT OPEN SOURCE

Based upon Betaflight, an Open Source drone operating system, constant new features within the community are added, allowing the Cinehawk to stay up-to-date and relevant in the years to come. Being on such an open system allows a new world of customizability encouraging filmmakers and content creators to adjust characteristics and features to their production needs. Adding modules like GPS, personalized lighting, and more is easily achievable.

DURABILITY

Engineers opted for more durability by utilizing aircraft-grade carbon fiber, maximizing the strength-to-weight ratio, allowing the Cinehawk to fly faster, be more nimble, and have more control than any other cinema drone in its class. The skeleton-style drone frame draws heavy influence from professional acrobatic drones, allowing serviceability and modularity to be key aspects in keeping the Cinehawk future-proofed and repairable.

ELRS OPTION

Designed into the Cinehawk is the new Open Source radio system, ELRS. With a universal system, users are no longer locked to brand-specific radio controllers but instead open a new world in customizability for any cinematic needs. By utilizing ELRS, long-range and signal penetration is achieved, while also allowing the potential for future performance upgrades, further future-proofing the Cinehawk into a reliable cinema drone.

• VTX: DJI O3 Air Unit (Requires DJI Goggles 2 or DJI FPV Goggles V2)
• Receiver: ExpressLRS 2.4GHz OR PNP
• VTX Antenna: DJI O3 Air Unit Antenna
• AIO: STM32F405 + 4 IN 1 25A ESC
• Recommended Battery: 4S XT30
• Camera: DJI O3 Air Unit Camera
• Propeller: EMAX 3.5″ Tri-blade
• Motor: ECO II 2004 3000kv
• Wheelbase: 150mm
• Weight: 234g

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won’t need to set up another receiver. If you don’t have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

• Battery: 850mah 4S XT30

•   (Insert links such as manuals, firmware, etc)

• 1x Emax Cinehawk 3.5″ Drone w/ DJI O3 Air Unit (Choose Receiver)
• 1x EMAX EMAX 3.5″ Tri-blade (Set of 4)
• 1x Screwdriver
