EMAX TinyHawk II Freestyle FPV Drone RTF Kit With Goggles And Controller

Following the groundbreaking performance of the predecessor, comes the newly re-invented Tinyhawk II Freestyle, the perfect beginner outdoor FPV quad!

By re-designing the frame to accept a higher quality camera, the FPV experience is enhanced, allowing newfound clarity when navigating the environment. Paired together with a video transmission system that is 8x more powerful than its predecessor, the video signal will no longer impede the user experience.

The RTF Bundle gives you everything you need to start flying in just minutes. Everything is included, goggles, radio, and of course the TinyHawk II Freestyle quadcopter! This bundle is the perfect solution for anyone to learn the basics of FPV flying, beginners, and pros alike.

The included receiver is compatible with the FrSky D8 and D16 mode.

Note: Though it is compatible with FrSky_X (D16), for best performance it is recommended to use FrSky_D (D8) and set “Telemetry OFF” on your radio if you are using your own radio

Features

• Durable aerospace grade 3k woven carbon fiber
• BlHeli_S ESC
• F4 (MATEKF411RX Firmware) Flight Controller
• RunCam Nano 2 FPV camera
• More powerful VTX with 25/100/200mw power levels
• Smart Audio connected
• FRSKY D8 compatible
• Efficient Emax 1103 7000Kv brushless motors
• Avan Rush 2.5″ props
• Pre-tuned from the factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
• Plug-in type motors for easy maintenance
• FrSky compatible D8 receiver built into FC
• Custom carbon fiber themed carrying case

Specifications

TinyHawk II Freestyle Specifications

Frame

• Wheelbase: 115mm
• Dry Weight: 49g
• All Up Weight: 79g with 2x 450mAh 1S battery
• Frame Material: Carbon Fiber

Motors

• Stator Size: 1103
• Kv: 7000kv
• Propeller Mount: T-mount, 1.5mm shaft
• Propeller: Avan Rush 2.5″

All-In-One (AIO) Flight Controller

• Flight Controller: F4 (MATEKF411RX Firmware)
• ESC: 4-in-1 5A BlHeli_S
• Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
• Battery Connector: JST-PH2.0 Duo

FPV System

• Ham radio license required for use in North America.
• VTX Power: 25/100/200mw Switchable (set to stay at 25mW until armed)*
• Channels: 37CH incl. Raceband
• Camera: RunCam Nano 2 1/3″ 700TVL CMOS
• Smart Audio Connected

EMAX Transporter Goggles Specifications

• Maximum appearance size 140×153×90(mm)
• Weight (without battery) 398g
• Resolution 480×272
• Battery 1 cell 18650 lipo battery

EMAX E6 Transmitter Specifications

• Maximum appearance size 181×213×80(mm)
• Weight (without battery) 211g
• Number of channels 6 Channels
• Transmission frequency 2.4GHz ISM Band（2400MHz~2483.5MHz）
• Output Power 22dbm
• Modulation GFSK
• Battery 1 cell 18650 lipo battery

Manual

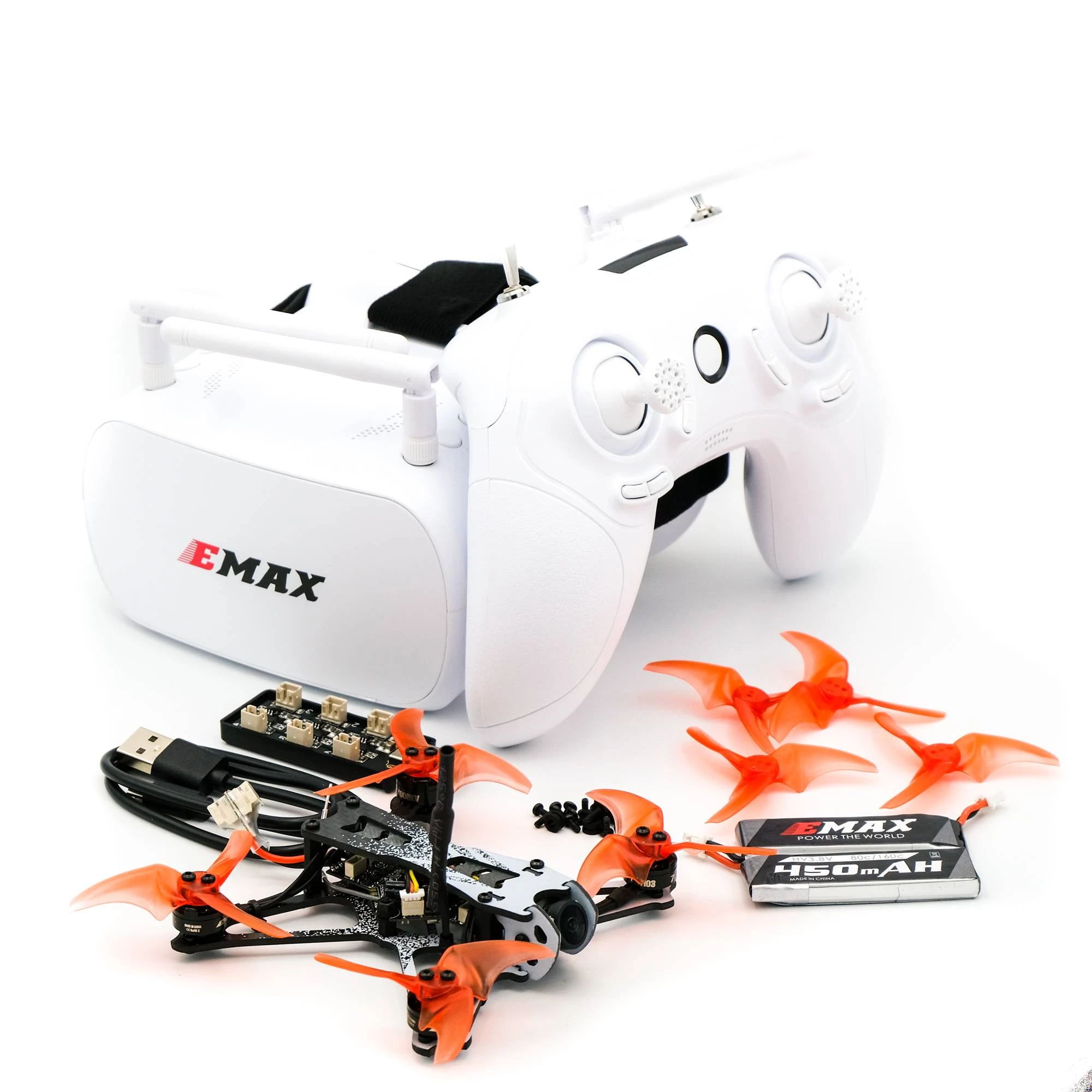

RTF Kit Includes

• 1x Tinyhawk II Freestyle Drone
• 1x E6 Transmitter
• 1x Transporter Goggles w/ Battery + Antennas
• 2x EMAX 450mAh 1S HV Battery
• 1x 1S USB LiPo Charger
• 1x Screwdriver + Hardware Kit
• 1x Carbon Fiber Carrying Case

*Please note that even if you unlocked the video transmitter (VTX) per the manual and are changing power levels via the OSD/Smart Audio (VTX SA), the Tinyhawk II Freestyle is set to stay at 25mW until you arm the motors.
