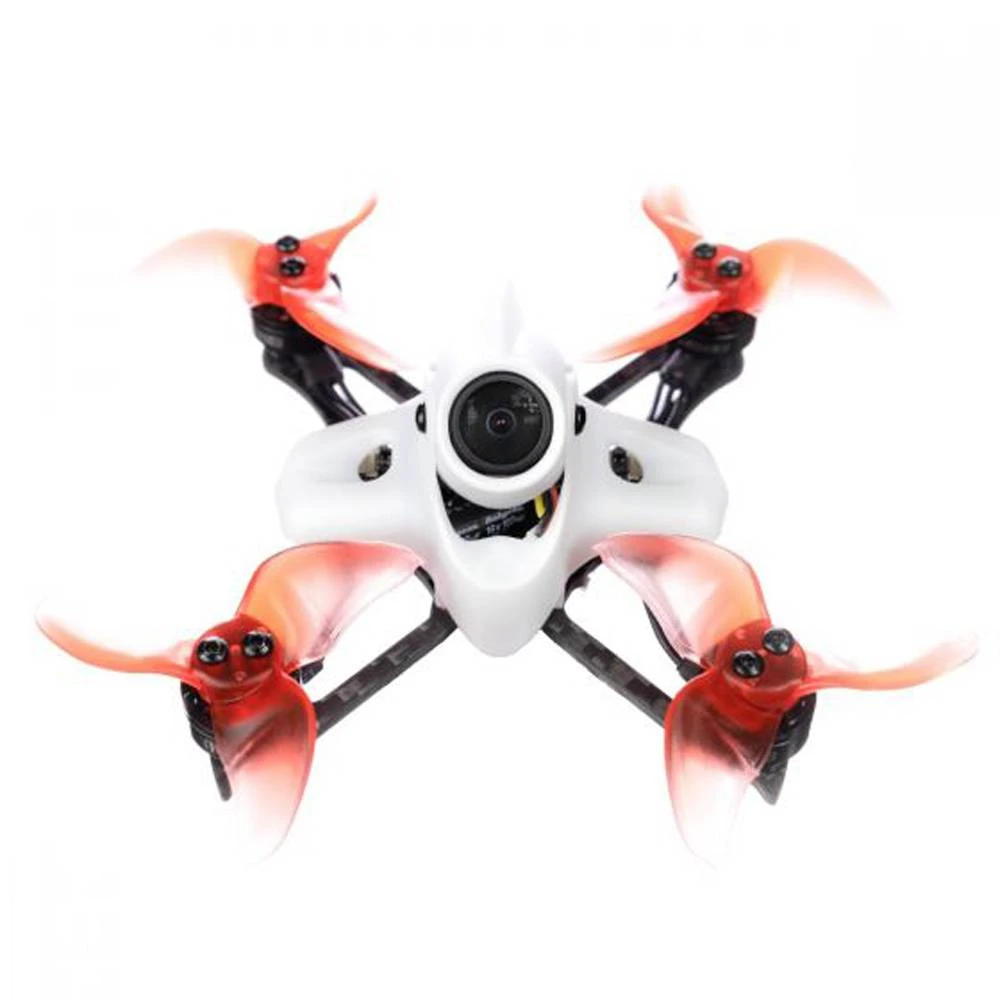

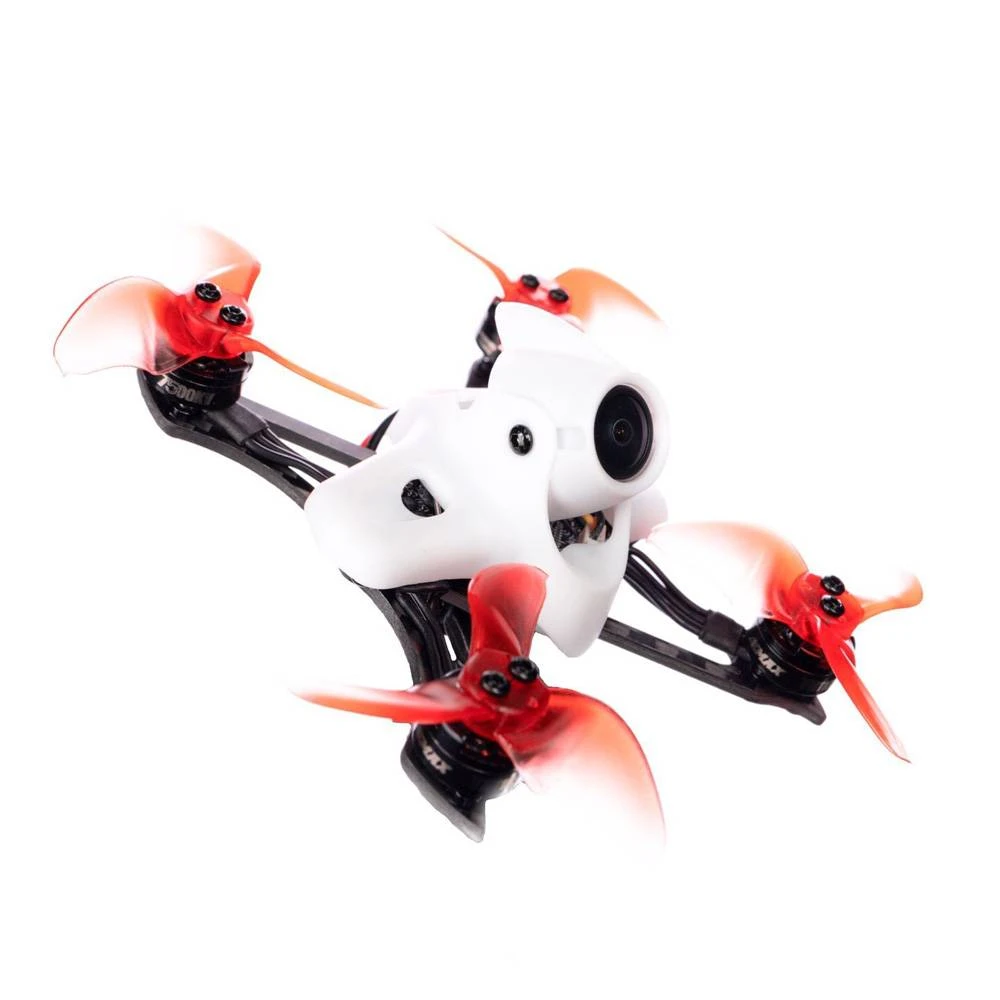

EMAX Tinyhawk II Race Micro Brushless FPV Drone W/ RunCam Nano 2

The Tinyhawk II Race by EMAX is an outdoor racing drone based on the Tinyhawk II platform. Besides being a beginner-friendly, fun and micro-sized drone, EMAX’s Tinyhawk II Race is a more performance-oriented outdoor 2S quadcopter. If you are familiar with our Tinyhawk Freestyle this is a similar product that utilizes two Tinyhawk 450mAh 1S lipo but focuses on raw speed and control like a larger FPV racing drone.

With so much fun in a small package, we believe you will enjoy the Tinyhawk II Race drone!

Features

• Standard on the Tinyhawk II platform is the Runcam Nano 2 which brings a whole new clarity to the drone. Being able to see your surroundings is key to flying consistent and finding your flight path.
• Also on all new Tinyhawk II products is a new and improved VTX (video transmitter). Now with improved 25mw transmission, 100mw, and 200mw, people can now fly further than ever with more confidence.

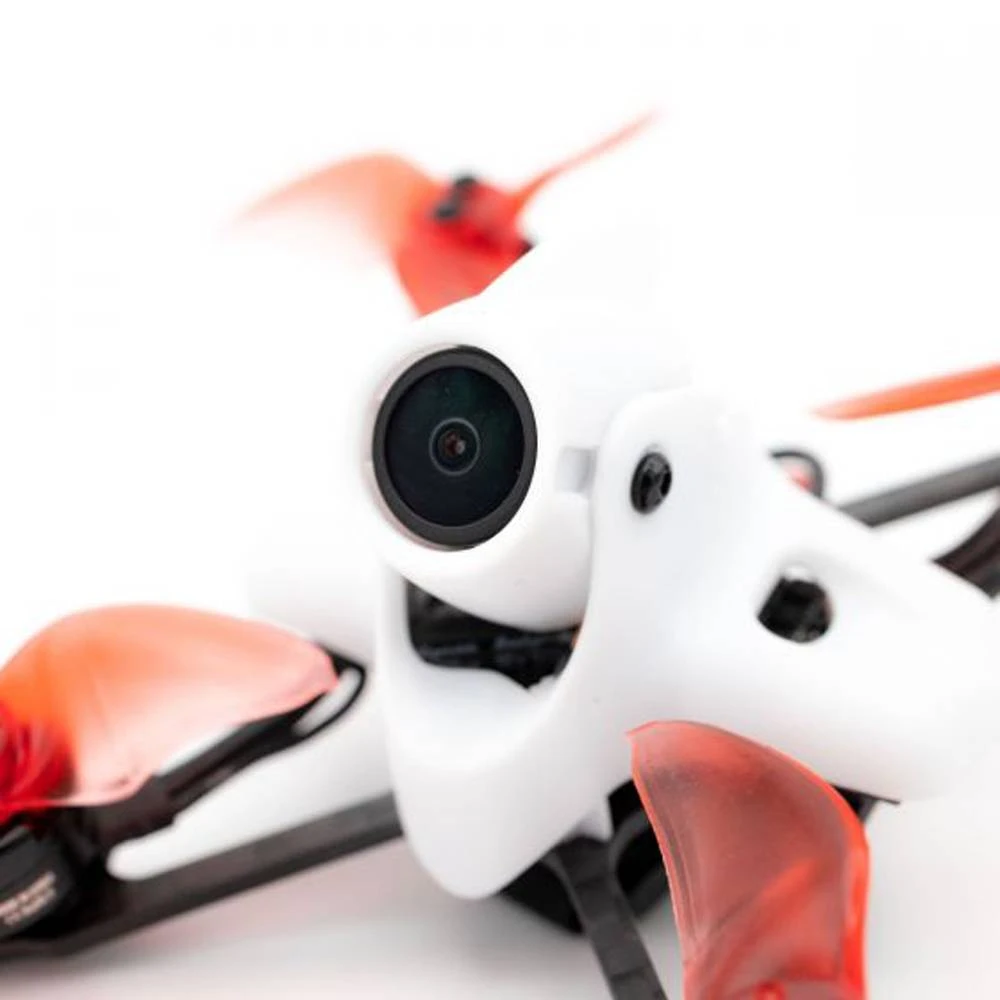

• Brand new frame design, featuring a fully adjustable camera tilt. Now you can go from zero to the full tilt and everything in between. All you have to do is adjust with the 2 side camera mount screws.

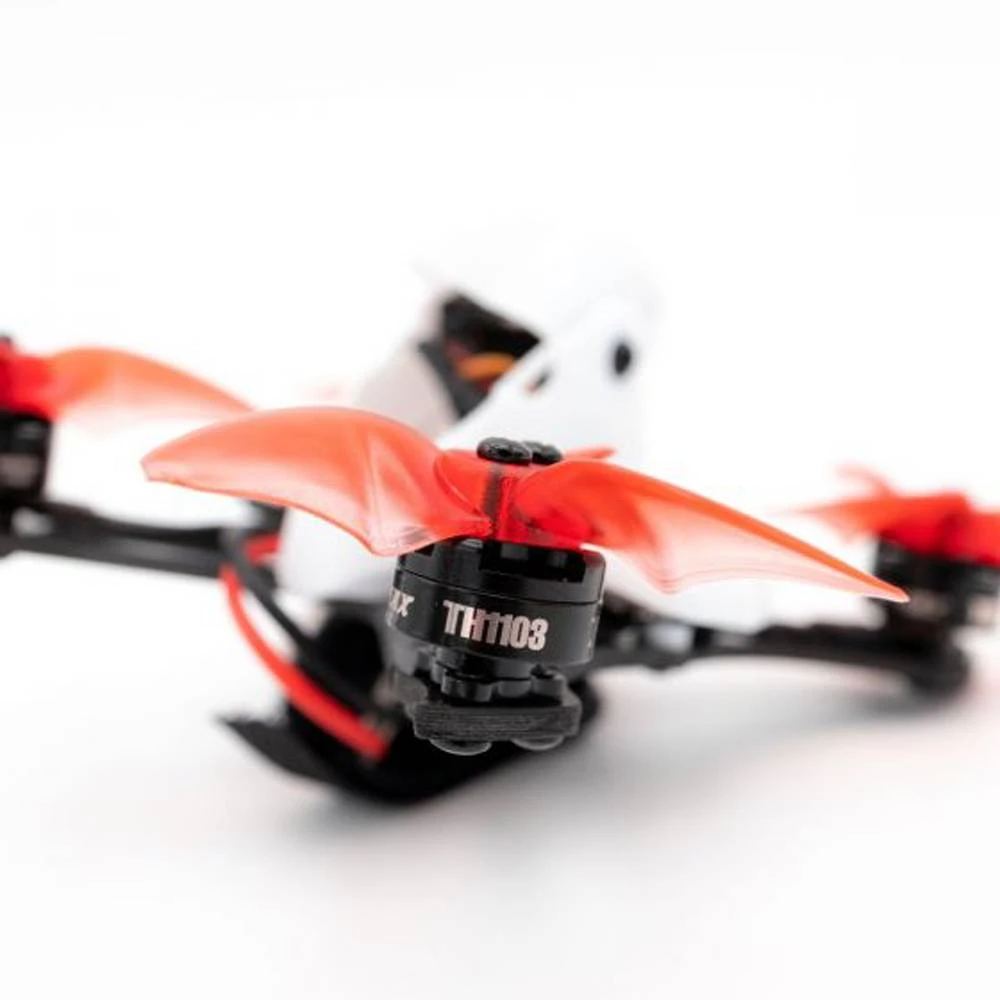

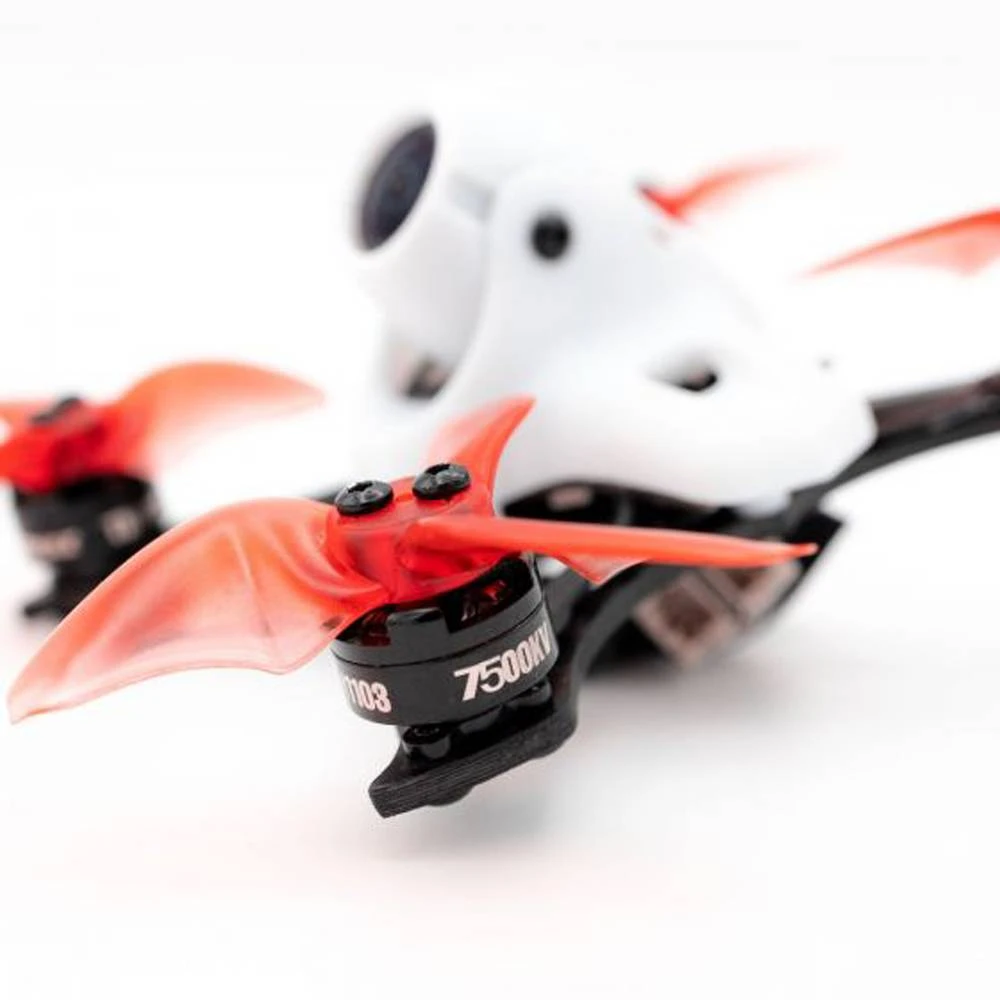

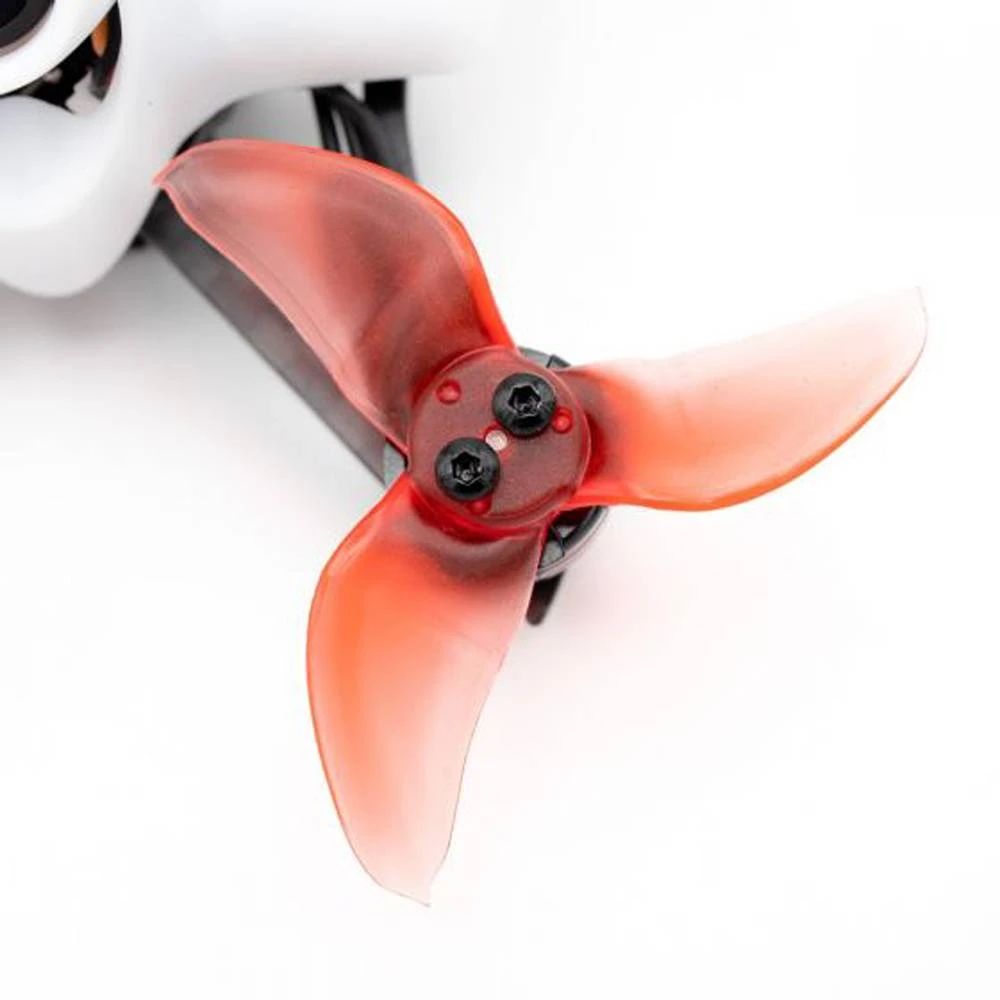

• Featuring 1103 7500kv motors with the 2-inch AVAN Blur propellers, we are able to get maximum throttle response while still retaining flight time. The Tinyhawk II Race has a top speed of 50mph and a cruising flight time of up to 7 minutes.

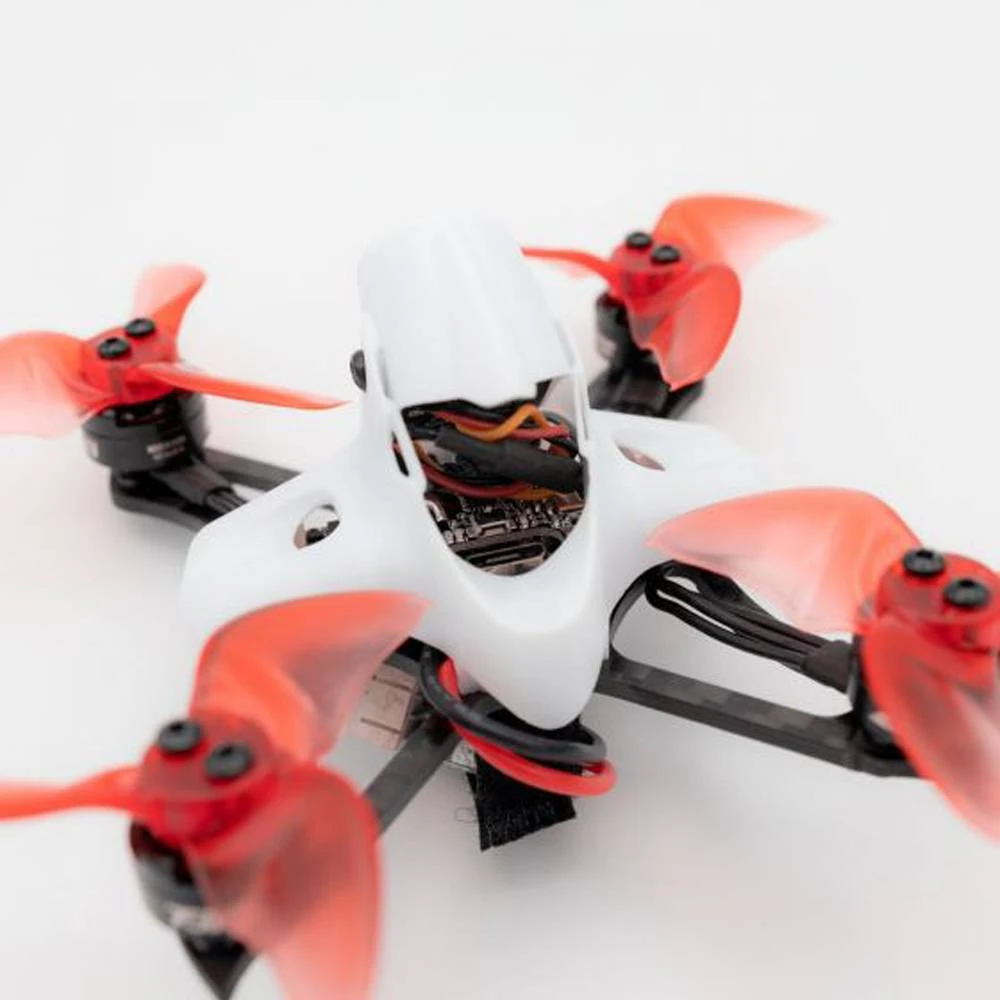

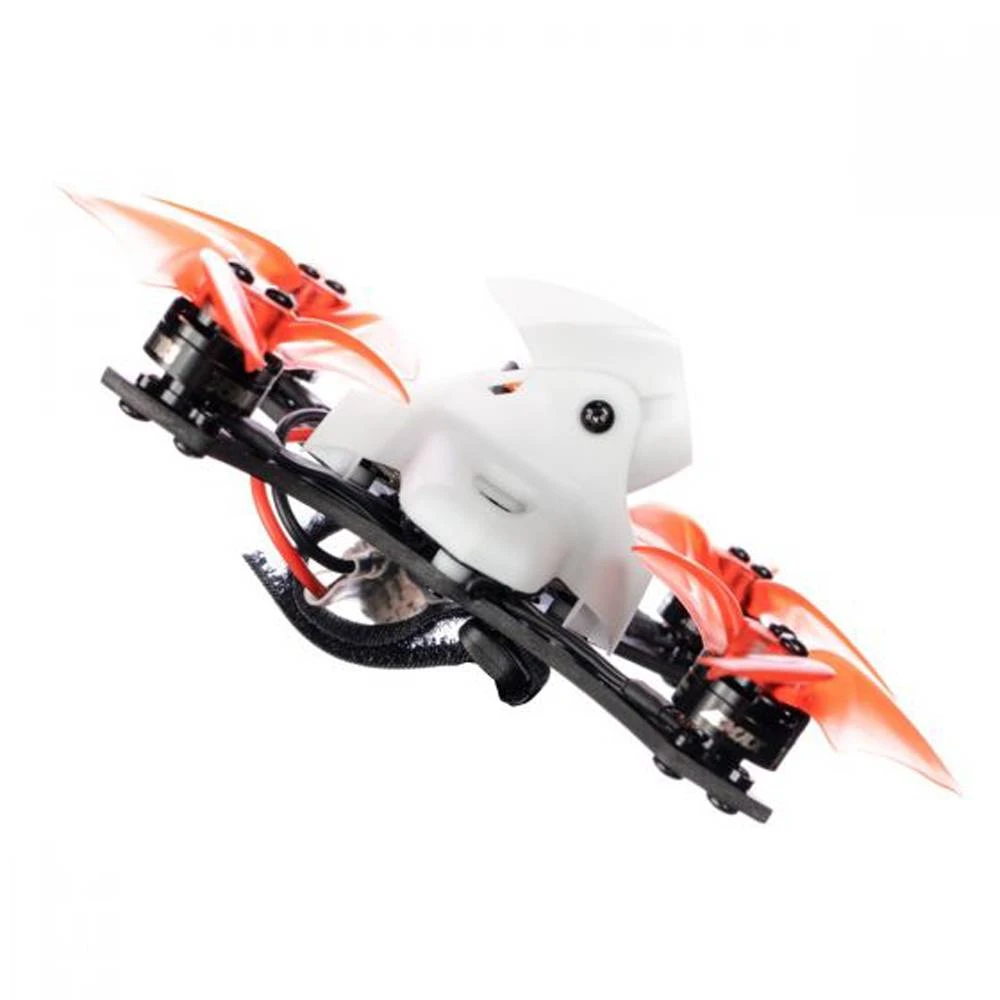

• Utilizes a Carbon Fiber frame for minimum vibration and strength while using a re-structured plastic canopy for aerodynamics and protection for the electronics.

Specifications

Frame

• Wheelbase: 90mm
• Dry Weight: 47.5g
• All Up Weight: 73g with 2x 450mAh 1S battery
• Frame Material: Polypropylene & Carbon Fiber

Motors

• Stator Size: 1103
• Kv: 7500kv
• Propeller Mount: T-mount
• Propeller: Avan Blur 2″/span>

All-In-One (AIO) Flight Controller

• Flight Controller: F4 (MATEKF411RX Firmware)
• ESC: 4-in-1 5A BlHeli_S
• Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
• Battery Connector: JST-PH2.0 Duo

FPV System

• VTX Power: 25/100/200mw Switchable (set to stay at 25mW until armed)
• Channels: 37CH incl. Raceband
• Camera: RunCam Nano 2 1/3″ 700TVL CMOS
• Smart Audio Connected

Manual

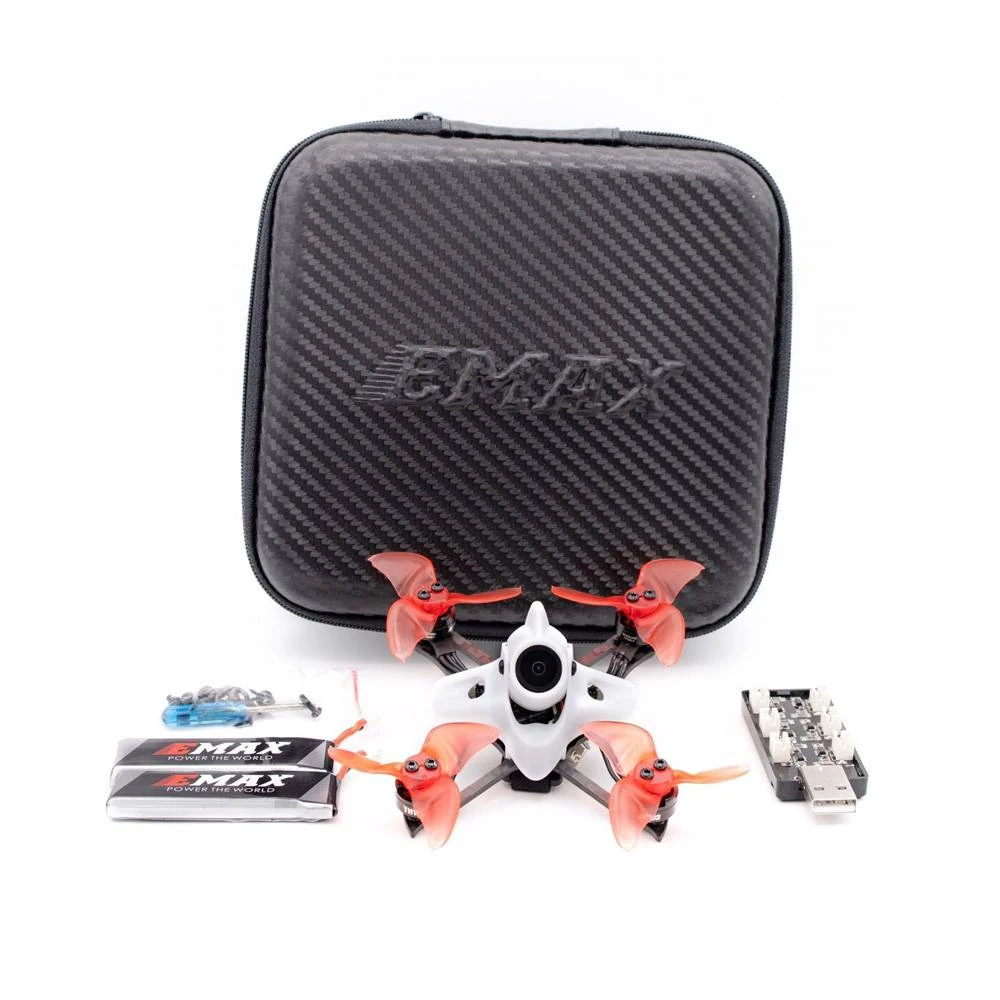

Includes

• 1 x Tinyhawk II Race BNF
• 2 x EMAX 450mAh 1S HV Battery
• 1 x 1S USB LiPo Charger
• 1 x Screwdriver + Hardware Kit
