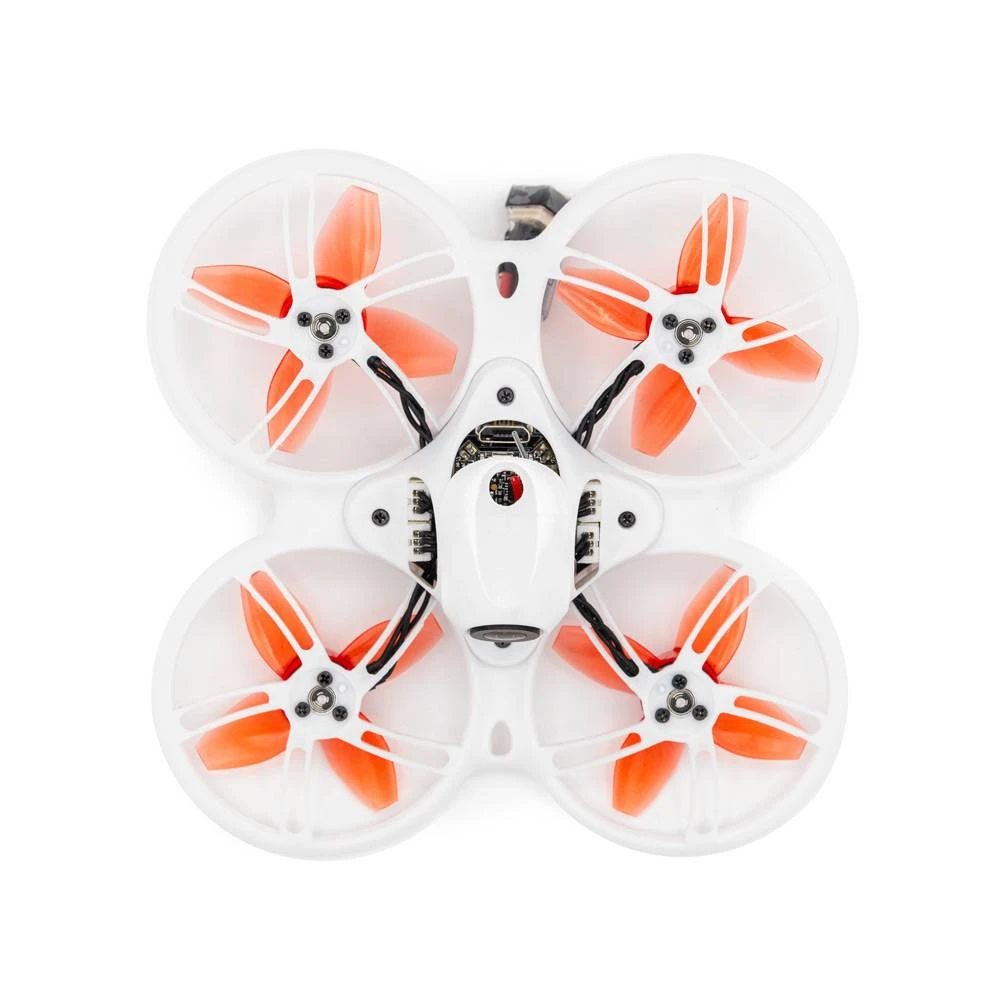

EMAX TinyHawk III FPV Racing Drone BNF

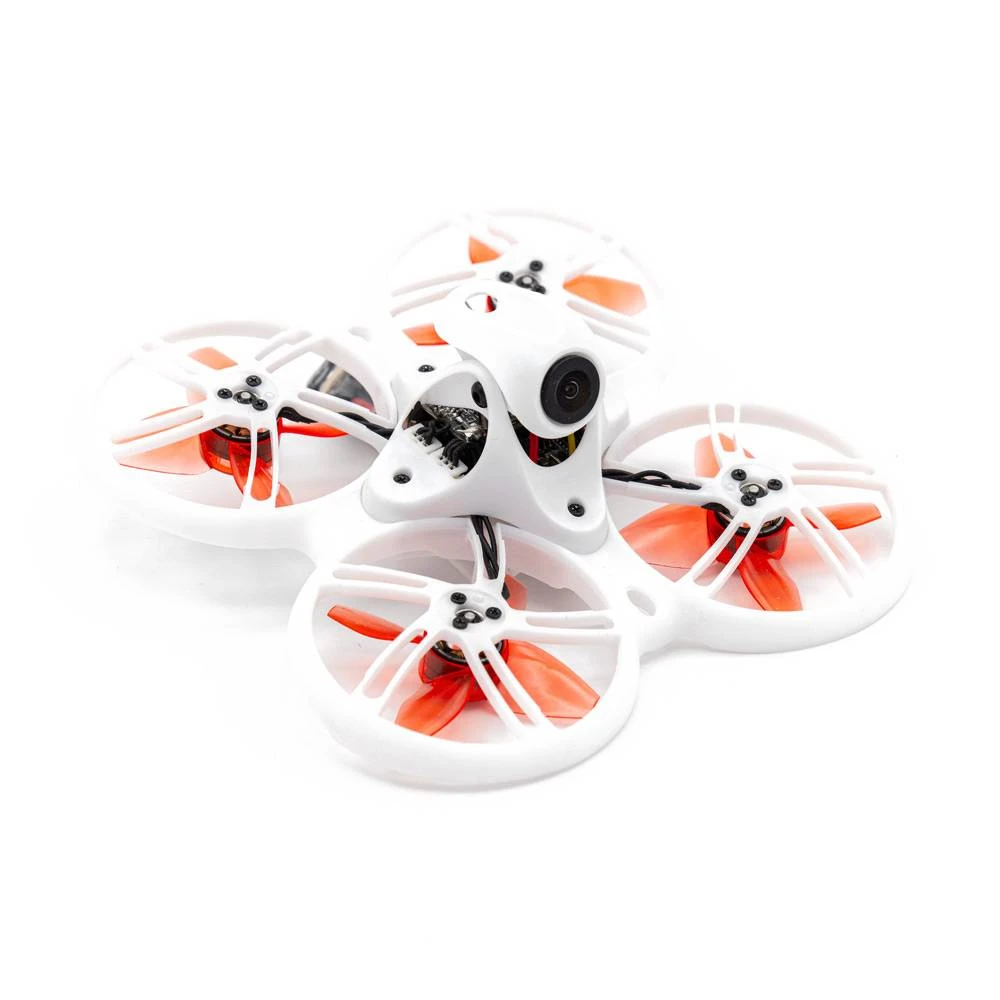

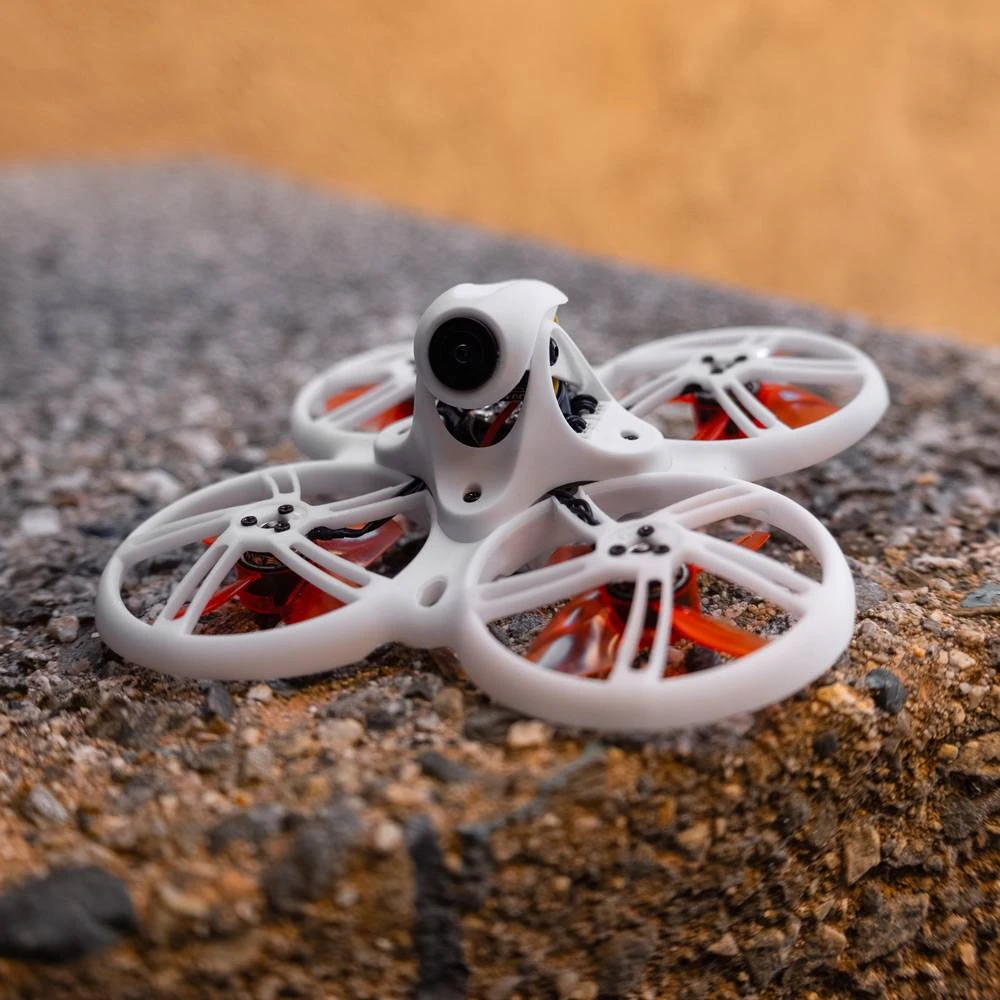

Introducing… the EMAX TinyHawk III BNF Quadcopter!!

By partnering with experts over at RunCam, EMAX was able to design the TinyHawk III! The TinyHawk III features the RunCam Nano 4 Camera, known for its higher resolution, realistic colors, low-light night vision, and ISP. Modifying the video transmitter with more filters and power has allowed the Tinyhawk III to have a cleaner video than ever.

This TinyHawk III BNF Quadcopter gives you the perfect solution for anyone wanting to learn the basics of FPV flying – for beginners and pros alike!

The included receiver is compatible with the SPI and FrSky D8 modes.

• This also comes in a full Tinyhawk III RTF kit with goggles and controller here.

VIDEO: EMAX – Introducing Tinyhawk III

Features

• Flight controller has an MCU (STM32F411CEU6) with an MPU6000 gyro

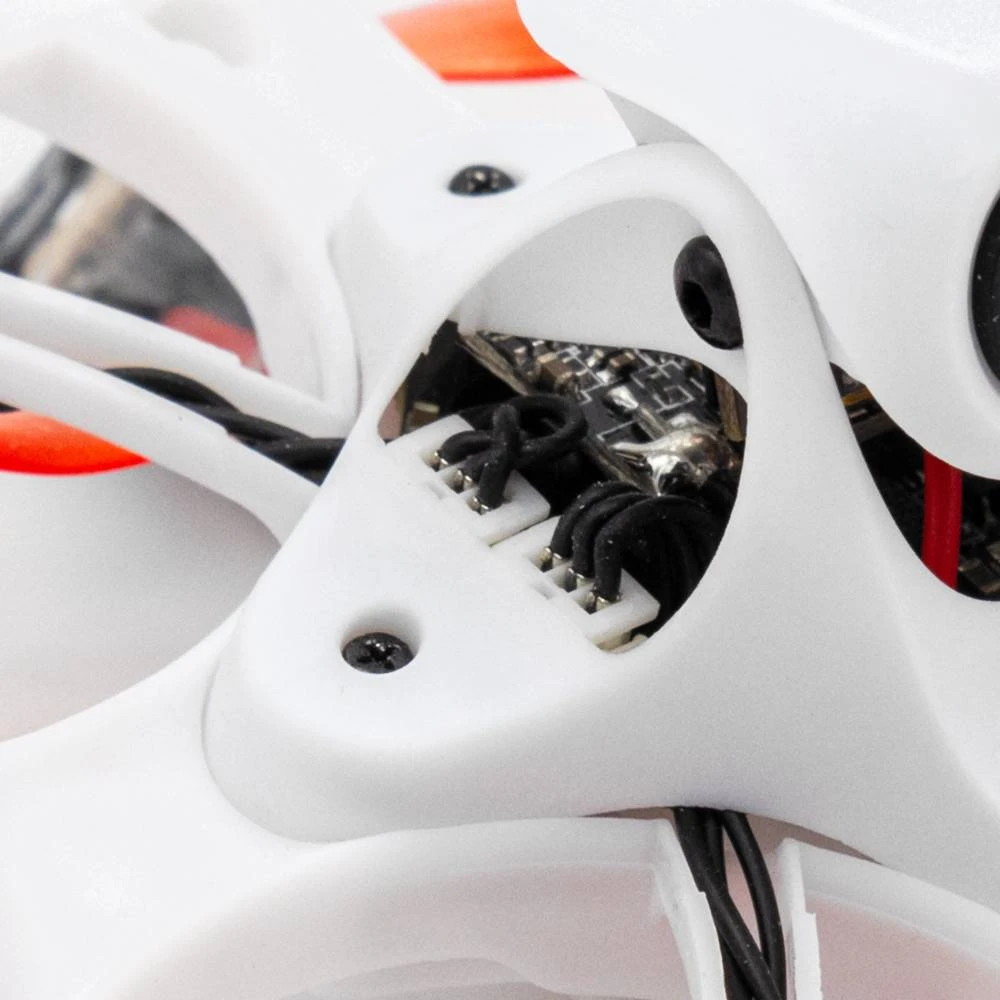

• Simple Repairability with centralized mounts and improved motor plugs
• Tinyhawk III Receiver with 8 Channels – SPI / FrSKy D8 Compatible
• Smart Audio function to change VTX channel via your transmitter
• 1S High Voltage (HV) 450mah LiPo battery included
• Beginner, Intermediate, and Advanced Flight Modes
• Drastically redesigned frame with higher durability
• Motors and electronics are highly protected

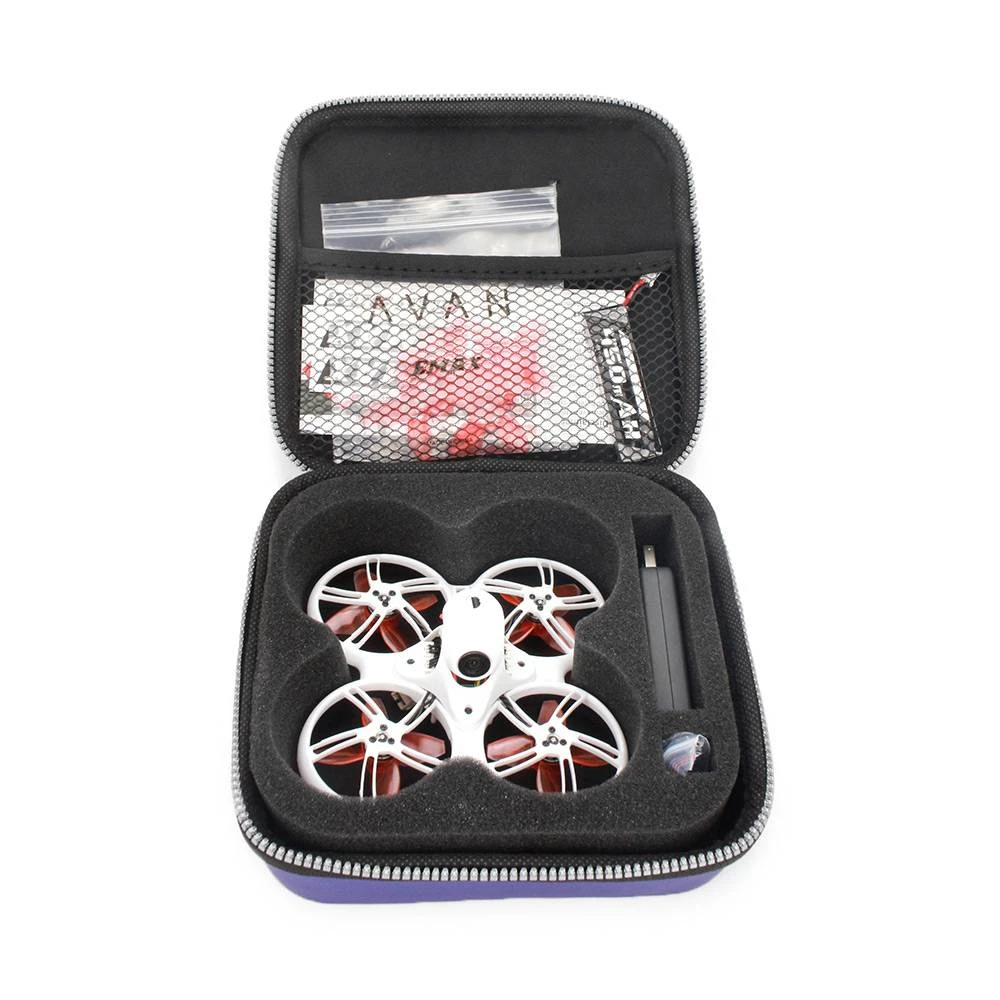

• Sleek Carrying Case for easy transporting

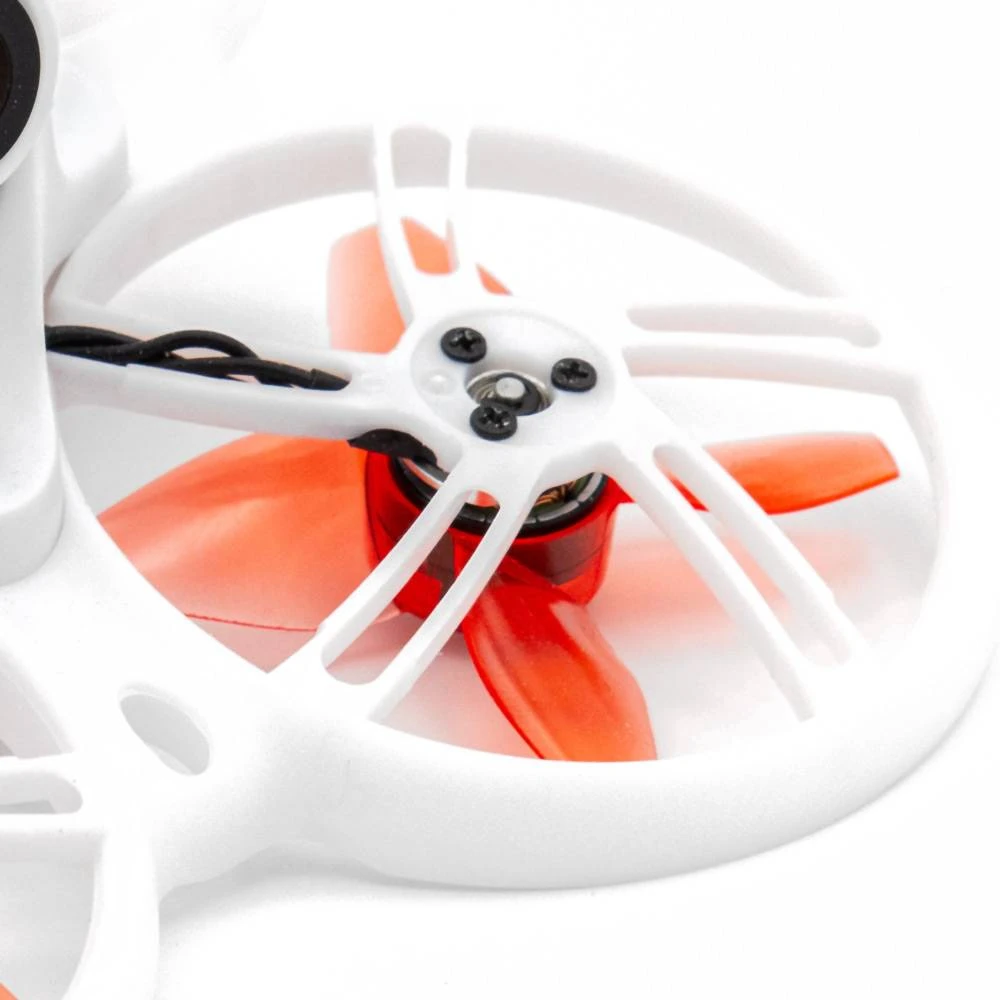

• Quick Swap TH0802 II 15000KV Motors
• New AVIA TH 4-Blade Propellers
• Betaflight OSD VTX Settings
• RunCam Nano 4 Camera
• TinyHawk III VTX

TINYHAWK III MAIN CONTROL BOARD – TinyHawk III main control board contains four 5A electric regulators and an 8-channel receiver. The receiver is integrated into the main control board and set through betaflight.

TINYHAWK III FLIGHT CONTROLLER –  This flight controller has an MCU(STM32F411CEU6) with an MPU6000 gyro. TinyHawk III flight controller comes pre-programmed and properly tuned for optimal flight. For a full tune and configuration setting file (CLI dump file) please visit https://emaxusa.com/ for the CLI dump file.

Specifications

• VTX: 200-100-25mW 37CH (Adjustable frequency)
• Receiver: EMAX Tiny Receiver (SPI/Frsky_D8)
• Maximum Size: L*W*H=105x105x45mm
• Camera: RunCam Nano 4 Camera
• FC: F4 (STM32F411 firmware)
• Weight (Without battery): 32g
• Propeller: Avia TH Propeller
• Motor: TH0802 II 15000KV
• Battery: 1S HV 450mAh
• Support: SmartAudio
• ESC: 4in1 /5A ESC
• Wheelbase: 76mm

RUNCAM NANO 4 CAMERA

• Dimensions: L14mm*W14mm*H14mm
• Current: 160mA@5V [email protected]
• Min. Illumination: [email protected]
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Horizontal Resolution: 800TVL
• Lens: 2.1mm(M8) FOV 155°
• Image Sensor: 1/3″ CMOS
• Model: RunCam Nano 4
• Housing Material: ABS
• Signal System: NTSC
• Power DC: 3.3-5.5V
• S/N Ratio: >50dB
• Net Weight: 2.9g
• Day/Night: Color
• D-WDR: Auto

Manuals

• EMAX TinyHawk III BNF Quadcopter

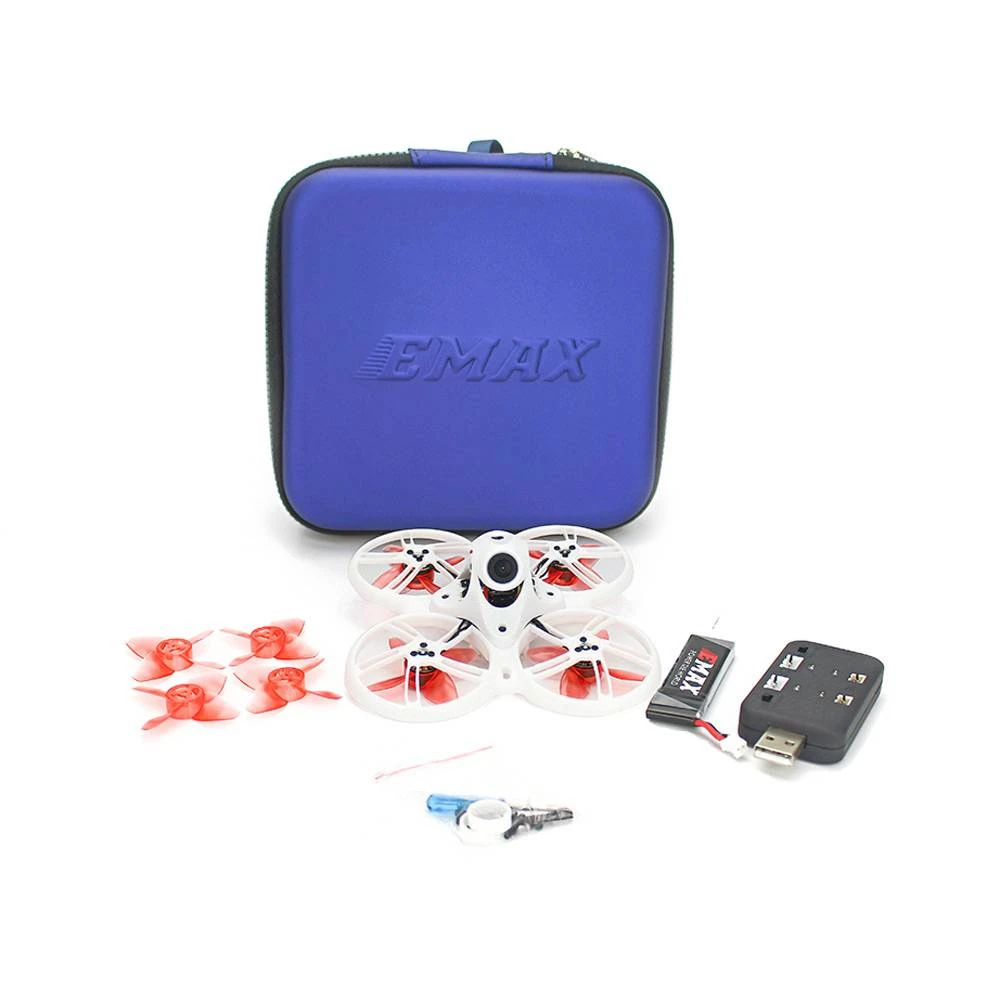

Includes

• 1x EMAX TinyHawk III BNF Quadcopter
• 1x  Avia TH 4-Blade Propellers (Set of 4)
• 1x 1S HV 450mAh LiPo battery
• 1x USB 4-port USB Charger
• 1x Phillips screwdriver
• 1x Carrying Case
