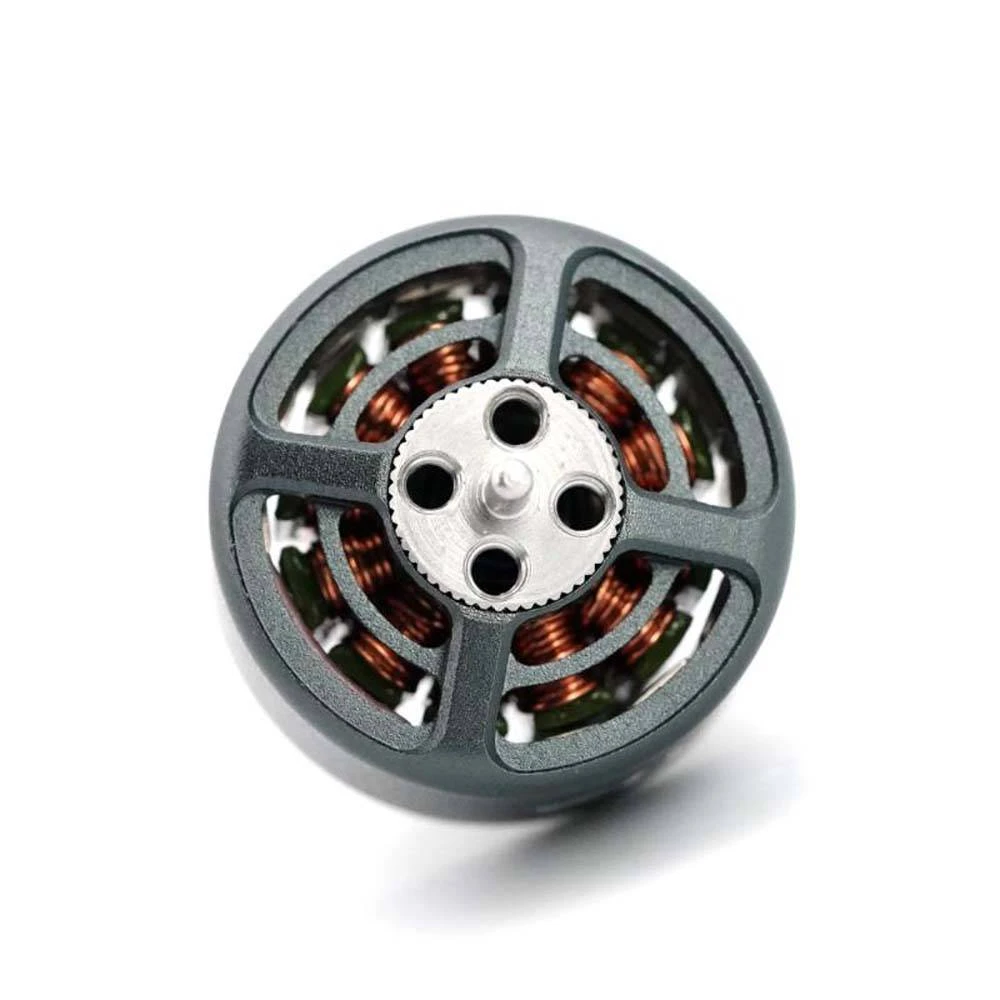

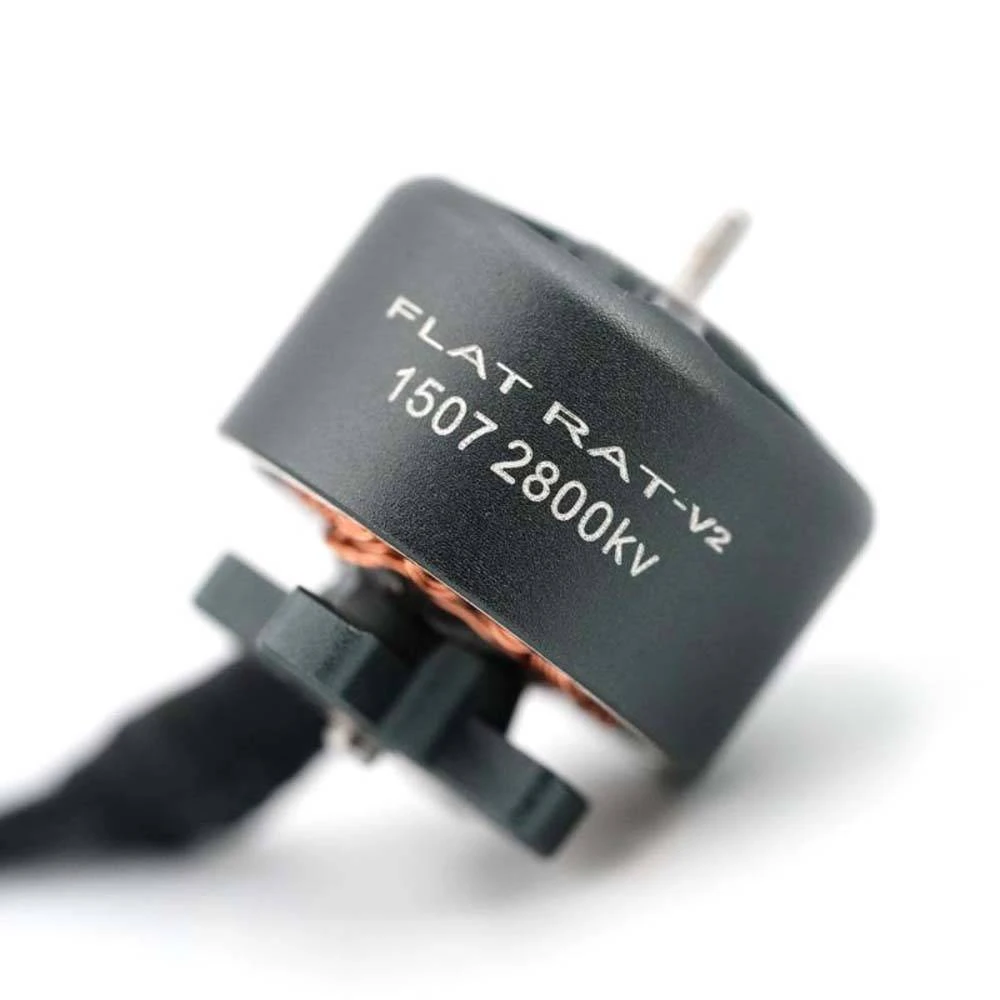

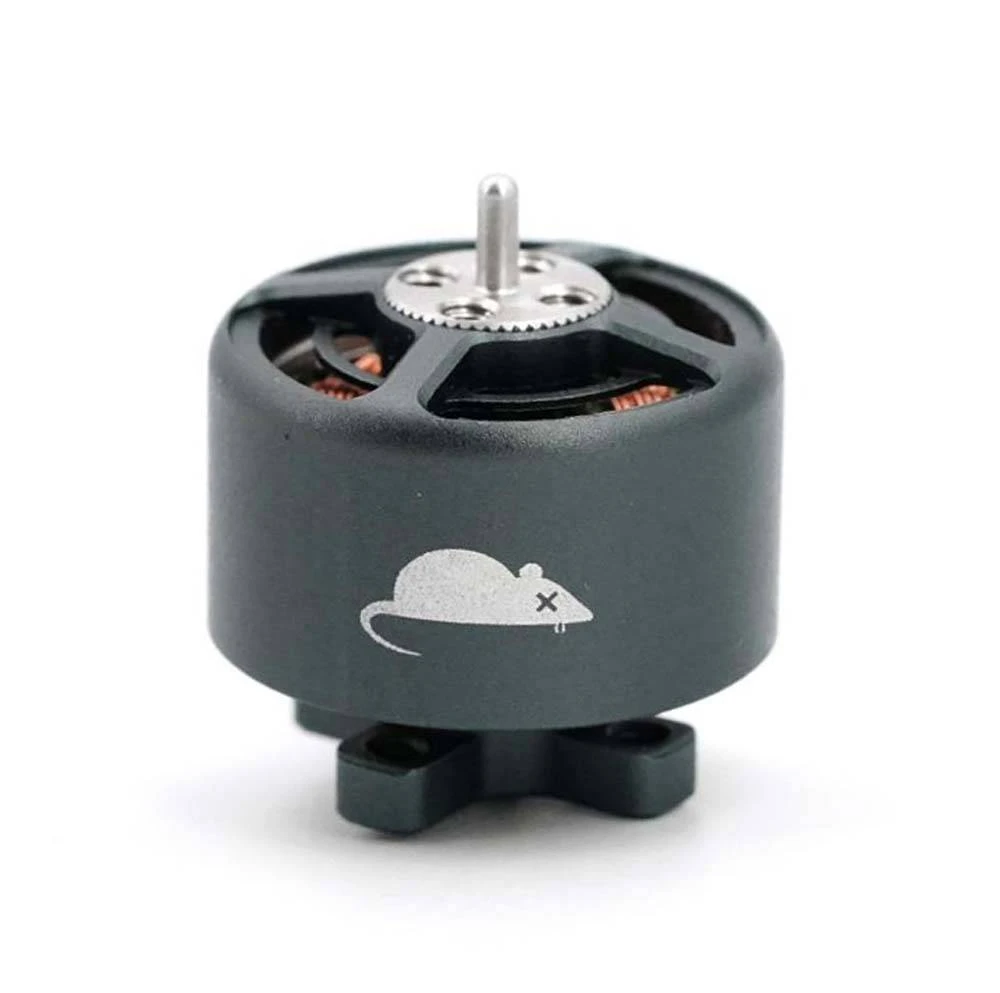

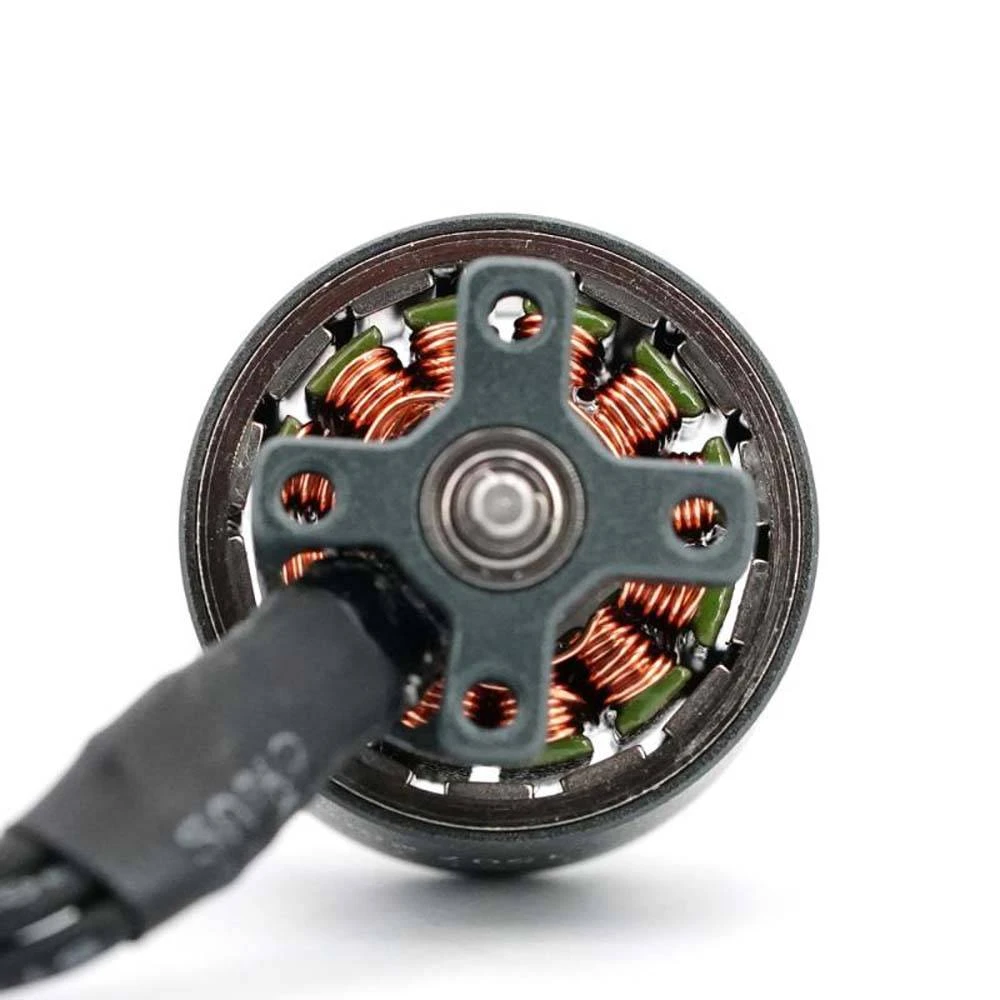

Ethix Flat Rats V2 1507 2800KV Motor (T-Mount)

The Flat Rats V2 t-mount motor by Ethix takes a twist off the previous model but adds a little more power and comes in a unibell design. This motor has a high KV, but is still smooth enough to help capture buttery cinematic footage on a 3” cine frame! The Flat Rats V2 t-mount motor has more power to give you better control and stability in small frames.

6S capable and available in both t-mount and 5mm shaft options.

Specifications

• Stator Size (Diameter): φ15mm
• Kv: 2800
• Magnets N52SH: Curved
• Windings: 13.5 turns DLRK
• Shaft Length (mm): T mount
• Shaft Diameter (mm): 1.5mm
• Shaft material: steel
• Bearing: 4*2*2.5
• Weight (With Wires) (g): 15.5g
• Cells (Lipo): 6S
• Max Current (A): 15A
• Max Burst Current (A): 20A
• Internal Resistance (Rm): 0.23mΩ
• Wire Spec (AWG): AWG 24#
• Base Mounting Pattern: 12x12mm
• Base Mounting Thread: M2 Thread
• Motor Overall Dimensions: φ19.8mmx17.5mm

Includes

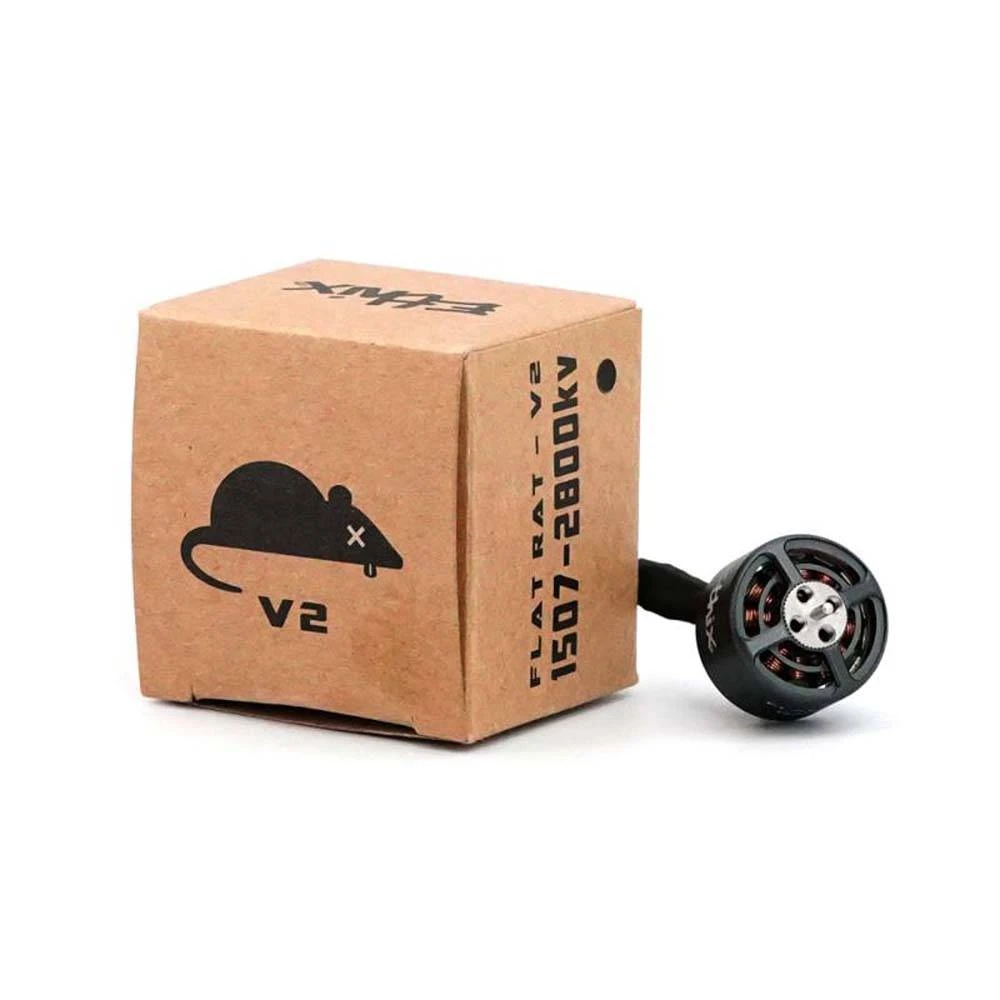

• 1 x Ethix Flat Rats V2 1507 2800KV Motor (T-Mount)
