EV800D 5.8GHz 40CH Diversity FPV Goggles W/ DVR

New batches are updated to use SMA connectors instead of RP-SMA.

The EV800D is an excellent beginner box goggle featuring an 800×480 LCD screen with vivid color and high luminance, diversity receiver, built-in DVR, and battery – all at an amazing value!

Features

• Bright 800×480 5″ LCD Screen specially tuned for FPV racing

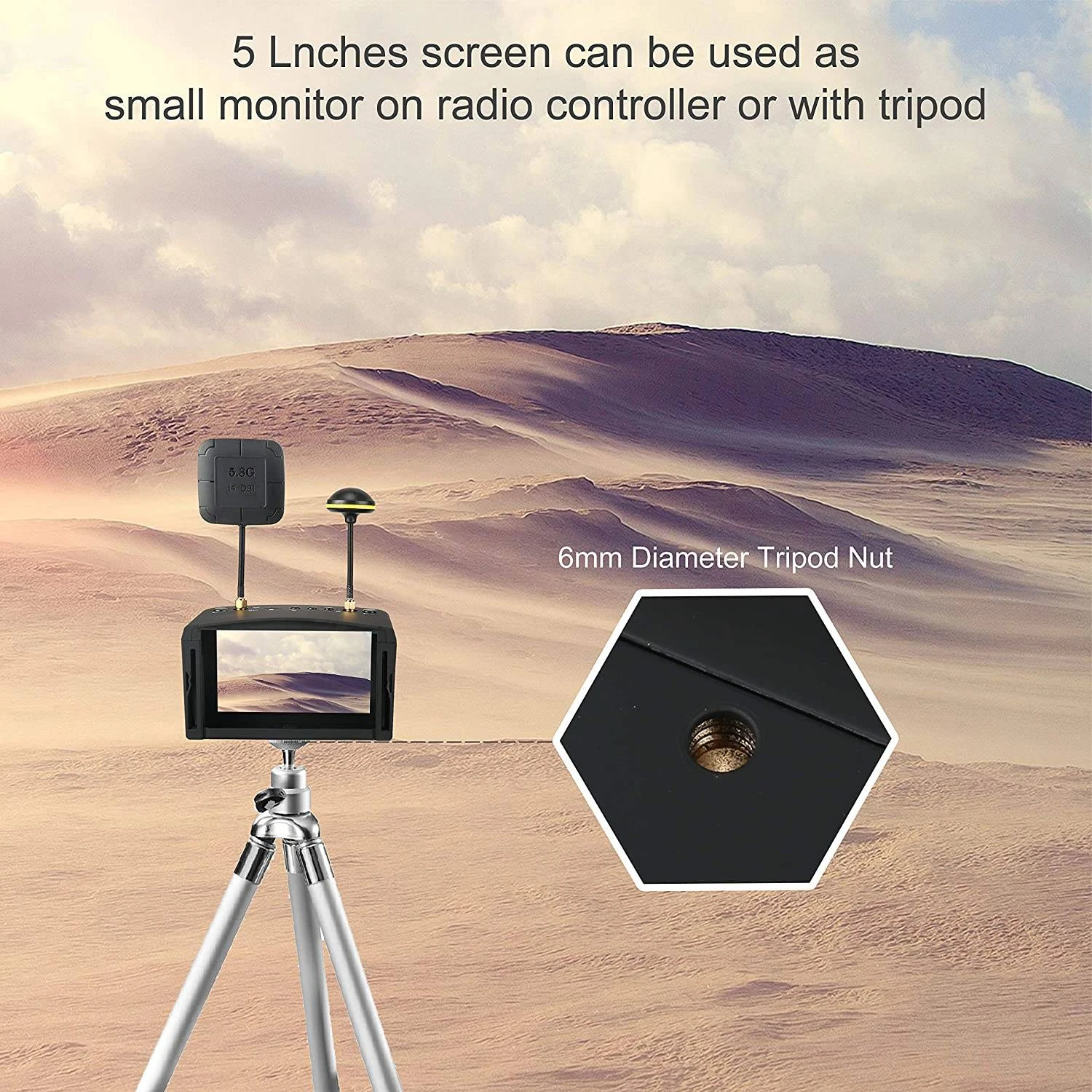

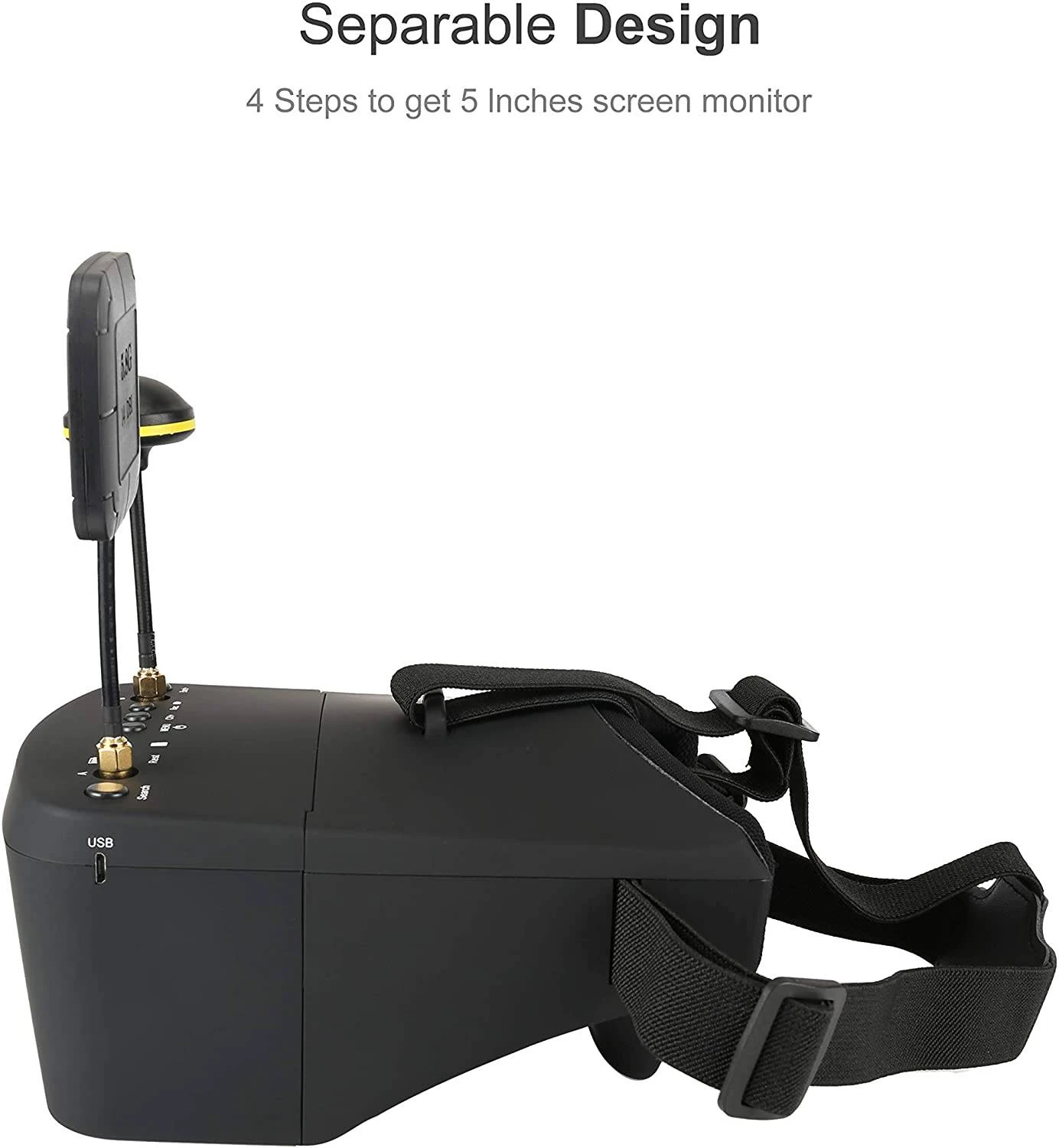

• Separable design. Screen can be used as a small monitor on a radio controller or with a tripod!
• 92% Transparent 3x Lens boosts the video to give you that immersive view
• Super-wide viewing angle up to 82

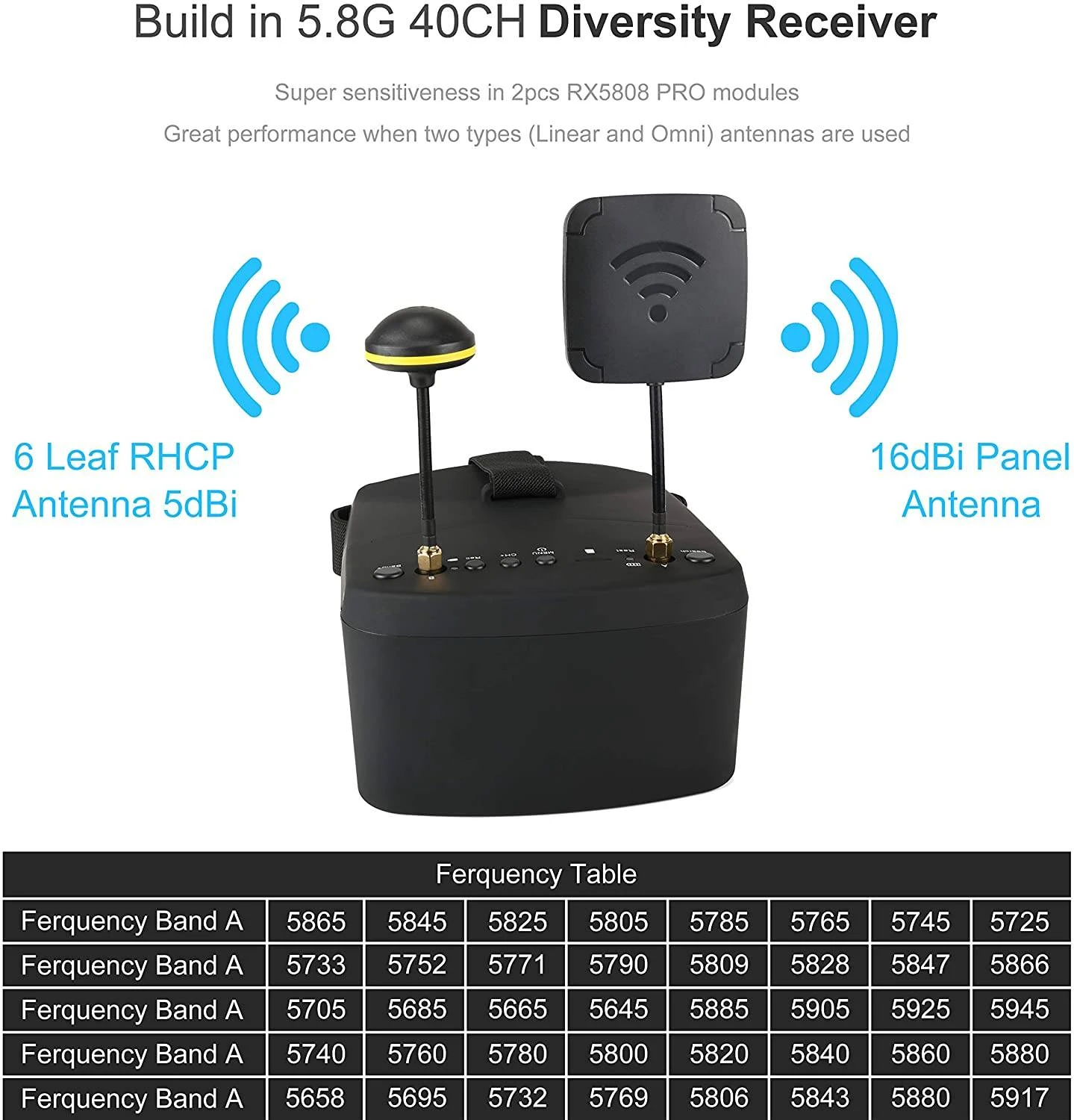

• True Diversity: 2x Super Sensitive (-90dB) RX5808 PRO modules
• 40 Channels with Race Band (See Frequency Chart Below)
• Advanced auto-search function and the working frequency show on screen
• Great performance when two types (Linear and Omni) of antenna are used
• Built-in DVR records up to 720×576 full frame rate video with no frame loss (Class 10 card required)
• Two systems (Display/Record duo core separated chipsets) ensure no delay in displaying and no frame lost in recording (please use C10 super speed card to ensure the full-frame recording)
• Replay your videos in the Goggle Menu
• Friendly unintrusive OSD. No blocking of important flying OSD information.
• Three-way Adjustable Head Strap

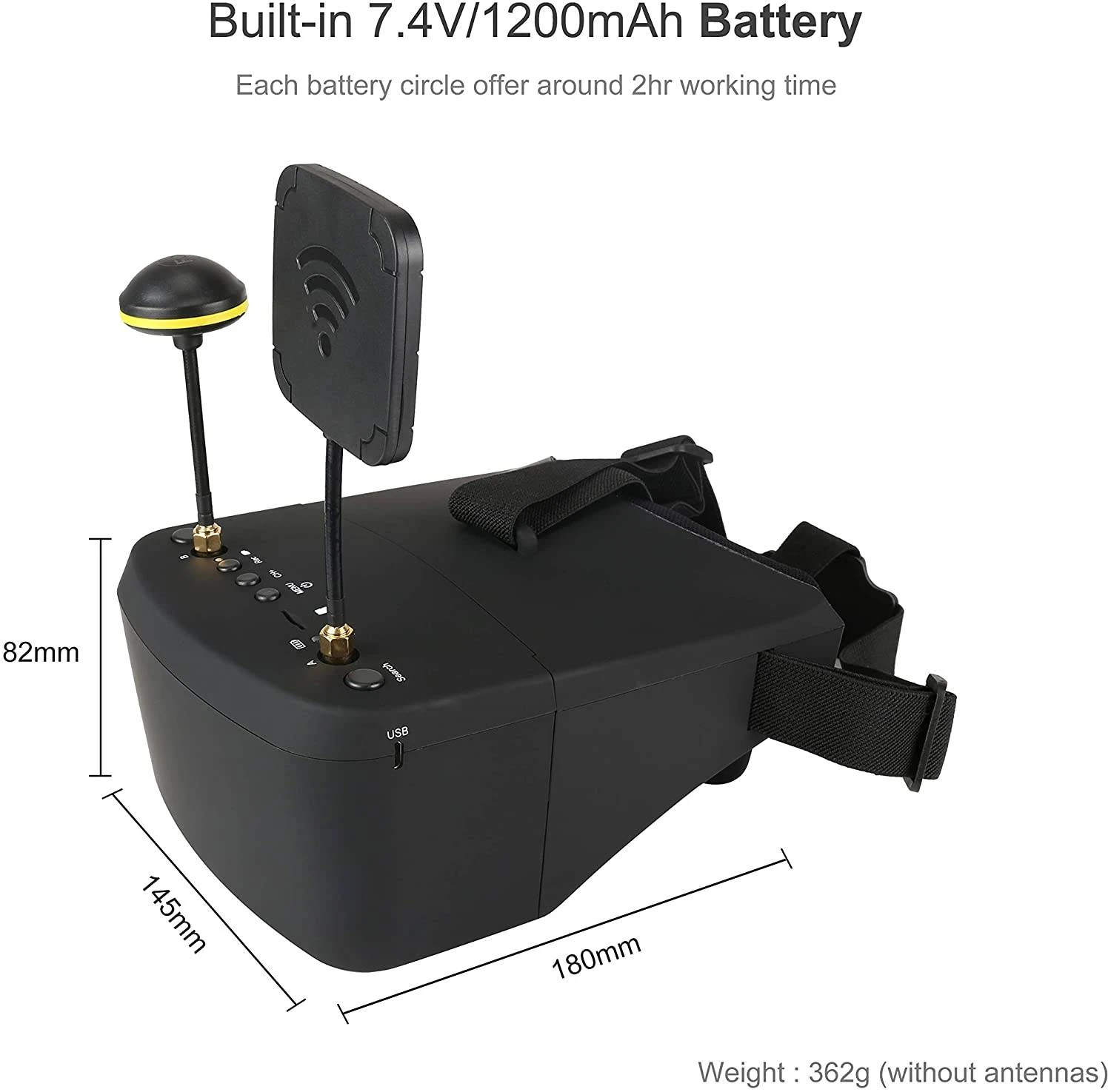

• Built-in 7.4V 1200mAh battery, each full charge offers 2 hours working time
• Wide range re-charge voltage 11-20V
• Accept 2S or 3S batteries as backup power sources, to prolong the working time

Specifications

• Screen Size: 5″
• Screen Resolution: 800×480 (No blur after enlarge by the lens)
• Screen Brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
• Ratio: 16:9, 4:3
• View Angle: 140/120 degree(Horizontal/Vertical)
• RF Modules: 2x (-90dB) RX5808 PRO modules
• Battery: Built-in 7.4V 1200mAh Battery
• Input Voltage: 10-22V typical recharging voltage is 12V, 2S or 3S (7.4V-11.1V) LiPo can be used as backup power to have a long working time.
• Charger : 12V,2A, DC 2.5mm
• Dimension: 180*145*82mm
• Weight: 362g without antenna

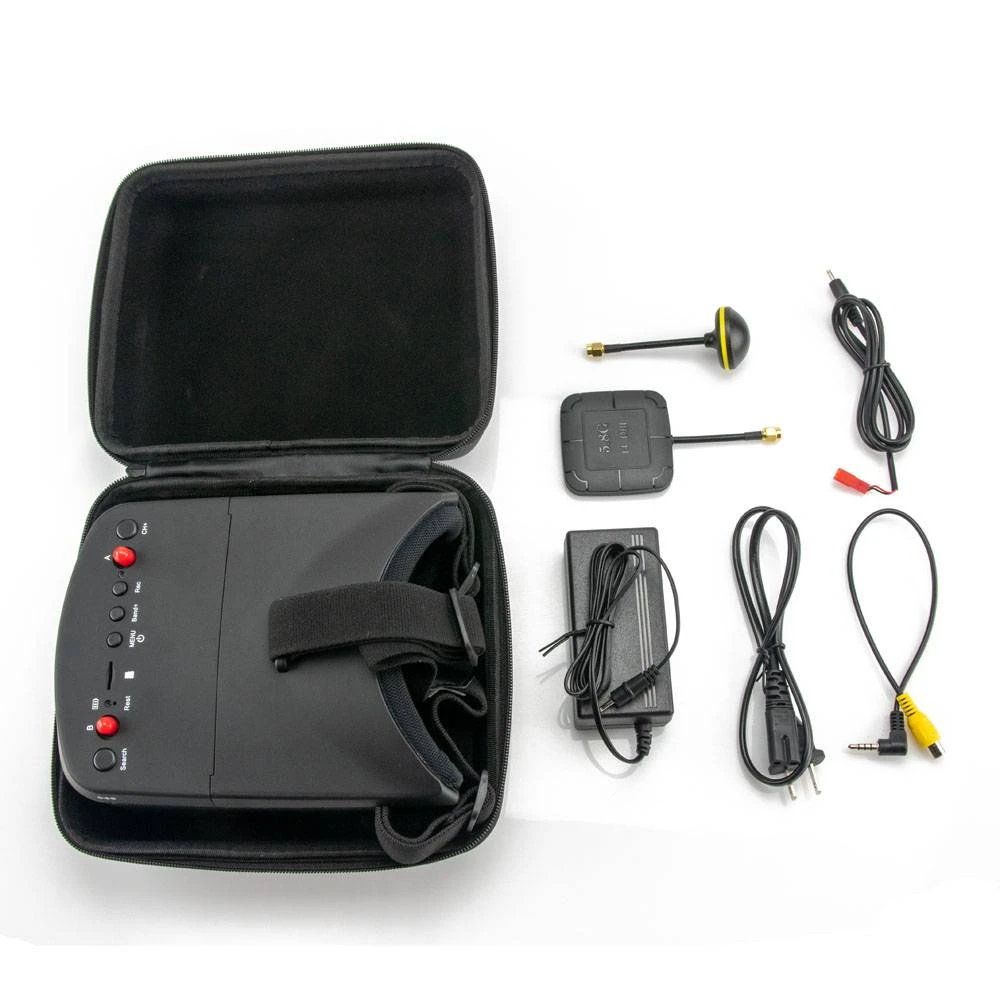

Includes

• 1x EV800D Goggles
• 1x Charger
• 1x 5.8G Half-Planar Antenna with SMA Connector
• 1x 5.8G RHCP Cloverleaf Antenna with SMA Connector
• 1x AV Cable
• 1x DC power cable to JST connector
• 1x Instruction manual (English)
• 1x EVA Carrying Case
