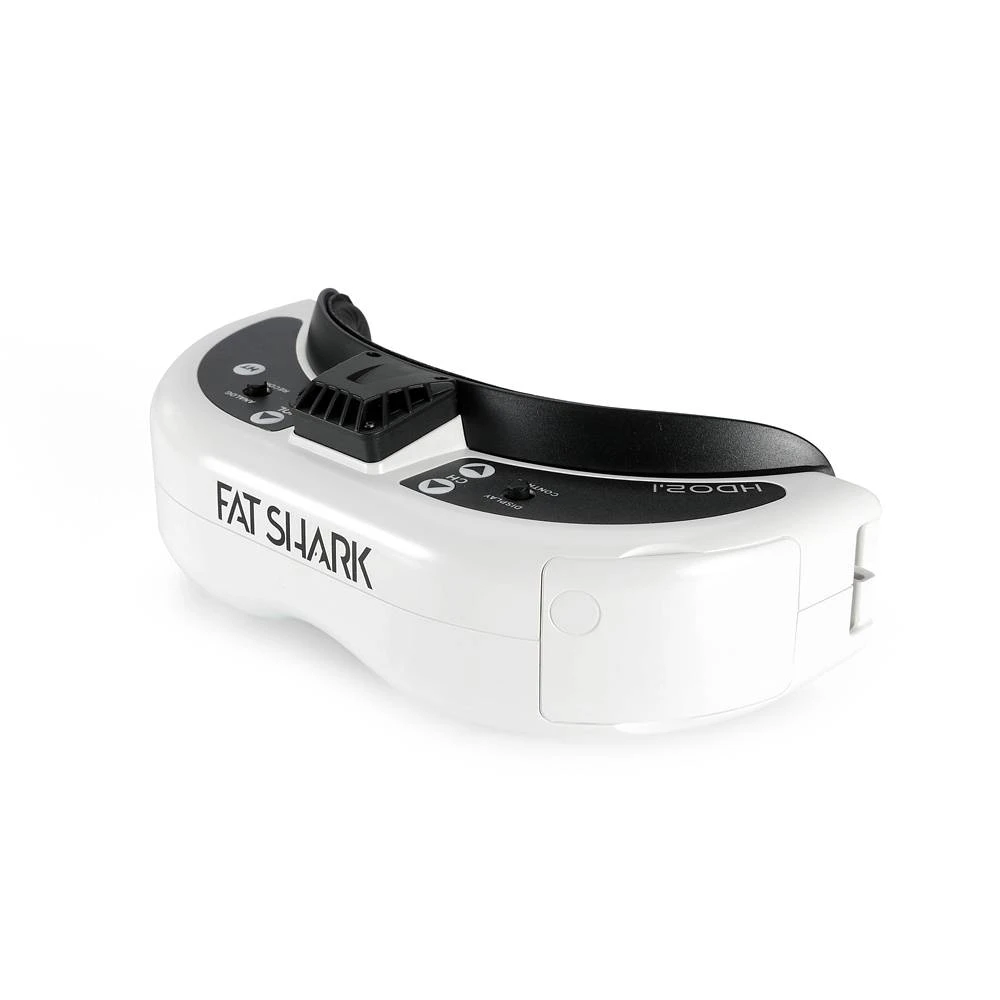

Fat Shark Dominator HDO 2.1 FPV Goggles

The updated Fat Shark Dominator HDO2.1 headset launches as the successor to the much-loved Dominator HDO2. This 2.1 version features updated IPD and Focus Adjuster buttons. The HDO2.1 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2.1 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2.1 is the perfect headset for an experienced pilot looking for the best flight experience.

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: Fat Shark HDO2 review (hands-on vs. HDO, Skyzone, DJI)

• High Definition Multimedia Interface 1080p Support
• Updated 2.1 IPD and Focus Adjuster buttons
• 59-69mm IPD Range (Adjustable)
• Switchable 16:9 and 4:3 Format
• 1280×960 OLED Display
• Adjustable Face Radius
• Integrated Analog DVR
• 2 Sony OLED Displays
• Modular Reciever Bay
• 46° Diagonal FOV
• Adjustable Focus
• Expansion Port

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• User Control: Channel Selection, Volume Control, Mode Selection, Display Control (Brightness and Contrast), DVR Control, Power Button / Fan Control
• Power Consumption: 320mA @ 7.5V input power (no RX module) / 770mA @ 7.5V input power (Rapid
• Power Supply:7 – 13V input voltage (2S – 3S Supply)
• Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
• File playback: (native recording, no codec support)
• Battery: 7.4V, 1.8A 18650 Battery Case (optional)
• FOV (field of view): 46 degrees diagonal
• HT connector: 3-pin internal connection
• Analog DVR: MicroSD support to 32 GB
• IPD (interpupillary distance):  74 mm
• Focus: +2 to -6 diopters (adjustable)
• OLED: Two Sony 0.5” OLED displays
• Earphone port: 3.5mm 3p
• Upgradeable: via SD card
• NTCS/PAL auto-selecting
• Resolution: 1280 X 960
• AV in/out port: 3.5mm
• Memory: MicroSD
• HDMI Mode: 16:9
• Power input: port
• Module Bay: RF
• AV Mode: 16:9
• Power: Button
• Audio: Stereo
• AV Mode 4:3

IMPORTANT NOTES

• Insert important warnings or notes here. Example: “Do not overheat.” or “Always use the included charger for best performance.”

•  (Insert recommended products here. Example: “Battery: Lumenier 10000mAh 6s 25c Lipo Battery”)

•   (Insert links such as manuals, firmware, etc)

• 1x Fat Shark Dominator HDO 2.1 FPV Goggles
• 1x 7.4V 18650 Battery Case
• 1x Lens Cleaning Cloth
• 1x Carrying Case

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS

HDO 2 HTML

Things just got personal.

The Dominator HDO2.1 headset launches as the successor to the much-loved Dominator HDO. The HDO2.1 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

Click here for the Ultimate FPV Bundle with the HDO 2 Goggles, Receiver module, AXII 2 antenna combo, and accessories.

Specifications

Optics

• FOV (field of view): 46 degrees diagonal
• IPD (interpupillary distance): 54 to 74 mm (adjustable)
• Focus: +2 to -6 diopters (adjustable)

Display

• Two Sony 0.5” OLED displays
• Resolution 1280 X 960
• NTCS/PAL auto selecting
• AV Mode 4:3
• AV Mode 16:9
• HDMI Mode 16:9

Audio

• Stereo

User Controls

• Channel Selection
• Volume Control
• Mode Selection
• Display Control (Brightness and Contrast)
• DVR Control
• Power Button / Fan Control

Electrical

• Power Supply:
• 7 – 13V input voltage (2S – 3S Supply)
• Power Consumption: 320mA @ 7.5V input power (no RX module)
• 770mA @ 7.5V input power (Rapid
• Analog DVR: MicroSD support to 32 GB
• Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
• File playback (native recording, no codec support)
• Upgradeable via SD card

Battery

• 7.4V, 1.8A 18650 Battery Case (optional))

Interface

• 3.5mm AV in/out port
• Power input port
• 3.5mm 3p earphone port
• MicroSD
• RF Module Bay
• HT connector 3 pin internal connection
• Power Button

Mechanical

• Ergonomic molded headset w/ adjustable headband
• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 206.8 g

Includes

• 1 x Fat Shark Dominator HDO 2 FPV Goggles
• Carrying Case
• 7.4V 18650 Battery Case
• Lens Cleaning Cloth

Warning: Exposing the lens to direct sunlight will result in LCD damage.
