Flywoo Firefly Nano Baby 20 2S Micro Quadcopter BNF – Analog

The Flywoo Firefly Nano Baby 20 2S Micro Quadcopter BNF Analog comes with Flywoo’s Nano Camera V2 1S and is equipped with the most efficient micromotor and the top AIO flight controller on the market! This micro quadcopter will bring you an unprecedented flying experience; the Firefly Nano Baby 20 can do acrobatic motions smoothly, like diving and power looping.

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: (Insert Video Title here in Bold)

• Comes with 1002 15500KV motors and Gemfan 2015 – 2 blade propellers, which provide the best balance of performance and flight time.
• Versatile and highly integrated circuit board – GOKU Versatile F405 2S 12A AIO. Built-in ELRS 2.4g RX. Have multiple sets of serial external devices

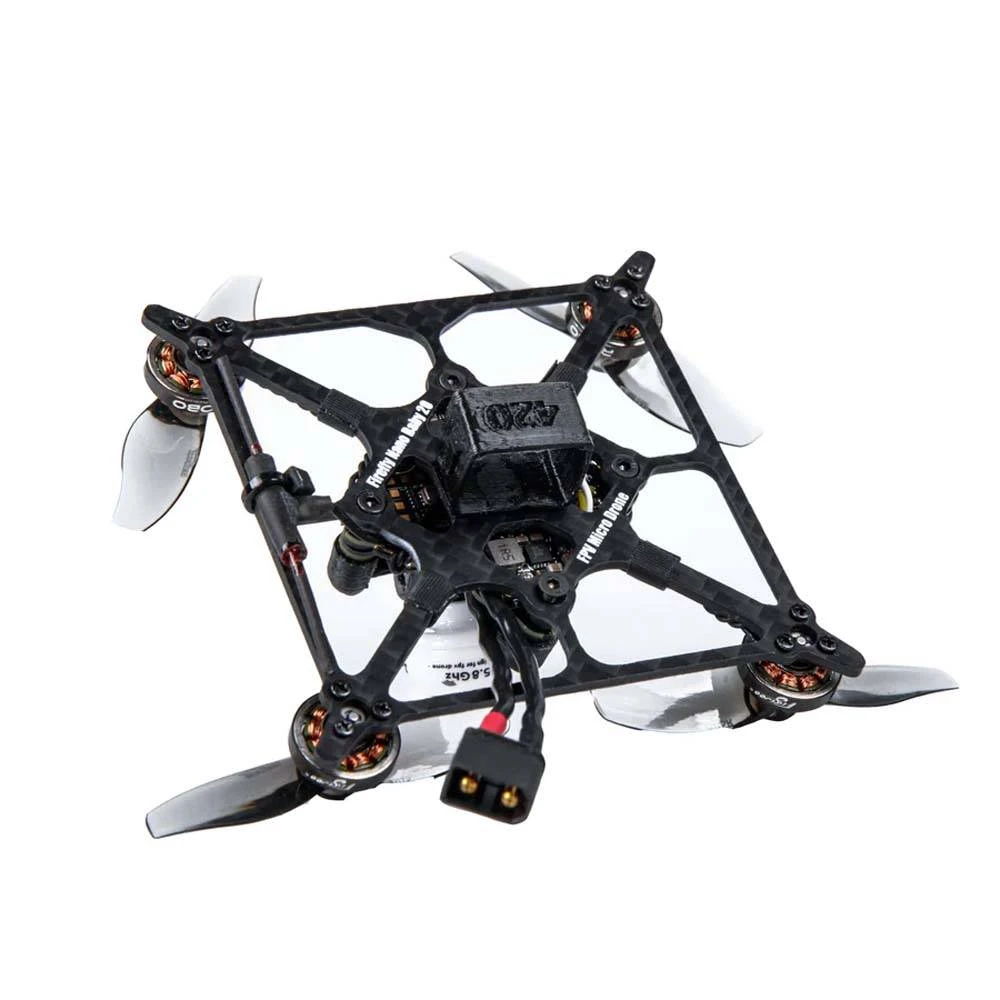

• Easy switch battery mount design. Explorer 2S 420mAh for Racing, Explorer 2S 750mAh for long flight time.
• Great mount compatibility for cameras like the Thumb Pro,  Peanut, GO2, Thumb, and related

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

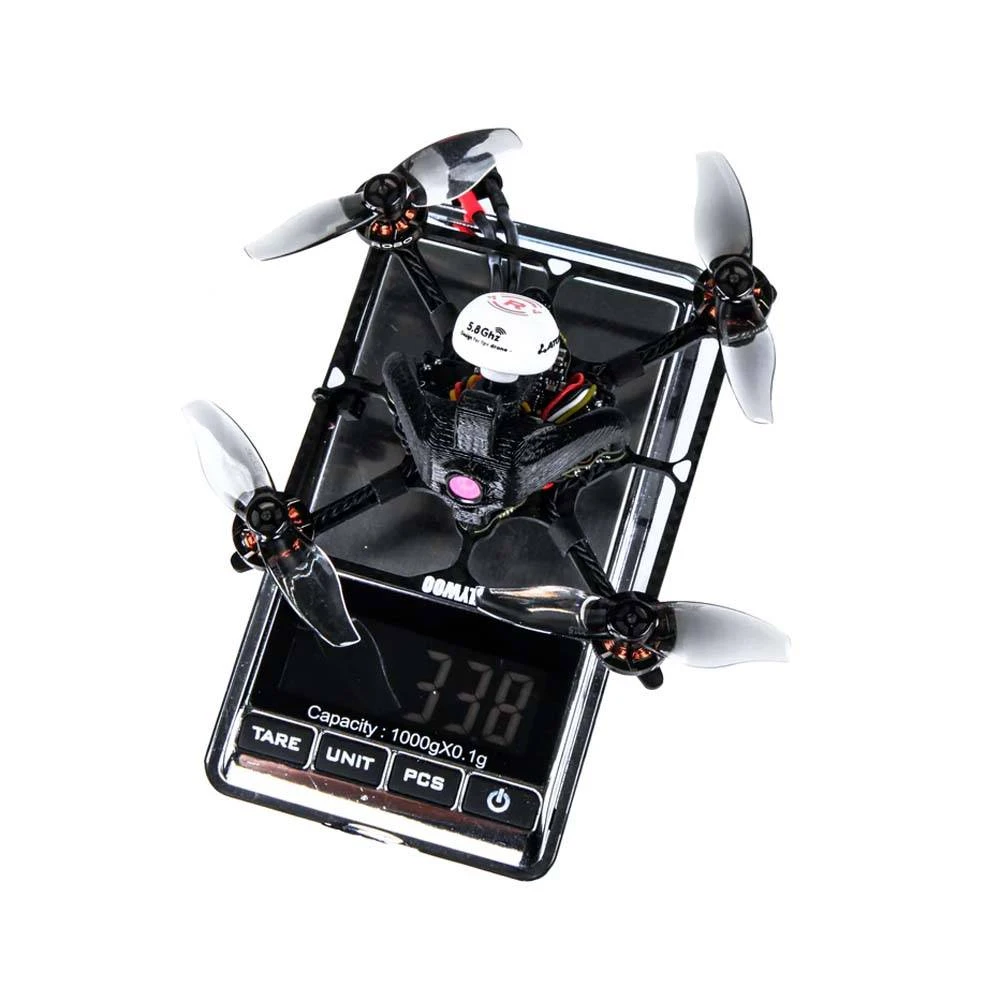

• Weight: 33.8g (without battery)
• FC & ESC : GOKU Versatile F405 2S 12A AIO
• Frame: Firefly 2S Nano Baby 20 Analog Frame kit
• Motors: Flywoo ROBO 1002 15500KV
• Props: Gemfan 2015-2 blade
• VTX : GOKU VTX625 V2 450mW Nano VTX
• Camera : Flywoo 1.2g 1S Nano camera V2

GOKU Versatile F4 5-IN-1 1S AIO FC / VTX

• SIZE: 30x30mm
• Weight: 4.1g
• Hole: 25.5×25.5-3mm
• MCU: STM32F405
• UARTS: 1,2,3,4,5,6
• MOTOR: M1-M4 OUTPUT I2C: SCL/SDA
• GYRO: MPU6000
• Barometer: BMP280
• LED: 2x WS2812
• Flash: 8M
• BEC: 5V 2A
• Firmware: FLYWOOF405S_AIO

Onboard 4in1 ESC

• Built-in 1S/2S 12A BL_S 4in1 ESC
• Support Oneshot125, Oneshot42, Multishot,
• Dshot150, Dshot300, Dshot600
• Input Voltage: 1-2S Lipo
• Firmware: BLHELI_S
• Firmware: Z_H_30_REV16.7

Flywoo ROBO 1002 15500Kv Motor

• Kv: 15500Kv
• Input Voltage: 2S LiPo
• Stator Dimensions: Φ10mm x 2mm
• Shaft Diameter: Φ 1.5mm
• Wire Dimensions: 30AWG x 40mm
• Weight (w/ wires): 2.4g

Flywoo 1S Nano Camera V2

• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC and PAL(switchable)
• MENU: Support
• IMAGE: 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm/F2.5
• Min. illumination: 0.001Lux
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14x14mm
• Wide Power Input: DC 5-25V
• Work Temperature: -20°C~+60C
• Work Humidity: 20%~80%
• Weight: 1.2g (N.W.)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: “Do not overheat.” or “Always use the included charger for best performance.”

• Flywoo Explorer 2S 420mAh Battery for Racing
• Explorer 2S 750mAh Battery for long flight time

•   (Insert links such as manuals, firmware, etc)

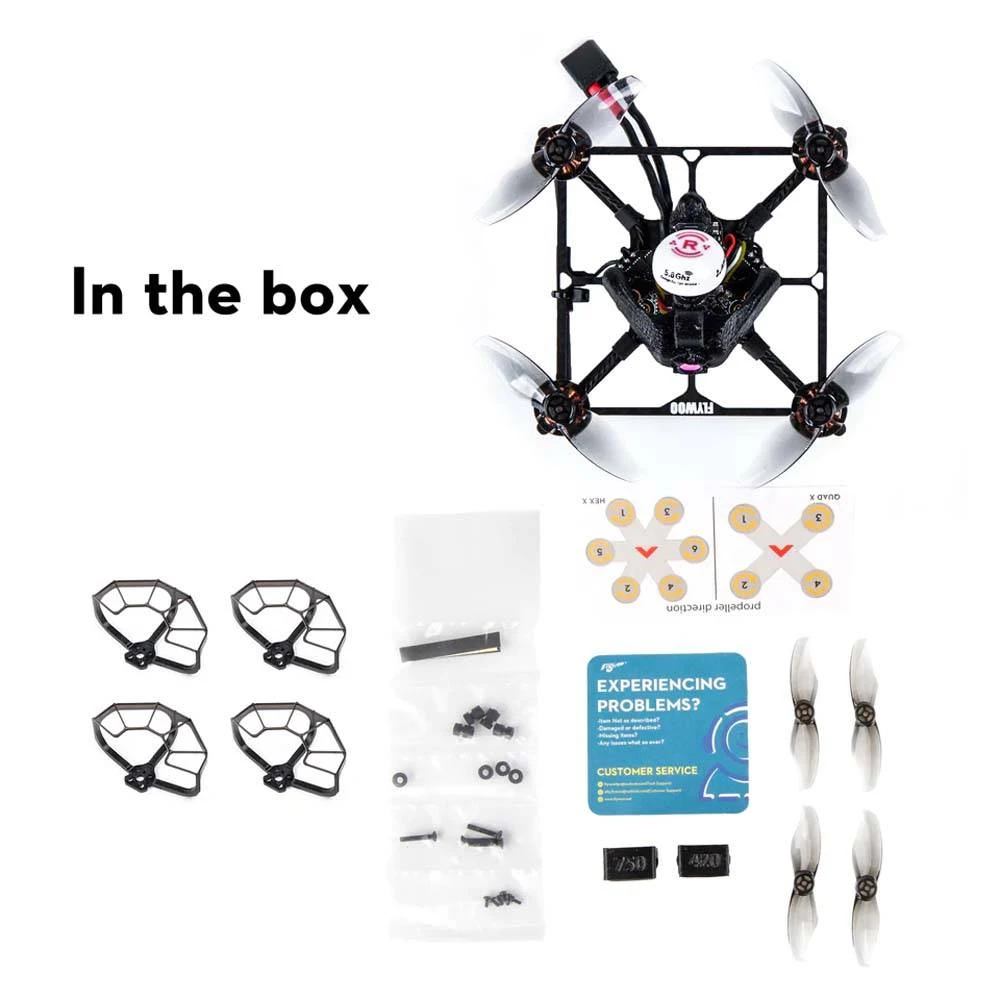

• 1 x Firefly 2S Nano Baby 20 Micro Quadcopter BNF – Analog
• 2 x Sets of 2015-2 props
• 1 x Screw spare packs
• 2 x Battery holder

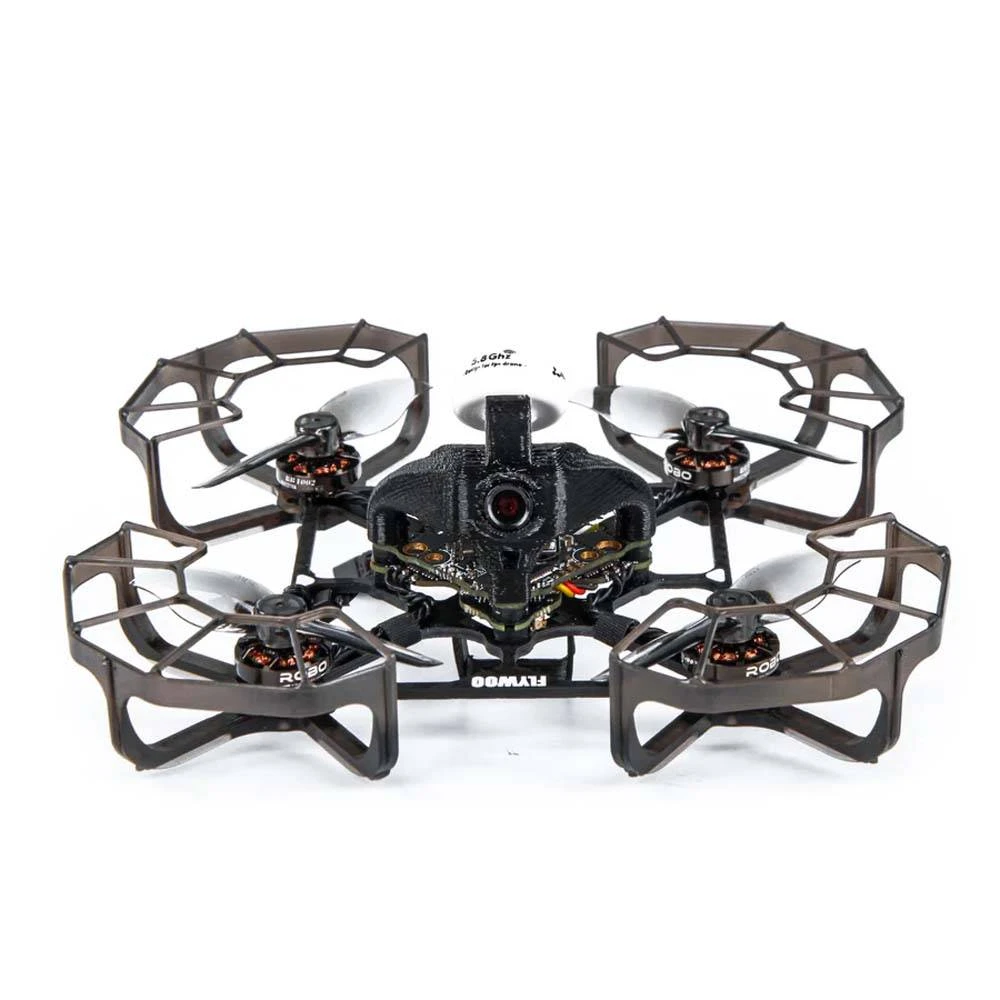

• 4 x Prop guards
