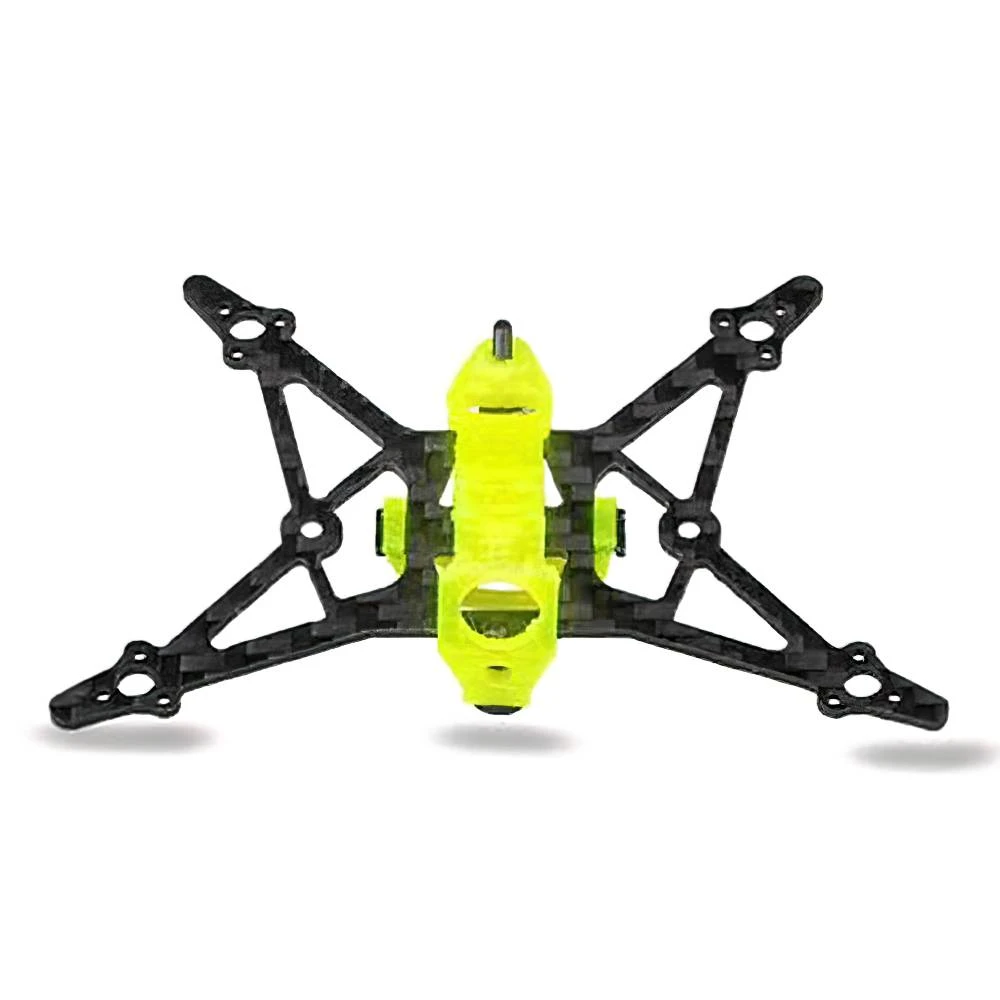

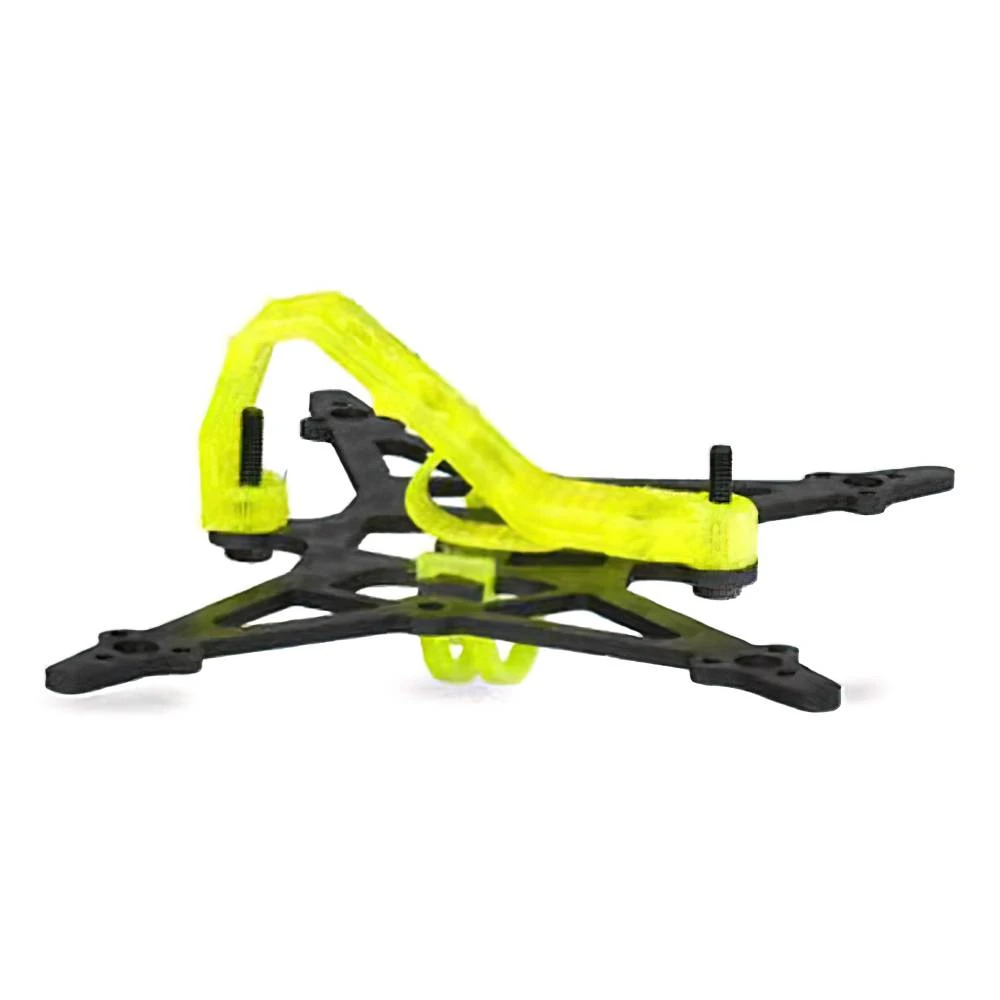

Flywoo Firefly Nano Baby 40mm 1.6" 1S Frame Kit – V1.2

This frame kit is for the Firefly Nano Baby Quad, which is a 20g ultralight 1S drone for freestyle and cruising. Pilots can enjoy up to 8 minutes and 45 seconds flight time! It is not only suitable for cruising with an extended flight time but also perfect for freestyle flights. Super quiet – suitable for both indoors and outdoors!

Note: This is the Frame Kit only. Electronics and other parts are not included.

Features

• Pilots can enjoy up to 8 minutes and 45 seconds flight time with Flywoo’s latest 1S 450mah!

• It is very quiet, like a mosquito, suitable for both indoors and outdoors

• Ultralight quad weighing in at just 20g

• Perfect for freestyle and crushing

• NO Jello flight footage

• No propellers in view

CHANGELOG: V1 TO V1.2

• Modification of the design of the bottom plate – the structure of the bottom plate is more reasonable and strong.
• The battery can be placed horizontally or vertically.

Specifications

• Main Plate Thickness: 1.5mm
• Dimensions: 84×55.5xmm
• Arm Thickness: 1.5mm
• Stack Size: 25x25mm
• Camera Mount: Micro
• Wheelbase: 73.5mm
• Motor Mount: 7mm
• Stack Height: mm
• Weight: 6.5g

Recommended (Not Included)

• Battery: Explorer 450mAh 1S 80C Lipo Battery for tiny quad -PH 2.0
• Flight Controller: GOKU Versatile F4 5-IN-1 1S AIO W/250mw VTX
• Camera: 1.2g Flywoo 1S Nano Camera
• Motors: ROBO 0802.4 16500KV
• Propellers: Gemfan 40mm

Includes

• 1x Flywoo Firefly Nano Baby V1.2 Main Plate
• 3x 3D Printed Parts
• 1x Hardware Kit
