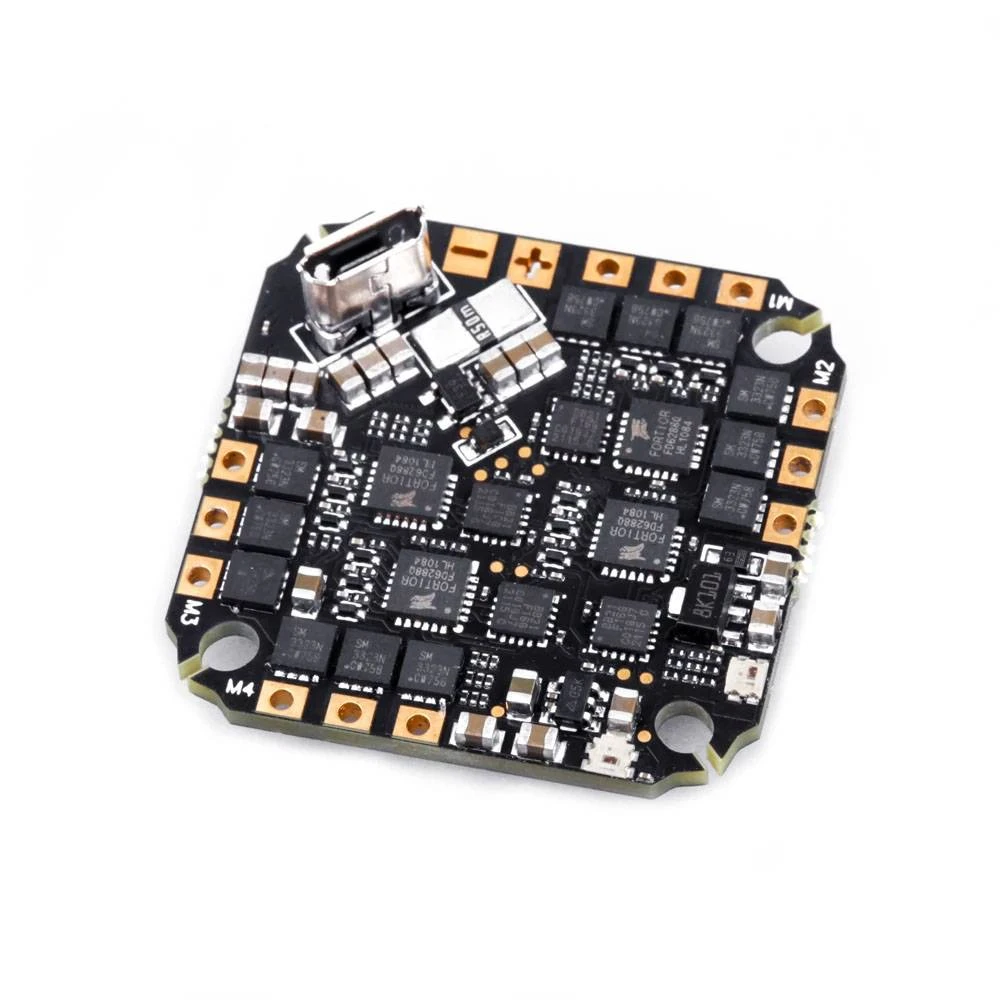

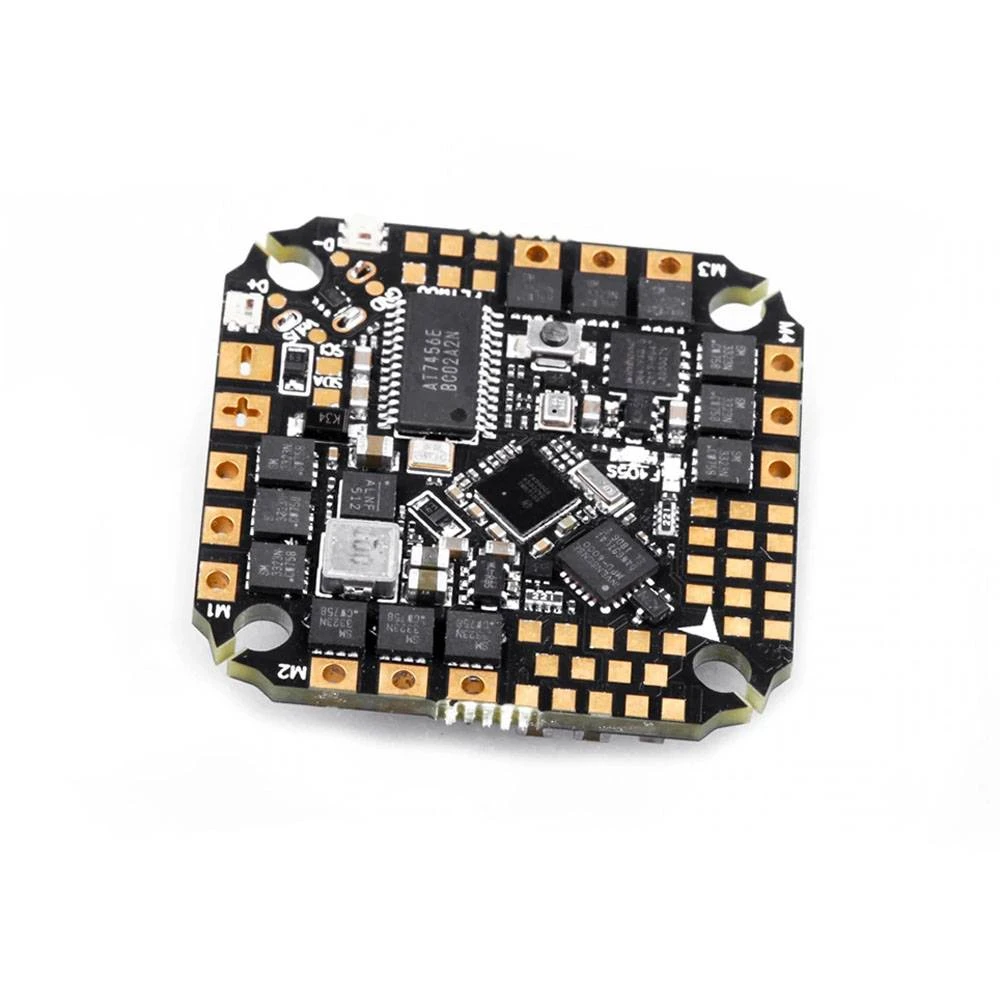

Flywoo GN405 20A AIO BL_S Flight Controller

Flywoo’s new GOKU series AIO are finally here! The GOKU GN405 20A FC is an economical and durable all-in-one AIO, which can meet most of your FPV needs.
Uses a powerful F405 chip, integrated 5V BEC, barometer, black box, WS2812LED, supports 6 complete hardware serial ports, I2C, and other functions are available.

Features

• F405 BGA MCU
• Barometer
• 5V BEC
• Black Box
• 20A 8Bit ESC
• 6 UARTS
• current sensor
• LED

Specifications

GN 405S 20A AIO Flight Controller

• MCU: STM32F405 BGA 8bit processor
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• Onboard LED: WS2812*4
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 8Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 33.5×33.5mm
• Mounting Holes: Standard 25.5/26.5mm square to center of holes
• Weight: 8.5g

• Support BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-6S Lipo
• Continuous Current: 20A
• Firmware: BLHELI_S

Resources

• Betaflight Firmware target: FLYWOOF405S_AIO

Includes

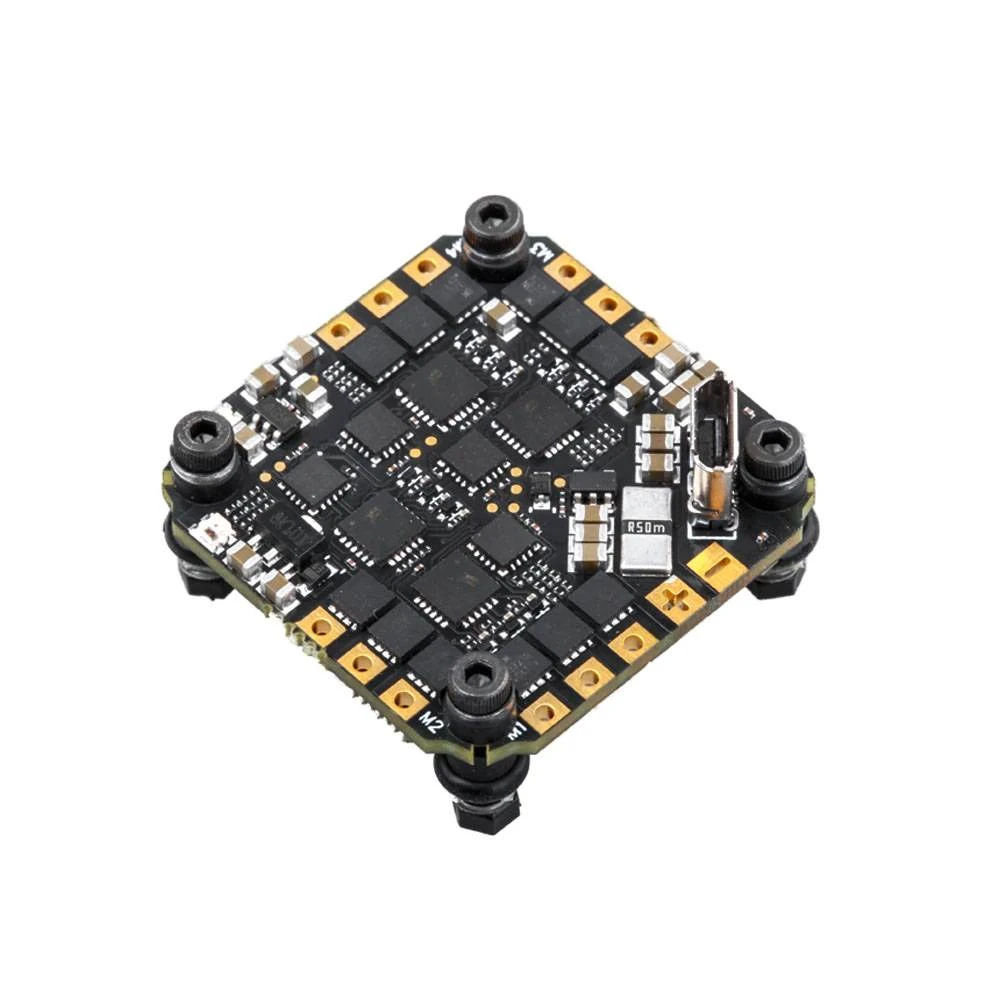

• 1x GN405 20A AIO
• 1x HM850mw VTX
• 1x XT30 Pigtail
• 1x Mounting Hardware
