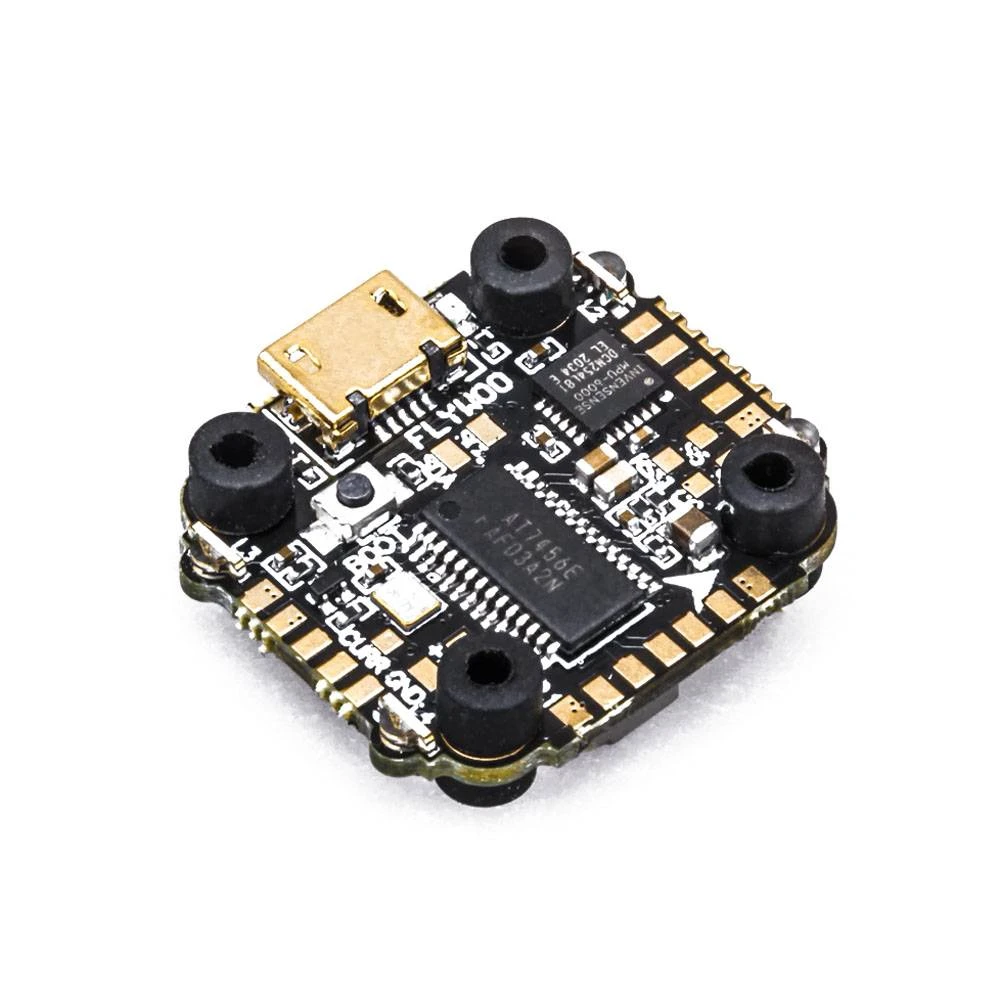

Flywoo GOKU F411 V2.1 16x16 Flight Controller

Flywoo GOKU F411 V2.1 16x16 Flight Controller - Image 2

Flywoo GOKU F411 V2.1 16x16 Flight Controller -DJI Shop flywoo goku f411 16x16 flight controller v2.1 3

Flywoo GOKU F411 V2.1 16×16 Flight Controller

Original price was: $44.99.Current price is: $31.49.

SKU: Z2V0Z 15002 Categories: Micro Flight Controllers, Micro Nano Quadcopters

Nature-friendly materials, for a better planet.
SSL encryption, absolutely safe shopping
Expertly Sourced, Quality Guaranteed
Shop with Peace of Mind

The Flywoo GOKU F411 Flight Controller (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.

Specifications

MCU: STM32F411
IMU: MPU6000 (SPI)
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
2 hardware UARTS (UART1,2)
2 Software serial port
1 I2C port for compass/baro
Onboard LED：WS2812*8(FC*4/ESC*4)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onboard 8Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 23.5×23.5mm
Mounting Holes: Standard 16mm square to the center of holes
Weight: 6.5g

Diagram

Flywoo GOKU F411 V2.1 16x16 Flight Controller -DJI Shop

Includes

1 x Flywoo GOKU F411 16×16 Flight Controller V2.1

SKU	15002
UPC (GTIN)	789862856894
Manufacturer	Flywoo
Mounting Pattern	16x16mm (Nano)
Item Returns	This item can be returned
