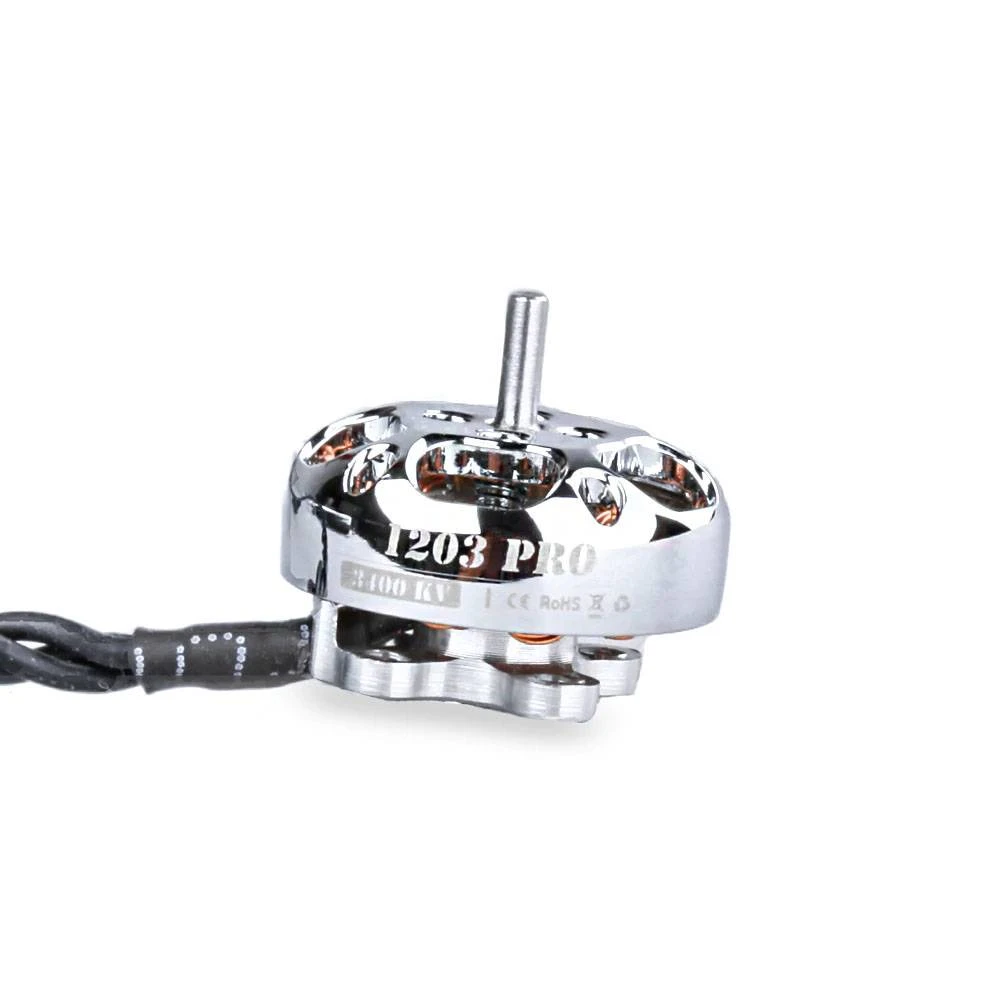

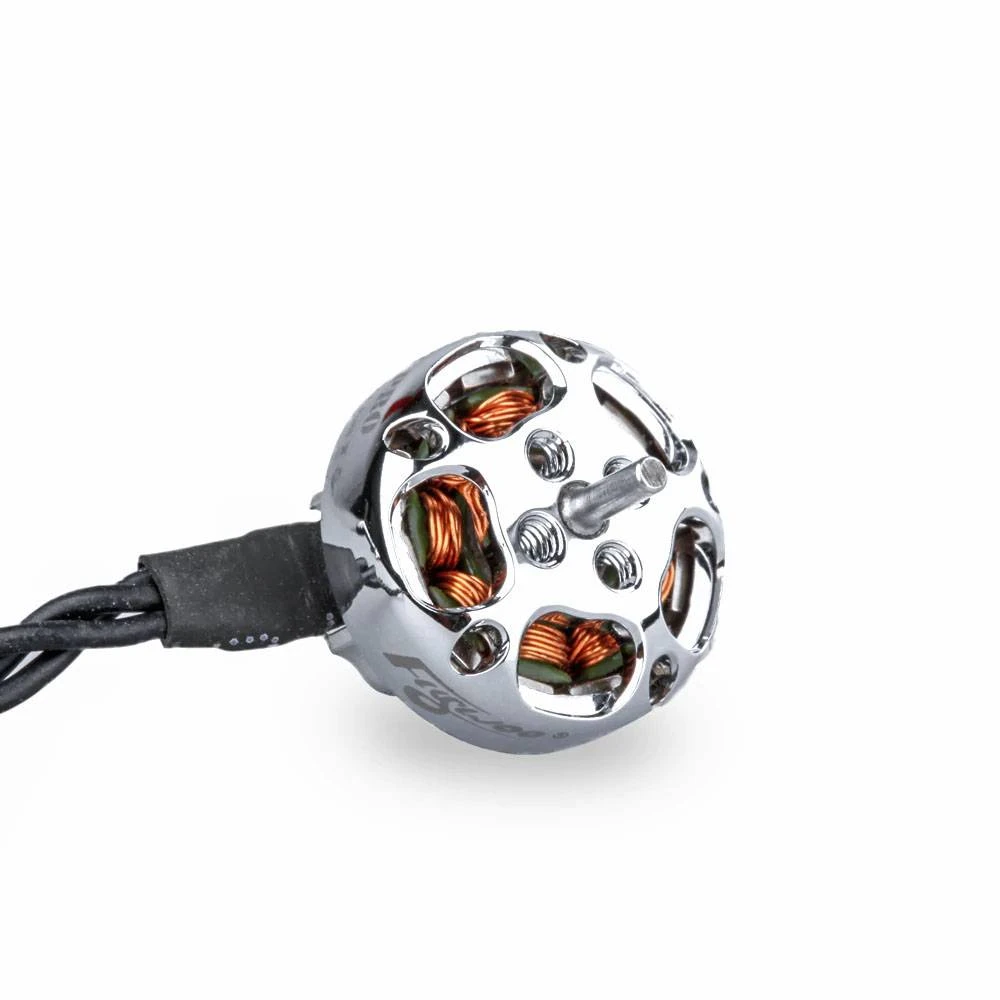

Flywoo Nin V2 1203 Pro Motor – 3400KV/ 4850KV/ 5500KV/ 11500KV

The Flywoo Nin V2 1203 PRO is a reliable high-performance micro drone motor from Flywoo. Utilizing a high-grade unibell design while using the best electroplating processes results in both an aggressive yet clean appearance at the same time. The sturdy structure and high-quality materials make it perform past expectations.

Best suited for cinewhoops, micro rippers, or any 2″-3″ freestyle and racing builds

Features

• Power efficiency becomes higher, experience more flight time
• The high-grade unibell design, and the best electroplating process
• Standard mounting pattern at the bottom, adapt to all frames on the market
• Adopt a curved magnet structure to achieve more smooth and silent

Specifications

• KV: 3400, 5500, 11500 (optional)
• Configuration: 9N12P
• Stator Diameter: 12mm
• Stator Length : 3mm
• Shaft Diameter: 1.5mm
• Motor Dimension(Dia.*Len) : Φ16.2*9.9mm

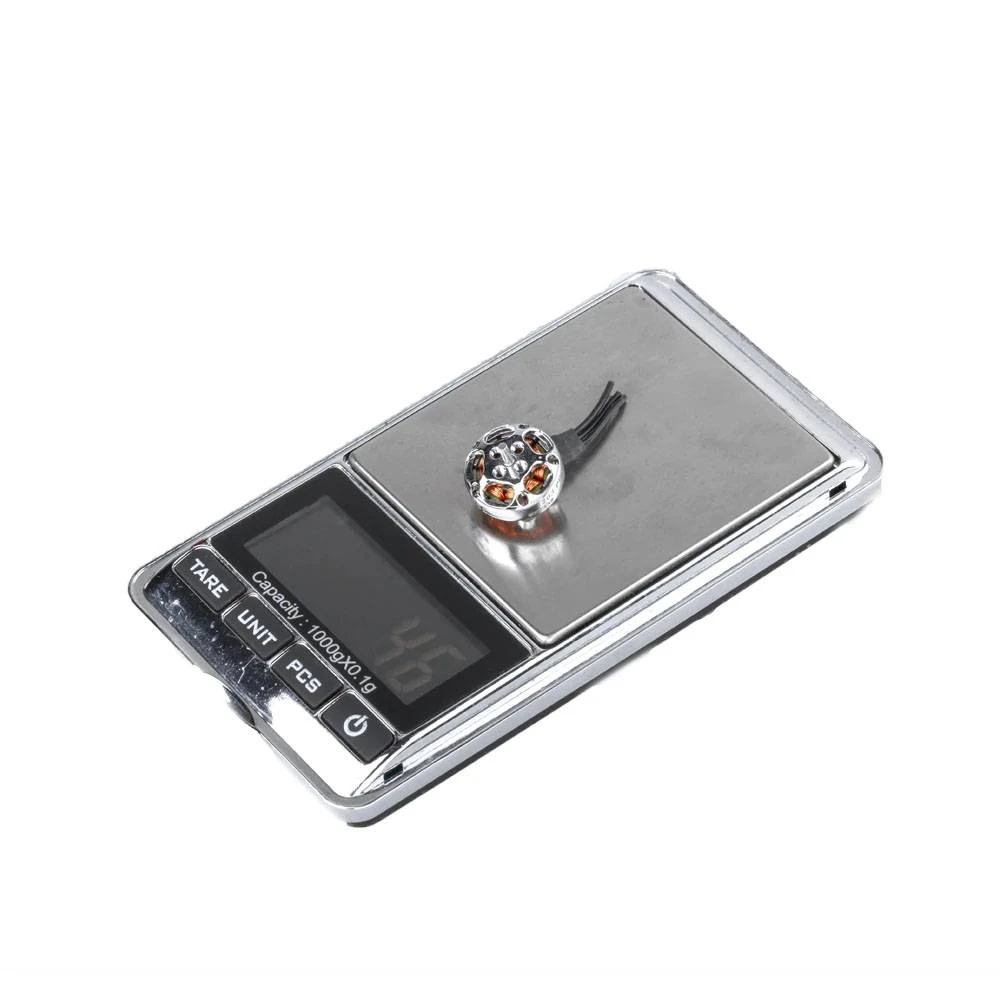

• Weight(g) : 4.7(3cm wire)
• Idle current(10) : @10V(A) : 1.2
• No.of Cells(Lipo): (1-2S 11500KV), (3-4S 3500KV, 5500KV)
• KV Options: 3500KV, 4850KV, 5500KV, or 11500KV

Includes

• 1x Flywoo Nin V2 1203 Pro Motor – 1.5mm Shaft
• 6x M2 Screw
