GEPRC CineBot30 3" Analog FPV Drone W/ Caddx Ratel 2 Camera – 4S/6S

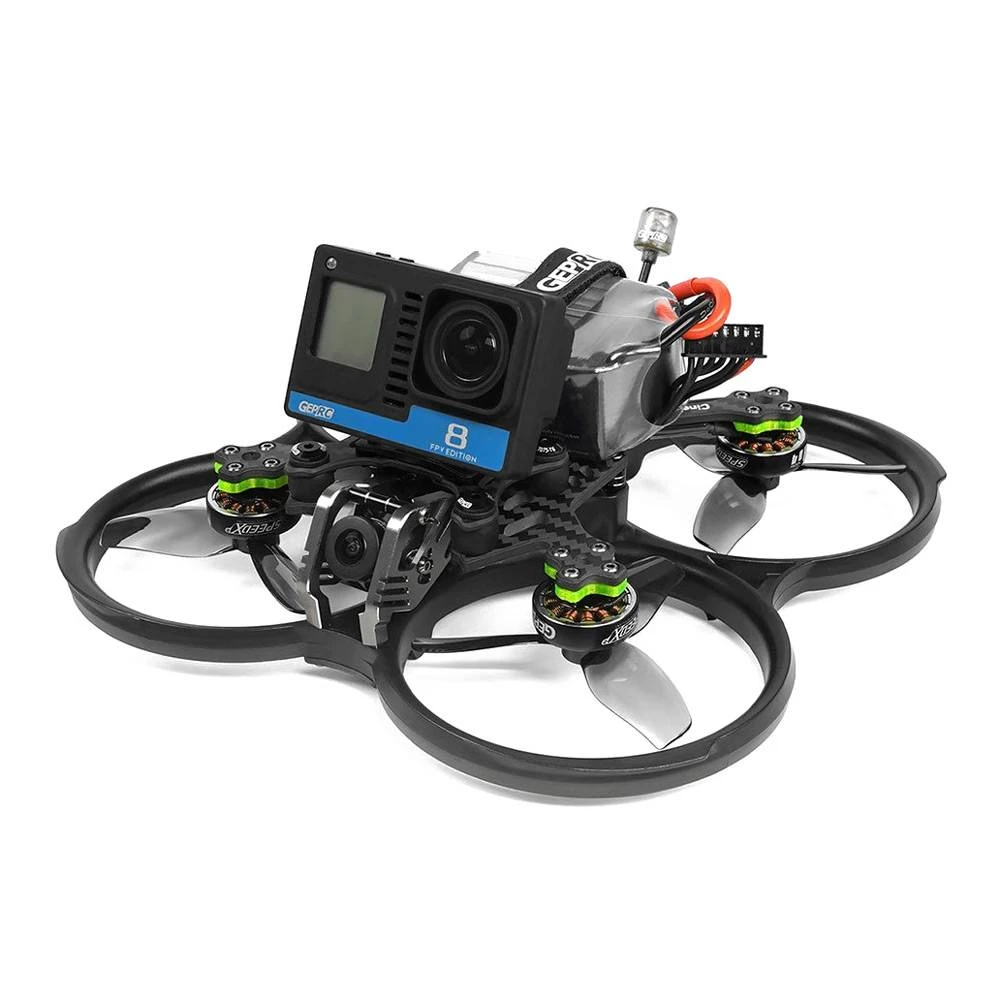

The GEPRC Cinebot30 is a new generation of Cinematic FPV drones developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera is a combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. This drone can be mounted with GEPRC Naked GoPro Hero 8, GoPro Black Bones, Insta 360 GO2 and other cameras for a stable and clear image!

Choose a Receiver Option:

• TBS Crossfire
• ELRS 2.4GHz
• PNP

Choose 4S or 6S Option:

• 2450KV（6S)
• 3450KV（4S)

Note: Action Camera is not included.

VIDEO: GEPRC Cinebot30 is the new standard in FPV Cinewhoops

• Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column
• Powerful 1804 motors with surging torque to deal with ultra-low altitude
• impact-resistant PC material for injection molding
• Design that combines engineering and aesthetics
• Tuned by GEPRC professionals
• GEP-F722-45A AIO V2
• Quick-disassembly
• Jello reduction

HIGH STRENGTH COMPONENTS

This drone adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheets mean the overall strength of the fuselage is upgraded again!

HIGH SPEED MOTORS

The Cinebot30 is equipped with a powerful 1804 motor with an optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With the HQ prop T76mm*3 propellers, it gets the lowest noise effect in its class.

MAKING IT SIMPLE

Using a GEP-F722-45A AIO V2 flight controller provides a higher performance redundancy, with easy handling of unexpected situations. The finely polished frame design uses only 6 screws to separate the aircraft top plate and protection frame, which provide a simple removal to replace accessories.

• Recommended Battery: LiPo 4S 1100mAh-1300mAh (4S Version) / LiPo 6S 850mAh-1100mAh(6S Version)
• Motor: SPEEDX2 1804-2450KV（6S Version）/ SPEEDX2 1804-3450KV（4S Version）
• Weight: 209.2g (excluding battery, the above are TBS Nano RX version)
• Antenna: Peano 5.8G 110mm RHCP MMCX Antenna
• Receiver: PNP, TBS Nano RX, ELRS 2.4G
• Model: Cinebot30 Analog Quadcopter
• Charger connector: XT60H-M
• Propeller: HQ prop T76mm
• FC: GEP-F722-45A AIO V2
• MCU: STM32F722RET6
• Camera: Caddx ratel 2
• Bottom plate: 1.5mm
• VTX: GEPRC RAD 1W
• Isolation Plate: 2mm

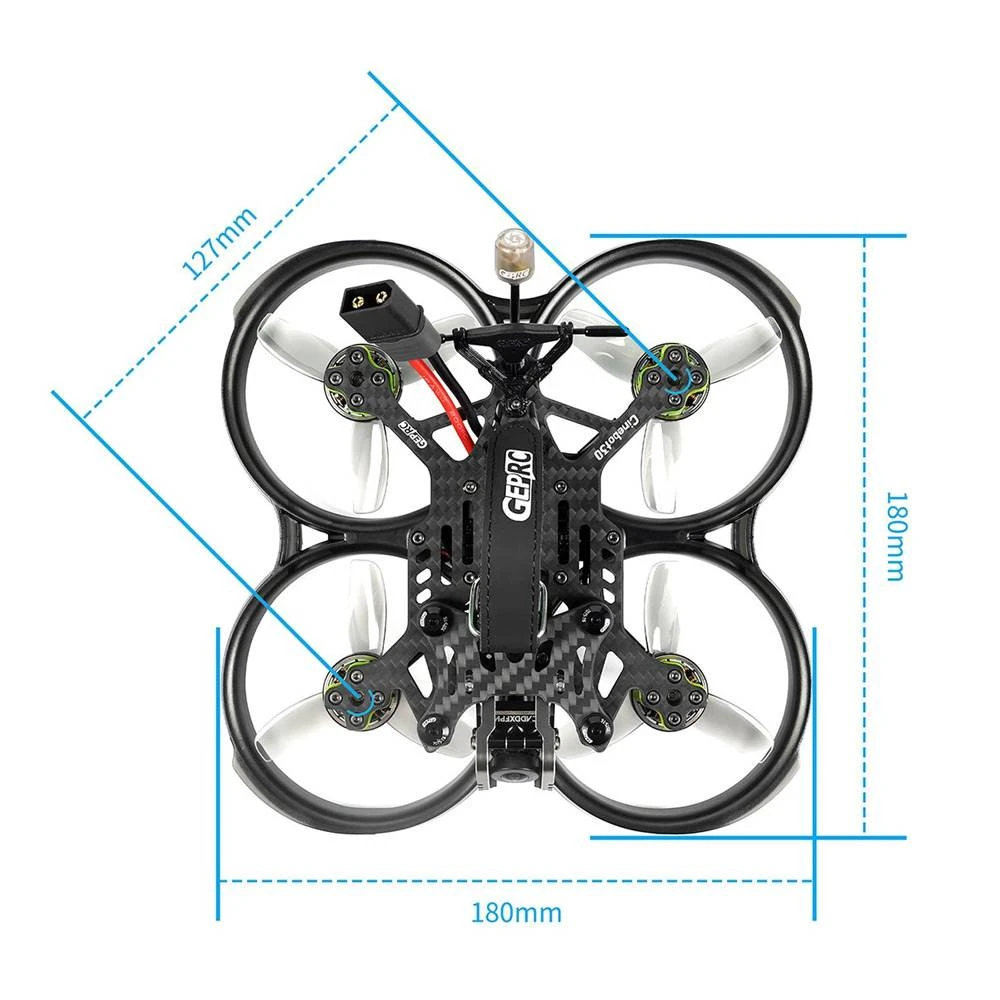

• Wheelbase: 127mm
• IMU: ICM-42688-P
• Frame: GEP-CT30
• Main plate: 3mm
• Brand: GEPRC

IMPORTANT NOTES

• Insert important warnings or notes here. Example: “Do not overheat.” or “Always use the included charger for best performance.”

• 4S Battery: XILO 1300mAh 4S 100c Basher LiPo Battery XT60
• 6S Battery: XILO 850mAh 6s 100c Lipo Battery

•   (Insert links such as manuals, firmware, etc)

• 1x GEPRC CineBot30 3″ Analog FPV Drone w/ Caddx Ratel 2 Camera (Choose 4S or 6S and Receiver)
• 1x GoPro camera mount holder
• 1x Battery strap M15*200mm
• 1x Battery strap M15*220mm
• 2x HQProp T76MM（pair）
• 2x Battery Silicone Pads
• 1x Set of screwdrivers
• 1x Antenna fixed tube
• 1x Set of screws
