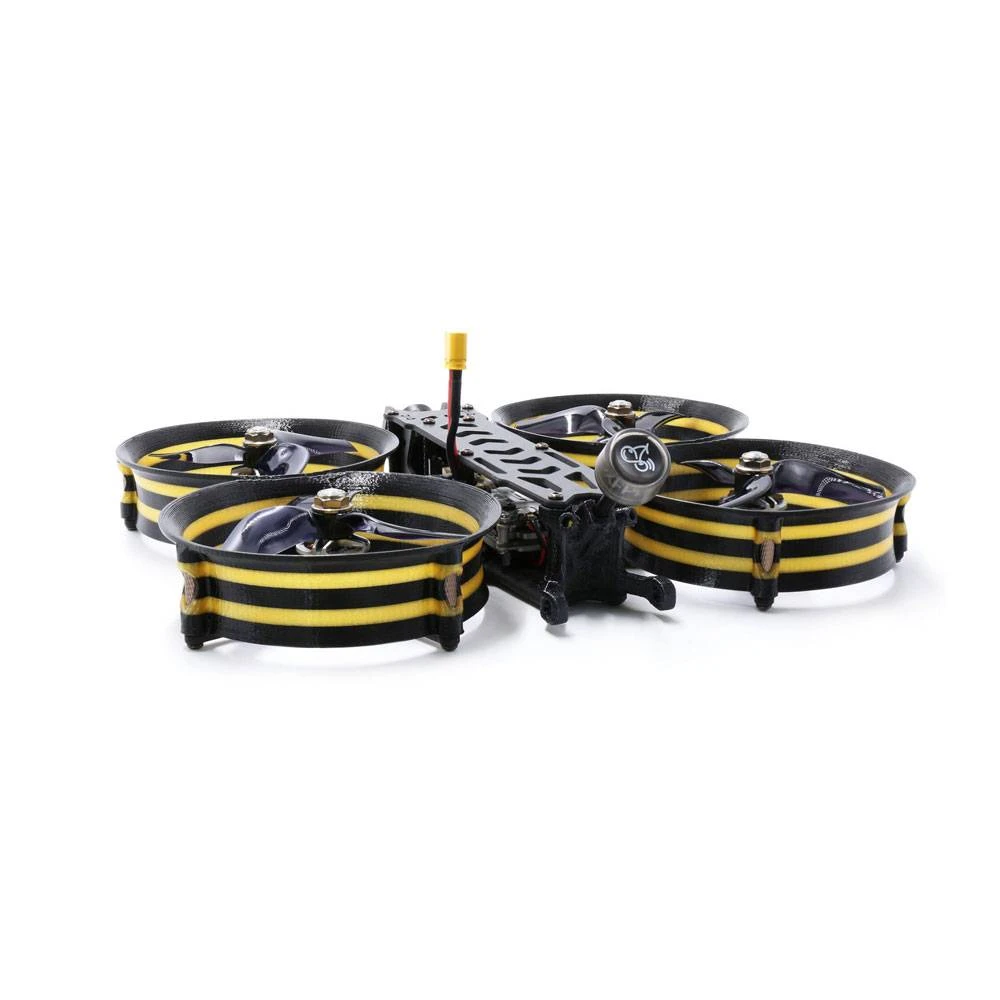

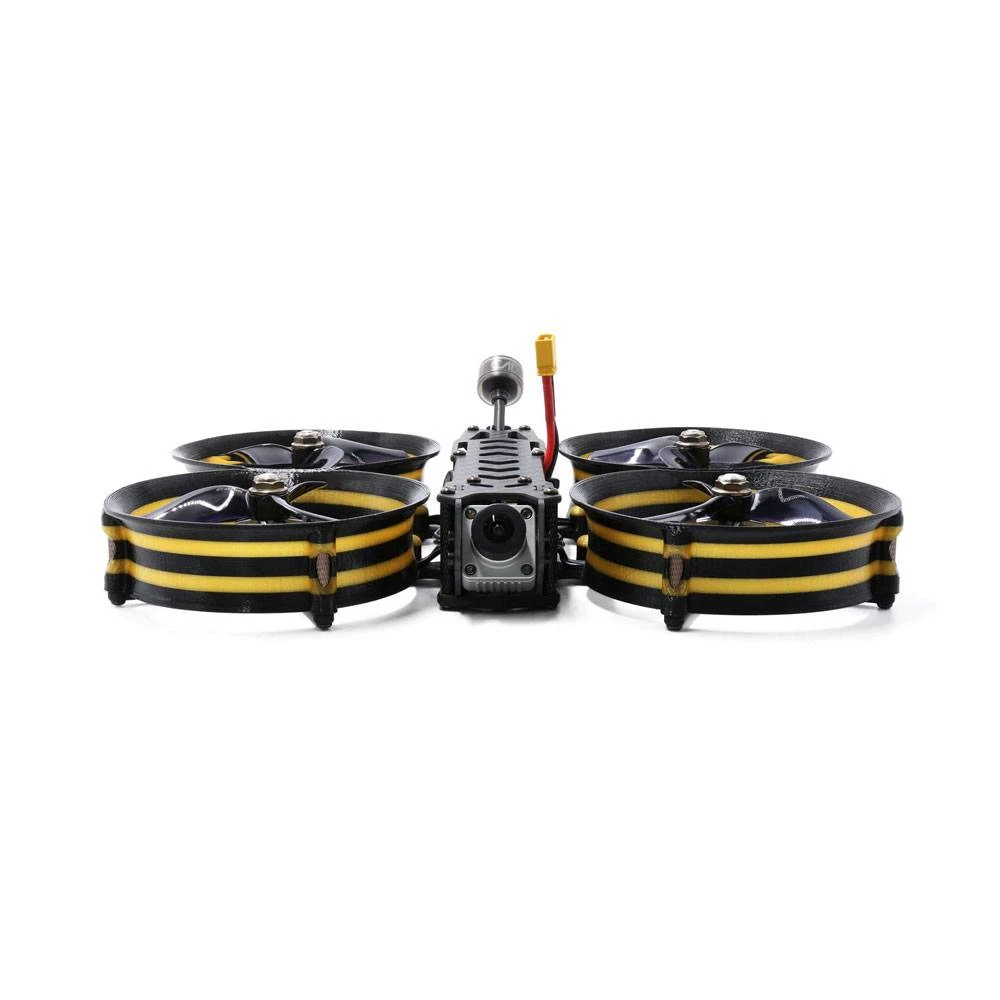

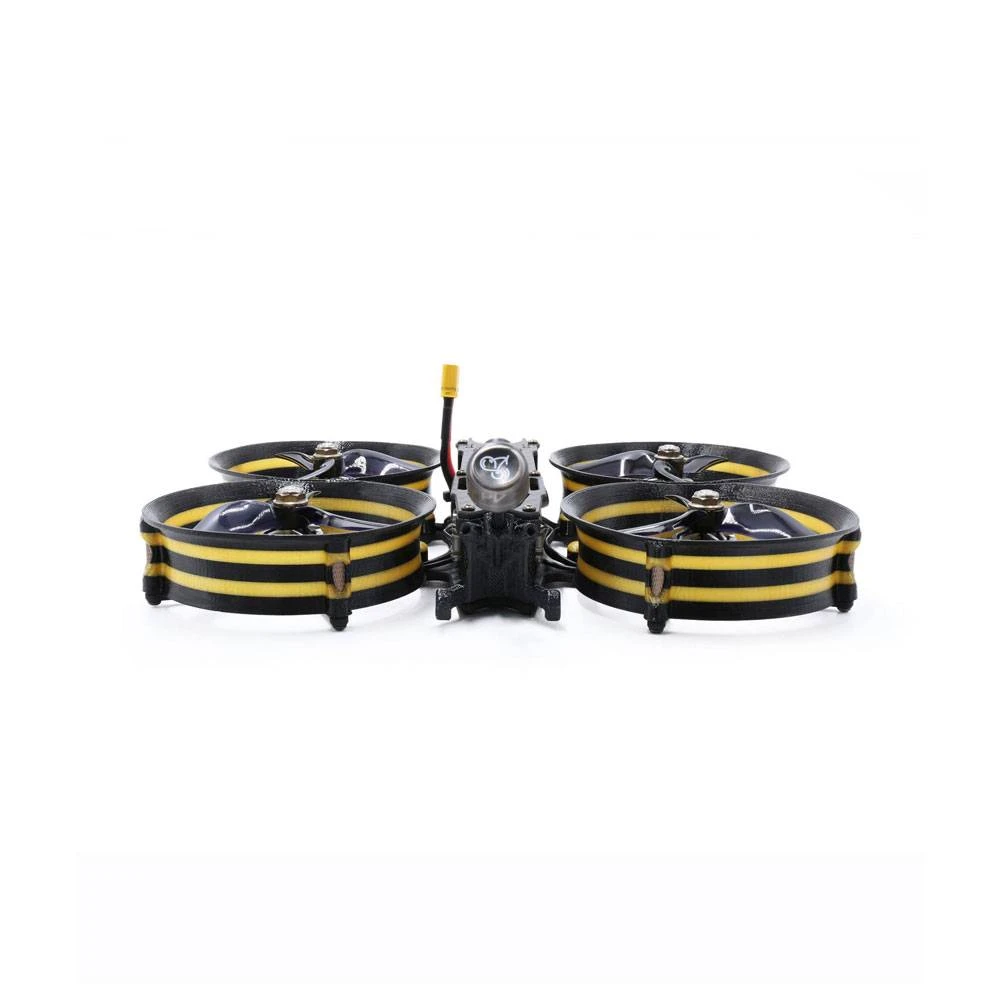

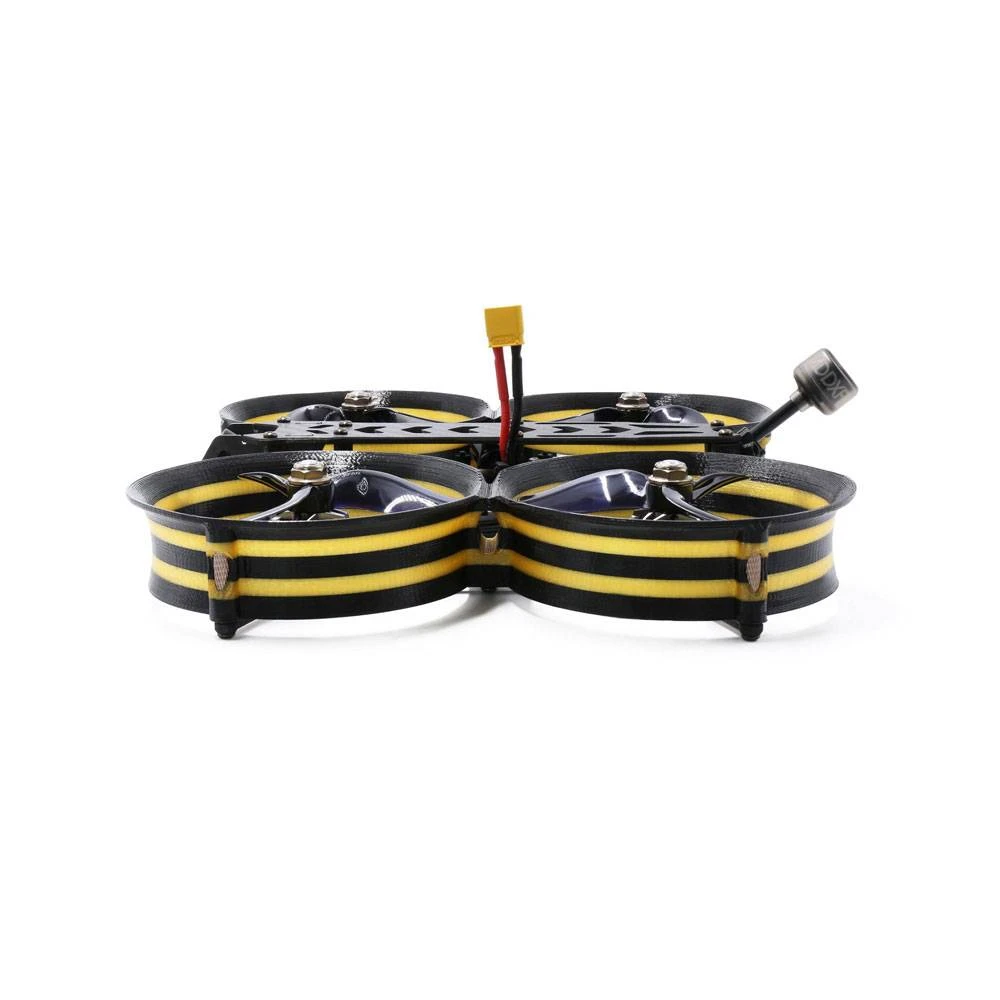

GEPRC CineGO CineWhoop W/ Caddx Vista HD System

CineGO HD is the latest CineWhoop model by GEPRC. It is equipped with the latest Caddx Vista high-definition image transmission. The CineGO is one of the lightest CineWhopps in the market (weighs 247g); its ultra-light design is 30% lighter than the traditional GoPro 7/8 aircraft. So far, it is the lightest Cine model. CineGO HD is mainly used for CineWhoop flight. Its ultra-light design is 30% lighter than traditional GoPro 7/8 aircraft. Features GR1507 6S 2800KV / 4s 3600kv Motors, STABLE V2 F4 Flight Controller, and STABLE V2 F4 ESC BL32 2-6S 4-in-1 for a smooth flight!

Note: GoPro 7/8 and Battery NOT included. ESC comes with an XT-30 Connector.

Features

• No Propellers in view.
• With Caddx Vista Digital HD video transmission system, Goggle can record 720P video
• Equipped with a 3-inch tpu guard frame, Ensure safety and reliability
• Full 3K Carbon Fiber
• Flight Control System: STABLE F405 SYSTEM
• Two types of power. 6S version uses a GR1507 2800KV motor. 4S version uses GR1507 3600Kv motor
• Full Soft Mounted FC System: Provides a clean operating environment for the gyro.
• Exquisite Assembly Process: Eliminate any potential installation problems.

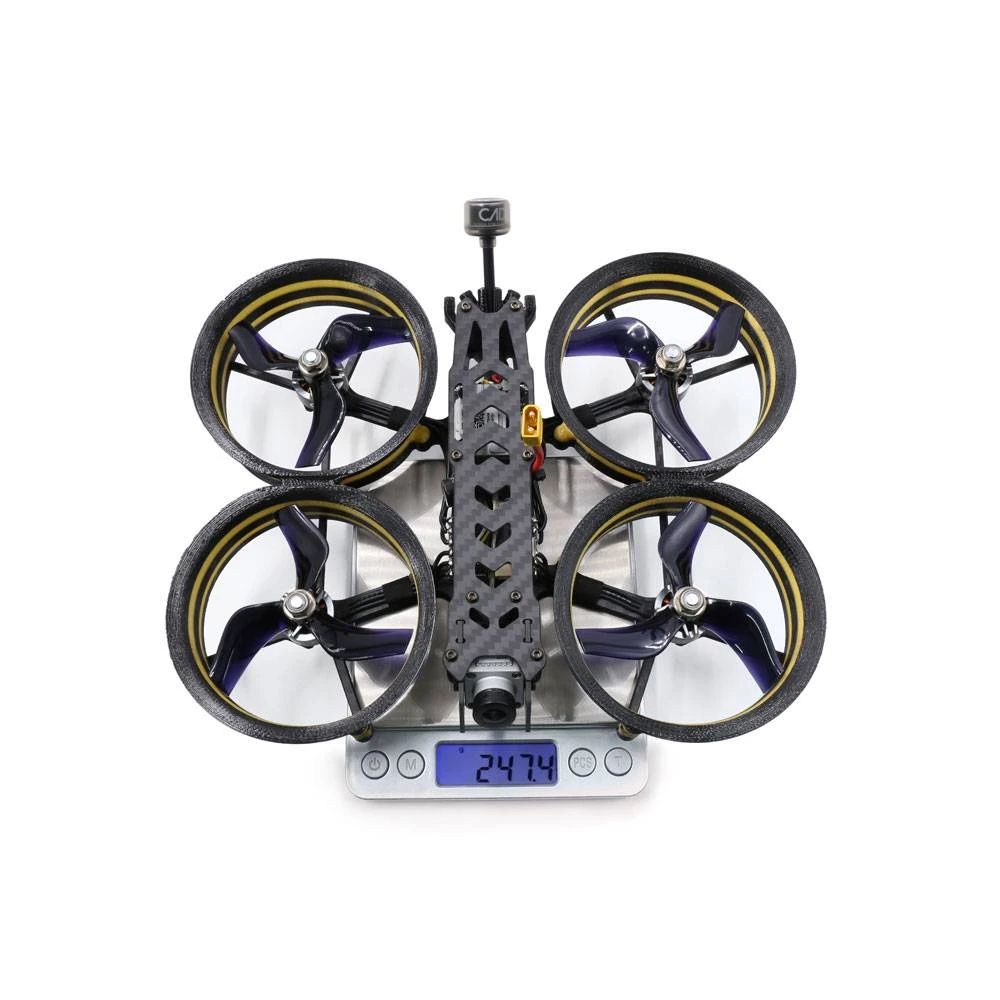

• Weight:247g(without battery and GoPro Mounts TPU)

Specifications

Frame

• Full 3K Carbon Fiber
• Top plate: 2mm
• Bottom plate: 3mm
• Side plate: 1.5mm
• Wheelbase: 155mm

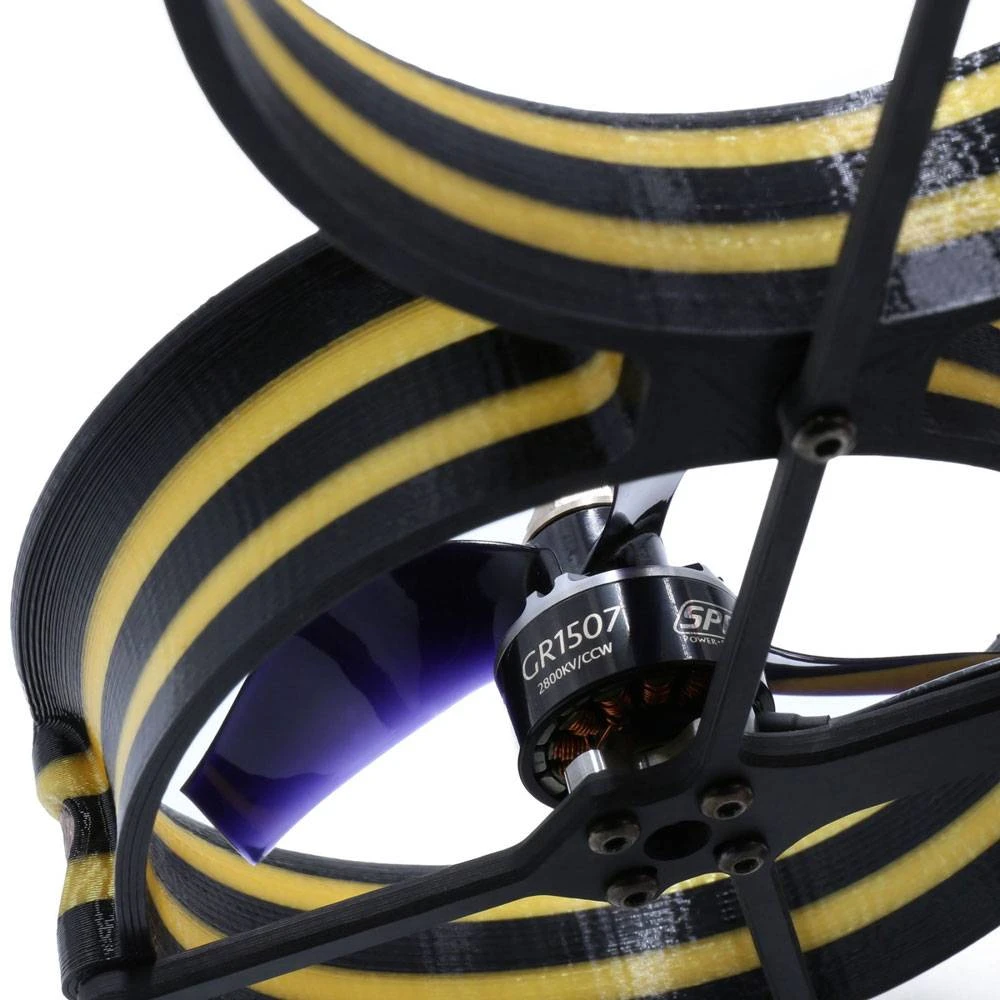

• Motors: GR1507 2800Kv/3600Kv
• Recommended Battery：4-6S 850-1250mAh XT-30 (Not included)
• Recommended Camera：GoPro Hero 7/8 (Not included)

Caddx Vista

• Size: 30.45 x 29 x 13mm
• Weight: 19g
• Antenna Connector: U.FL
• 20×20 stack
• 200mw to 1200mw max output power
• Range 4km max
• 2S to 6S
• High-quality mode 30-40 ms
• Low latency mode 21-28ms
• Compatible with DJI HD camera
• Compatible with DJI HD goggles

STABLE V2 F4 Flight Controller

• Model:STABLE F4 35A
• MCU: F405
• IMU: MPU6000 gyro/accelerometer (SPI)
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:NO
• BEC Output: 5V@3A
• Integrated LC Filter
• Firmware target: OmnibusF4SD
• Size: 26x26mm board, 20mm mounting holes (M2)

STABLE V2 F4 ESC BL32 2-6S 4-in-1

• MCU:STM32F051
• Input:2-6s lipo
• Constant:35Amps
• Burst:45Amps
• Dimensions:31*31mm(including the power pads)
• Mounting Holes:20*20mm, M2
• Supports Dshot1200, Proshot, Oneshot, Multishot
• Current meter: Yes
• Target: GEPRC-BL32-4IN1

Includes

• 1 x CineGO HD CineWhoop Quadcopter
• 4 x 3-inch Props(pairs)
