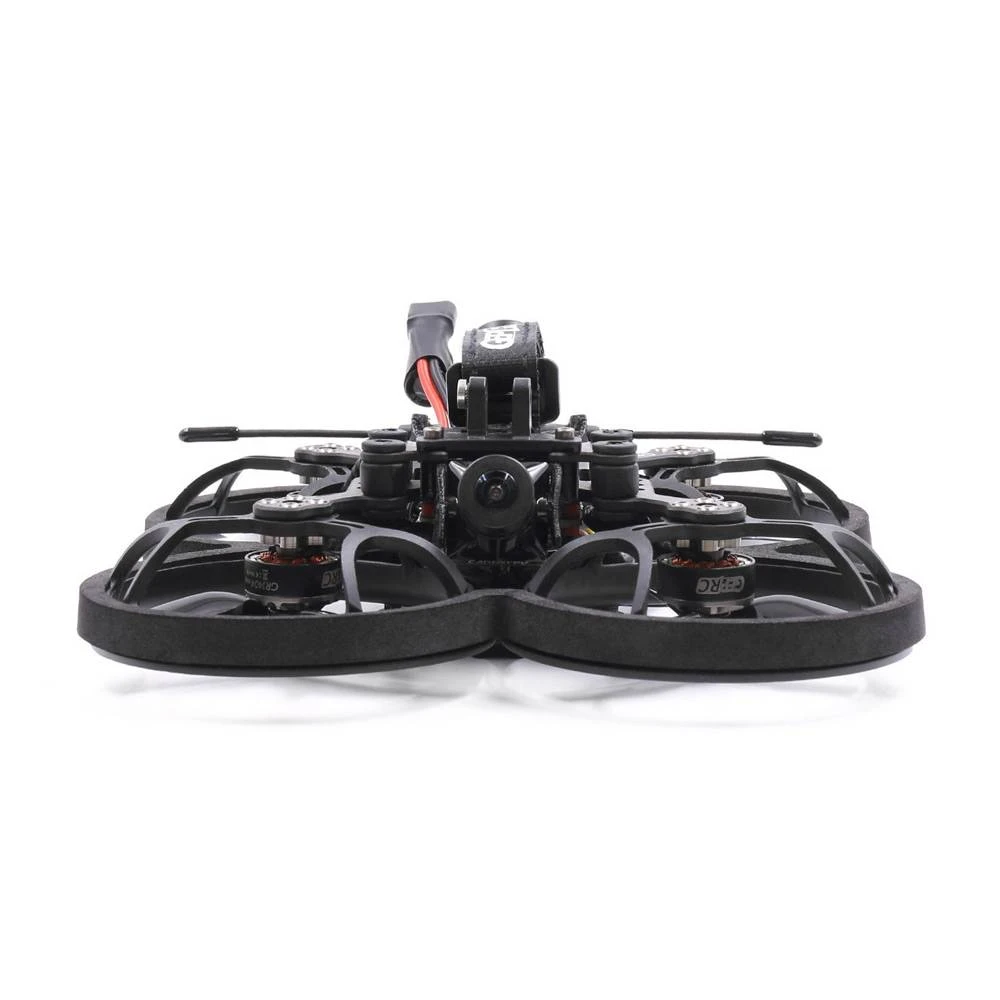

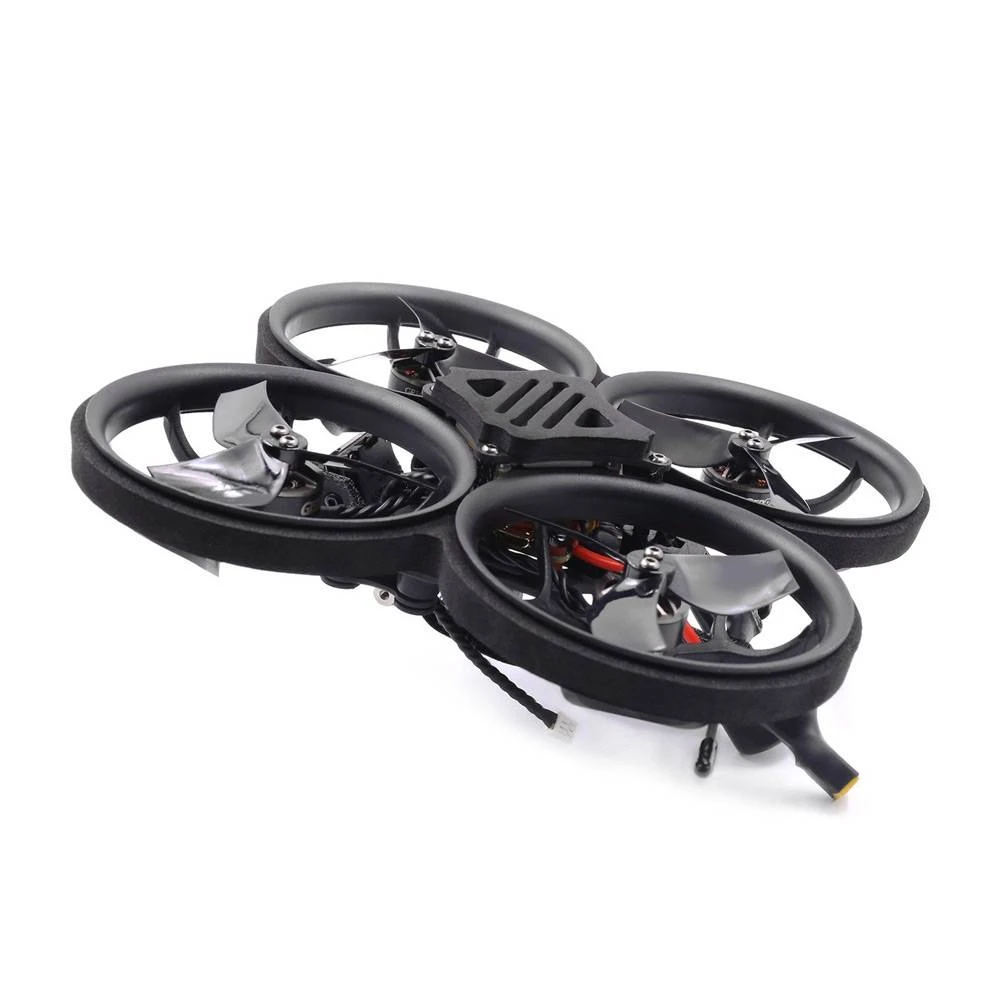

GEPRC CineLog 25 2.5" 4S HD CineWhoop Drone W/ Caddx Polar Micro

The GEPRC Team is excited to release the GEPRC CineLog25 HD Pro CineWhoop featuring the Caddx Polar Vista! All innovations are disruptive for GEPRC CineLog25.

The most noteworthy feature of CineLog25 is that this lightweight quadcopter can shoot video with GoPro Lite. It adopts the most popular backward push design on the FPV field at present. It can effectively use the thrust weight ratio of the propeller to obtain higher flight efficiency. In the overall layout of the drone, GEPRC put Vista HD in the center of the quadcopter, so that the center of gravity of the quadcopter is in the middle. The propeller inlet is smoother and the noise is lower. The redesigned shock absorption structure of the camera mount and GoPro Lite eliminated the jelly of the camera and FPV camera, with the use of 3, 4, and 5 damping rings (according to the flight state) to obtain the best stability in vibration and noise.

The flight time of CineLog25 is around 5.5 minutes (depending on flying habits). The stable electronic equipment and advanced frame materials make this quadcopter stable for FPV freestyle tricks. The customized EVA protective foam cushioning around the frame is more elastic and can effectively protect the fuselage during crashes!

The F411-20A-F4 AIO and GEPRC GR1404 4500kv(Upgraded Version) motors use the in-flight system and power system. Compatible with 450mah ~ 750mah power batteries.

The CineLog25 is assembled and debugged by GEPRC Team. It has a smooth flight experience and excellent performance with every attribute you could want!

Note: Action Camera not included. This is the HD version with Caddx Polar Vista.

VIDEO: I LOVE IT! – GEPRC Cinelog 25 HD Pro Cinewhoop – FIRST LOOK, REVIEW, & FLIGHTS

VIDEO: This TINY Cinematic FPV Drone is AMAZING! (GepRC Cinelog25 Review)

Features

New camera damping system
The New camera damping system basically eliminates the video’s jelly and the FPV camera’s vibration in terms of design. The damping construction can be adjusted the harder or softer to suit the Flight State. There are Three, Four, and Five damping rings that can be used to provide sufficient stability in vibration and noise.

Brand-new exclusive pusher frame
The CineLog Whoop Quadcopter adopts a brand-new stunning pusher frame design. The ultra-light carbon plate and new material increase strength by 20%, and increase efficiency by 15%.

Low noise optimization
The Cinelog Whoop Quadcopter increases the air inlet volume with EVA foam cushioning, and reduces the airflow resistance in order to create extremely low flight noise and greater reduction of noise from external vibrations.

Long-range flight
WIth high-efficiency power matching, the GR1404 4500kv(Upgraded Version) power output scheme and Brilliant Tune have further Improved the flight time.

Low center of gravity design

The CADDX VISTA was placed at the bottom, which optimized the air inlet structure. A point of utmost importance is having a low center of gravity “pusher-style” inverted frame, which increased the efficiency by at least 15%.

Perfectly Compatible with most the mainstream cameras
Compatible with SMO 4K, GoPro6 lite and GoPro8 Lite, and more.

Adjustable lens angle
The flight angle of 0-40 degrees can be adjusted according to the flight requirements. The camera’s angle can be adjusted to meet a variety of shooting needs.

EVA foam cushioning
With an integrated EVA design, the overall shape looks more coordinated with better strength.

Optimized bottom design
The bottom part increases the strength of landing and perfectly protects all electronic equipment.

Camera power line output
With its own power cable output to the camera (GoPro6 & GoPro8), the CineLog has its own video recording wire. The camera can be turned off or on directly, via the remote controller.

Specifications

• Brand: GEPRC
• Frame: GEP-CL25
• Wheelbase: 109mm
• Flight Controller: GEP-20A-F4
• MCU: STM32F411
• IMU: MPU6000(SPI)
• OSD: BetaFlight OSD w/ AT7456E chip
• ESC: BLheli_S 20A
• VTX: Caddx Polar Vista
• Camera: Polar Micro
• Props: GEMFAN D63-3
• Motor: GR1404 4500kv(Upgraded Version)
• Antenna: GEPRC Momoda 5.8G Antenna Long Version LHCP UFL(85mm)
• CineLog25 HD PRO Weight: 145.5g（Without battery）
• Battery: Recommended 4S 450-750mAh or GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery

Includes

• 1 x CineLog Quadcopter
• 4 x D63-3 Props(Pairs)
• 1 x GOPRO Lite 3D TPU Seat
• 2 x EVA Pad
• 2 x Battery non-slip mat
• 2 x Battery strap
• 1 x Screwdriver
• Note: Action Camera not included. This is the HD version with Caddx Nebula Polar Vista.
