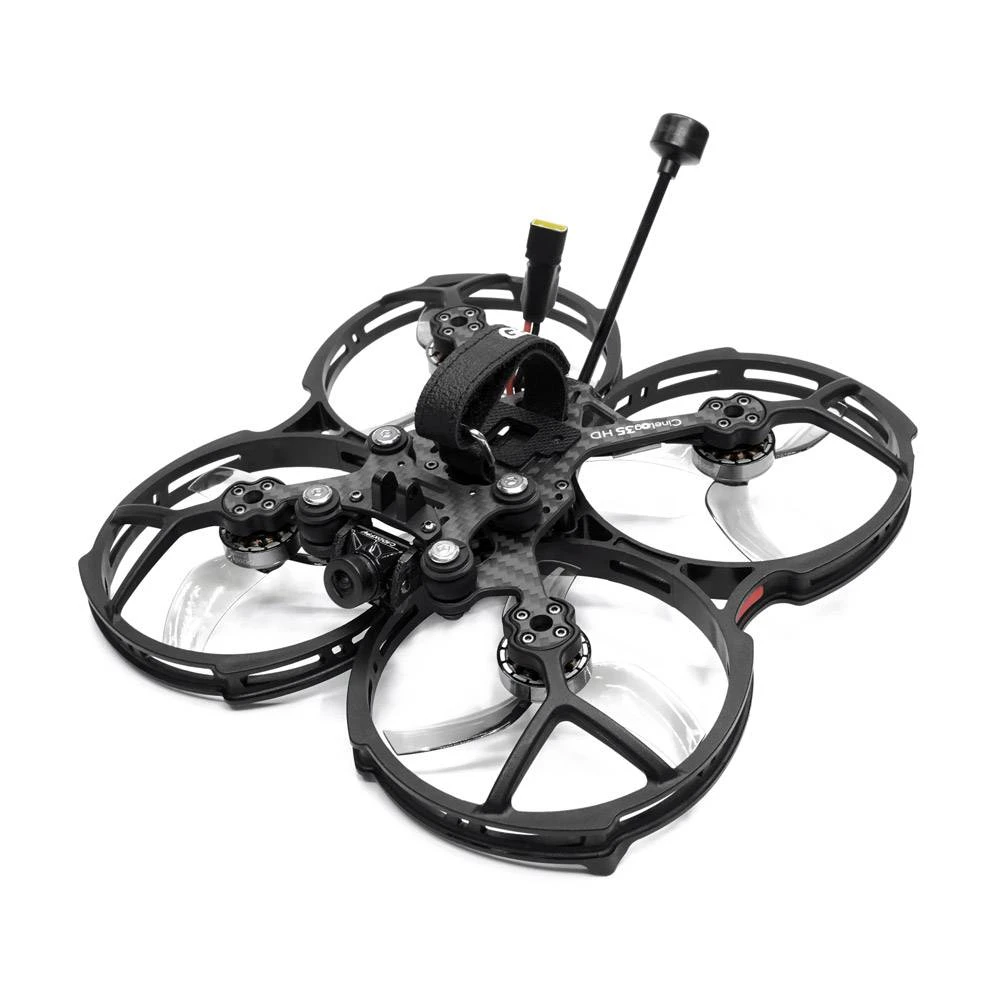

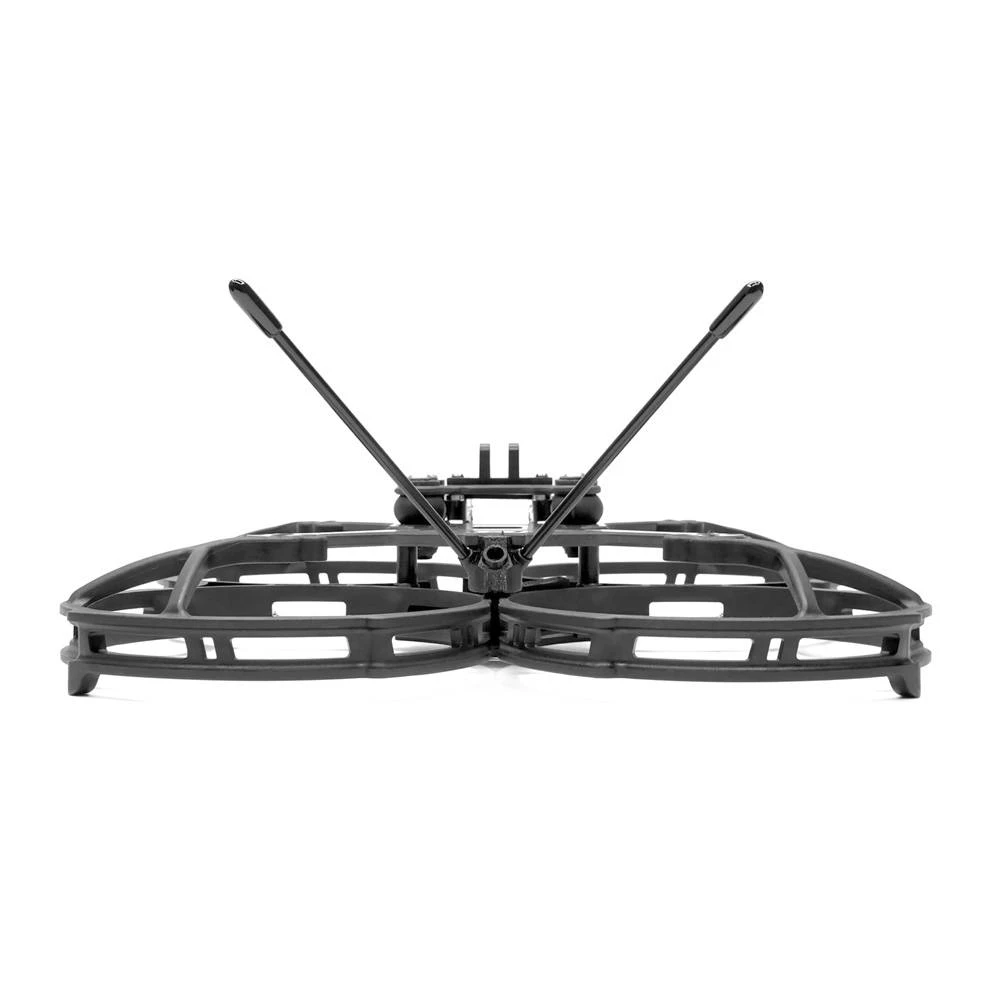

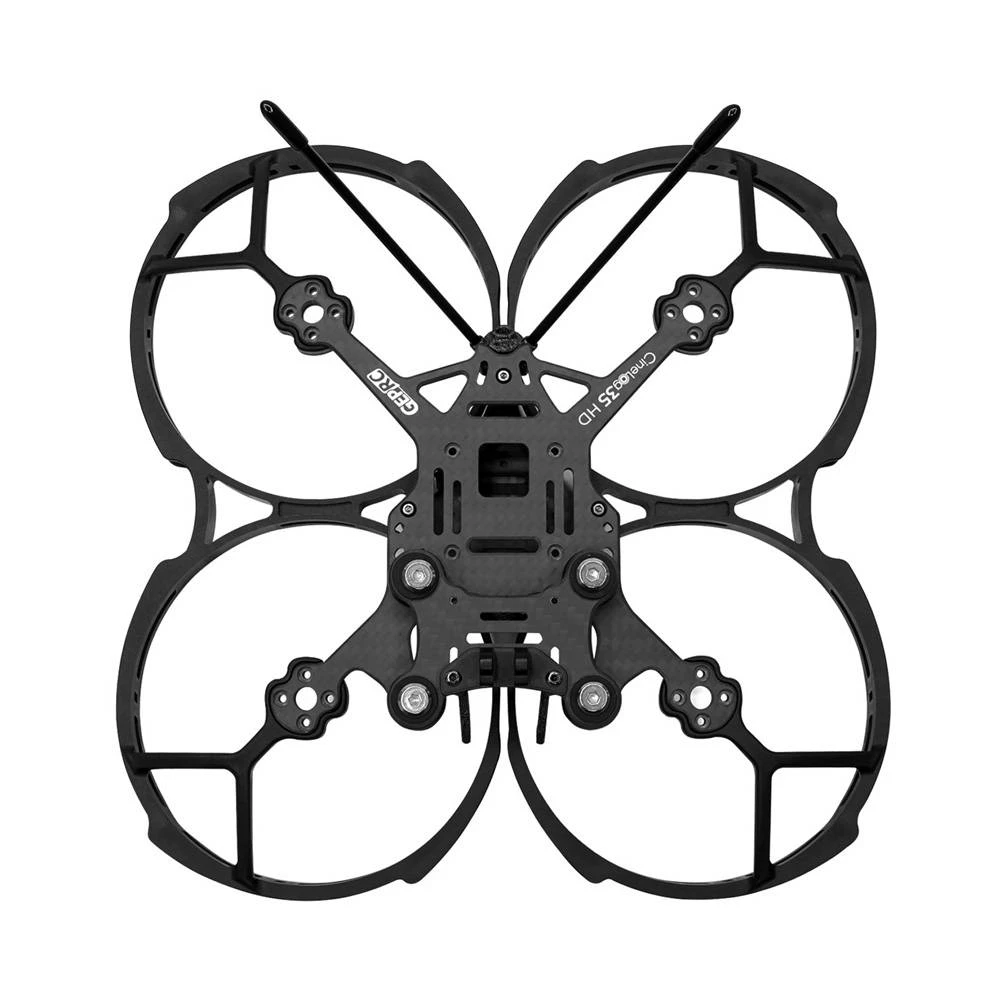

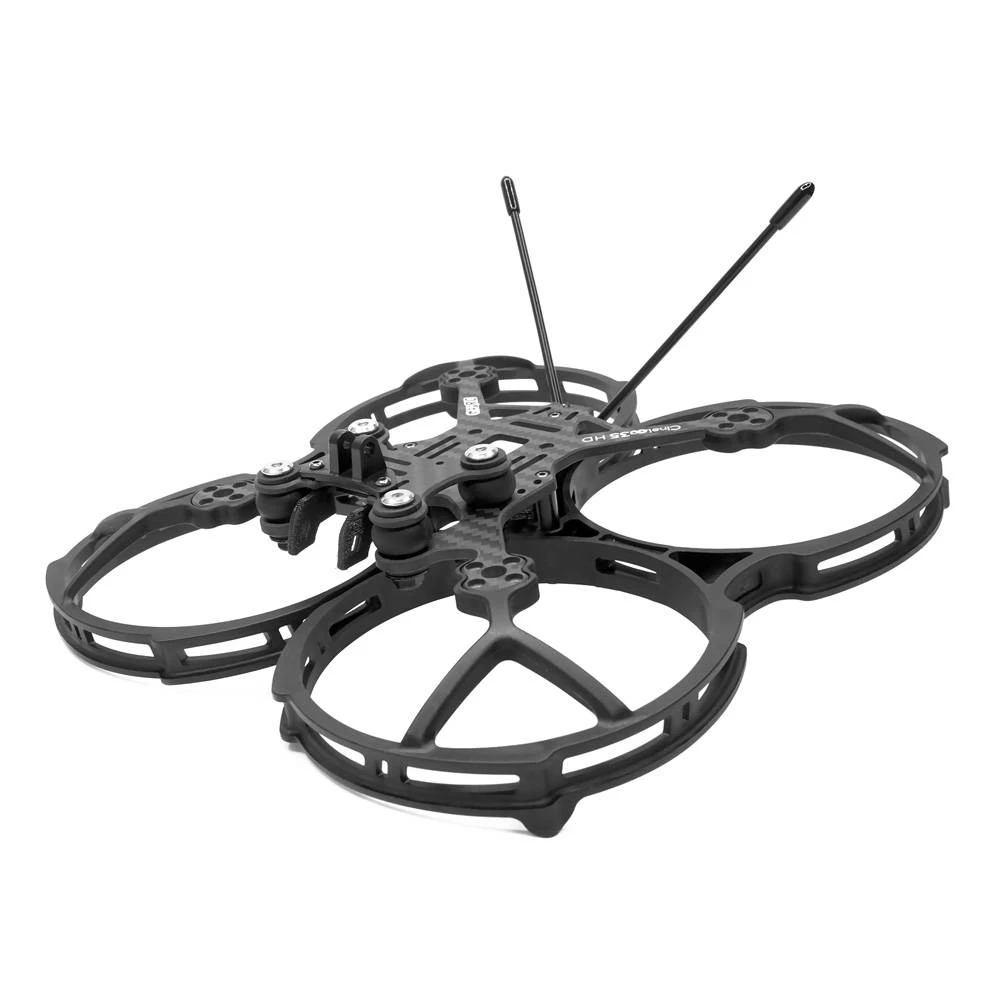

GEPRC Cinelog 35 3.5" GEP-CL35 CineWhoop – Frame Kit

The GEPRC Team is excited to release the GEPRC CineLog 35 CineWhoop frame!

The CineLog35 has improved upon the basis of the CineLog30. Featuring an integrated protection guard design, the overall structure is firmer and durable. Includes a 3D Print mount to install the GoPro 9 & GoPro 10 with a base that can carry Insta360 GO2 /  GEP Naked GoPro Hero 8 or Caddx Peanut camera mount.

Note: This is the frame kit only. All electronics and props are not included.

VIDEO: This Cinematic FPV Drone Can ALMOST Do It All! (Cinelog 35 Review)

Features

• Camera mount base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera mounts
• Developed by GEPRC specifically for mounting complete GoPro HD cameras
• Upgraded 3.5-inch integrated protection guard
• 3D Print mount for GoPro 9 & GoPro 10
• Durable high-strength structural design

ACTION CAMERA MOUNT CAPABILITY

Features a 3D Print mount to install the GoPro 9 & GoPro 10. Camera mount base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera

INTEGRATED PROTECTION GUARD

Strengthens fuselage and guarantees flight safety.

PUSHER FRAME

The CineLog Whoop Quadcopter adopts a brand-new stunning pusher frame design. The ultra-light carbon plate and new material increase strength by 20%, and increase efficiency by 15%.

Specifications

• Weight:130.7g (Include propeller guard, GoPro camera mount,3D printings)
• Dimension: 203mm x 203mm x 42mm (Include propeller guard)
• Suitable propeller size: 3.5-inch propeller
• Propeller guard internal diameter: 95mm
• Camera installation space: 14~19mm
• FC hole position: 26.5mm x 26.5mm
• Motor hole position: 12mm x 12mm
• VTX hole position: 20mm x 20mm
• Motor to Motor: 142mm
• Bottom plate: 2.0mm
• Model: GEP-CL35
• Arm Plate:3.5mm
• Top plate: 2.5mm

Recommended (Not Included)

• XT-60 Batteries: 850mAh-1500mAh (4S) or  850mAh-1100mAh (6S)

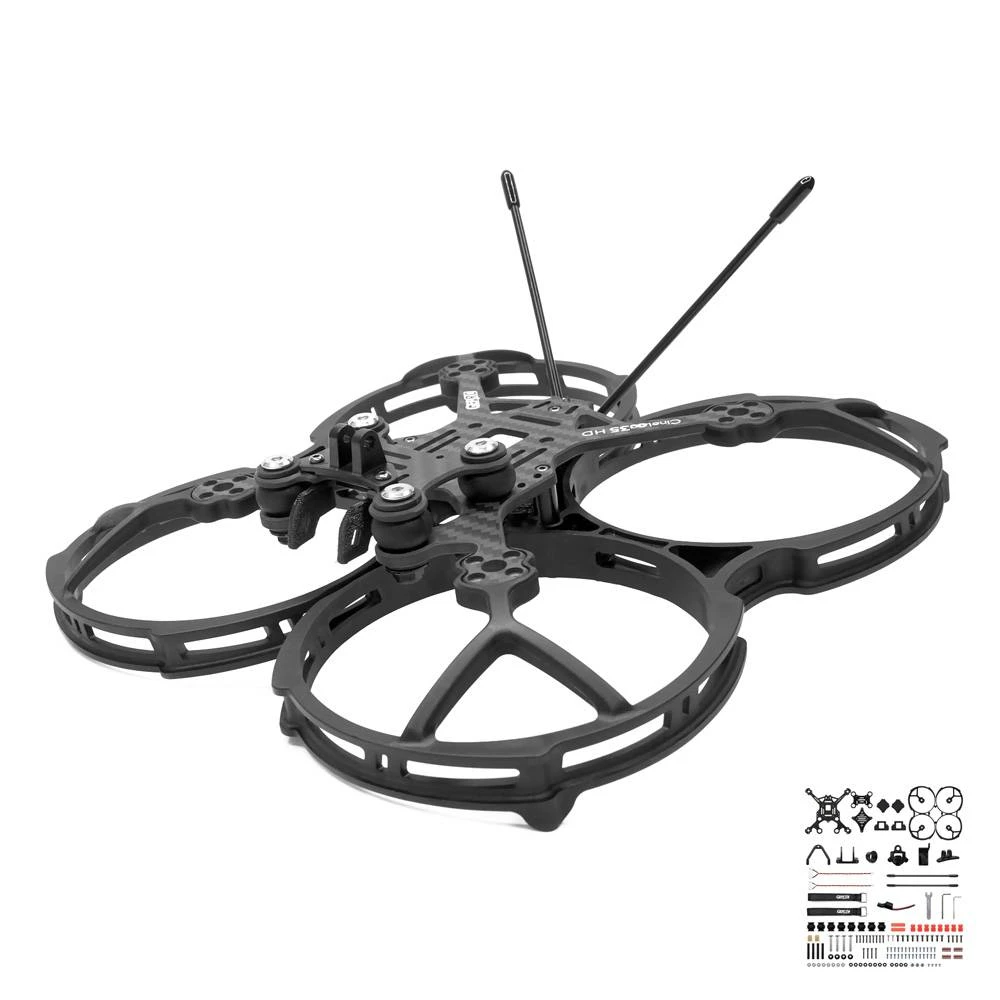

Includes

• 1x GEPRC CL35 Bottom Plate (2mm)
• 1x GEPRC CL35 Top Plate (2.5mm)
• 1x 3D Print mountings combination
• 1x Screwdriver combination
• 1x Power cable combination
• 1x Screw combination
• 1x Arm Plate 3.5mm
• 2x Propeller guards
