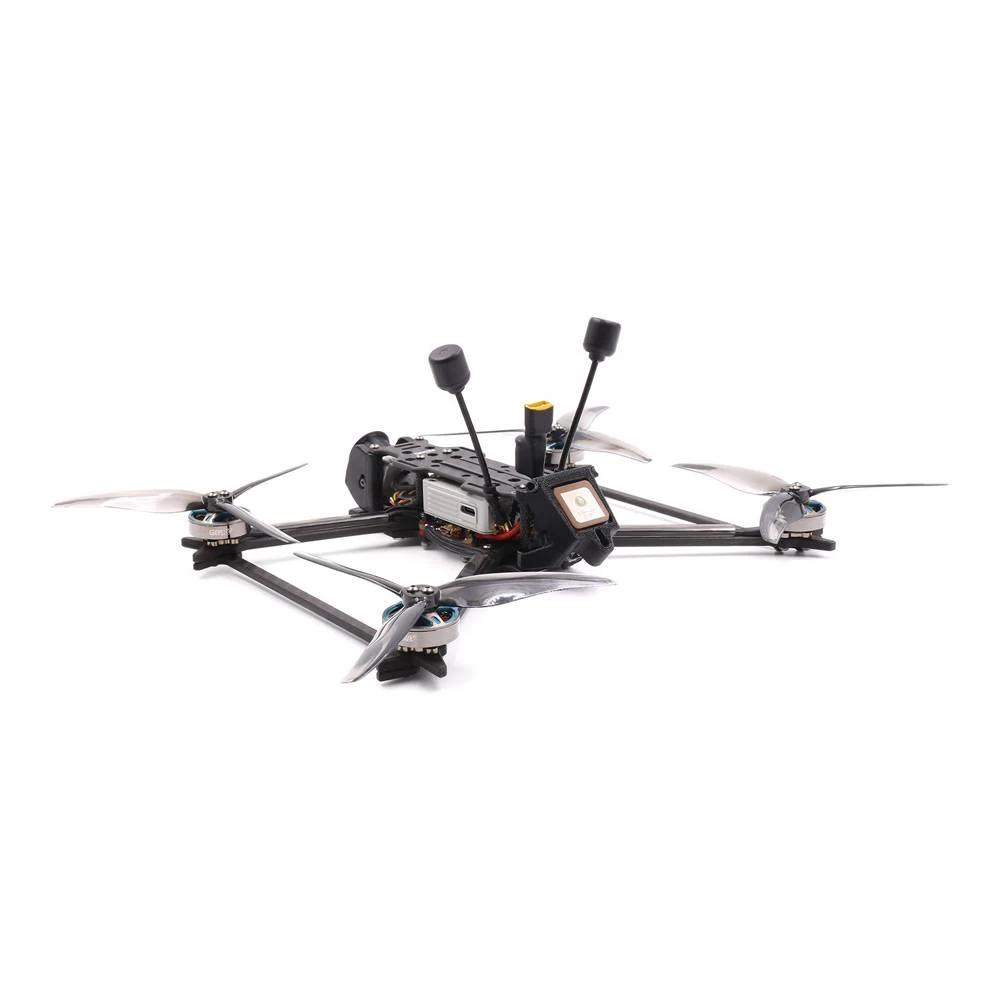

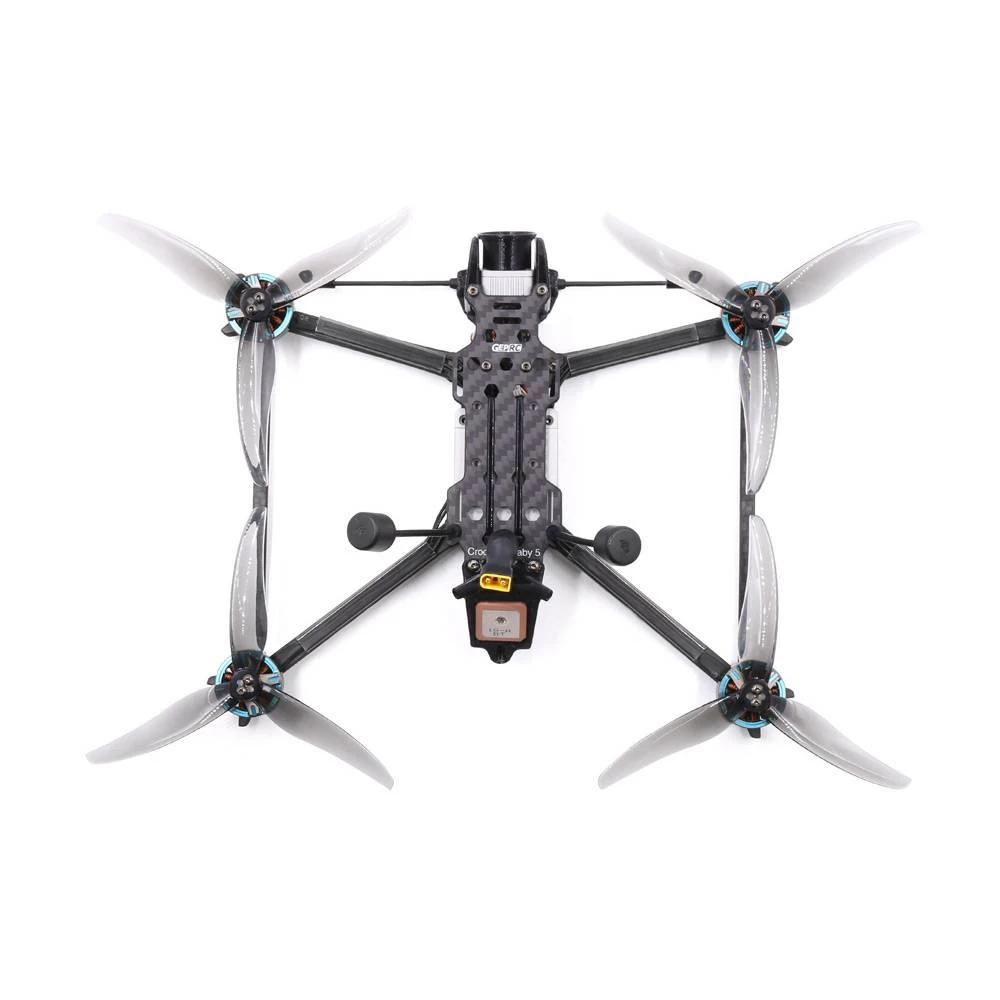

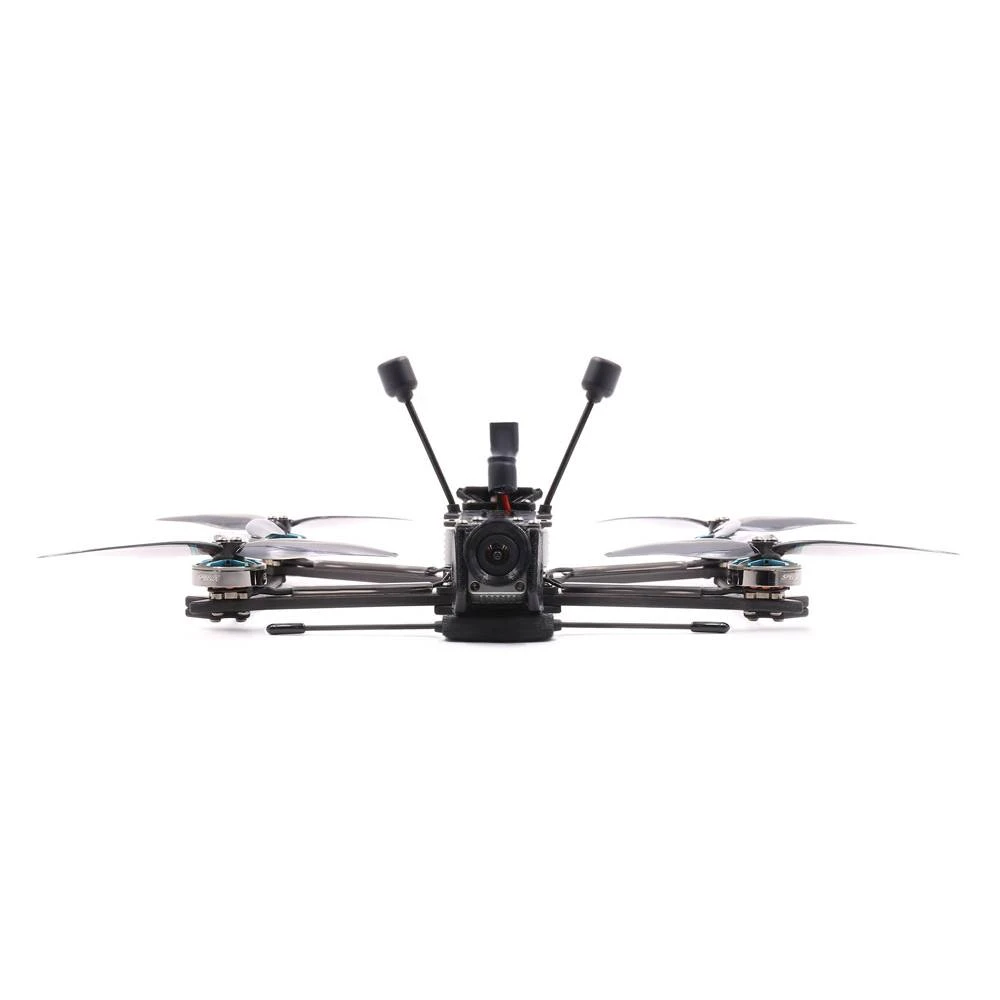

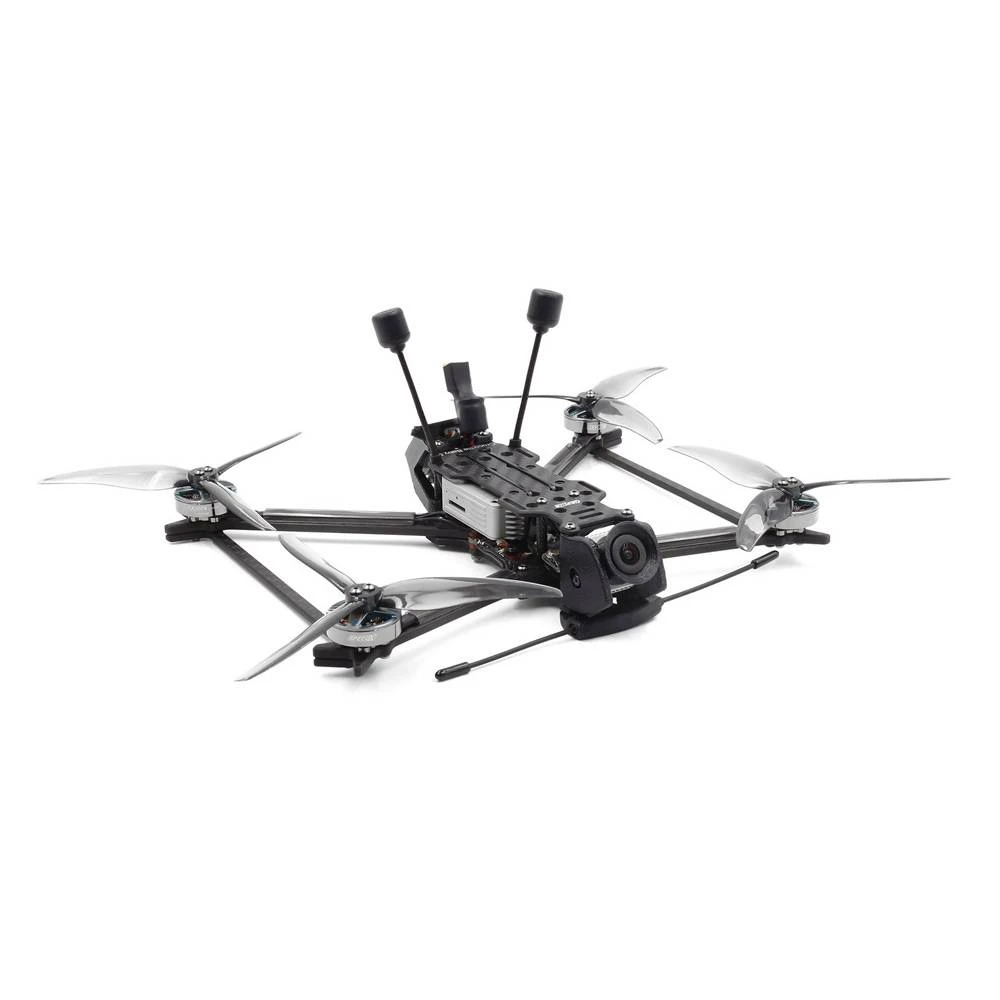

GEPRC Crocodile5 Baby LR HD 5" FPV BNF W/ DJI FPV Air Unit

The Crocodile5 Baby LR HD is GEPRC’s optimization of the crocodile baby 4inch. This is a brand new lightweight Long Range 5inch FPV that can cruise smoothly for long or freestyle flights. With a stable flight and the best sense of speed, the high-efficiency power system is the latest from GEPRC, featuring 2004 2550kV Motors, Gemfan 5130 propellers, F722-35A AIO FC, and DJI FPV Air Unit.

Crocodile5 Baby LR has been independently designed as a 3D Print mount for the GPS module. When experiencing signal loss or when the VTX is out of control, the Betaflight rescue mode will initiate. In an emergency, The FPV will fly back to the approximate position of the base. If the signal is lost again, be sure to operate the FPV to landing manually. The Rescue mode won’t land automatically. Crocodile baby integrates GEPRC Finder. If the FPV is lost and disconnects the battery power, the buzzer of the GEPRC Finder will sound continuously!

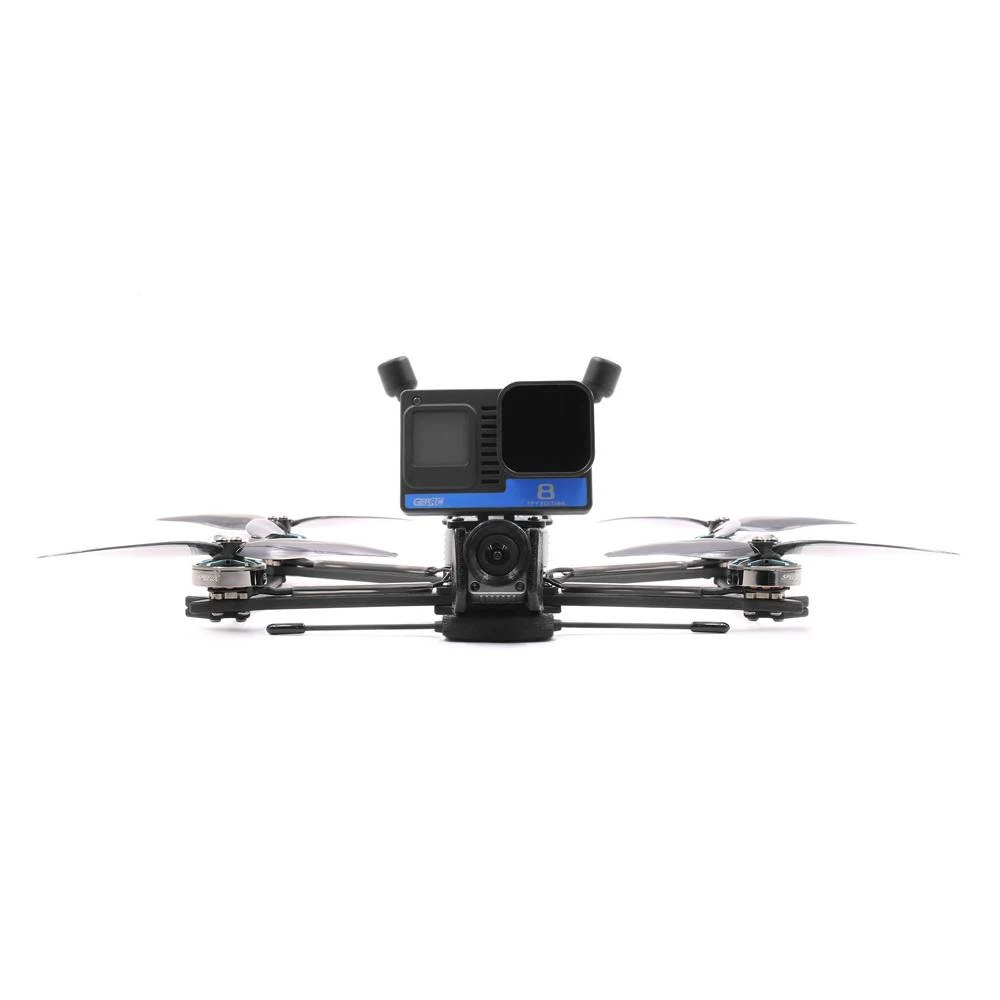

Note: GoPro Action Camera not included.

VIDEO: NEW!! GepRC Crocodile Baby 5 – one of my favorite quads gets a bigger brother!

Features

• Latest GEP 2004 High-Efficiency Motor with good heat dissipation effect, high efficiency, and more abundant power.
• Reinforced arms enhance flight performance, making flight performance more stable and smooth.
• The Lightweight design scheme is suitable for Long Range flights and Freestyle flights.
• GEP F722 35A AIO FC has a fast operation speed and higher compatibility.
• DJI FPV Air Unit – Supports recording 1080p 60fps video. (HD Digital VTX)
• Supports GPS rescue mode making Long-range flights safer.
• Flight Time:25-30min (with Li-ion 3000mAh Battery)

Specifications

• Receiver: PNP / FrSky R-XSR / TBS Crossfire Nano RX

• Flight Controller System: GEP-F722-35A AIO

• The thickness of the bottom plate: 2.0mm

• Crocodile5 Baby LR HD Weight: 252.29g

• The thickness of the arms plate: 4.0mm

• OSD: BetaFlight OSD w/ AT7456E chip

• The thickness of the top plate: 2.0mm

• Firmware target: GEPRCF722 AIO
• Antenna: DJI 5.8g MMCX LHCP
• Dimensions: 3030x200x200mm

• Model: Crocodile5 Baby LR HD

• Camera/VTX: DJI FPV Air Unit
• Power input:4S LiPo/Lion
• Motors: GR2004 2550KV

• Motor to Motor: 227mm

• Props: Gemfan 5130
• IMU: MPU6000(SPI)
• MCU: STM32F722

• Frame: GEP-CB5

• Brand: GEPRC

• GPS: BN-220

Recommended (Not Included)

• Flywoo Explorer Lionpack 18650 4S 3000mAh 14.8V Li-ion Battery
• XILO 650mAh 4S 100c Essential Micro LiPo Battery XT30

Includes

• 1x GEPRC Crocodile5 Baby LR HD 5″ FPV BNF w/ DJI FPV Air Unit  (Receiver Optional)
• 1x Gemfan 5130 Props (Set of 4)
• 2x 15x220mm LiPo Strap
• 1x L-shaped screwdriver
• 2x Silicone Battery pad
• 8x Foot Pad
• Note: GoPro Action Camera Not Included
