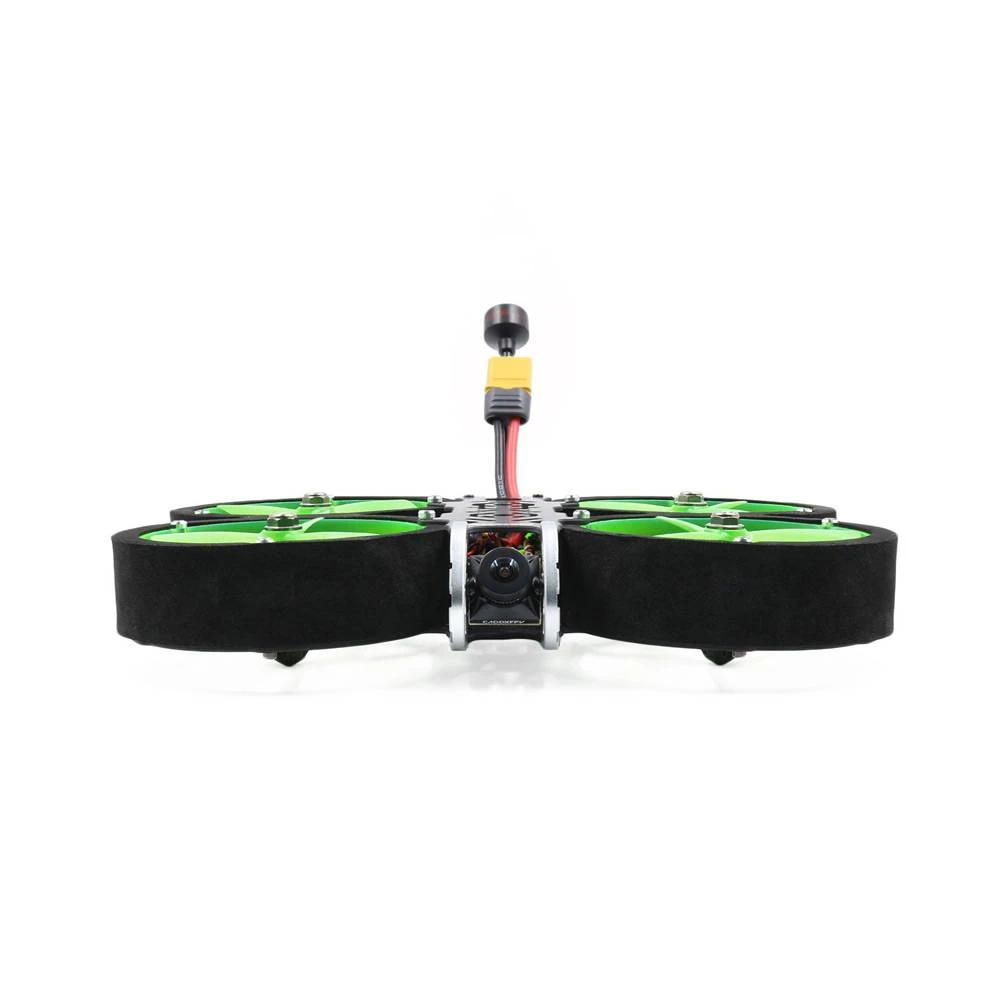

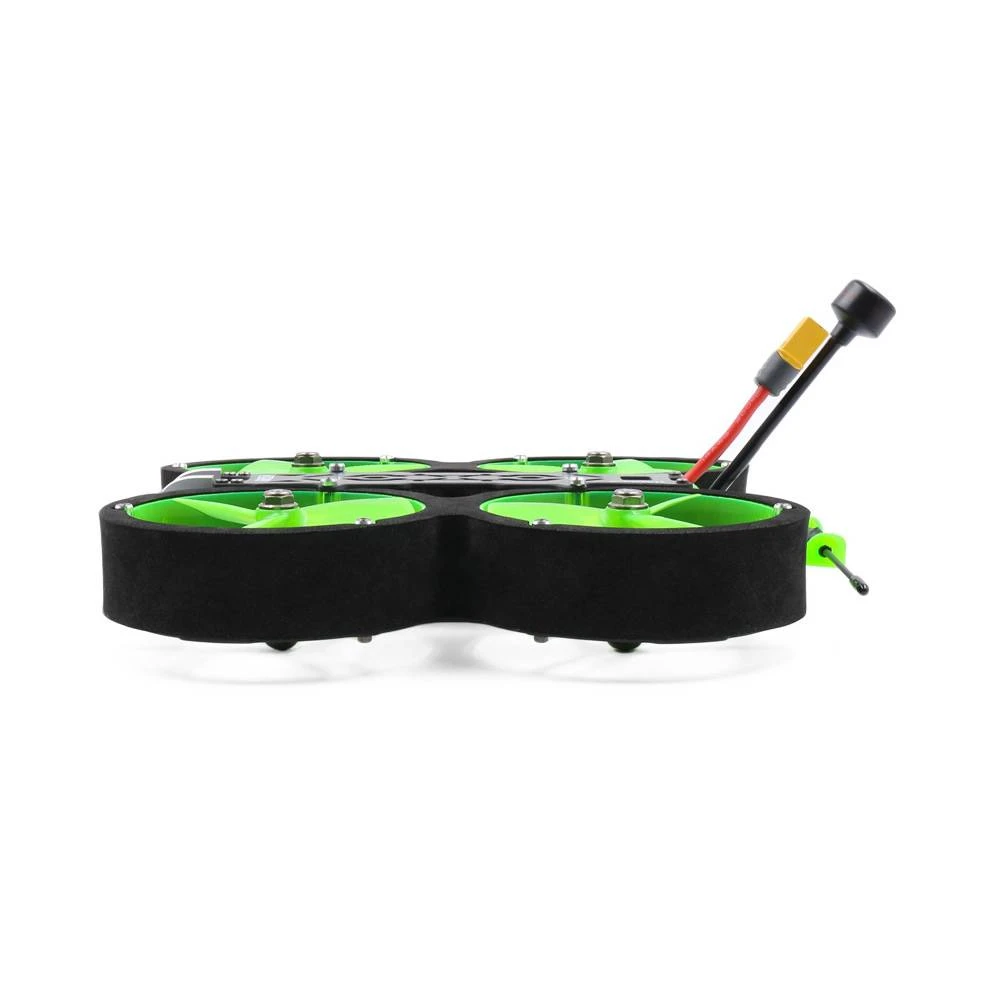

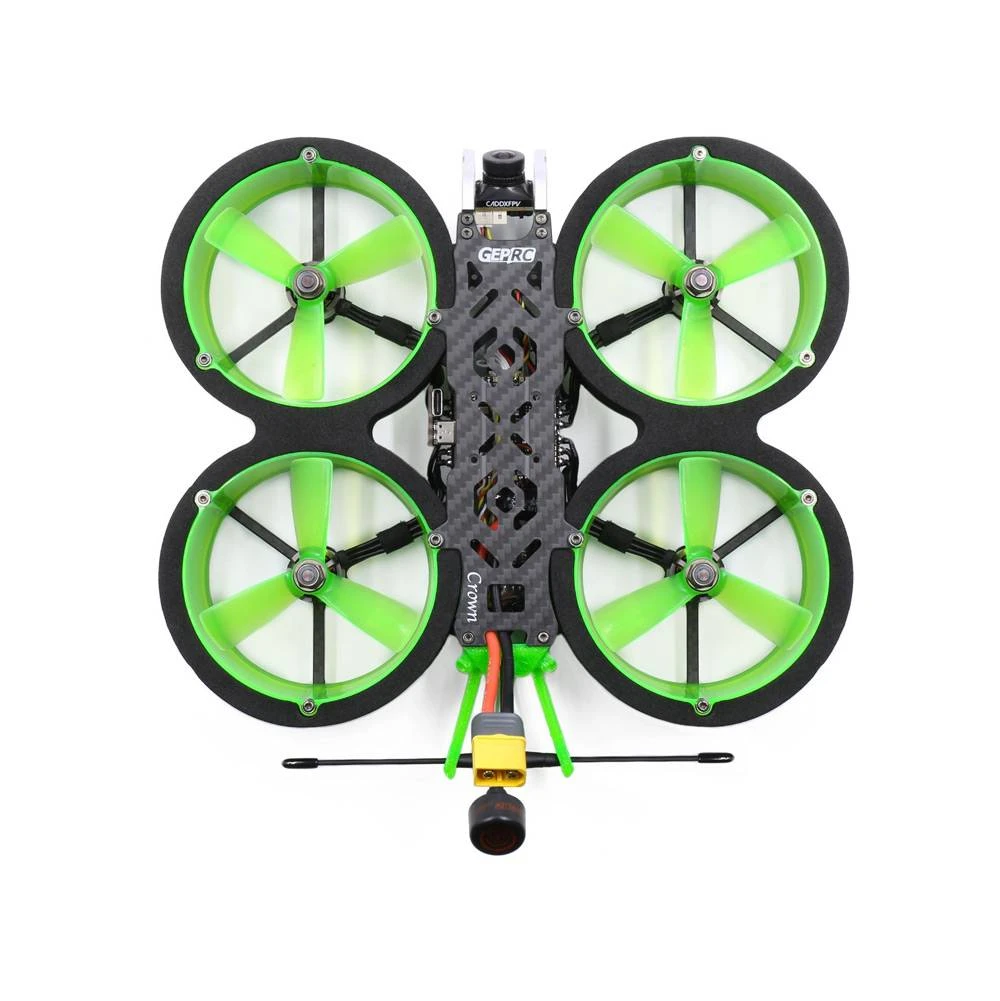

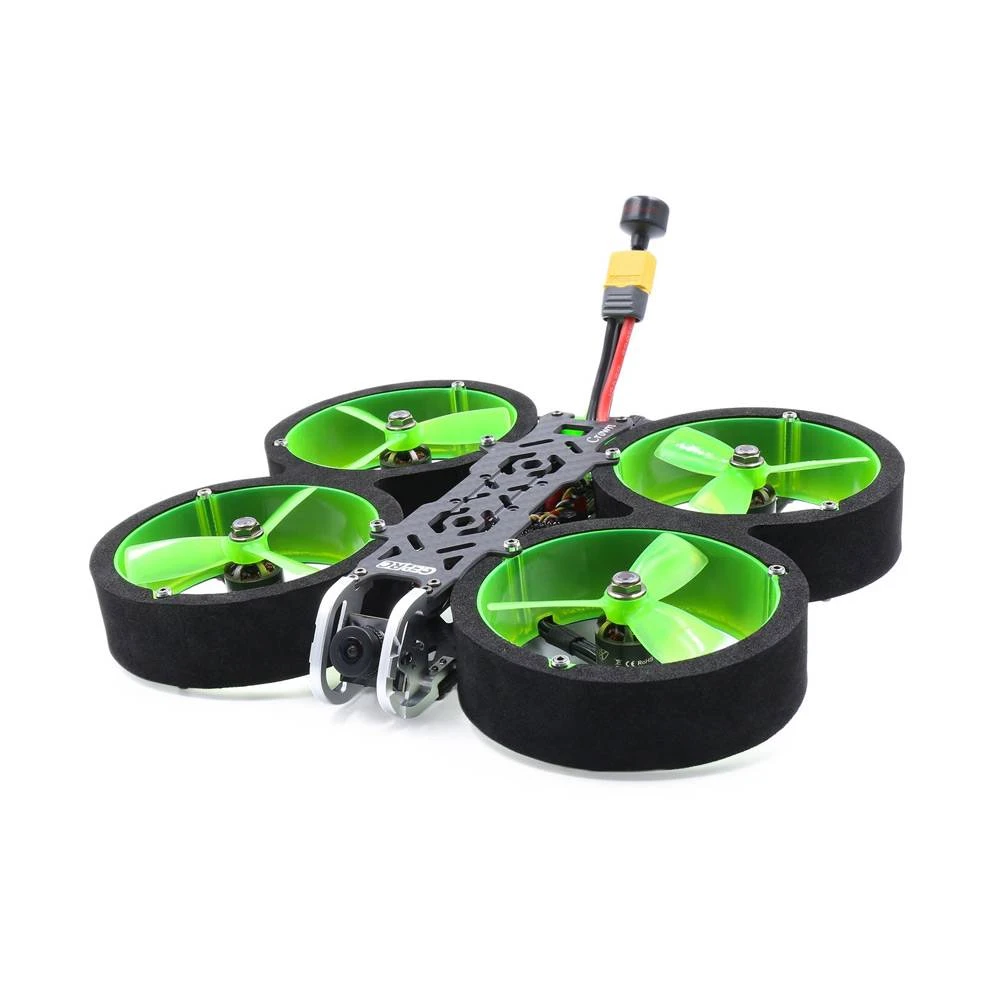

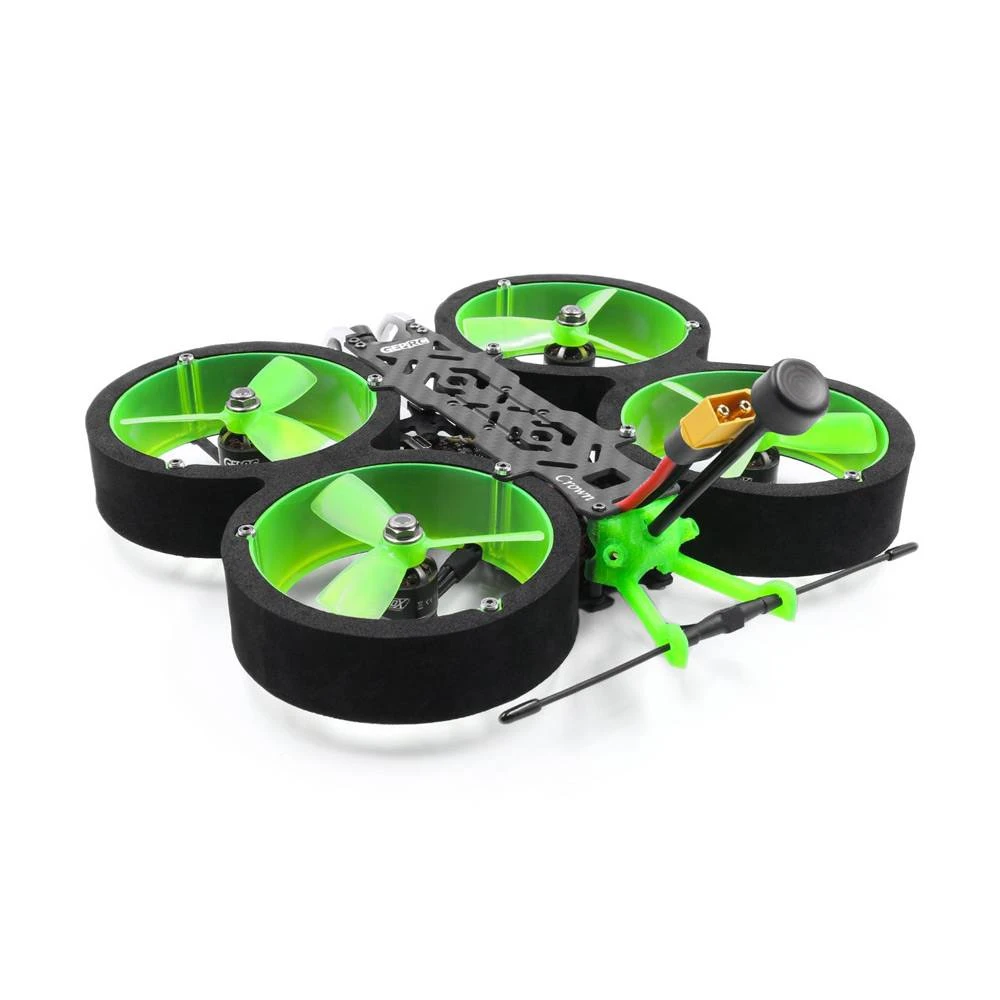

GEPRC Crown 3" Analog CineWhoop W/ Caddx Ratel V2

The GEPRC Crown Analog Cinewhoop features the remarkable Analog FPV systems that make flying truly breathtaking. After a lot of time testing and continuous optimization by the GEPRC team, the latest Cinewhoop GEPRC Crown has been launched. GEPRC Crown has two versions: Vista HD & Analog. All pilots can choose flexibly.

We have collected a large number of data of Cinewhoop Quadcopter and found one thing in common. which is noise level. In this regard, we have done a good noise reduction optimization and optimization design for GEPRC Crown. Eventually, the outcome effect is very ideal. Another great feature of the GEPRC Crown is that propeller’s sound is very quiet. In the fuselage design, through Structure Optimization Design of the entire frame, we decided to adopt CNC aluminum parts as lens mounts. This makes the whole appearance more beautiful and durable. The separate bottom plate with injection molding guard plus EVA protection Damping sponge makes the Quadcopter more robust and protects against crashes.

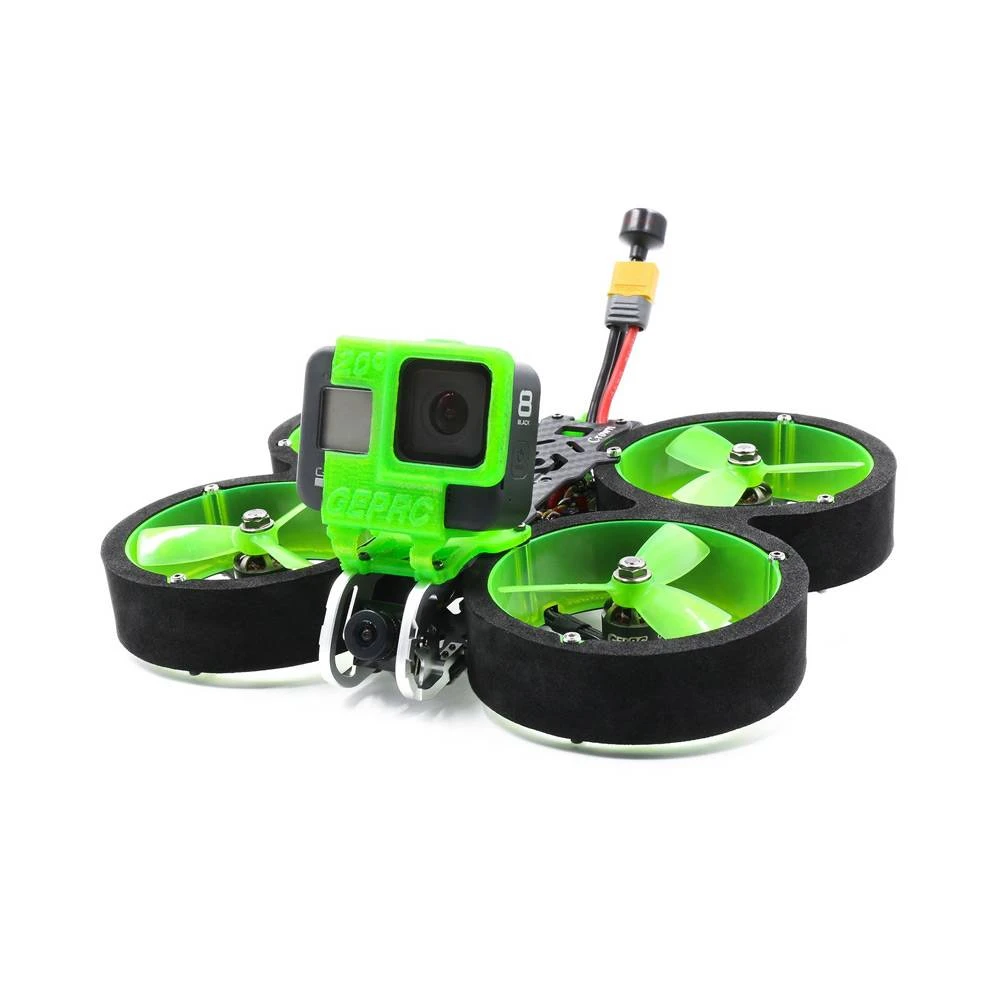

GEPRC Crown can be equipped with a GoPro6/7/8/9 motion camera! Combined with its 3D printing mount with shock absorption effect, the GEPRC Crown can make a wonderful and stable aerial video. The flight system uses 30.5mm * 30.5mm hole pitch 45A ESC + GEPRC Span F722 HD flight control. It has a good heat dissipation effect in the narrow fuselage. The flight time of GEPRC Crown with GoPro camera is 6-7 minutes. If GEPRC Crown is without a GoPro camera the flight time is 8-10 minutes.

Note: Now equipped with the Caddx Ratel V2. GoPro Action Camera not included.

VIDEO: Does It Take The Crown For Best FPV Cinewhoop? // GepRC Crown

Features

• Suitable for indoor flight and aerial photography in crowded environments to protect the safety of others.
• EVA protection guards provide a better protective function to the entire quadcopter in case of a crash.
• The flight time with a GoPro camera is 6-7 minutes. Without a camera, the flight time is 8-10 minutes.
• A large air inlet and small air outlet create an efficient air flight time.
• Anti-interference image transmission and stable flight footage.
• Compatible with GoPro lite and GoPro6/7/8/9.
• CNC aluminum alloy camera mount design.
• Redesigned CINEWHOOP frame.
• Improved the noise reduction.
• No propellers in view.
• Lightweight design.
• Easy control.

Low noise optimization
The Crown Cinewhoop increases the air inlet volume with EVA foam cushioning, and reduces the airflow resistance in order to create extremely low flight noise and greater reduction of noise from external vibrations.

Perfectly Compatible with most GoPro cameras
Compatible with GoPro lite and GoPro6/7/8/9

EVA foam cushioning
With an integrated EVA design, the overall shape looks more coordinated with better strength.

Specifications

• Receiver Options: PNP, FrSky R-XSR, or TBS Crossfire
• Motors:1408 3500KV (4S) /1408 2500KV (6S)
• Flight / Take off weight is less than 500 grams
• OSD:BetaFlight OSD w/ AT7456E chip
• Antenna: GEPRC Momoda 5.8g LHCP
• Weight:281Grams (without batteries)
• ESC: BLHe li-S DSHOT 600 45A
• VTX: 5.8 25-600mW VTX
• Camera: Caddx Ratel V2
• Motor to Motor:156mm
• IMU: MPU6000(SPI)
• FC: SPAN F722 HD
• Frame: GEP-CW3
• MCU:STM32F722
• Propeller:3045(3)
• Brand: GEPRC
• Name: Crown
• Weight: 281g

Recommended (Not Included)

• Auline EX 1050mAh 6S 120C Lipo Battery
• Auline EX 1300mAh 4S 120C Lipo Battery

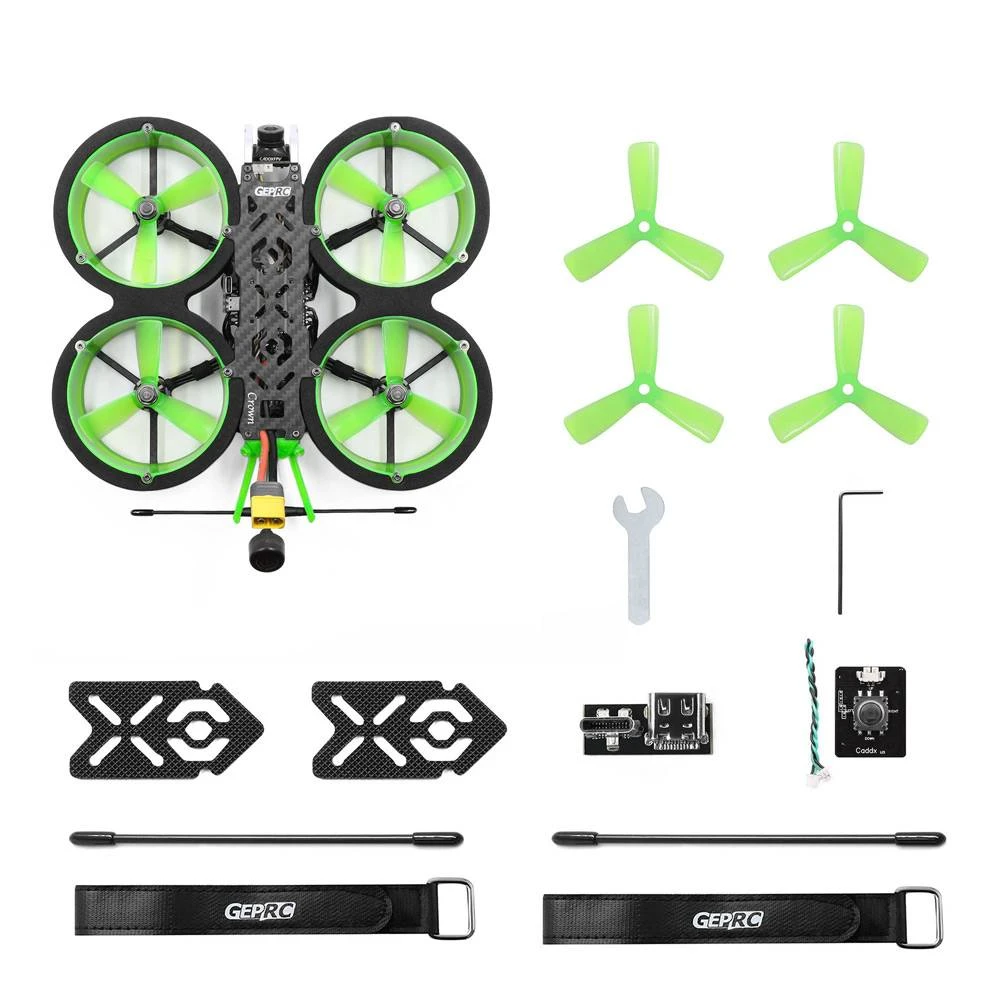

Includes

• 1x GEPRC Crown HD Cinewhoop w/ Caddx Nebula Nano V2
• 1x L-shaped screwdriver
• 2x 3045×3 Props (set of 4)
• 2x Battery magic strap
• 2x Antenna bushing
• 1x Type-C interface
• 2x Battery pad
• 1x Wrench
• Note: GoPro Action Camera Not Included
