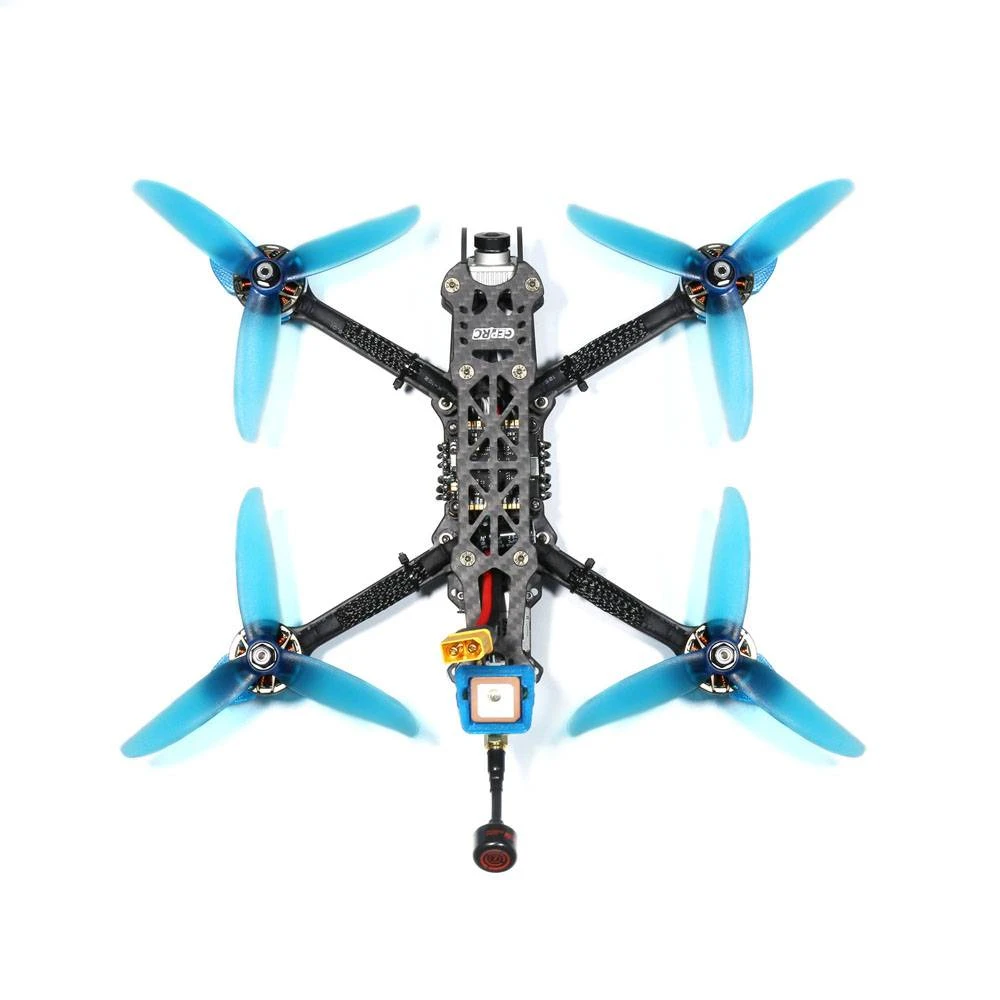

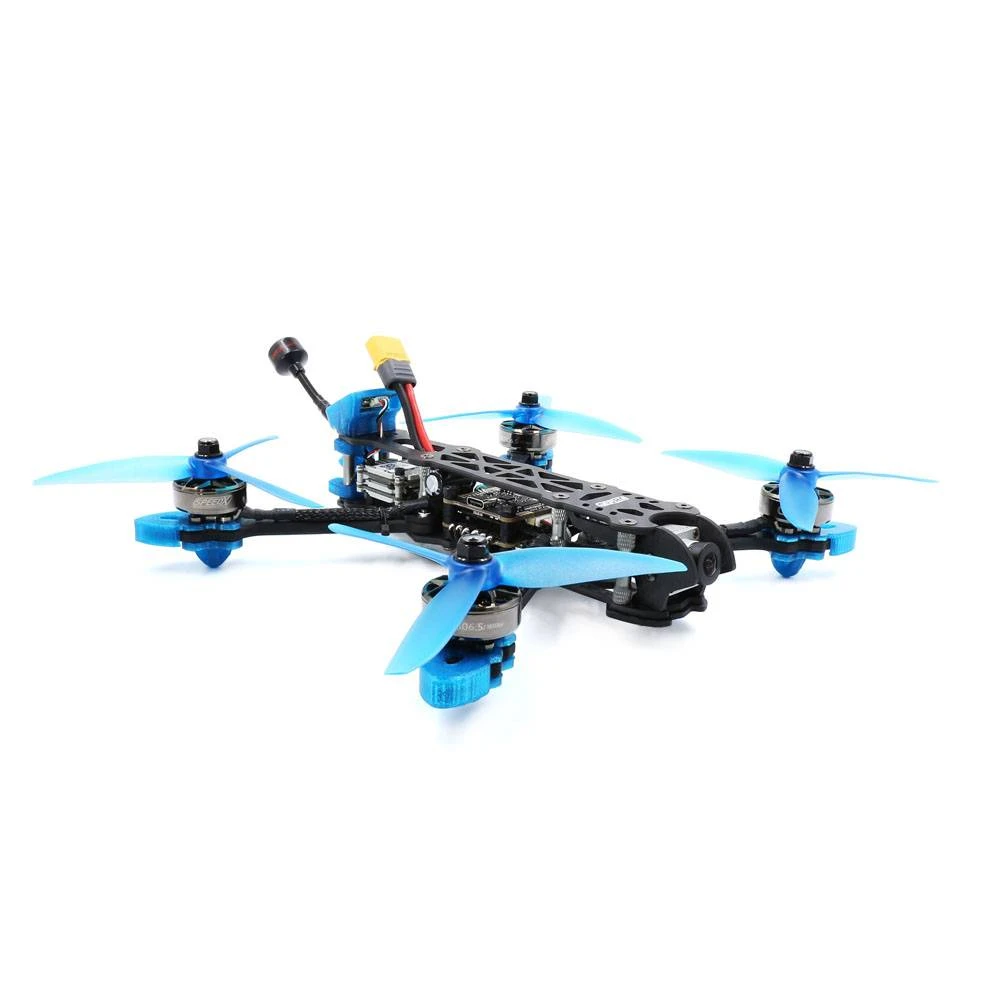

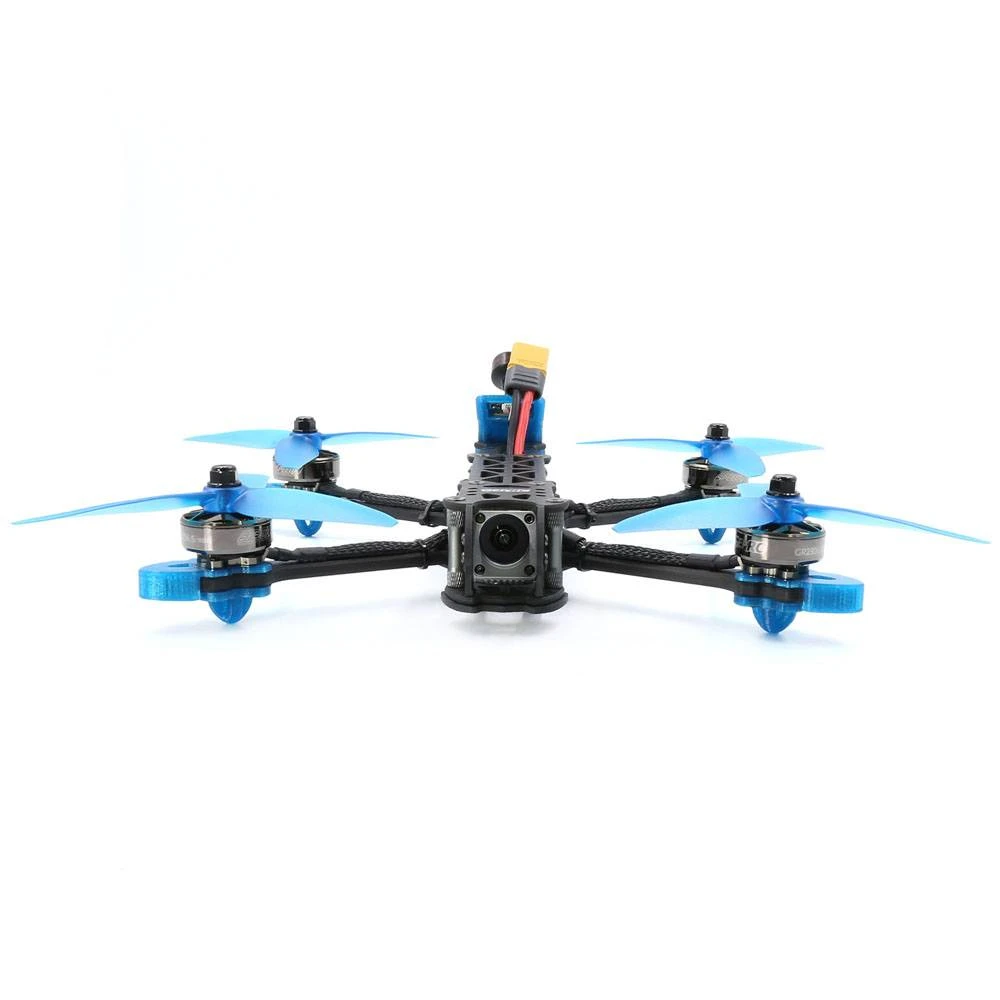

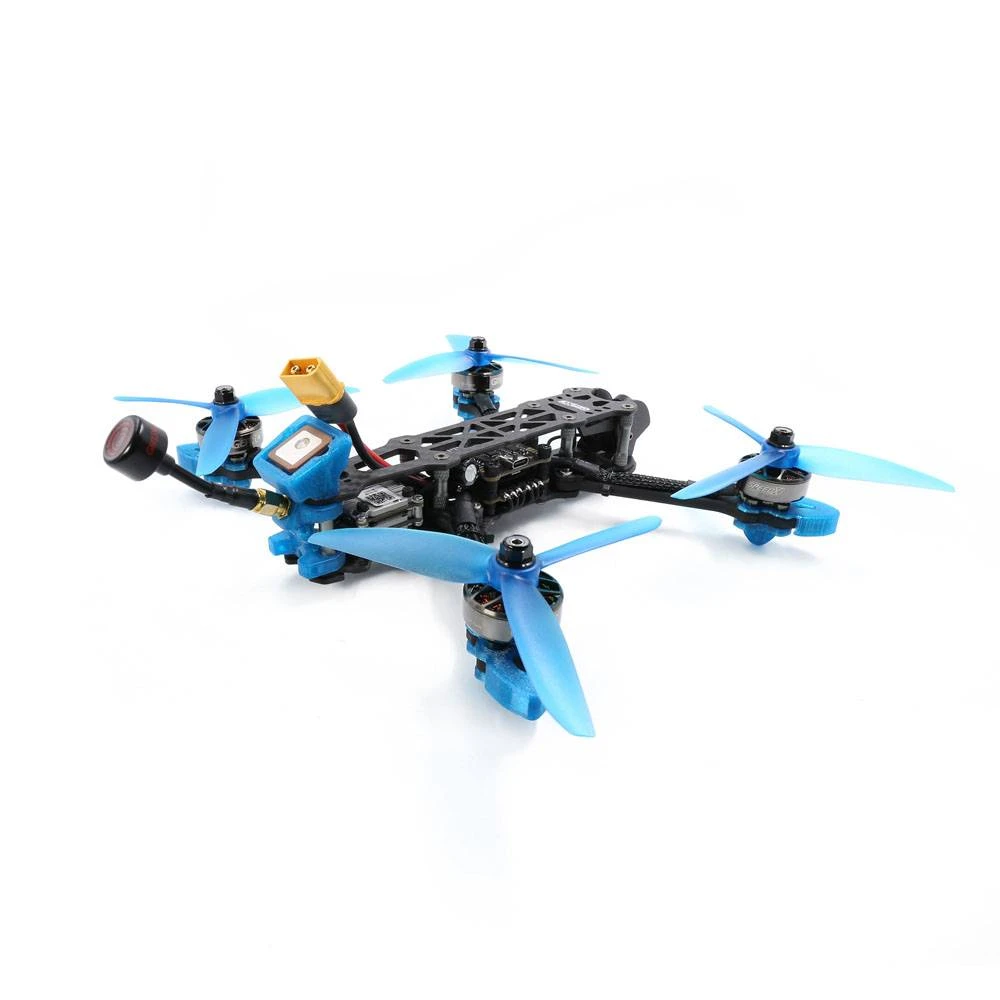

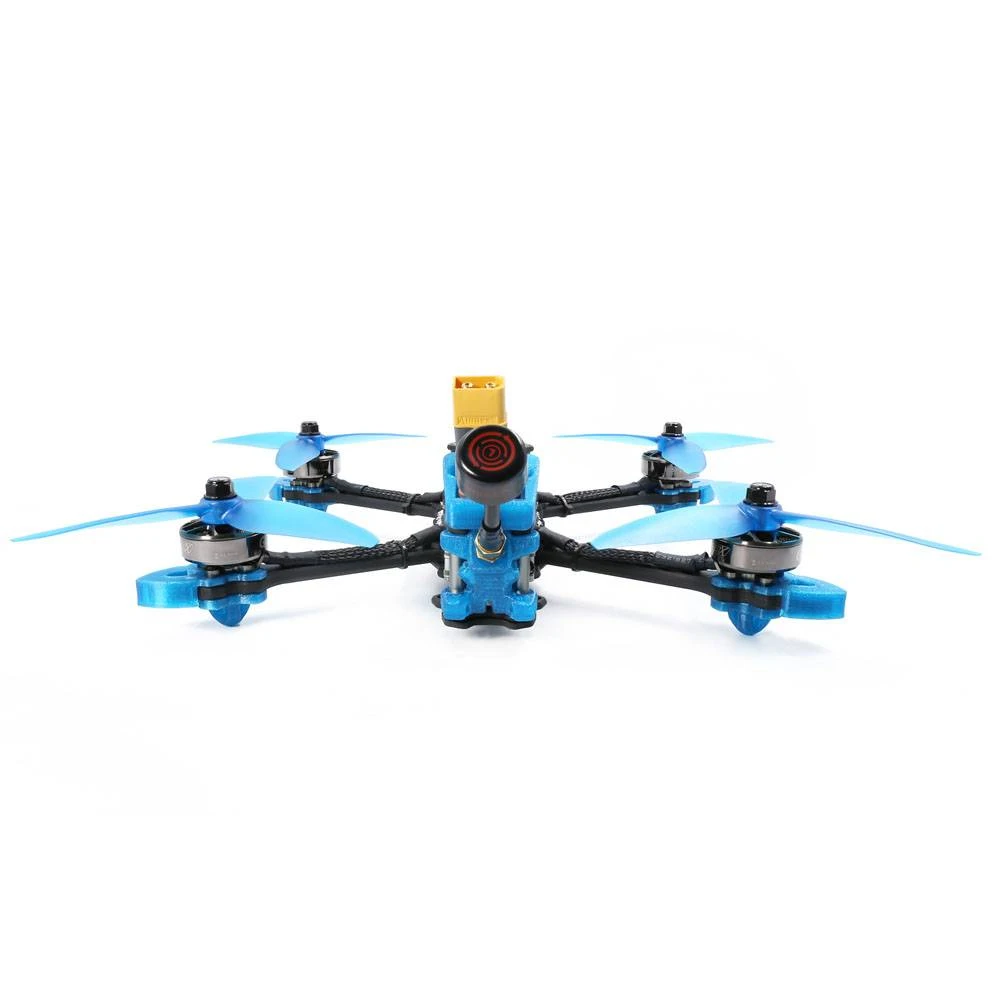

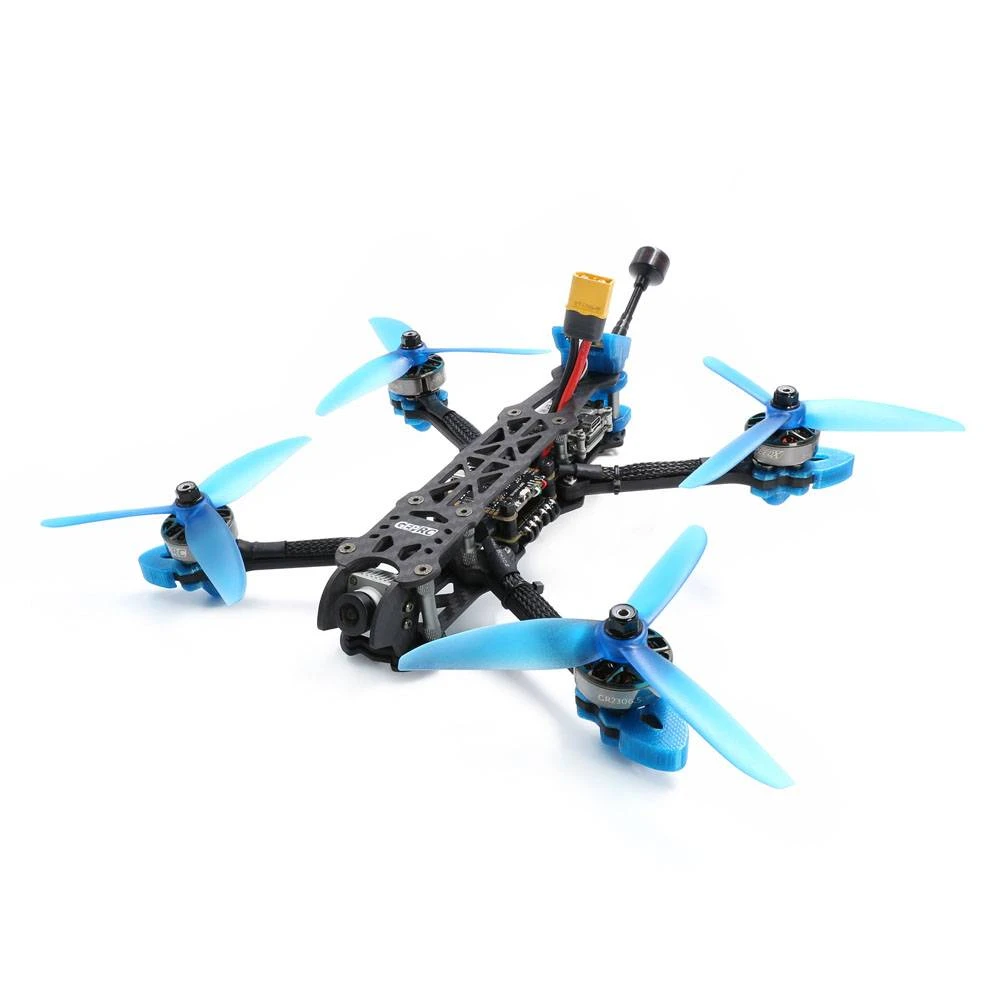

GEPRC Mark4 HD GPS Freestyle Quadcopter BNF W/ Caddx Nebula Nano V2

GEPRC has launched the Mark4 HD GPS, which is a stable, durable, and perfectly structured quad that features the Caddx Nebula Nano V2. It also comes with an added GPS, so that when the signal is lost or VTX is losing control – rescue mode on Betaflight can be activated. The Mark4 features G2306.5 motors, BL32 50A  4-In-1 ESC, and GEPRC G5x4.3×3 propellers.

This quad is mainly used for daily freestyle flying or taking HD video of the long-distance flight, and it comes in two versions: 4S-2450kv and 6S-1850kv. The flight time of 4S is about 40 seconds shorter than 6S.

Note: Now comes with the Caddx Nebula Nano V2 Camera!

VIDEO: BETTER THAN DJI MAVIC AIR 2 – GEPRC MARK4



Features

• Full Soft Mounted FC System: Provides a clean operating environment for gyro.
• Exquisite Assembly Process: Eliminate any potential installation problems.
• Receiver: PNP / Frsky R-XSR / Frsky XM+ / TBS Nano RX

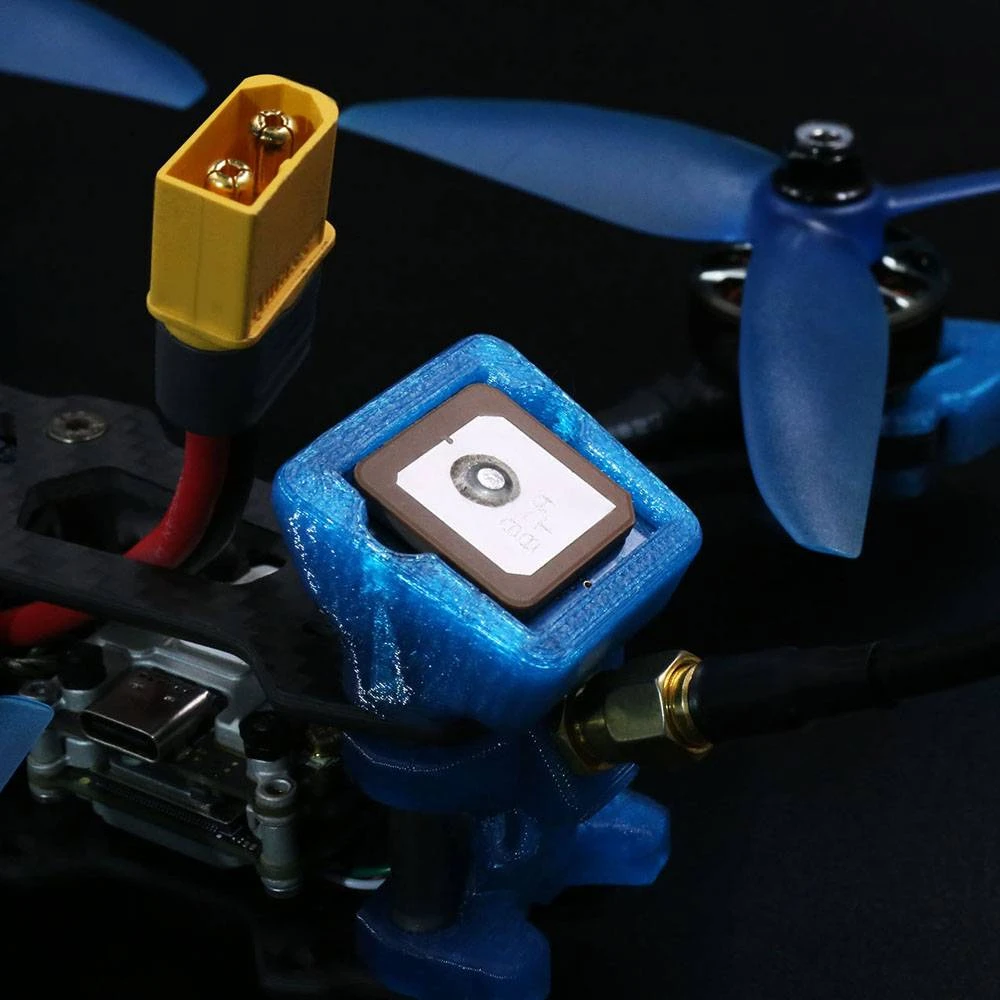

• Integrated GPS, able to return to base in an emergency
• Black Box: 8Mb onboard flash memory.

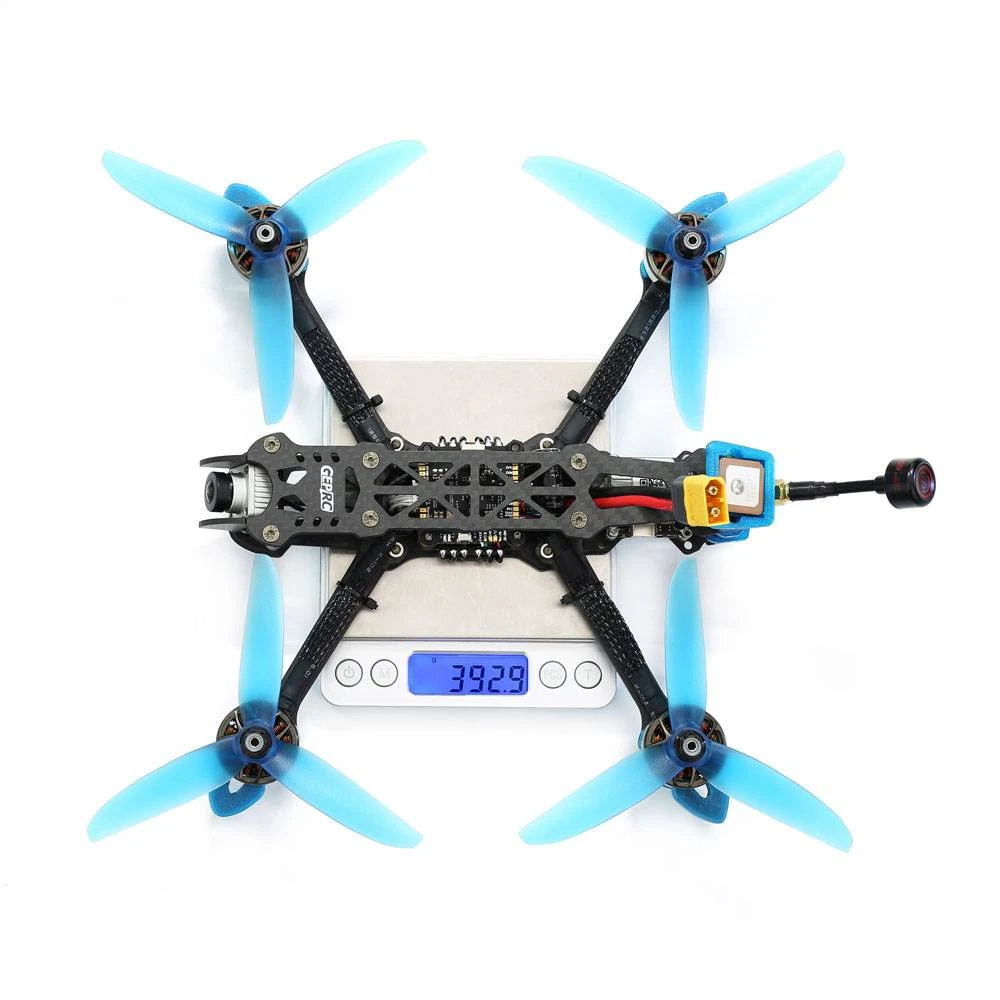

• Weight:392g without battery
• Caddx Nebula Nano V2
• Ultra-lightweight design
• Full 3K Carbon Fiber
• GR2306.5 Motors

Specifications

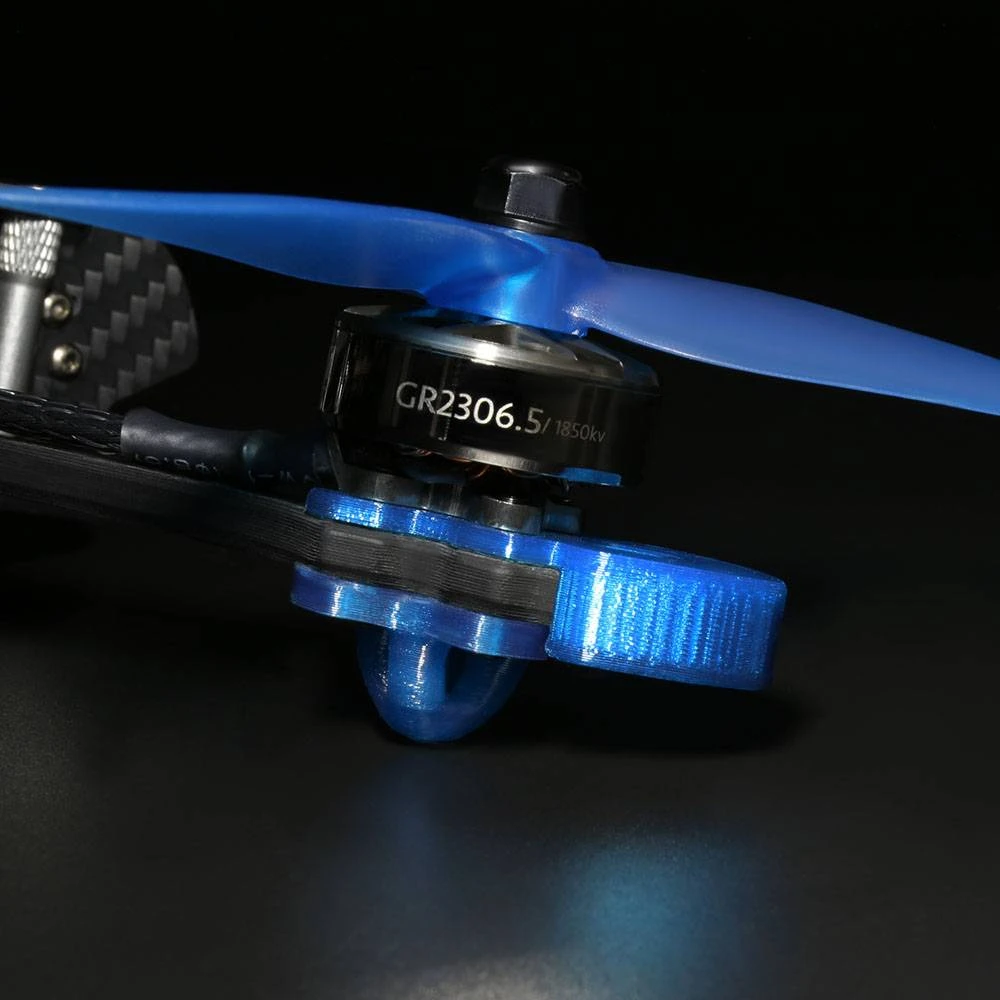

• Motors: GR2306.5 2450KV (4S) / 1850KV (6S)
• Props: GEPRC G5x4.3×3

FRAME: MARK4 HD GPS Frame Kit

• Mounting Holes: 30.5*30.5mm/20*20mm
• Motor to motor: 225mm
• Full 3K Carbon Fiber
• Bottom plate: 2.5mm
• Protect plate: 2mm
• Side plate: 2.5mm
• Size: 138*176mm
• Top plate: 2.5mm
• Arms plate: 5mm

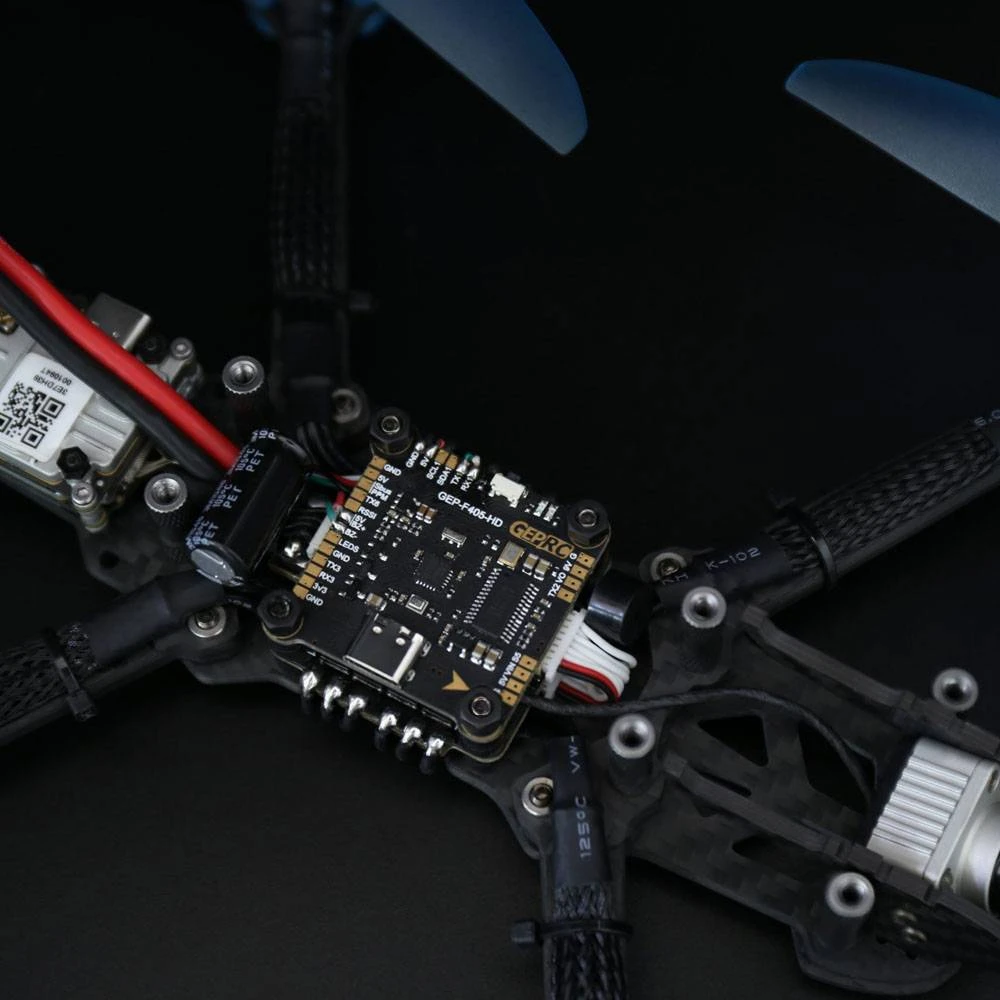

FLIGHT CONTROLLER

• Size: 36x36mm board, φ4mm with Grommets φ3mm
• OSD: BetaFlight OSD w/ AT7456E chip
• BlackBox: 16Mb onboard Flash
• Firmware target:GEPRCF405
• DJI FPV Air Unit Supported.
• BEC Output: 5V,9V BEC
• Type-C USB interface
• IMU: MPU6000(SPI)
• MCU: STM32F405
• Integrated LC Filter
• Baro: BMP280
• UARTS: 6

50A 4-In-1 BL32 ESC

• Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
• Firmware Version: GEPRC-BL32-4IN1
• MCU: STM32FO51K86(32bit 48mHz)
• Continuous Current: 50A
• Input Voltage: 3-6S Lipo
• Peak Current: 55A (5S)
• Current sensor: YES
• TelemetrySupported

Manual

Recommended (Not Included)

• Remote Control: Frsky X9D
• 4S 1300~1550mAh Battery
• 6S 1050~1300mAh Battery
• Goggles: DJI FPV Goggles V2 , Tango 2

Includes

• 1x GEPRC MARK4 HD GPS Quadcopter w/ Caddx Nebula Nano V2
• 1x GEPRC 5043 Propellers (Set of 12)
• 2x Replacement Arms
• 1x Connecting Wire
• 1x Hardware Kit
• 1x Battery Pad
• 2x LiPo Straps
• 1x Antenna
