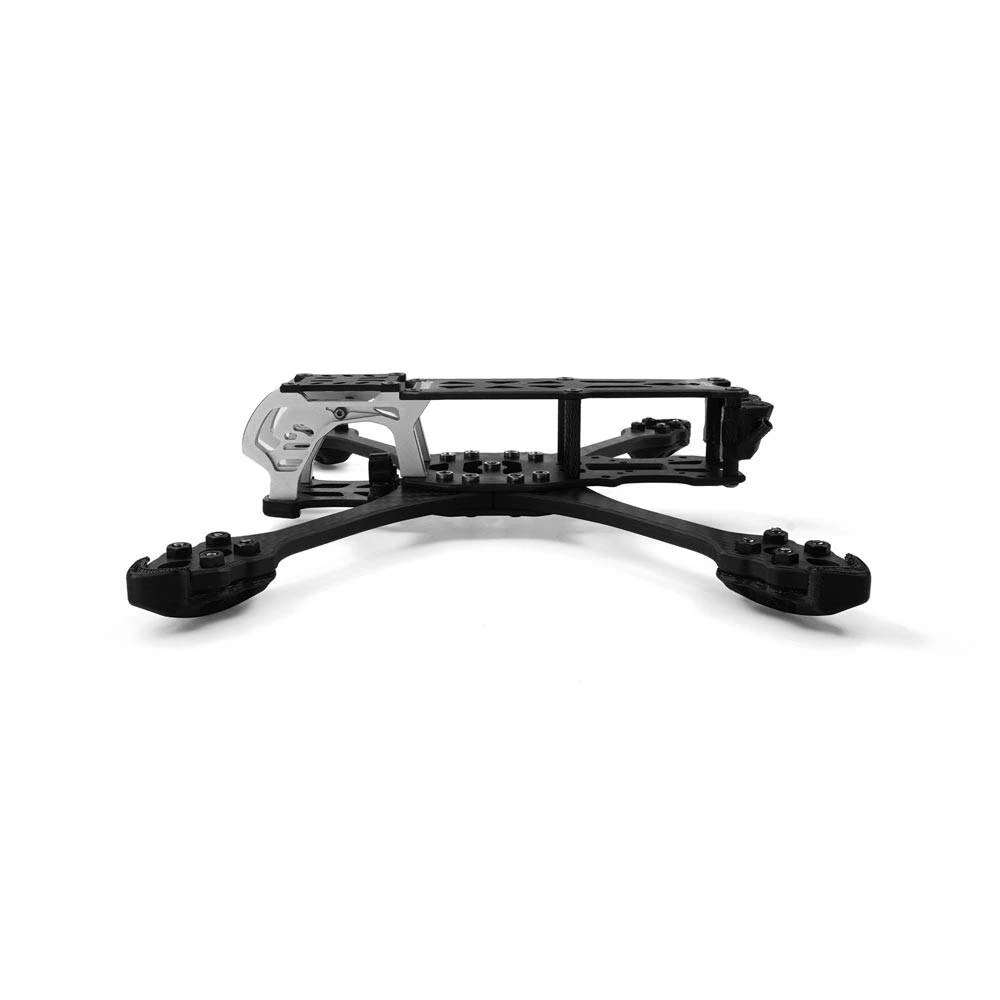

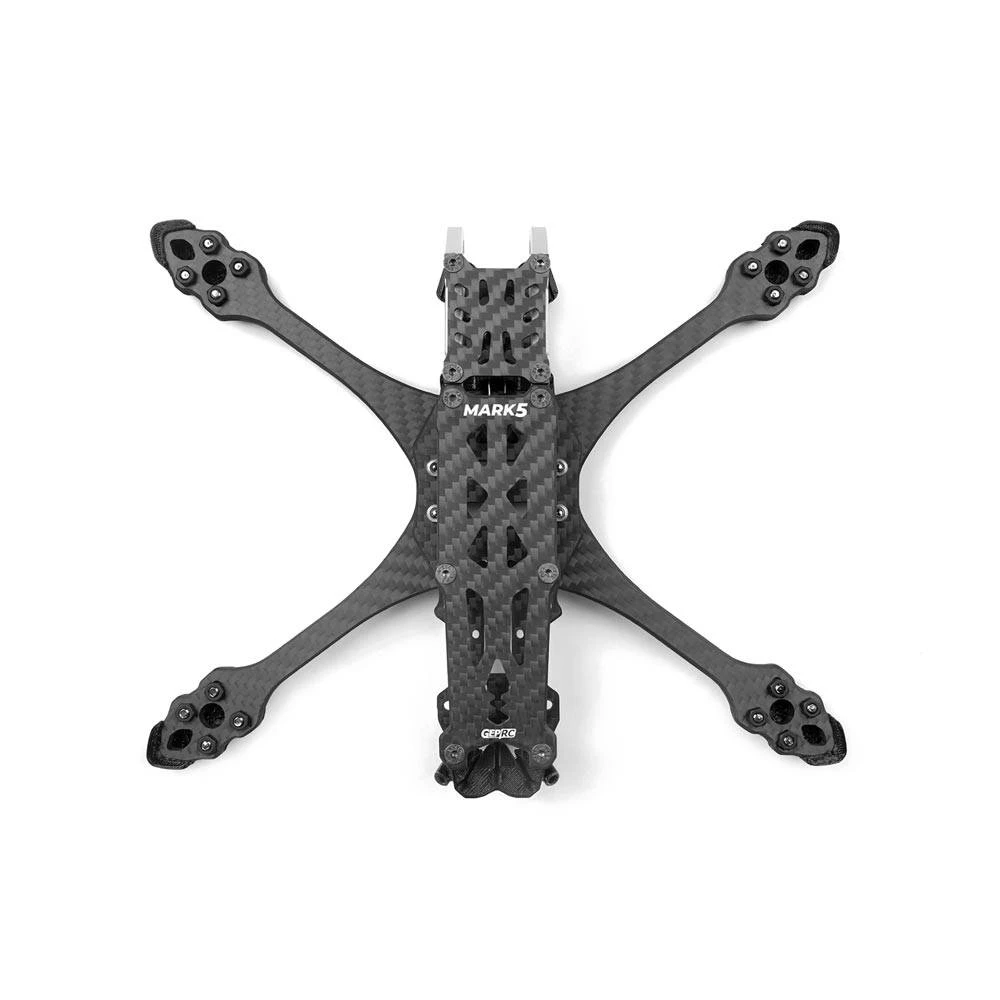

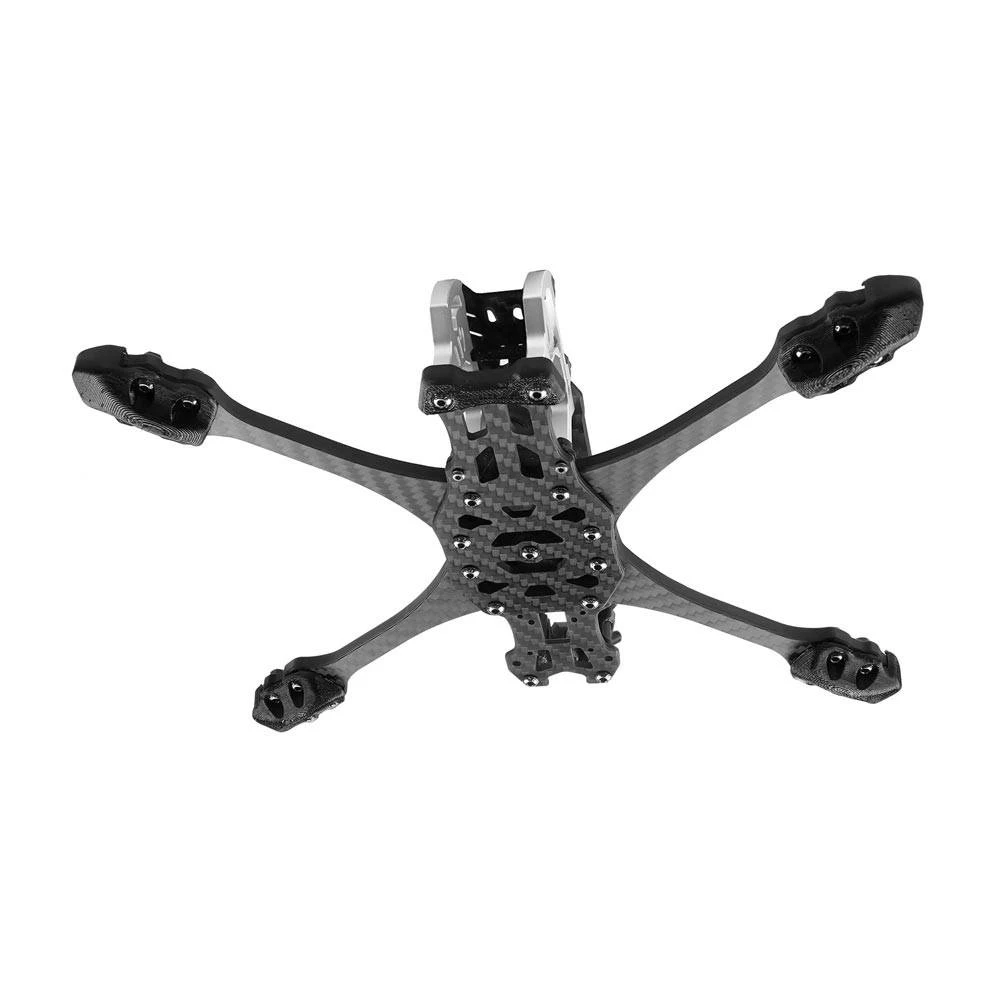

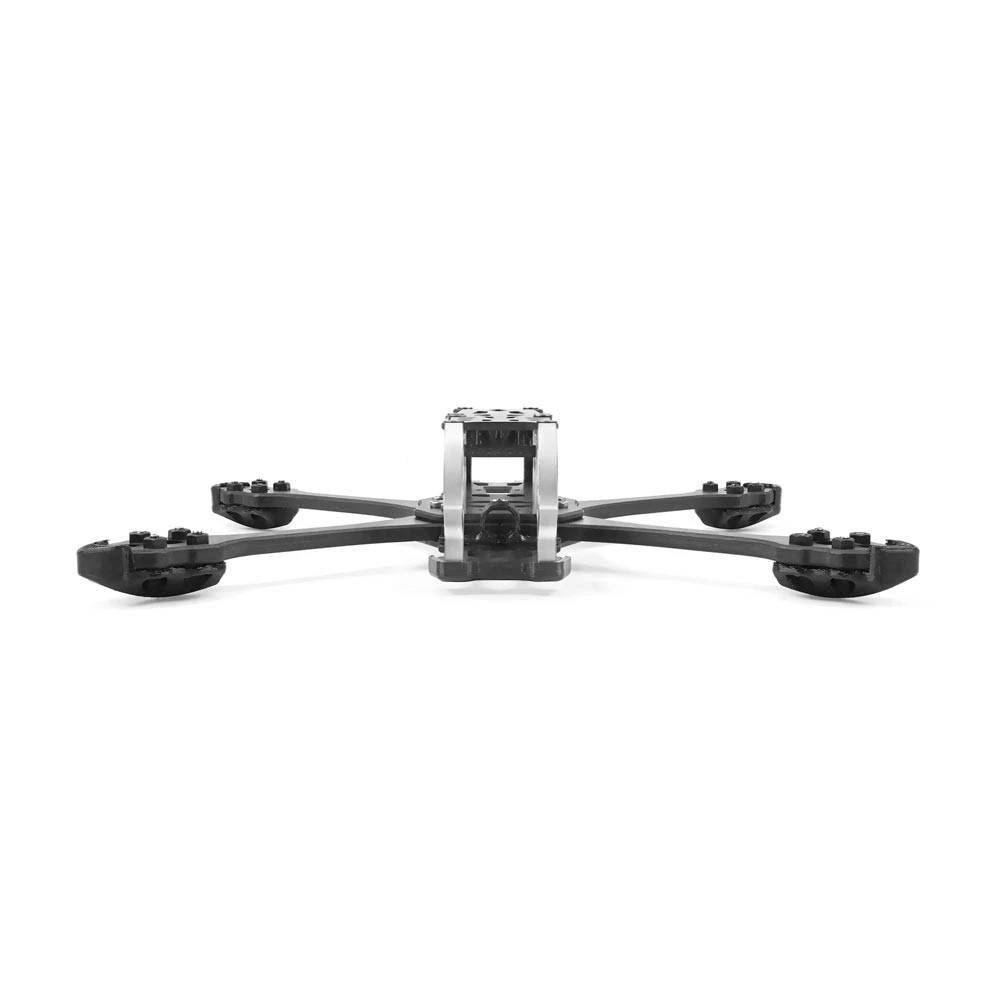

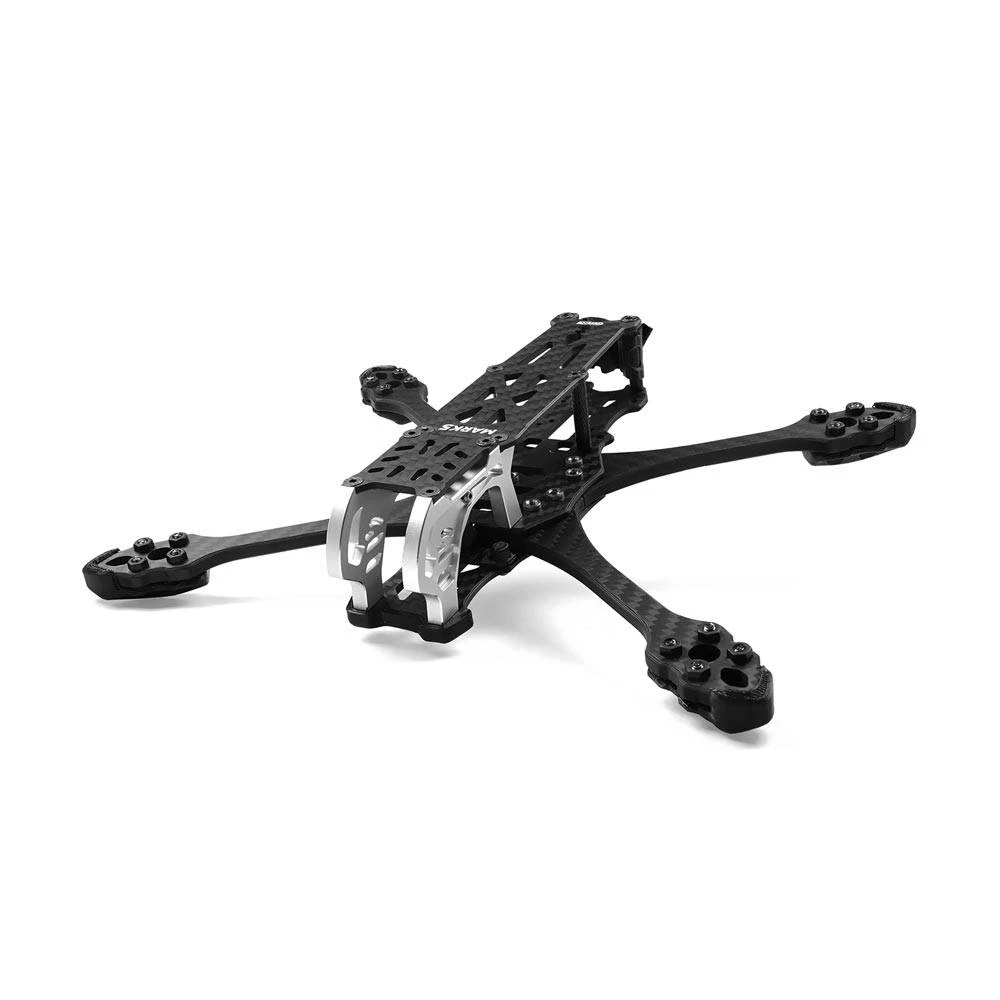

GEPRC Mark5 GEP-MK5 5" Freestyle Frame Kit – Black Pro Version

The GEPRC MARK5 Pro Frame Kit is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning,but also reduce weight and add more endurance.

VIDEO: GepRC Mark5 Build EP1 : Frame Assembly

Features

• Two different 3D printed parts bases, which can be installed with GoPro, Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras.
• The installation hole of VTX is compatible with DJI Air Unit and VISTA, while maintaining the 30.5*30.5 analog VTX installation hole.
• Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
• Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
• Compatibile motor hole design supports the installation of 16x16mm and 19x19mm motors.
• Supports the installation of 19-20mm width lens,you can directly install DJI original lens.
• Unique shock-absorbing structure design, fewer vibrations, and resonance.
• MARK5 is the most ideal for freestyle flying and bando-bashing resistance.
• Developed specifically for freestyle with squashed X arm design.
• Squashed-X Configuration
• Black PRO Version

STRONG POWER SYSTEM

Strong power system, 16mm x 16mm / 19mm x 19mm motor holes will allow you to install larger 21-22-23-25 series motors, with a 5-inch propellers, with a strong power output.

30.5 X 30.5 FLIGHT CONTROLLER SUPPORT

MARK5 frame supports the mainstream 30.5mm x 30.5mm Flight Controller. Pre-set two sets of installation holes, Were 30.5mm x 30.5mm and 20mm x 20mm Fixing holes respectively. The subsidiary printing parts can also be directly installed with DJI Air Unit .

3D MOUNTS

The MARK5 designed two different 3D printed mounts which can be installed with GoPro /Naked GoPro8/Insta 360 GO2 and Caddx Peanut cameras to record every moment of Freestyle.

COMPATIBILITY

The frame is compatible with DJI AIR UNIT, CADDX VISTA and Analog VTX.

Specifications

• VTX Mounting Holes: 30.5mm x 30.5mm / 20mm x 20mm
• Motor Mounting Holes: 16mm x 16mm / 19mm x 19mm
• FC Mounting Holes: 30.5mm x 30.5mm
• Dimension: 214mm x 168mm x 42mm
• Camera Installation Space: 19-20mm
• Suitable Propeller Size: 5″propeller
• Motor to Motor Distance: 225mm
• Frame Configuration: Squashed-X
• Bottom Plate: 2.5mm
• Arm Plate: 5.0mm
• Top Plate: 2.5mm
• Weight: 130.0
• Version: Pro
• Color: Black

Recommended (Not Included)

• Battery: LiPo 6S 1050mAh-1550mAh (6S Version)

Includes

• 1x GEPRC Mark5 GEP-MK5 Bottom Plate
• 1x GEPRC Mark5 GEP-MK5 Mid Plate
• 1x GEPRC Mark5 GEP-MK5 Top Plate
• 4x GEPRC Mark5 GEP-MK5 5″ Arms
• 2x Action Camera Mount Holder
• 1x Antenna Fixed Tube
• 1x 3d Printed Part Set
• 2x Camera Plates
• 1x Allen Key Set
• 1x Hardware Kit
• 1x Standoff Set
• 2x Battery Pad
• 3x LiPo Straps
• 8x Dampers
• 1x Wrench
