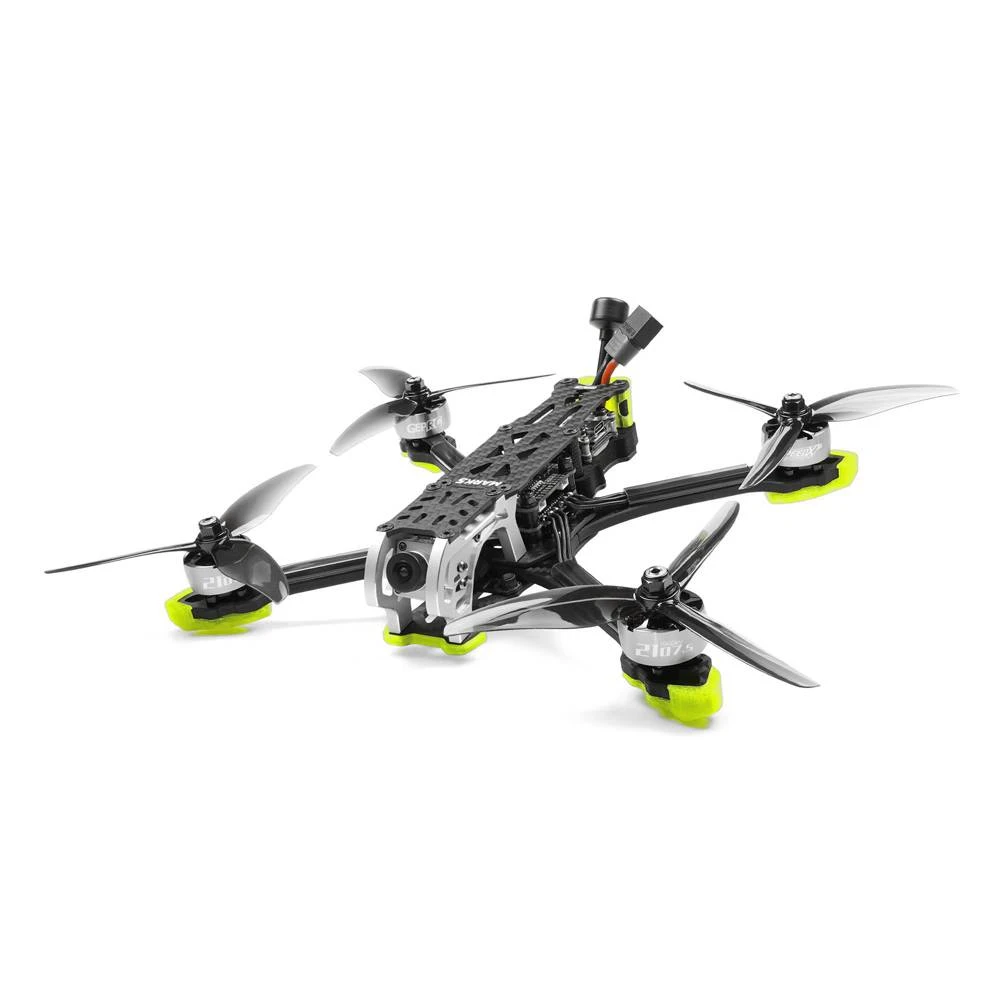

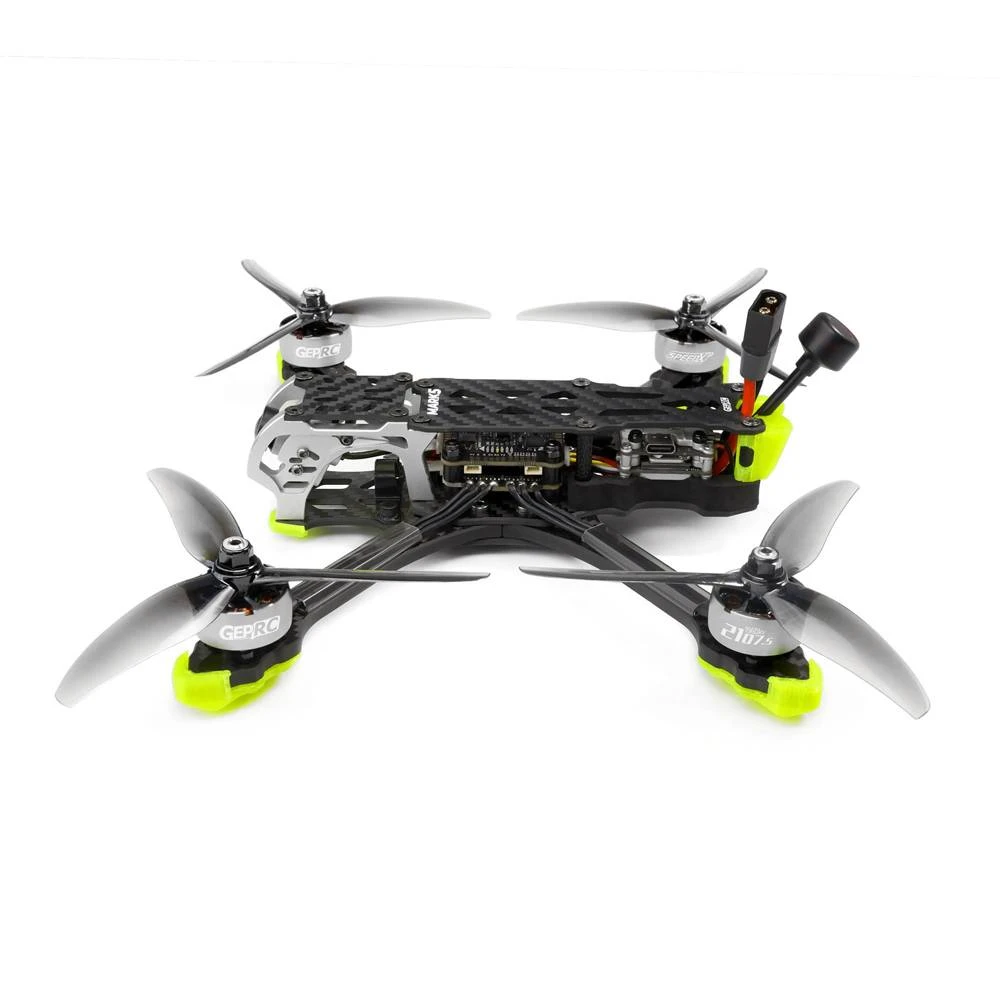

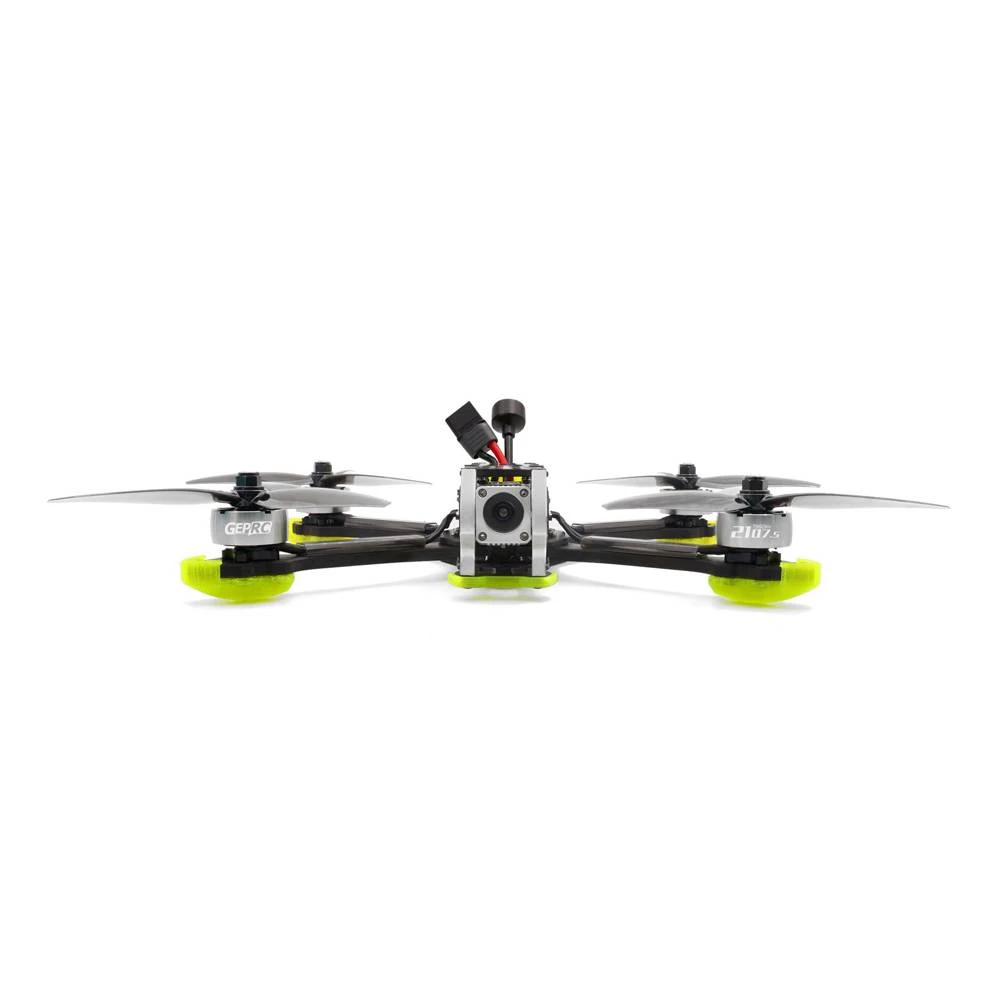

GEPRC Mark5 HD Freestyle FPV Drone W/ DJI FPV + Vista – 6S

GEPRC has launched the Mark5 HD Vista Freestyle, which is a stable, durable, and perfectly structured freestyle quad that features the DJI Camera with Caddx Vista. The MARK5 is developed specifically for freestyle with a squashed X arm design. The unique shock absorbing structure design, fewer vibrations, and resonance provides a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-HD-BT FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motors, has great explosive power and very fast response speed. The new GEMFAN Freestyle 4S propellers provide a delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that can be fitted with GoPro8/9/10, Naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras.

After continuous testing and tuning by the GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug in the battery and have fun!

VIDEO: GEPRC MARK 5 FPV Drone is here and it’s Great! Review



Features

• Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motors, has great explosive power and very fast response speed.

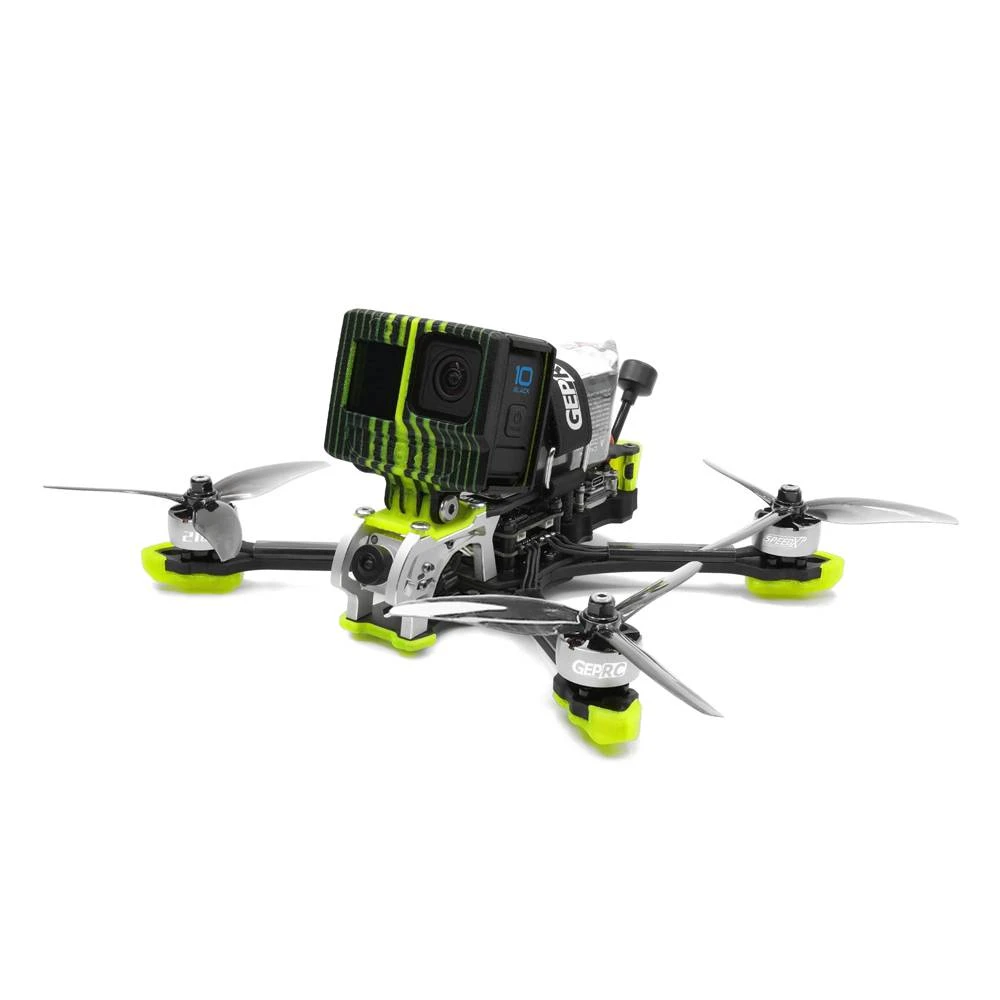

• Shipped with two different 3D printed action cam mounts that can be fitted with GoPro, Naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras.
• Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
• The new GEMFAN Freestyle 4S propellers provide a delicate and silky smooth flight experience.
• Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
• Changelog – May 2022: Gyroscope changed from MPU6000(SPI) to 6-Axis.
• Unique shock-absorbing structure design, fewer vibrations, and resonance.
• MARK5 is the most ideal for freestyle flying and bando-bashing resistance.
• The HD version comes with the Caddx Vista & the original DJI camera.
• A variety of receiver choices including our brand new ExpressLRS Rx.
• Developed specifically for freestyle with squashed X arm design.
• Supports Bluetooth wireless connection for easy field tuning.

Specifications

• Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV（4S Version）
• Weight: 385.5g (MARK5 HD VISTA 6S PNP including 3D print)
• Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• Receiver: PNP, TBS Crossfire, ELRS 915
• OSD: BetaFlight OSD w/AT7456E chip
• Model: MARK5 HD Vista Quadcopter
• FC system: SPAN F722-HD-BT FC
• Charge connector: XT60
• Propeller: Freestyle 4S
• Camera: DJI Camera
• Bottom plate: 2.5mm

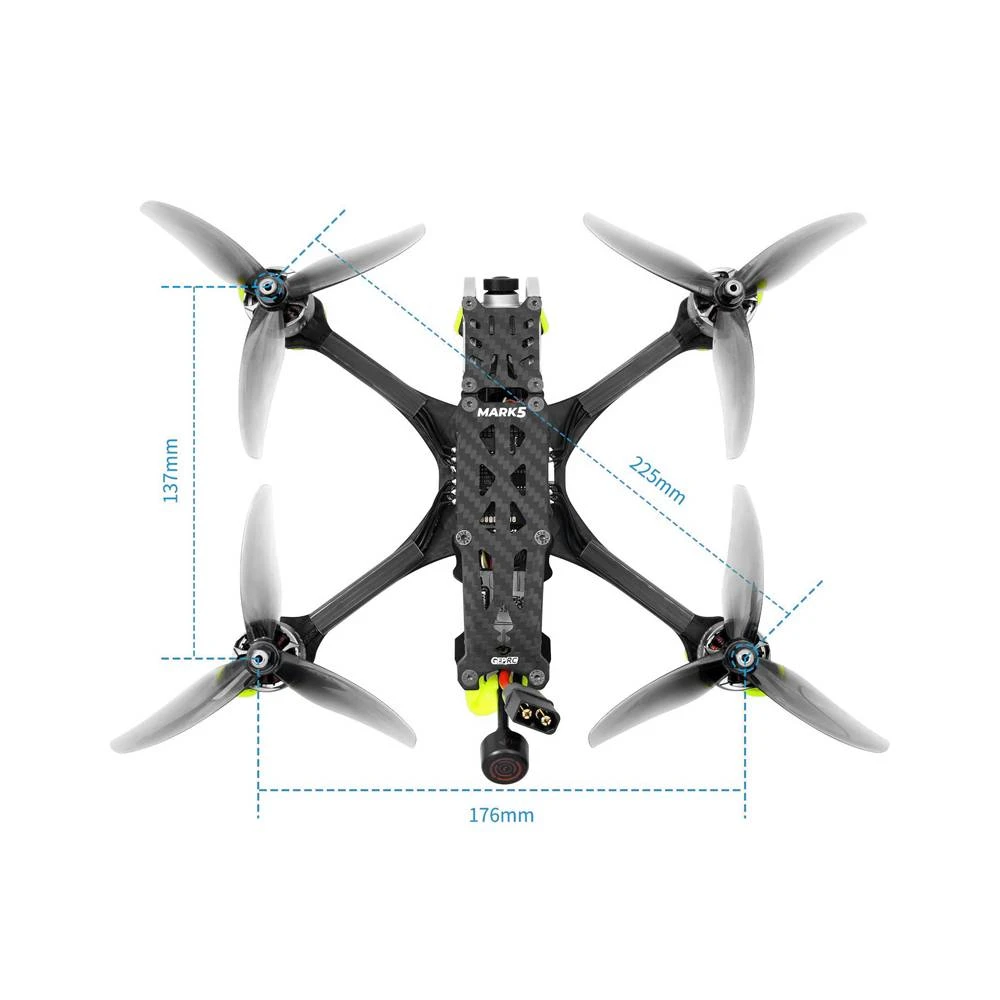

• Wheelbase: 225mm
• MCU: STM32F722
• Frame: GEP-MK5
• Top plate: 2.5mm
• Arm plate: 5mm
• Brand: GEPRC
• Gyro: 6-Axis
• VTX: VISTA

Recommended (Not Included)

• Battery: LiPo 6S 1050mAh-1550mAh (6S Version)

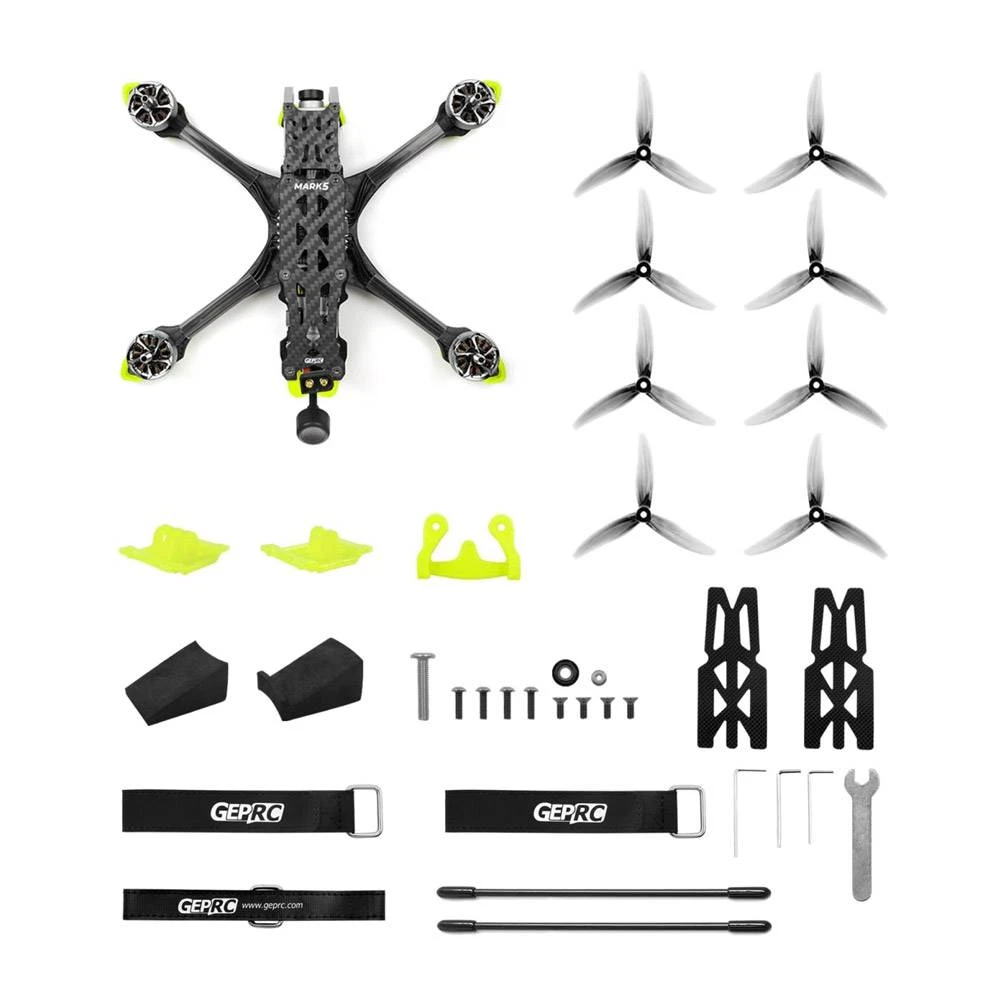

Includes

• 1x GEPRC Mark5 HD Vista Freestyle FPV Drone – 6S
• 4x GEPRC Freestyle 4S Propellers Set of 4
• 1x Carbon Camera Cage Top Plate
• 2x Action Camera Mount Holder
• 1x Antenna Fixed Tube
• 1x 3d Printed Part Set
• 1x Hardware Kit
• 1x Screwdriver
• 2x Battery Pad
• 3x LiPo Straps
