GEPRC Mark5 HD Freestyle FPV Drone W/ RunCam Wasp + Vista – 6S

GEPRC has launched the Mark5 HD Vista Freestyle, which is a stable, durable, and perfectly structured freestyle quad that features the RunCam Wasp Camera with Caddx Vista. The MARK5 is developed specifically for freestyle with a squashed X-arm design. The unique shock-absorbing structure design, fewer vibrations, and resonance provides a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-HD-BT FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motors, has great explosive power and very fast response speed. The new GEMFAN Freestyle 4S propellers provide a delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that can be fitted with GoPro8/9/10, Naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras.

After continuous testing and tuning by the GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug in the battery, and have fun!

• Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motors, has great explosive power and very fast response speed.
• Shipped with two different 3D printed action cam mounts that can be fitted with GoPro, Naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras.
• Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
• The new GEMFAN Freestyle 4S propellers provide a delicate and silky smooth flight experience.
• Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
• Changelog – May 2022: Gyroscope changed from MPU6000(SPI) to 6-Axis.
• Unique shock-absorbing structure design, fewer vibrations, and resonance.
• MARK5 is the most ideal for freestyle flying and bando-bashing resistance.
• The HD version comes with the Caddx Vista & the RunCam Wasp camera.
• A variety of receiver choices including our brand new ExpressLRS Rx.
• Developed specifically for freestyle with a squashed X-arm design.
• Supports Bluetooth wireless connection for easy field tuning.

• Weight: 385.5g (MARK5 HD VISTA 6S PNP including 3D print)
• Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• Motor: SPEEDX2 2107.5-1960KV (6S Version)
• Receiver: PNP, TBS Crossfire, ELRS 915
• OSD: BetaFlight OSD w/AT7456E chip
• Model: MARK5 HD Vista Quadcopter
• FC system: SPAN F722-HD-BT FC
• Camera: RunCam Wasp Camera
• Charge connector: XT60
• Propeller: Freestyle 4S
• Bottom plate: 2.5mm
• Wheelbase: 225mm
• MCU: STM32F722
• Frame: GEP-MK5
• Top plate: 2.5mm
• Arm plate: 5mm
• Brand: GEPRC
• Gyro: 6-Axis
• VTX: VISTA

• Battery: LiPo 6S 1050mAh-1550mAh (6S Version)

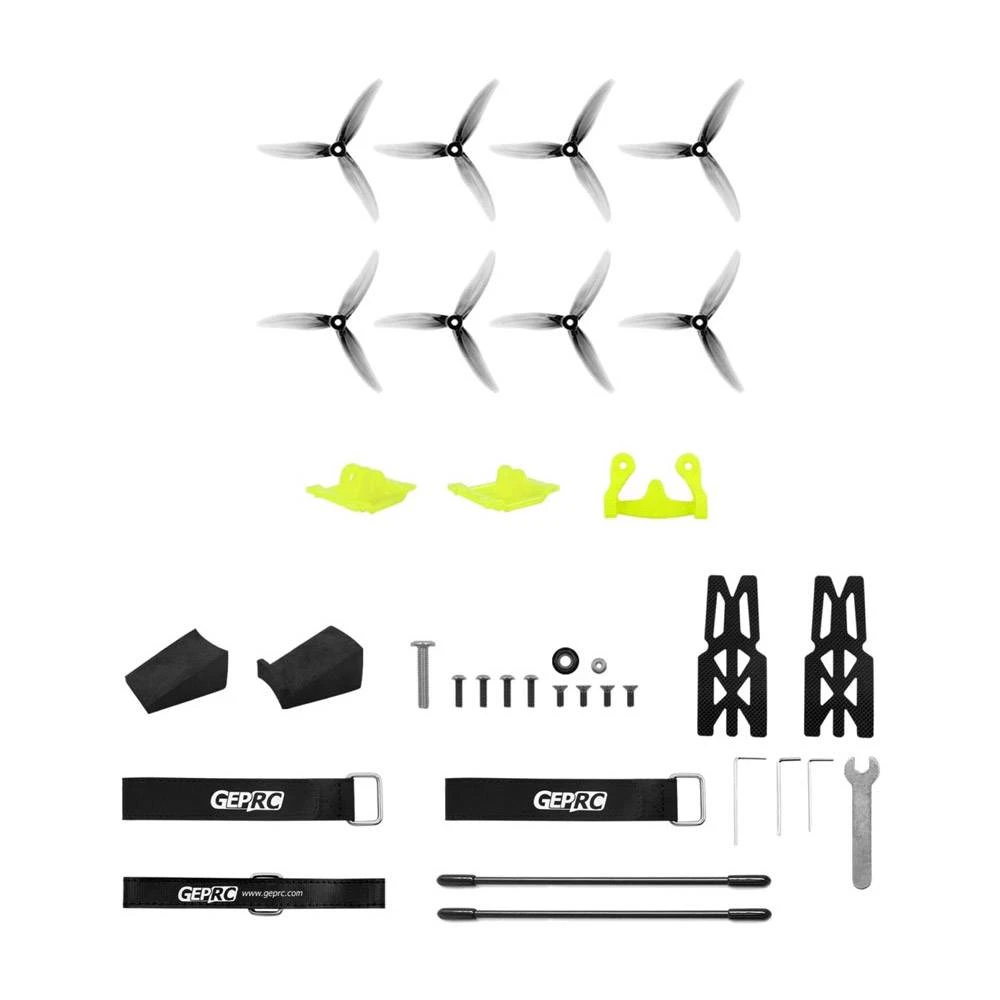

• 1x GEPRC Mark5 HD Freestyle FPV Drone w. RunCam Wasp + Vista – 6S
• 4x GEPRC Freestyle 4S Propellers Set of 4
• 1x Carbon Camera Cage Top Plate
• 2x Action Camera Mount Holder
• 1x Antenna Fixed Tube
• 1x 3d Printed Part Set
• 1x Hardware Kit
• 1x Screwdriver
• 2x Battery Pad
• 3x LiPo Straps
