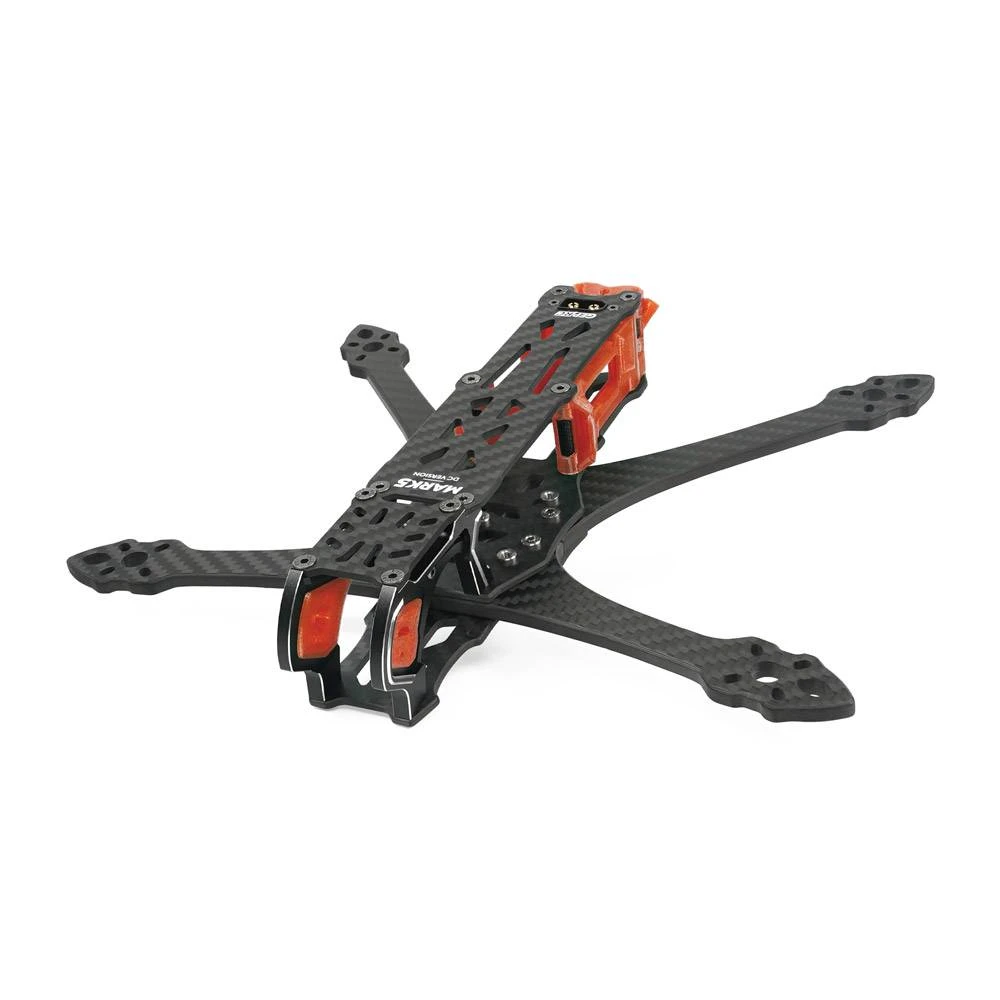

GEPRC Mark5 Standard DC O3 Frame – Coral Orange

The GEPRC Mark5 Standard DC Frame has a newly upgraded 7075-T6 aluminum alloy camera side plate. This drone is fully adapted to carry DJI’s new O3 camera. Specially designed TPU parts were designed for mounting the O3 VTX module, equipped with an air inlet cooling port, which is conducive to adequate heat dissipation. The DC structure has a wide and unobstructed viewing angle during flight, which is suitable for O3 internal video recording and direct output. MARK5 O3 is shipped with two different camera mounts, which can be mounted with a full range of GoPro action cameras, as well as Naked GoPro 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

Note: This standard version comes without 3D-printed skids or action camera mounts.

• DC structure is suitable for O3 internal recording when no propeller is visible during flight
• Developed specifically for freestyle with deadcat squashed X-arm design
• Standard version frame (no action camera mounts or skids)
• Upgraded lens aluminum alloy side plate
• Independent capacitor and buzzer cabin
• Shock absorption design
• Coral Orange version

• FC mounting holes: 30.5mm x 30.5mm
• Dimension: 208mm x 193mm x 42mm
• Suitable propeller size: 5″propeller
• Camera installation space: 20mm
• Standard Version Weight: 141.9g
• Bottom plate: 2.5mm
• Wheelbase: 230mm
• Top plate: 2.5mm
• Arm plate: 5mm

FRAME

• 1x 2.0mm front protection plate
• 1x 2.5mm front bottom plate
• 1x 2.5mm rear bottom plate
• 1x Camera aluminum part
• 1x 2.0mm small top plate
• 1x 2.5mm large top plate
• 1x 5.0mm arm limit plate
• 2x 5.0mm front arms
• 2x 5.0mm rear arms
• 1x Set of screws

3D PRINTED PARTS

• 1x Camera vibration reduction mount
• 1x VTX antenna mount
• 1x TBS antenna mount
• 1x O3 VTX mount

ACCESSORIES

• 8x M3x8 flight controller shock-absorbing ball
• 4x 10x50mm motor hubs

OTHER ACCESSORIES

• 1x EVA camera base (with backrest)
• 1x 1.5mm L-type screwdriver
• 1x 2.0mm L-type screwdriver
• 1x M15x250 Batteries straps
• 2x M20x250 Batteries straps
• 4x 10x50mm Motor hubs
• 1x 3M double-sided tape
• 2x Battery non-slip mat
• 8x EVA Tripod Shocks
• 1x Antenna fixed tube
• 1x EVA camera base
