GEPRC SMART 16 1.6" Nano Freestyle Drone Analog W/ Caddx Ant

Introducing… the GEPRC SMART 16 Analog Freestyle! The brand new 1.6-inch mini Freestyle Quadcopter is a tiny, lightweight freestyle FPV addition to the GEPRC Phantom series.

The SMART 16 continues the consistent lightweight design concept of the Phantom series. The 1.5mm carbon fiber arm, with a 1mm top plate, allows it to be lightweight and tough at the same time. GEPRC used high-potential 11000Kv 0803 brushless motors paired with 1610 props, so you can easily freestyle in your favorite field or bando. This drone comes with a 3D printed battery holder and can be powered by a 2S 380mAh battery, which consists of two 1S batteries in series, making it weigh as little as 53.0g, and providing you with 4 minutes of flight time.

Note: Batteries not included.

VIDEO: Nano Size FPV Freestyle Drone – GEPRC Smart 16 – Full Review

Features

• Independent battery compartment design can be stacked on top or bottom, making it easy and convenient to switch batteries.
• The latest 0803 motors are matched with 1610-2 propellers proving maximum power and efficiency
• Includes a full set of high-quality 3D printed parts for a superior flying experience
• Equipped with 200mW 5.8G VTX, with 6 frequency bands and 8 frequency point selection
• Caddx Ant camera with a high-quality image. Clear and clean!
• Uses two 1S batteries in series for greater power output
• Suitable for both freestyle and racing
• 1.6-inch tiny size + Lightweight 36g

Specifications

• Receiver version: PNP, ExpressLRS 2.4G, or TBS Crossfire Nano RX
• ESC: STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)
• VTX: STABLE F411 VTX 5.8G 200mW(16*16mm)
• OSD: BetaFlight OSD w/AT7456E chip
• Antenna: UFL 5.8G stick VTX antenna
• FC: STABLE F411 FC (16*16mm)
• Bottom plate thickness: 1.5mm
• Top plate thickness: 1.0mm
• Motors: GR0803-11000KV
• Propeller: GemFan 1610-2
• Wheelbase size: 78mm
• Arm thickness: 1.5mm
• IMU: MPU6000(SPI)
• Camera: Caddx Ant
• Frame: GEP-ST16
• MCU: STM32F411
• Model: SMART16
• Weight: 36.0g

Recommended

• 380mAh 2S 90c XT30

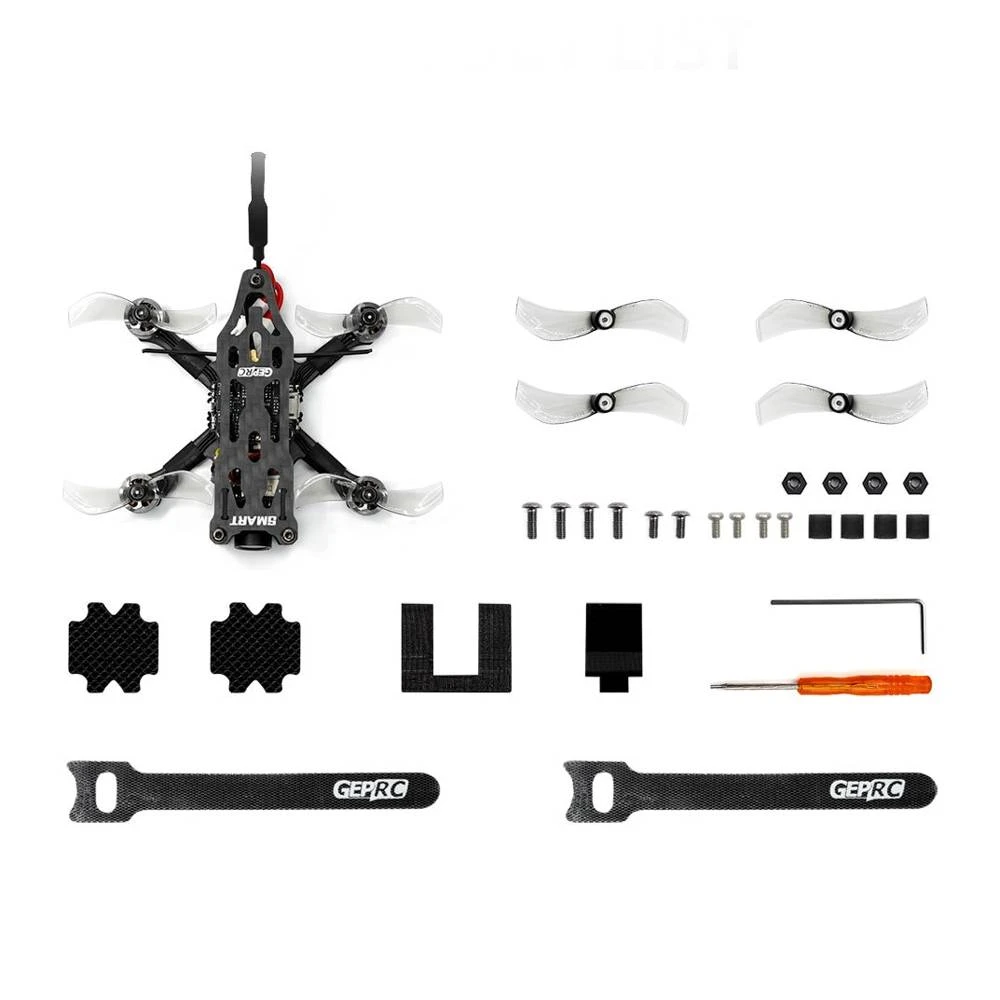

Includes

• 1x GEPRC SMART 16 Analog 1.6″ Nano Freestyle Drone w/ Caddx Ant (Receiver Optional)
• 1x GemFan 1610-2 propellers (Set of 4)
• 1x M12x120mm LiPo strap
• 1x 3D Printed Part Set
• 1x Hardware Set
• 1x Screwdriver
• 1x Battery Pad
