Happymodel CINE8 85mm Brushless CineWhoop DIY Kit W/ Caddx Ant Nano FPV Camera

The CINE8 85mm Cinewhoop DIY Kit by Happymodel was designed to be very easy to build for beginners. No soldering work is needed, plug and play, and you are ready to go!

this DIY kit is equipped with high-performance and durable components, like the CRAZYBEE F4 V3.1 Flight Controller, Onboard 12A 4-in-1 ESC, 5.8G 40CH 400mw VTX, Caddx ANT 1200TVL Camera, and more!  The frame is made out of high-precision TPU 3D printing, fixed with carbon fiberboard, and uses integral foam to prevent a collision. With the CINE8 DIY Kit, every FPV pilot could enjoy the fun of building their own FPV Cinewhoop!

Receiver options: SPI Frsky, Crossfire

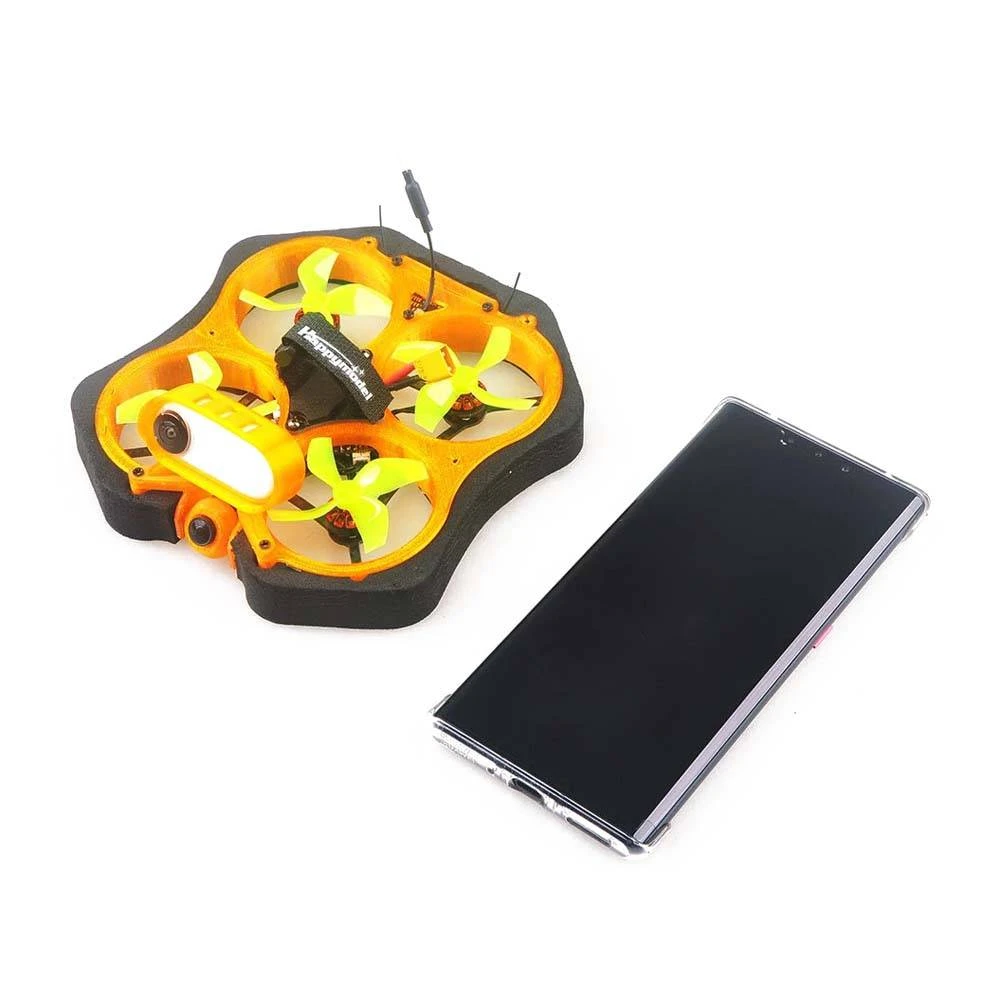

Note: This is a DIY Kit, the drone comes unassembled. Insta360 GO camera and SMO 4K camera NOT included.

Video

Features

• No Solder work needs and easy to build
• Very reliable and resistant to drops
• Stable and smooth flying
• Insta360 fixed mount ready
• Smooth and powerful
• Diversity SPI Receiver compatible Frsky/S-FHSS/Redpine protocol

Specifications

• Brand Name: Happymodel
• Item Name: Cine8
• Wheelbase: 85mm
• Size: 145mmx140mmx23mm
• Weight: 73g(without battery)

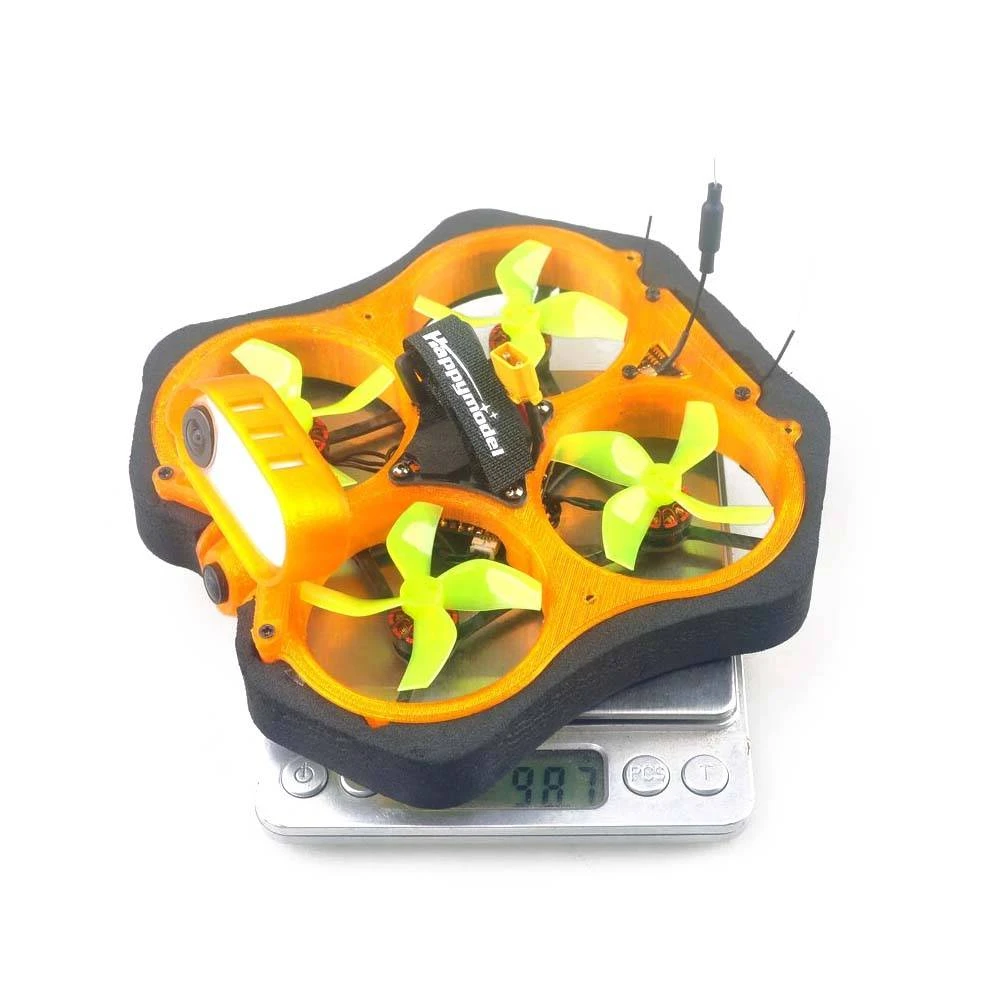

• Weight: 99g(with Insta360)

RECEIVER OPTIONS

• Internal SPI Frsky version (Compatible with Frsky ACCST D8/D16, S-FHSS, Redpine)
• External TBS Crossfire Nano receiver version

EX1202.5 8000KV MOTOR

• Model: EX1202.5
• ItemName: 1202.5 8000KV 2-3 Brushless Motor
• No.of Cells: 2-3S Lipo
• Configu-ration:9N12P
• Stator Diamter:12mm
• Stator Length:2.5mm
• Shaft Diameter:Φ1.5mm
• Motor Dimension(Dia.*Len): Φ14×14.5mm
• Weight: 4.4g

GEMFAN D51 2020 4-BLADE PROPELLER

• Material: PC
• Weight:0.91g
• Pitch:2in
• Props Dia:50.3mm
• Center Thickness:4.5mm
• Center Hole Dia:1.5mm 3 holes

CRAZY F411 PRO V1.1 AIO:

FLIGHT CONTROLLER

• • Yaw Degrees should be set to “-90 degrees” to match the flight direction
  • Built-in Frsky D8/D16 SPI receiver built-in 2.4G Power Amplification
  • Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Power supply: 2-4S battery input (DC 8V-17V)
  • Built-in Betaflight OSD(SPI Control)
  • Firmware target: MATEKF411RX
  • Sensor: BMI270 or ICM42688P
  • Board size: 28.5 * 28.5MM
  • Built-in voltage detection
  • Built-in Current meter
  • Built-in 5V 1.5A BEC

ESC

• • Current: 20A continuous peak 25A (5 seconds)
  • Power supply: 2-4S LiPo/LiPo HV (7v/17v)
  • Factory firmware: F_H_40_REV16_7.HEX
  • Support BLHeliSuite programmable
  • MCU upgraded to EFM8BB21
  • Default protocol: DSHOT600

•

EXTERNAL TBS CRSF NANO RECEIVER

• Original TBS CROSSFIRE Receiver, CRSF Protocol, Official TBS transmitter compatible

5.8G 40CH 400MW VTX

• Output power: 25mw~400mw switchable
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 400mA(type)
• Frequency: 5.8GHz 5bands 40 channels
• With Race band
• SmartAudio ready

CADDX ANT 1200TVL CAMERA

• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC or PAL
• IMAGE: 16:9 or 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio : >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Min. Illumination: [email protected]
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm(with a bracket to 19*19mm)
• Wide Power Input: DC 3.7-18V
• Work Temperature: -20℃~+60℃
• Weight: 2g (N.W.)

BATTERY

• Tattu 3S 11.4V 450mAh Lipo Battery

Includes

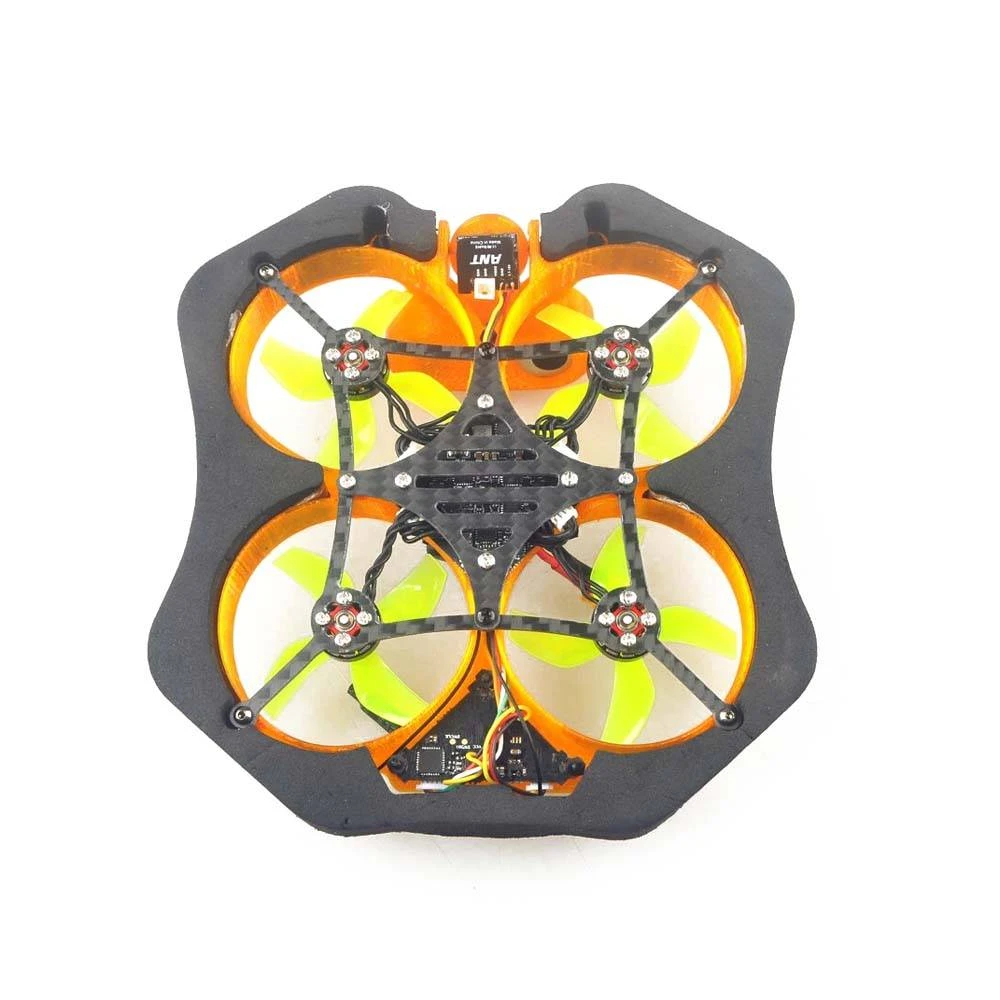

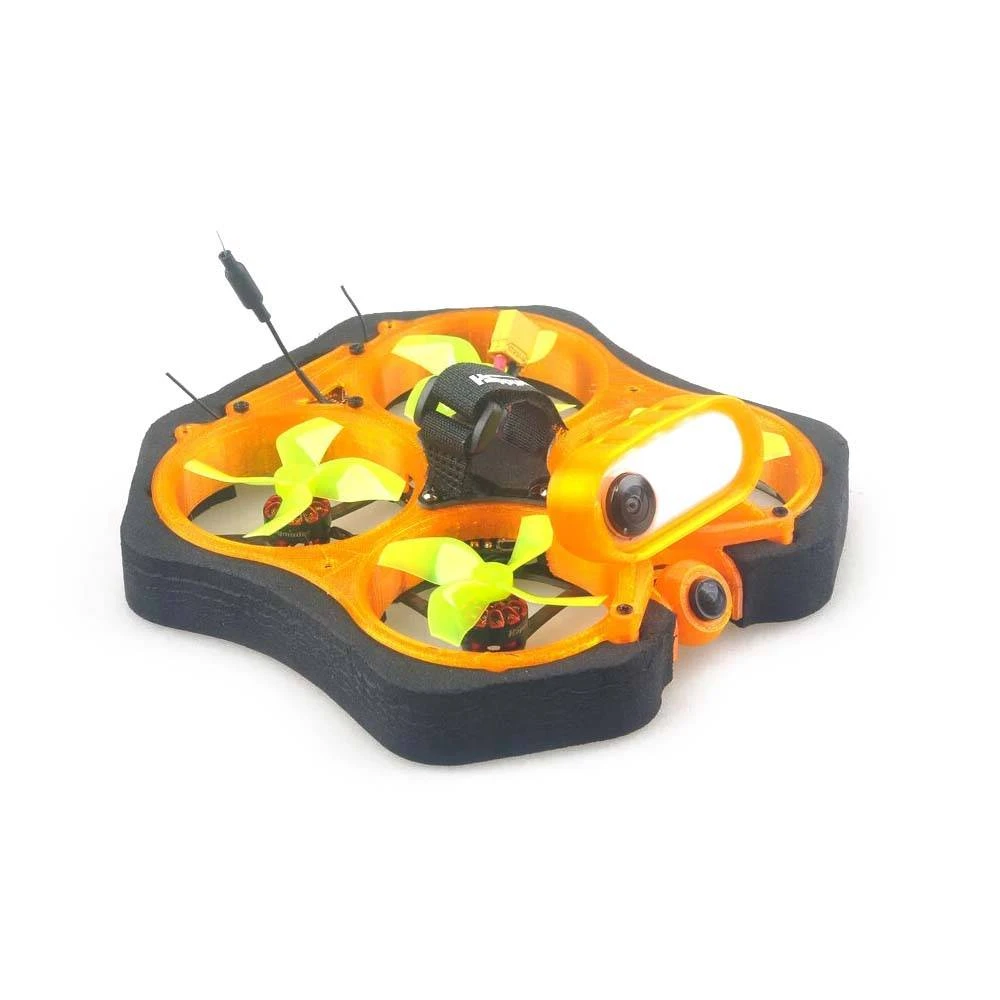

• 1 x Cine8 Frame

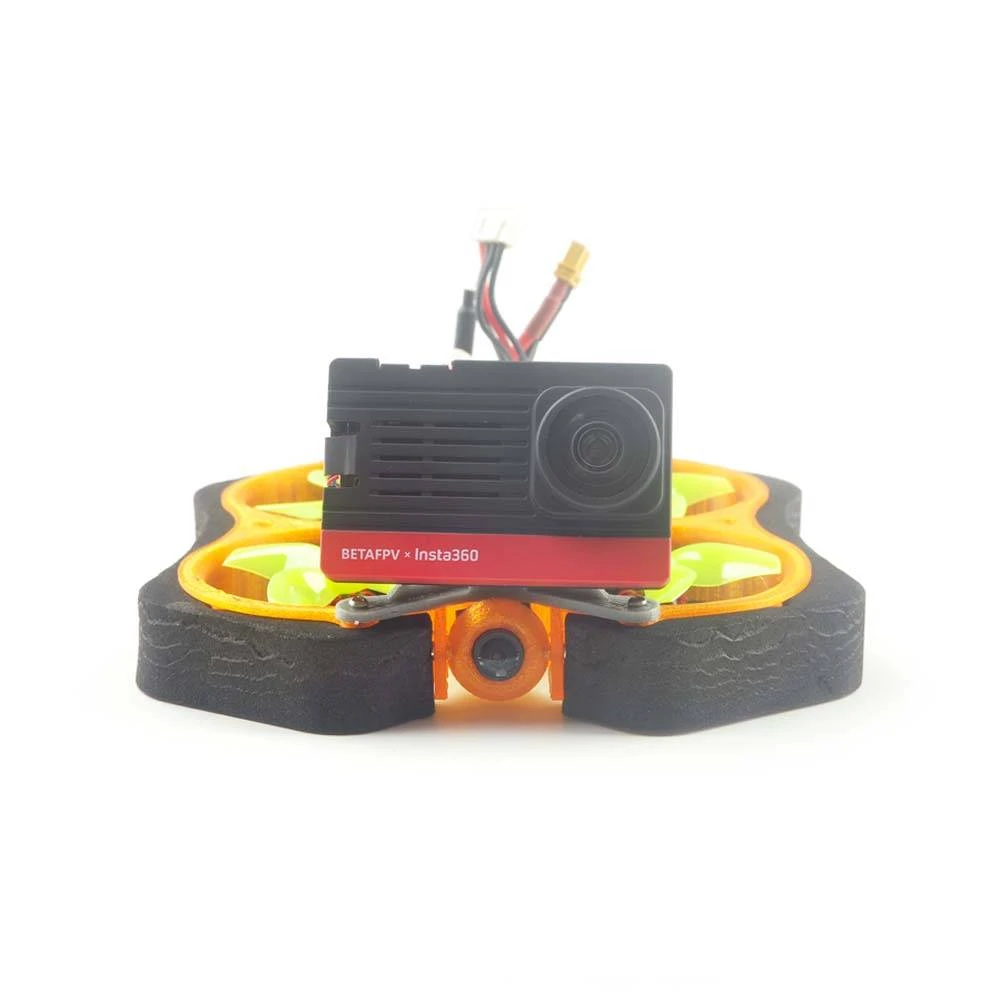

• 1 x 3D print TPU Insta360 go fixing mount for CINE8
• 4 x Happymodel EX1202.5 KV8000 brushless motor
• 1 x Gemfan D51(2020-4) Cinewhoop Props
• 1 x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
• 1 x 5.8G 25mw~400mw Whoop_VTX_HP

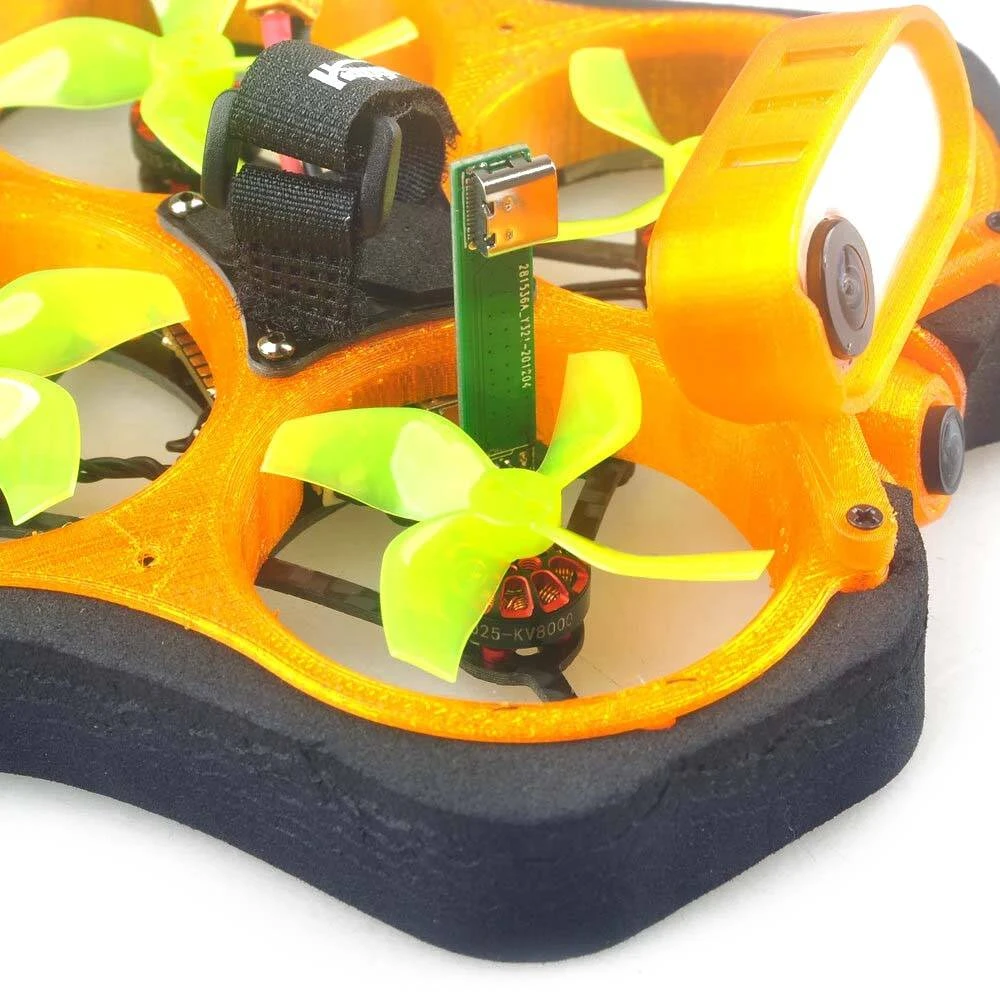

• 1 x TypeC USB Adapter
• 1 x Tattu 3S 11.4V 450mah battery
