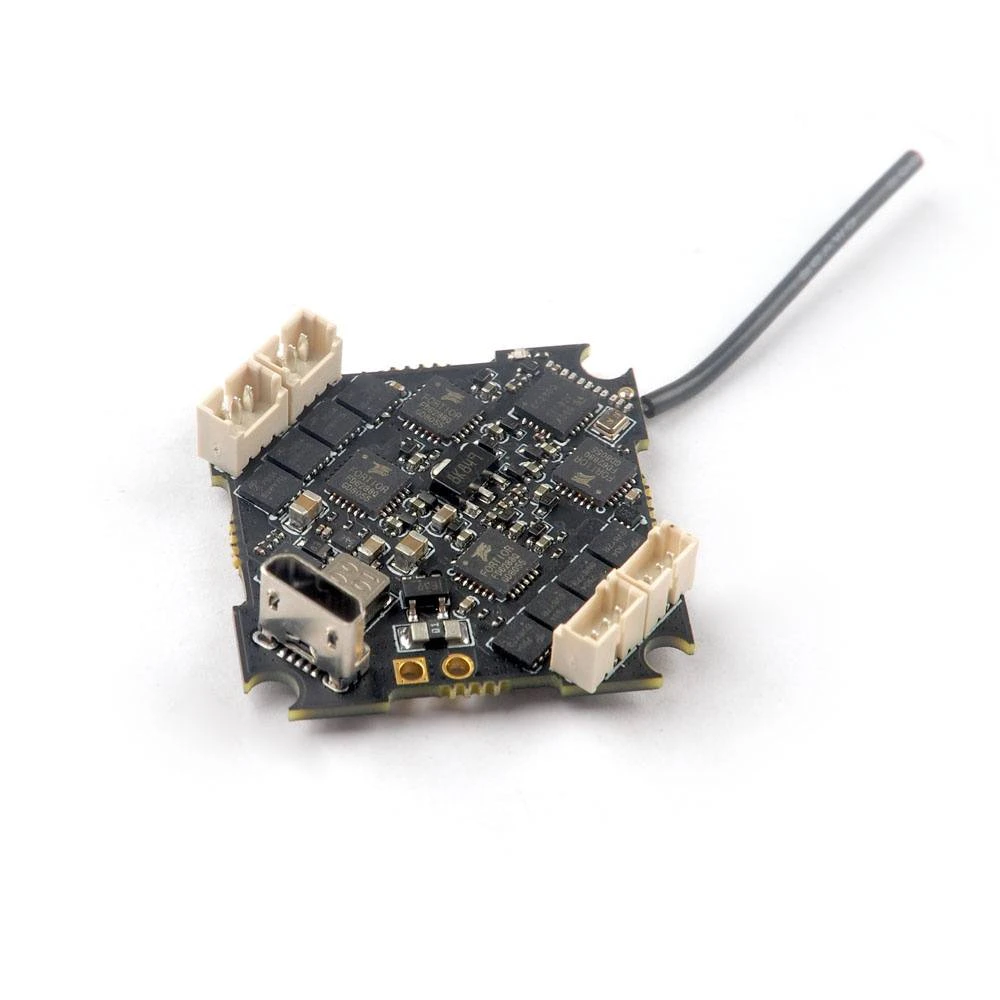

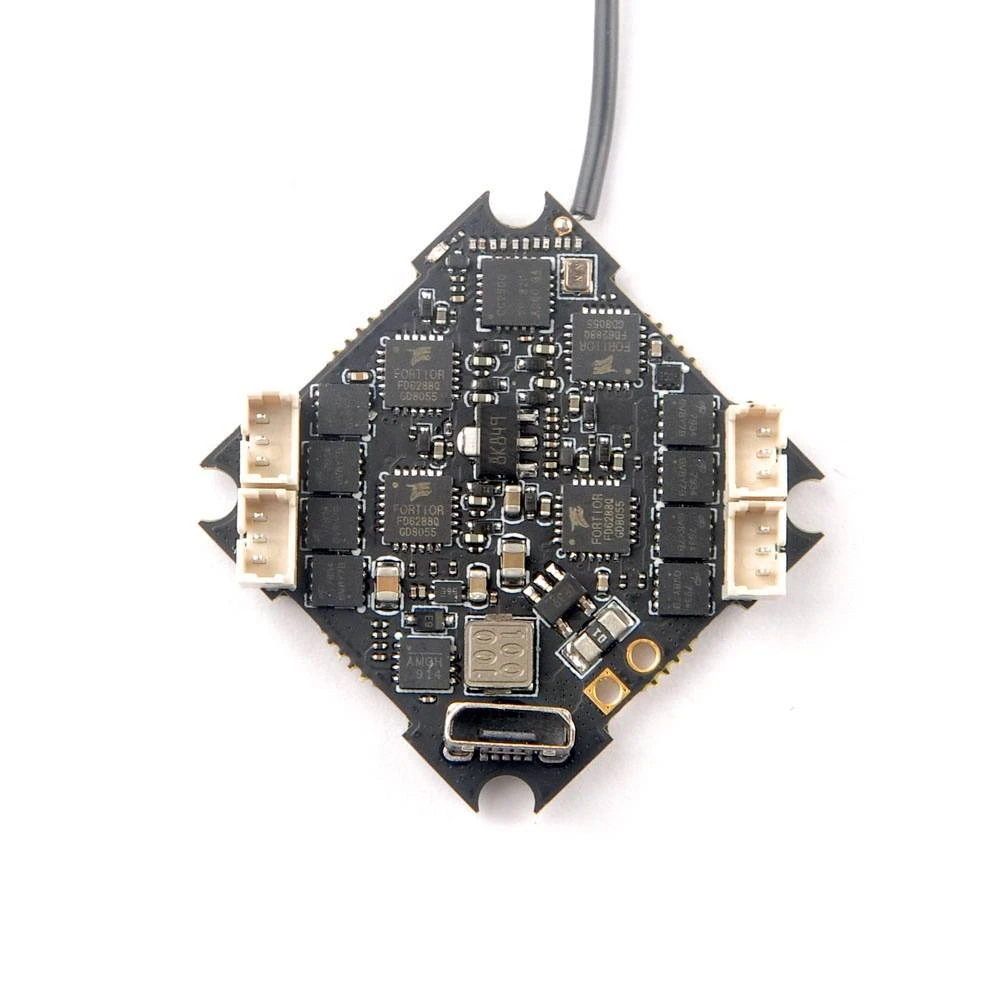

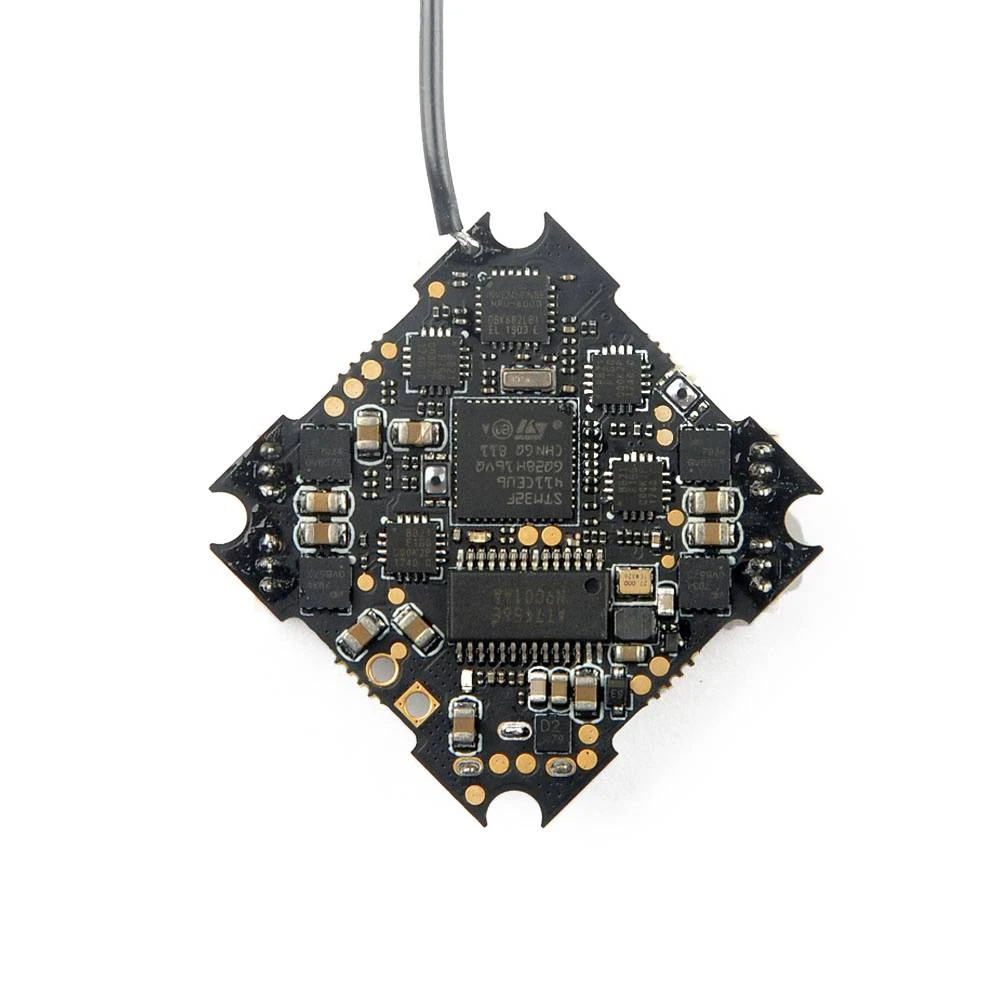

Happymodel Crazybee F4 Pro V3.0 2-4S AIO Flight Controller – Flysky

The Crazybee F4 Pro V3.0 AIO FC is perfect for the Larva-X and Mobula6 Whoops! This FC features AFHDS and AFHDS-2A switchable, failsafe support, and no ground interference from the transmitter and the receiver.

Specifications

• Board size: 28.5 * 28.5MM
• Power supply: 2-4S battery input (DC 7-17V)
• Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
• Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
• Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
• No RX version need to add external Receiver
• Built-in Betaflight OSD(SPI Control)
• Built-in Current meter Max 70A
• Current meter scale set to 470
• Built-in 5V 1A BEC
• Built-in voltage detection
• MCU upgraded to EFM8BB21
• Power supply: 2-4S LiPo/LiPo HV (7v/17v)
• Current: 10A continuous peak 12A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: F_H_40_REV16_5.HEX
• Default protocol: DSHOT600

 Recommend Battery (Not Included)

• 2S 450mah/550mah
• 3S 300mah/350mah/450mah
• 4S 300mah/350mah

Notes: If used 3inch propellers, Happymodel recommends use 2-3S only

FRSKY SPI BUS receiver

• SPI BUS receiver
• Protocol: AFHDS and AFHDS-2A Switchable
• Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
• No ground interference ( Transmitter and receiver 1 m from the ground): 300m
• Failsafe support

Firmware

• (Flysky version) Crazybee F4PRO V3.0 Firmware target: CrazybeeF4FR

Includes

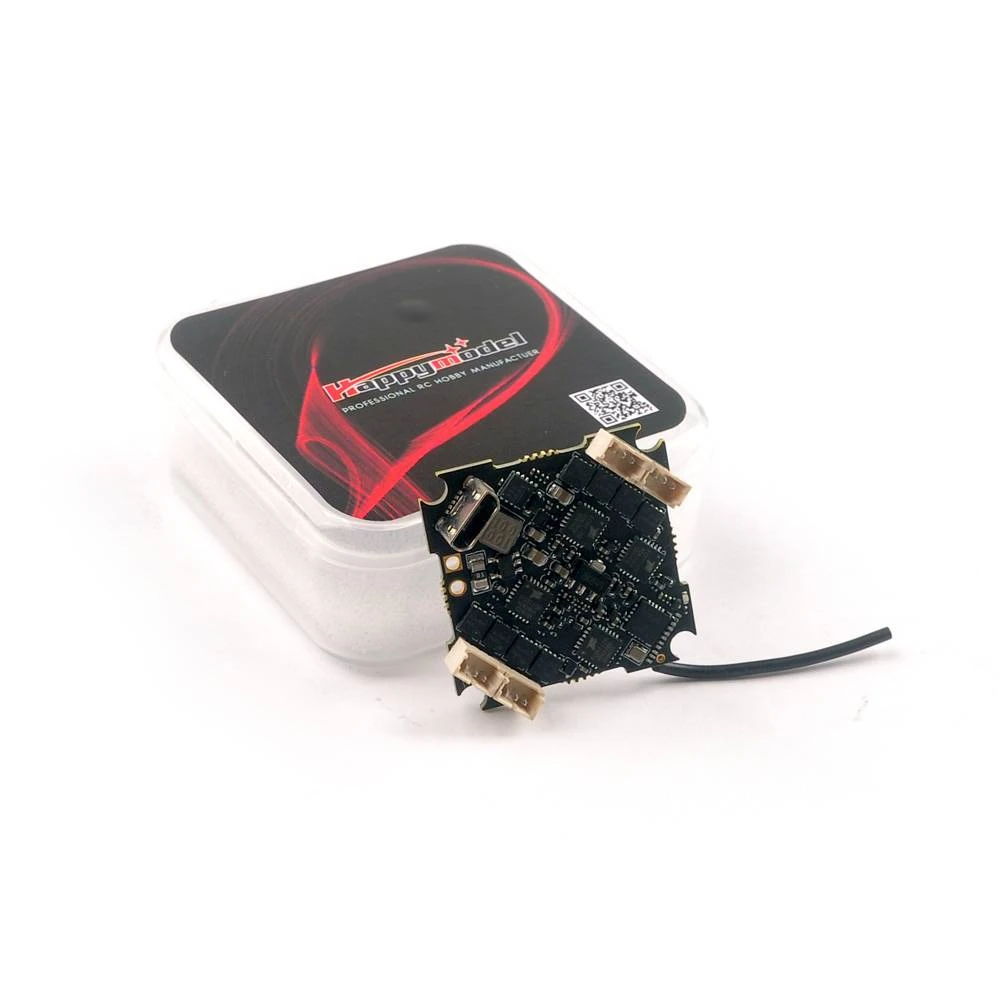

• 1 x HappyModel CrazyBee F4 Pro V3 AIO Whoop Flight Controller
• 1 x XT30 Pigtail
• 1 x Hardware Set
