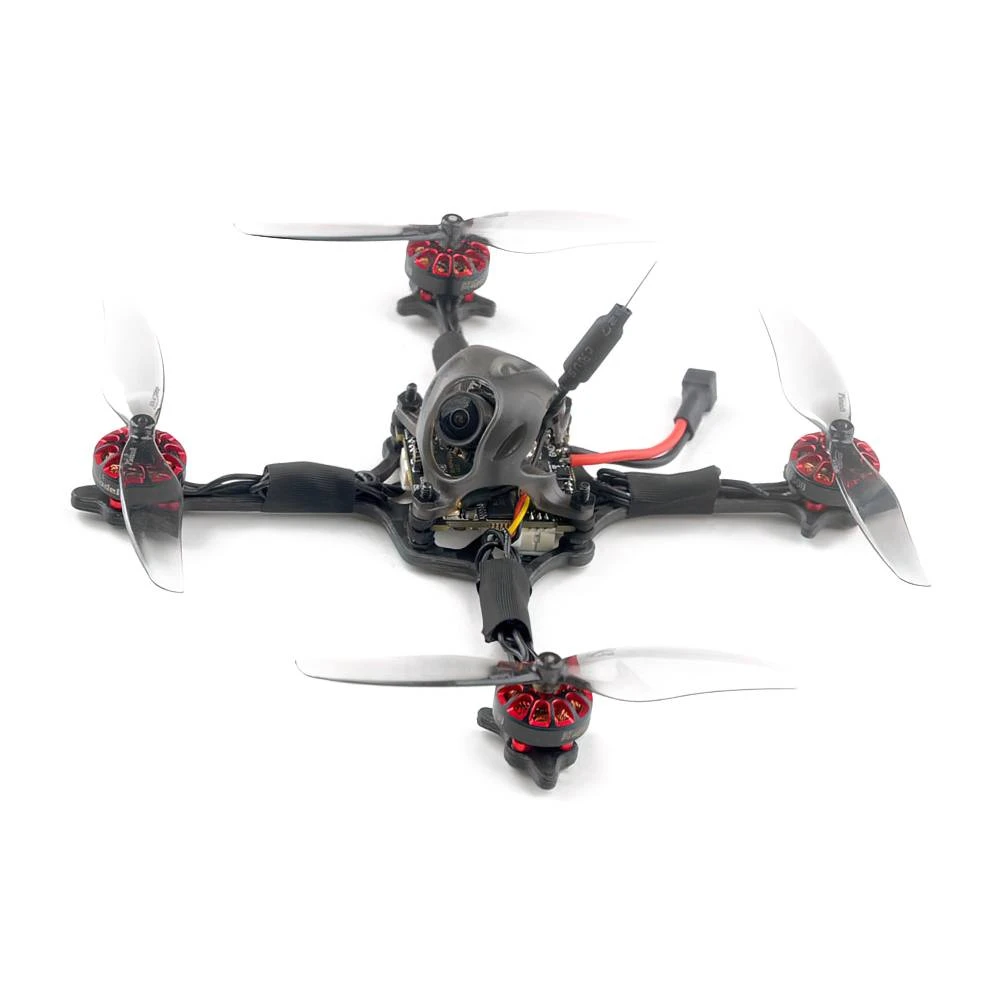

Happymodel Crux3 ELRS 1S Toothpick FPV Racing Drone – BNF

The Happymodel Crux3 ELRS 1S Toothpick is an excellent micro racing drone that comes with the Crazybee flight controller, EX1202.5 brushless motors, ELRS, and the Caddx Ant Camera to give you a great flying experience!

Note: Action Cameras are not included.

VIDEO: ExpressLRS Makes The Difference // Crux3 1S ELRS // No More Range Issues

Features

• AIO Crazybee flight controller with ELRS Receiver and 5.8GHz VTX

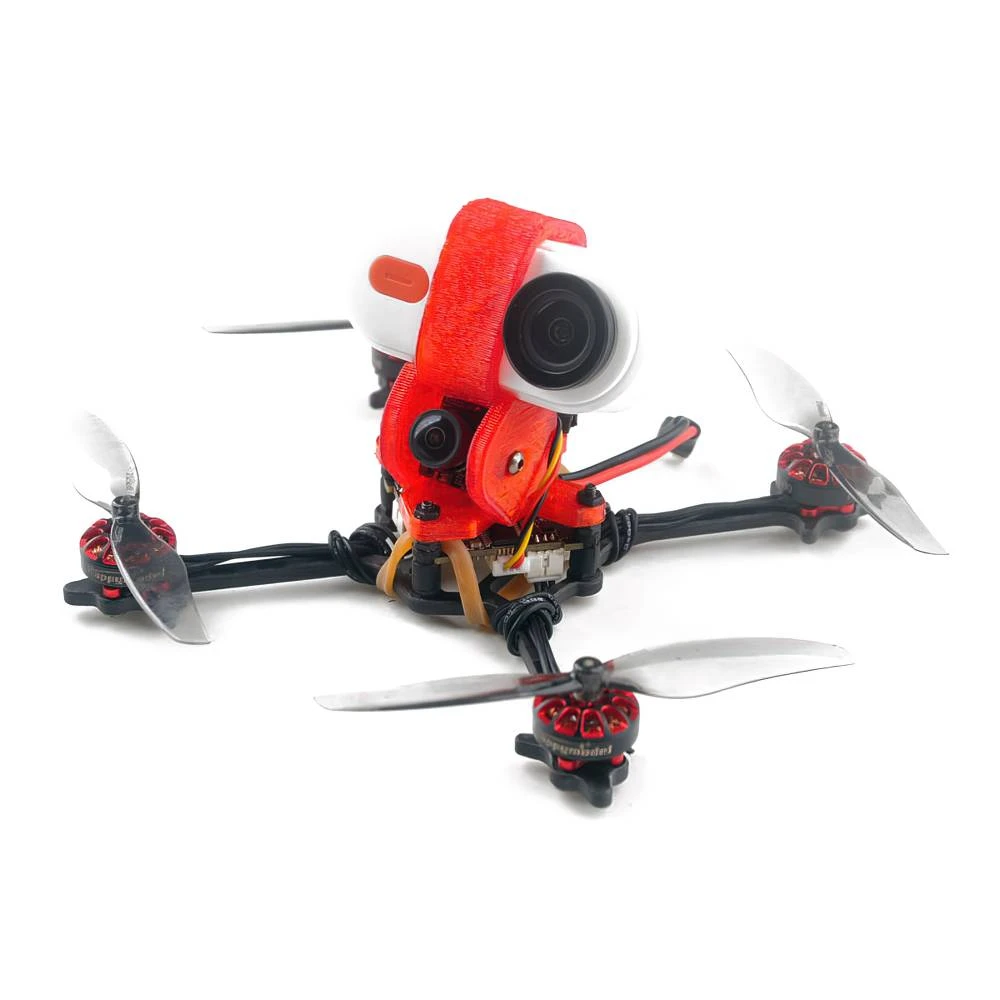

• Compatible with Insta360 Go 2/ Caddx Peanut Camera
• New 1202.5 11500KV brushless motor
• 40g 1S Brushless Toothpick drone
• Caddx Ant Camera

Specifications

• Size: 97x97x35mm (without propellers)
• Weight: 40g (without battery)
• Wheelbase: 115mm

ONBOARD SPI EXPRESSLRS 2.4GHz RECEIVER

• Can be bound with All ExpressLRS 2.4GHz TX module, ExpressLRS firmware need 1.0.0 or the latest
• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• Receiver protocol to flight controller: CRSF
• Telemetry output Power: <12dBm
• Antenna: SMD antenna
• RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Factory firmware: O_H_5_REV16_7.HEX
• Support BLHeliSuite programmable
• MCU upgraded to EFM8BB21
• Default protocol: DSHOT300

CADDX ANT 1200TVL CAMERA

• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• Dimensions: 14*14mm(with a bracket to 19*19mm)
• TV System: NTSC or PAL Switchable
• Image Sensor: 1/3″ CMOS Sensor
• Min. Illumination: [email protected]
• Work Temperature: -20℃~+60℃
• Horizontal Resolution: 1200 TVL
• Wide Power Input: DC 3.7-18V
• S/N Ratio : >52dB (AGC OFF)
• Synchronization: Internal
• Auto Gain Control: YES
• Video Output: CVBS
• WDR: Global WDR
• DNR: 3D DNR
• Lens: 1.8mm
• IMAGE: 4:3
• Weight: 2g
• BLC: YES

CRAZYBEE FLIGHT CONTROLLER

• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in SPI ExpressLRS 2.4GHz receiver
• Firmware target: CRAZYBEEF4SX1280
• Sensor: MPU-6000(SPI connection)
• Built-in Betaflight OSD(SPI Control)
• Built-in 5V 1A BECFlight controller
• Original whoop size compatible
• Built-in 5.8G VTX

EX1202.5 11500KV MOTOR

• Motor Dimensions: Φ14*14.5mm
• Shaft Diameter: Φ1.5mm
• Stator Diameter: 12mm
• Stator Length: 2.5mm
• No.of Cells (Lipo): 1S
• Configuration:9N12P
• Weight: 4.4g

ONBOARD 5.8G 40CH 25/200mW VTX

• Output power: 25mw~200mw switchable
• Frequency: 5.8GHz 5bands 40 channels
• Current consumption: 300mA (type)
• Input voltage: 3.3V 5.5V
• Smart audio ready
• Frequency: 40CH
• With Race band

GEMFAN 75mm PROPELLERS

• Center Hole diameter:1.5mm
• Center Thickness:5mm
• Prop Diameter:75mm
• Pitch:0.9in

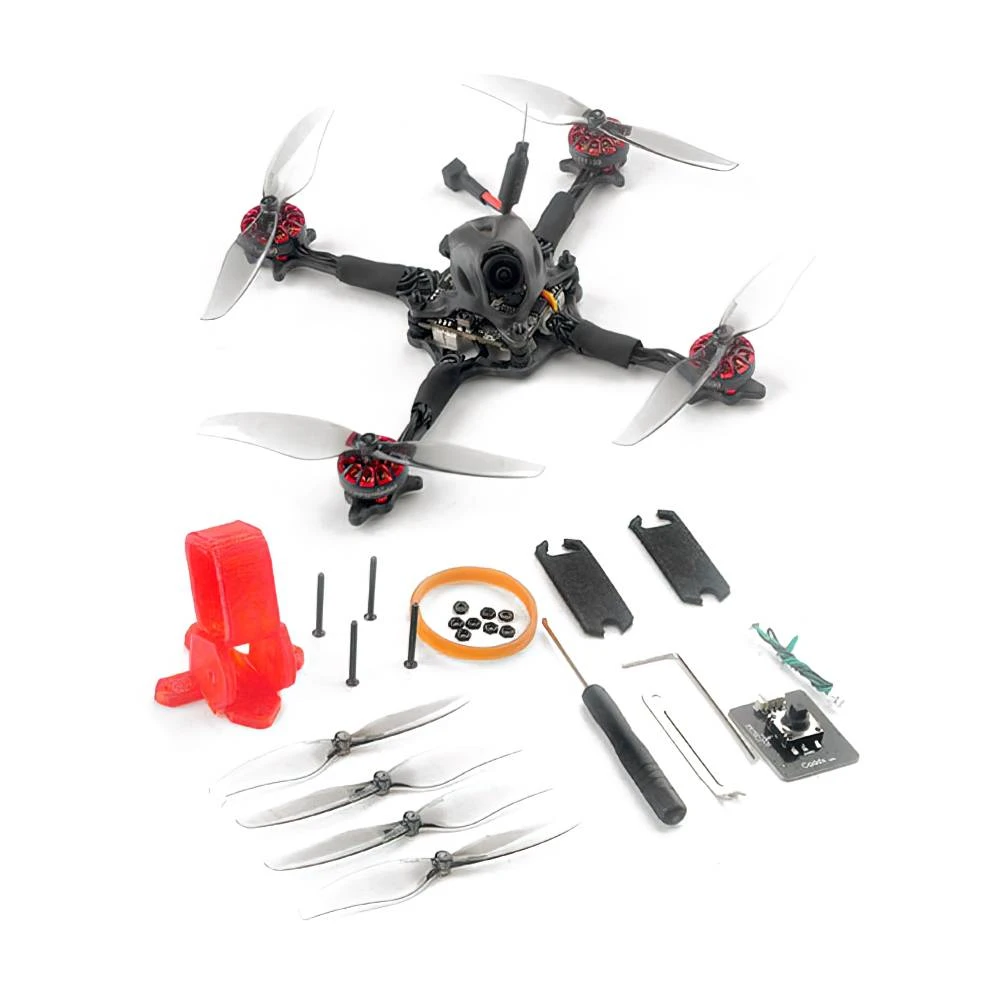

Includes

• 1 x Happymodel Crux3 ELRS 1S Toothpick FPV Racing Drone – BNF
• 1x 3D Printed Camera Mount (Insta360 Go 2/Caddx Peanut)
• 1x Happymodel Zippered Carrying Case
• 2x Gemfan 75mm Propellers (Set of 4)
• 1x Caddx 5D OSD Menu Board
• 1x Accessories Kit
