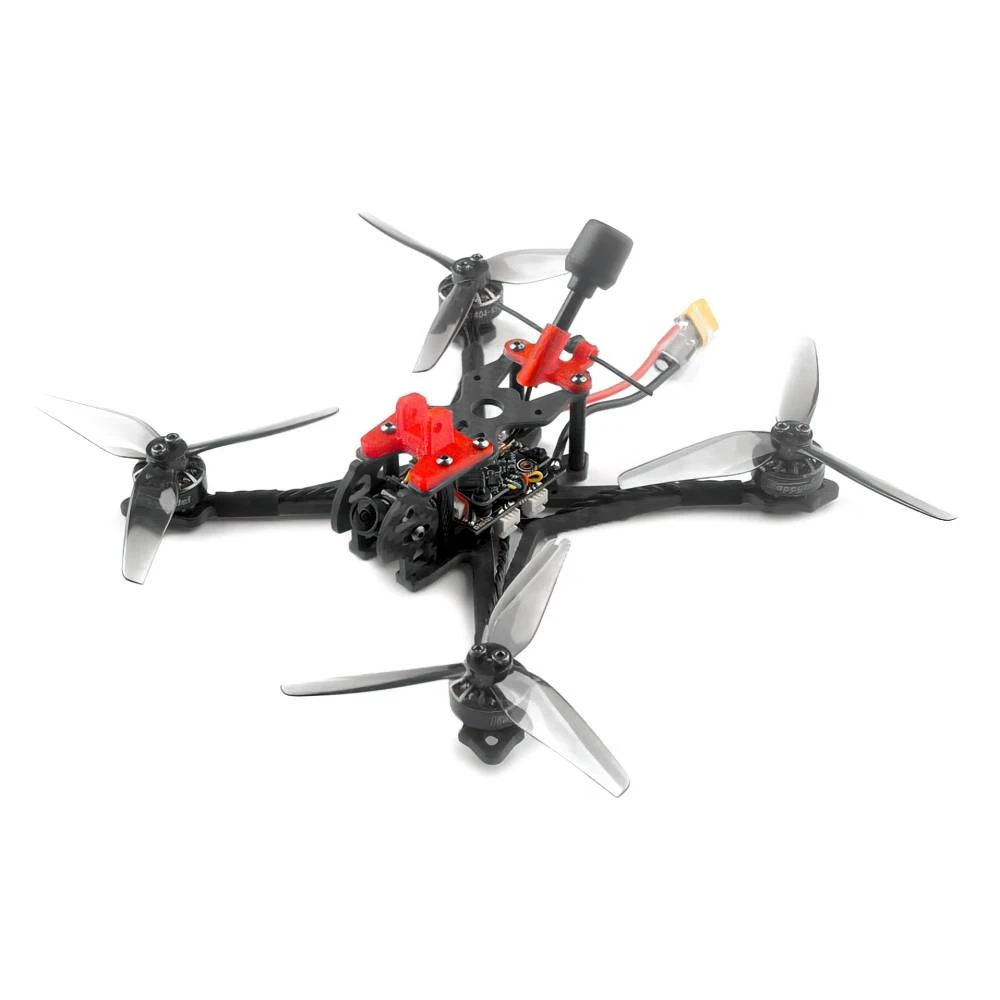

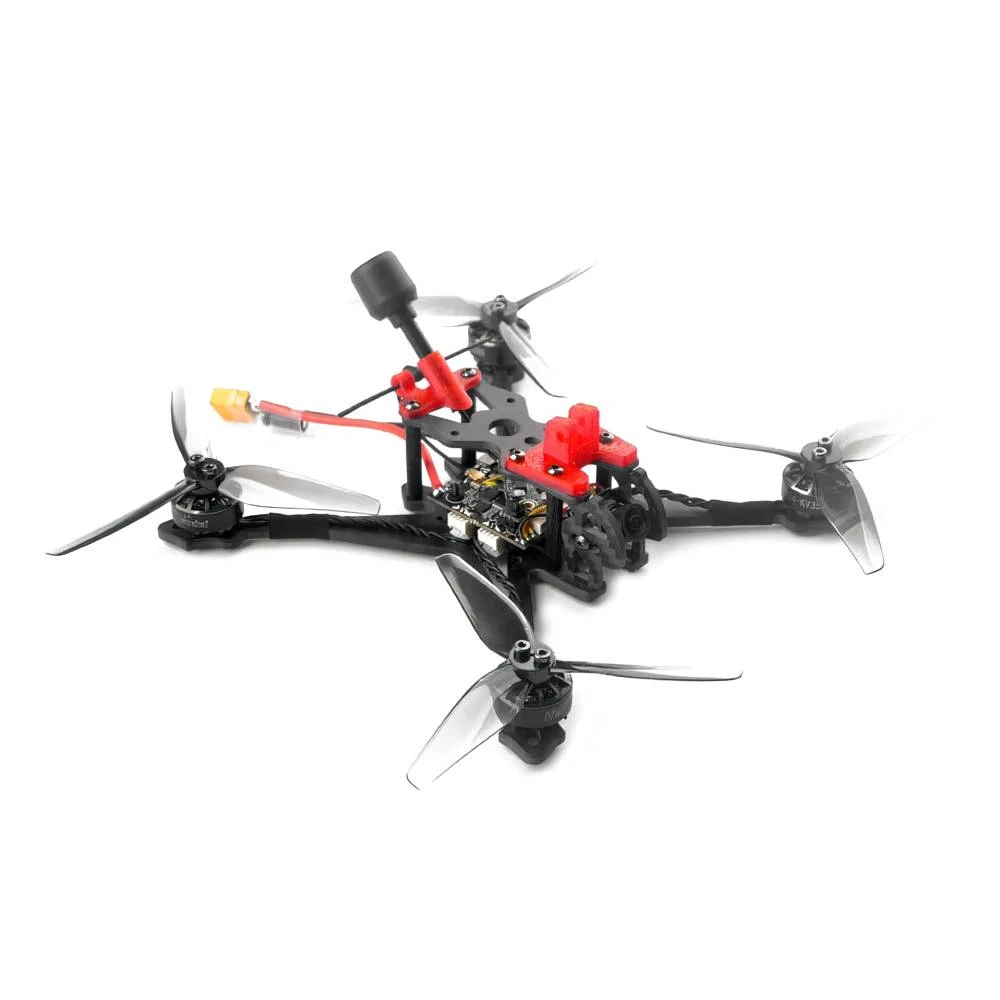

Happymodel Crux35 4S Analog Freestyle Racing Drone W/ Caddx Ant Camera

The Happymodel Crux35 Analog is an ultra-lightweight 3.5″ drone by Happymodel is an excellent micro racing drone that comes with the CrazyF411 flight controller, EX1404 brushless motors, and the CaddxAnt FPV Camera. The HQPROP 3.5-inch three-blade propellers ensure the largest thrust-to-weight ratio.

Receiver options: Integrated SPI ELRS or SPI FrSky D8/D16

Note: SPI FrSky version comes with Betaflight 3.5.7 firmware in order to get a better RSSI range. Bind code is “Frsky_bind” in the CLI Command.

VIDEO: Long Flight time Rippin // Crux35 // Super Agile!!

Features

• Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver
• Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
• High efficiency EX1404 power system
• Analog video transmission
• Supports 3-4S battery

Specifications

• Receiver option: SPI ExpressLRS 2.4GHz or SPI Frsky D8/D16 (S-FHSS compatible)
• Size: 130mmx130mmx45mm (without propellers)
• Flying time: 9min~15min 4s 750mah battery
• Weight: Crux35 Analog 87gram
• Product name: Crux35 Analog
• Camera option: Caddx Ant
• Wheelbase: 150mm
• Brand: Happymodel

CADDX ANT CAMERA

• Model: Caddx Ant – 1200TVL 1.8mm FPV Nano Camera (14×14)
• Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000
• Dimensions: 14*14mm (with a bracket to 19*19mm)
• TV System: NTSC & PAL (Changeable)
• Image Sensor: 1/3″ CMOS Sensor
• Min. Illumination: [email protected]
• Horizontal Resolution: 1200TVL
• Work Temperature: -20C~+60C
• S/N Radio: >52dB (AGC OFF)
• Wide Power Input: DC 3.7-18V
• Work Humidity: 20%~80%
• Synchronization: Internal
• Auto Gain Comtrol: Yes
• Video Output: CVBS
• WDR: Global WDR
• Image: 16:9 or 4:3
• Weight: 2g (N.W.)
• Menu: Support
• DNR: 3D DNR
• Lens: 1.8mm
• Color: Black
• BLC: Yes

OVX303 5.8Ghz VTX

• Transmitting Power: 0/RCE/25mw/100mw/300mw
• Weight: 1.5gram without antenna
• Current (5v): <650ma (300mw)
• Frequency: 5.8G 40CH
• Power supply: DC 5V
• Model: OVX303

CrazyF411 FC

• Power supply: 2-4S battery input (DC 8V-17V)
• Built-in Frsky D8/D16 SPI receiver built-in 2.4G Power Amplification
• Built-in voltage detectionFirmware target: MATEKF411RX
• Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Built-in Betaflight OSD(SPI Control)
• Board size: 28.5 * 28.5MM
• Built-in Current meter
• Built-in 5V 1.5A BEC

ONBOARD ESC

• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Factory firmware: O_H_5_REV16_8.HEX
• Support BLHeliSuite programmable
• MCU upgraded to EFM8BB21
• Default protocol: DSHOT300

PROPELLERS

• Propeller Diameter: 3.5 inch
• Material: PolyCarbonate
• Hub Thickness:4.7mm
• Hub Diameter: 10mm
• Shaft :1.9/1.5/1.9mm
• Adaptor Rings: NO
• Weight: 1.5g
• Blades : 3
• Pitch: 2

MOTORS

• Motor Dimension(Dia.*Len):Φ15mm*15mm
• Shaft Diameter: Φ1.5mm
• Configurration:9N12P
• Stator Diamter:14mm
• KV options: KV3500
• Stator Length:4mm
• Model: EX1404
• Weight(g):9g

Recommended (Not Included)

• Battery: 4S 750mAh or maximum 4S 1100mAh

Includes

• 1X Happymodel Crux35 4S Analog Freestyle Racing Drone w/ Caddx Ant Camera (ELRS or FrSky Options)
