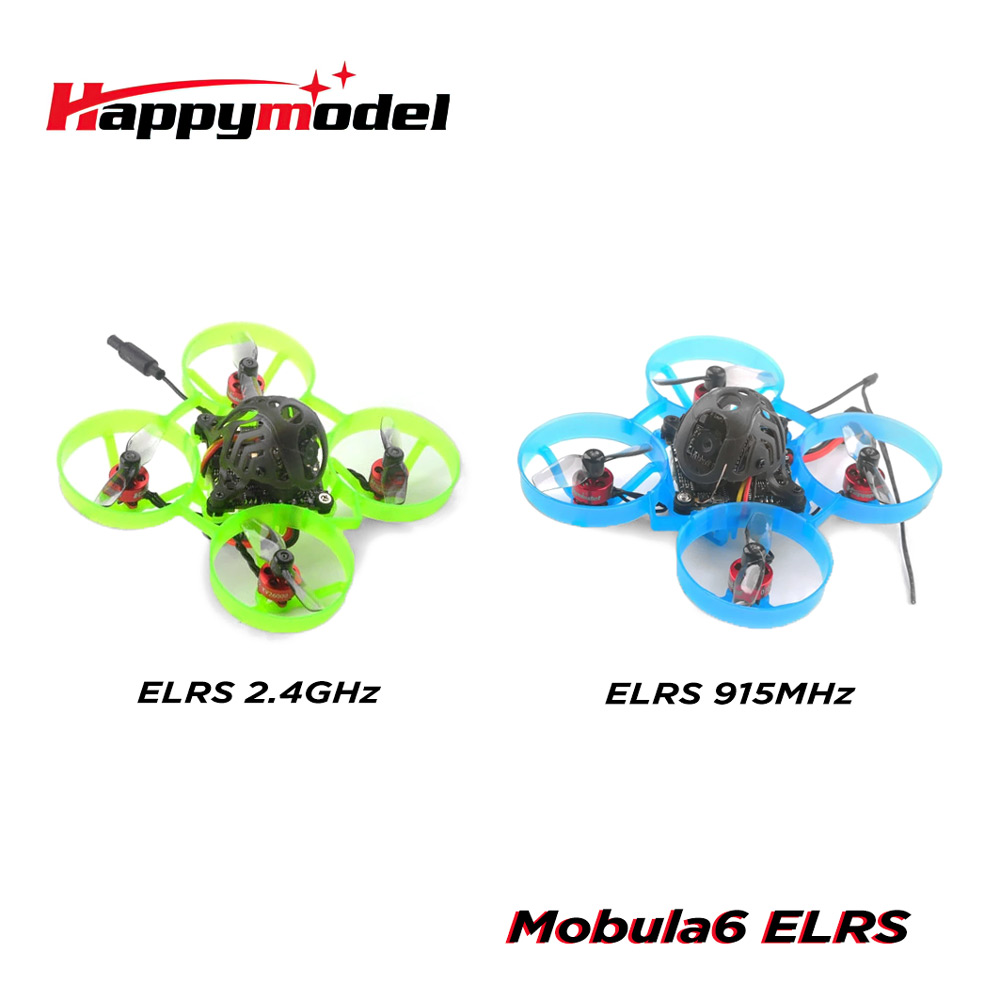

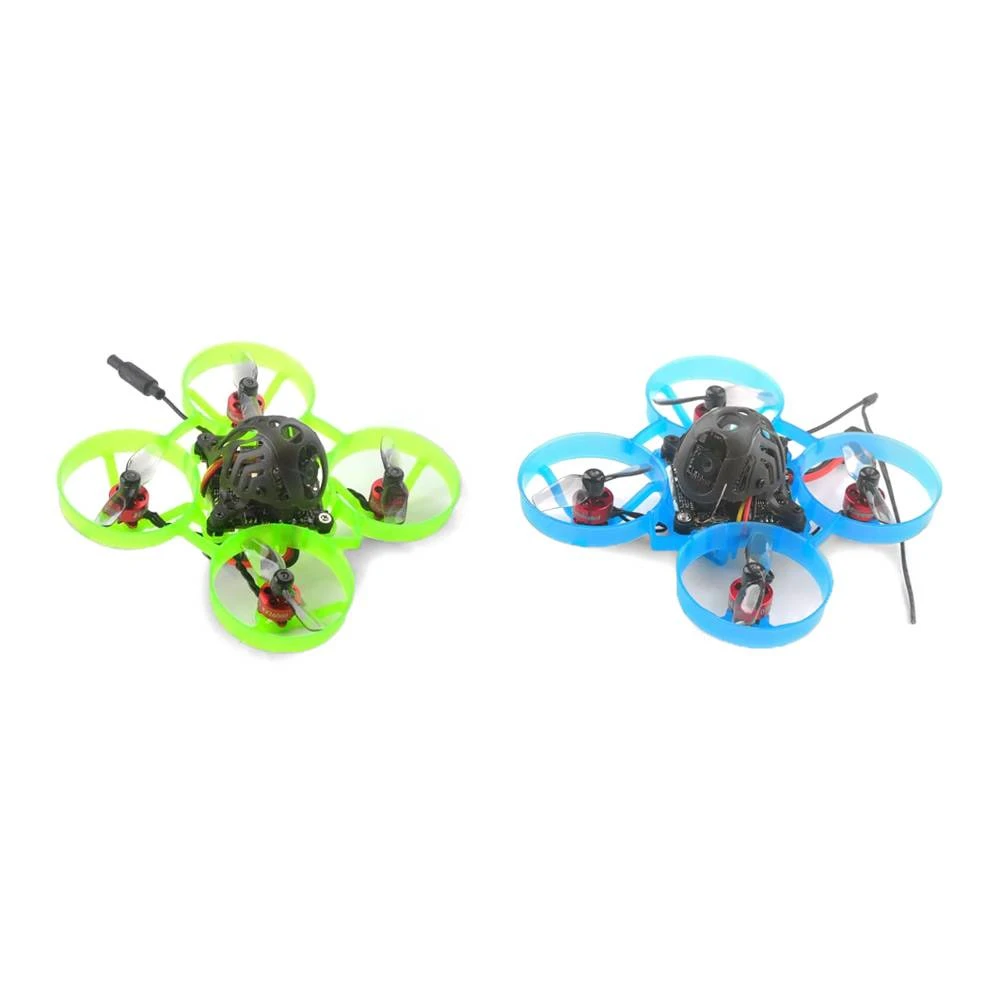

Happymodel Mobula6 1S 65mm Brushless Whoop W/ RunCam Nano 3 – ELRS

The Happymodel Mobula6 1S Whoop is a great racing FPV drone! The Mobula6 is a smooth and agile brushless drone that comes with the RunCam Nano 3, 0802 19000KV Motors, and many other cool features and specs that make this whoop a must-have! Now with Built-In ELRS Receivers!

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable.

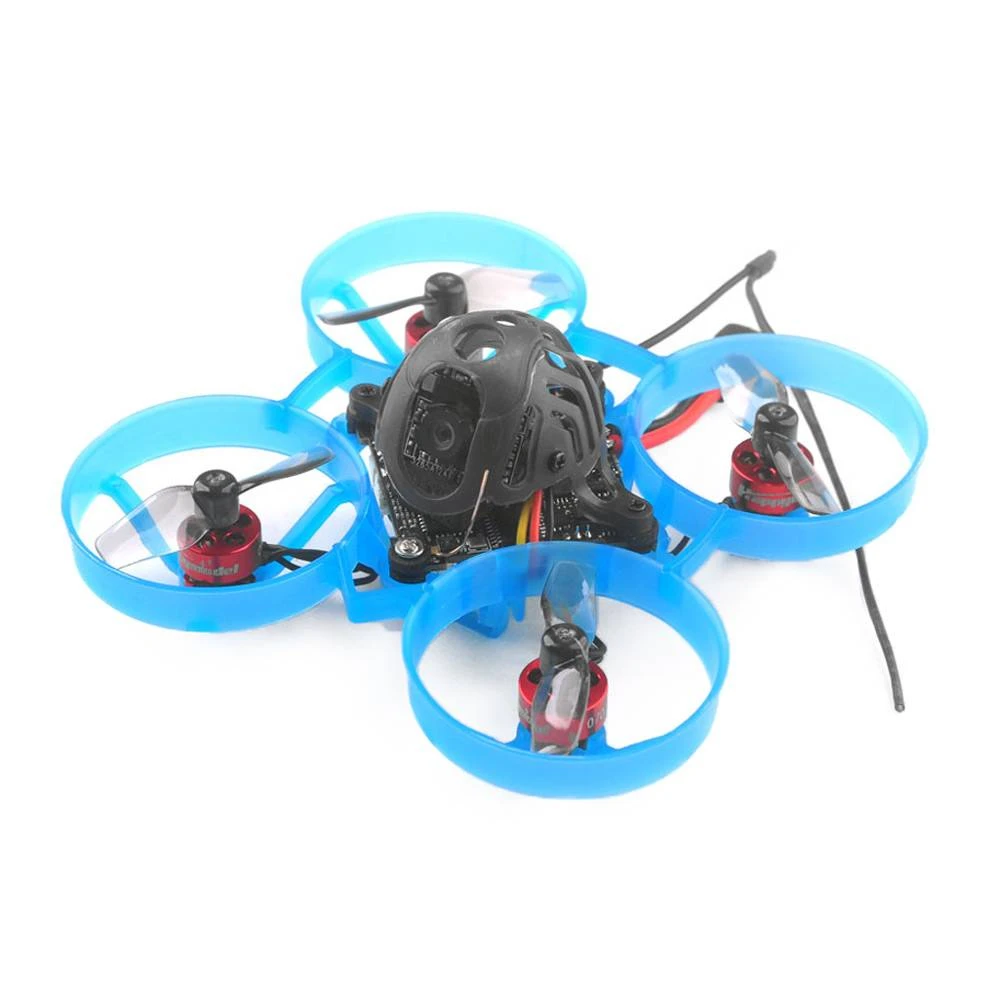

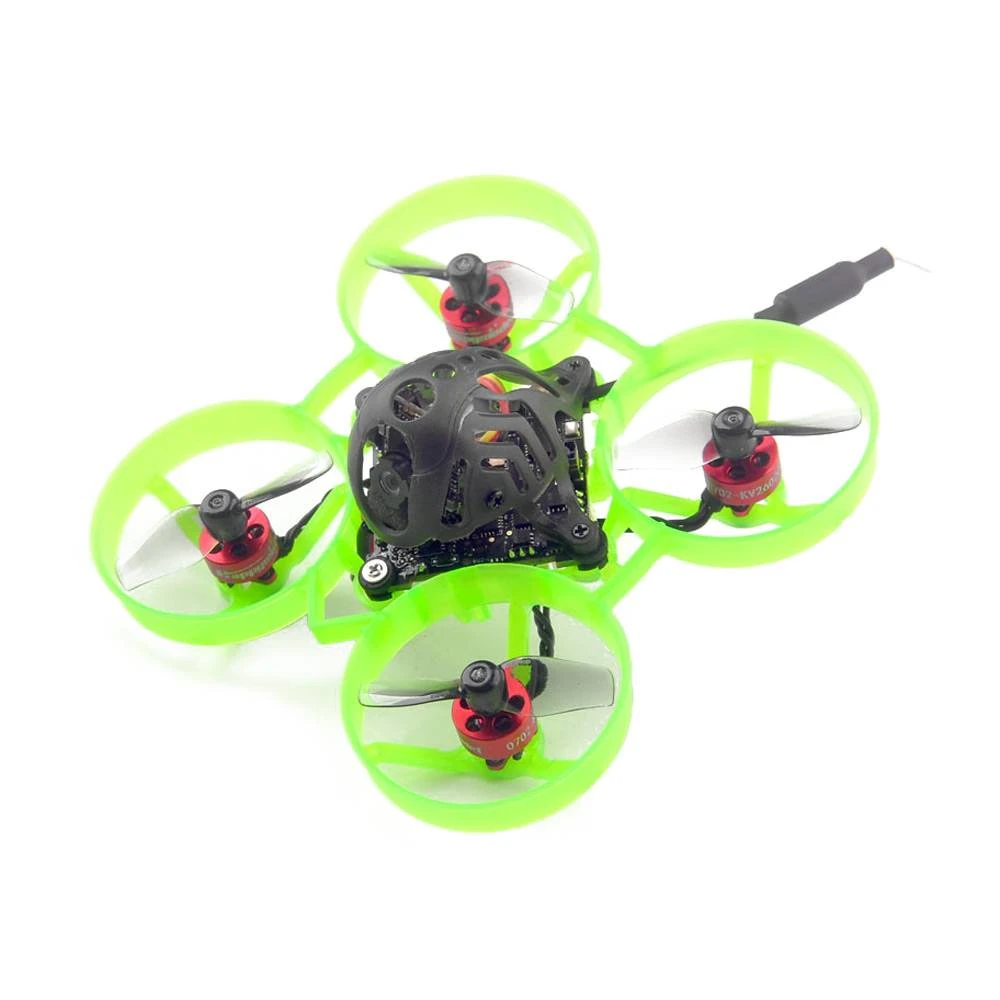

Receiver options: ELRS 915MHz or ELRS 2.4GHz

VIDEO: Mobula6 ELRS now with ULTIMATE RANGE!

Features

• Built-In ExpressLRS Receiver Options
• 1S 65mm Brushless HD Whoop
• Compatible with 1S Lipo/LIHV
• RunCam Nano 3 Camera
• Adjustable Camera Angle
• Smooth and Agile Flight

Specifications

• Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version
• Frame Color: 2.4GHZ- Green / 915MHz – Blue
• Size: 80x80mx7mm
• Brand: Happymodel
• Wheelbase: 65mm
• Weight: 18.7g
• Voltage:1S

MOTOR

• Motor Dimensions: 9.5x14mm
• No.of Cells (Lipo): 1S only
• Model: SE0802 KV19000
• Stator Diameter: 7mm
• Configuration: 9N12P
• Shaft Diameter: 1mm
• Stator Length: 2mm
• Weight: 1.46g

PROPELLERS

• Center Hole Inner diameter: 1.0mm
• Prop Disk Diameter: 31mm
• Center Thickness: 5mm
• HQprop31mm
• Weight:0.2g

FC

• ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver
• CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
• CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver
• Built-in ExpressLRS 2.4G/915MHz/868MHz receiver
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Sensor: MPU-6000(SPI connection)
• Built-in Betaflight OSD(SPI Control)
• Center Hole Inner diameter:1.0mm
• Board size: 28.5 * 28.5MM
• Prop Disk Diameter:31mm
• Built-in voltage detection
• Center Thickness:5mm
• Built-in 5V 1A BEC
• Built-in 5.8G VTX
• Weight:0.2g

ONBOARD 4-in-1 ESC

• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Factory firmware: O_H_5_REV16_7.HEX
• Support BLHeliSuite programmable
• MCU upgraded to EFM8BB21
• Default protocol: DSHOT600

ONBOARD 5.8GHZ VTX

• Frequency: 5.8GHz 5bands 40 channels
• Current consumption: 300mA(type)
• With Race bandSmartaudio ready
• Output power: 25mw-200mw
• Input voltage: 3.3V 5.5V
• Frequency: 40CH

RUNCAM NANO 3 CAMERA

• Signal System: PAL/NTSC Non-Switchable
• Dimensions: L14mm*W14mm*H9mm
• Current: 110mA@5V [email protected]
• Min. Illumination: [email protected]
• Horizontal Resolution: 800TVL
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Lens : 2.1mm(M8) FOV 160°
• Image Sensor: 1/3″ CMOS
• Model: RunCam Nano 3
• Housing Material: ABS
• Power:DC 3-5.5V
• S/N Ratio: >50dB
• Net Weight: 1.2g
• Day/Night: Color
• D-WDR: Auto

BATTERY

• Continuous Discharge Rate: 30C
• Weight: 8gConnector: PH2.0
• Size: 57mmx12mmx7mm
• Capacity:300mAh
• Voltage:3.8v

Includes

• 1x Happymodel Mobula6 1S 65mm Brushless Whoop w/ RunCam Nano 3 – ELRS (2.4GHz or 915MHz options)
• 1x  HQProp 31mm Bi-Blade Propeller (Set of 4)
• 4x 1S 300mAh 30C LiHV Battery
• 1x 1S Lipo/LIHV USB Charger
• 1x Screwdriver
• 1x Prop Tool
