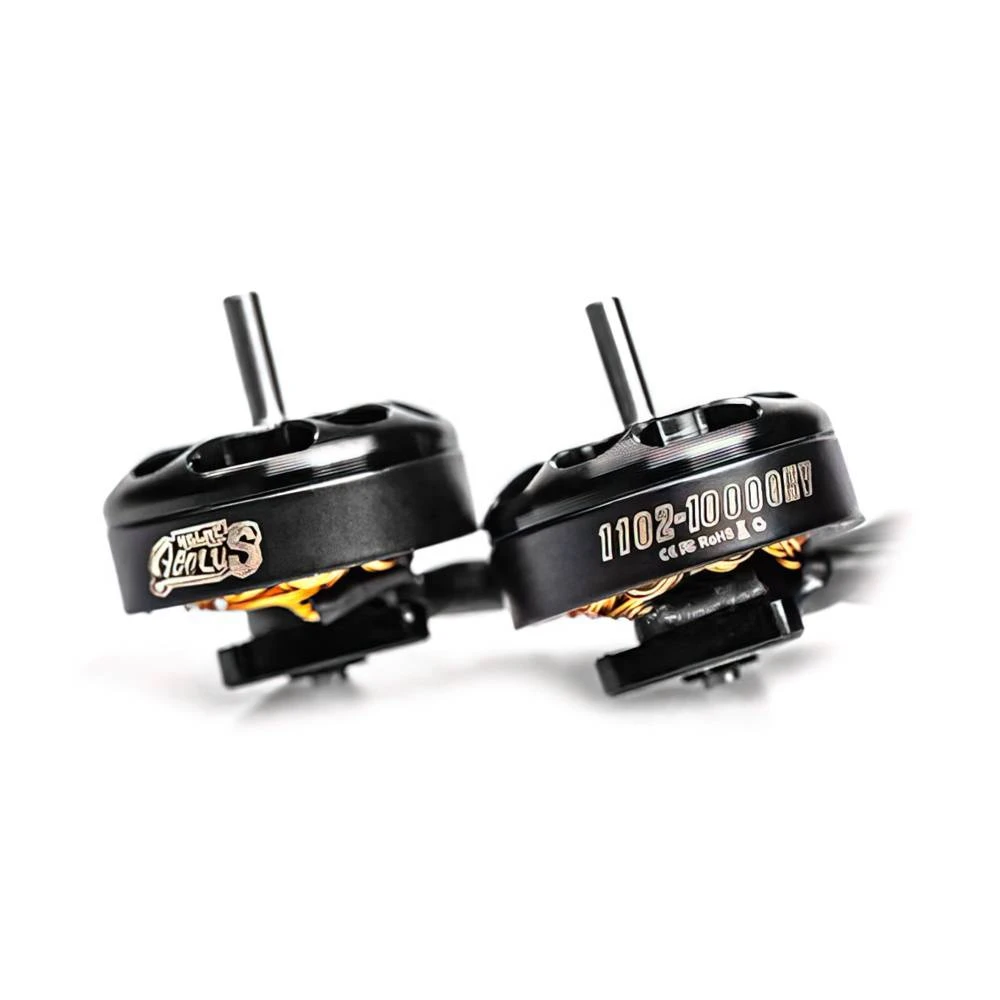

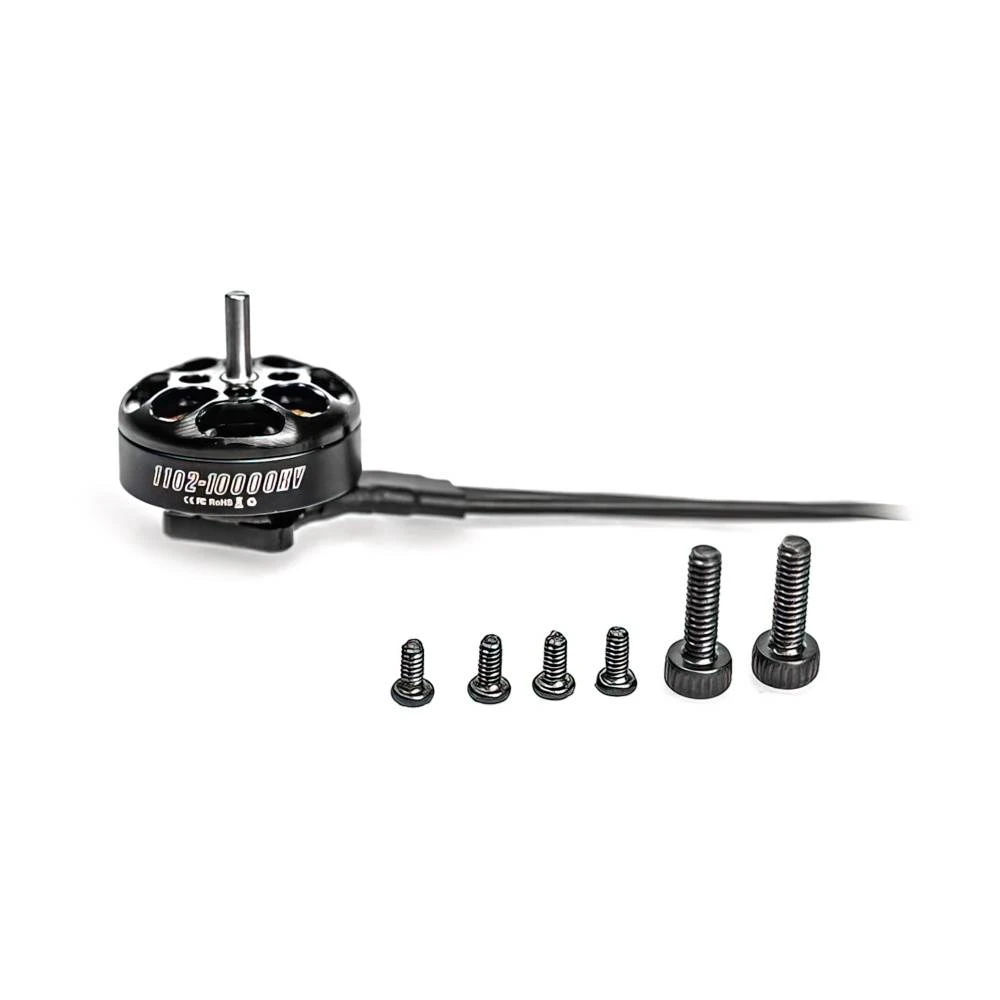

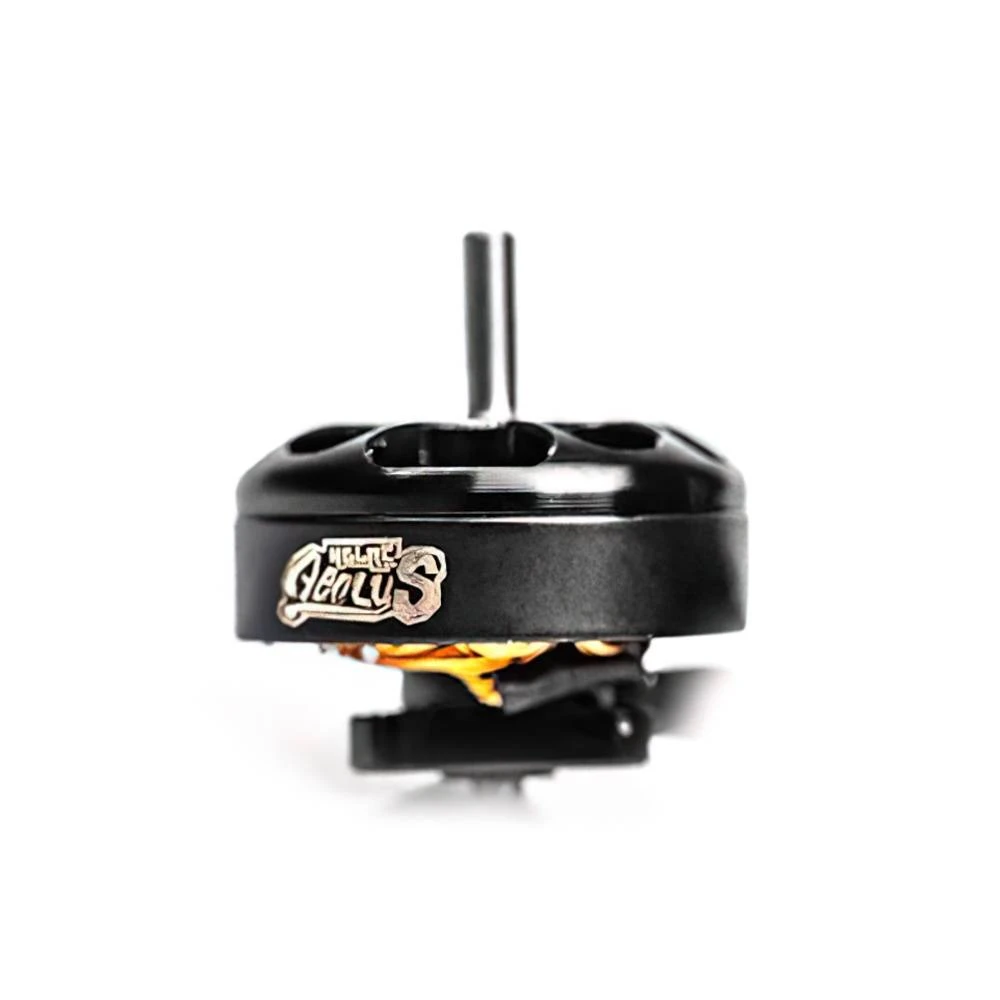

HGLRC AEOLUS 1102 Motor – 10000KV/18000KV

The HGLRC AEOLUS 1102 is a powerful and efficient yet small brushless motor that is smooth and stable. Made with high temperature resistant oxygen-free copper wire. This motor is suitable for 40mm (2″) props.

Choose between two KV options: 10000KV or 20000KV

VIDEO: HGLRC 1102 18000KV – 2 inch

Features

• Designed for a 2″ light toothpick or FPV drone
• Slim body with strong power.
• 1102 Micro Motor

Specifications

HGLRC AEOLUS 1102 10000KV

• Wire length (including connector): 40mm
• Motor Dimension: 14mm x 15mm
• Recommended Prop(inch): 40mm
• Max Continuous Current: 4.10A
• Mounting hole: 6.6×1.4mm
• Maximum Power: 32.80W
• No.of Cells(Lipo): 8V(2S)
• No.of Rotor poles: 12P
• No.of Stator Arms: 9N
• Motor: KV10000
• Rally: 73.28g
• ESC: >5-10A
• Weight: 3.2g

HGLRC AEOLUS 1102 18000KV

• Wire length (including connector): 40mm
• Recommended Prop(inch): 40mm
• Motor Dimension: 14mm x 15mm
• Max Continuous Current: 4.70A
• No.of Cells(Lipo): 4.2V(2S)
• Mounting hole: 6.6×1.4mm
• Maximum Power: 19.74W
• No.of Rotor poles: 12P
• No.of Stator Arms: 9N
• Rally: 48.01g
• ESC: >5-10A
• Weight: 3.2g

Includes

• 1x HGLRC AEOLUS 1102 Motor (Choose 10000KV or 18000KV)
